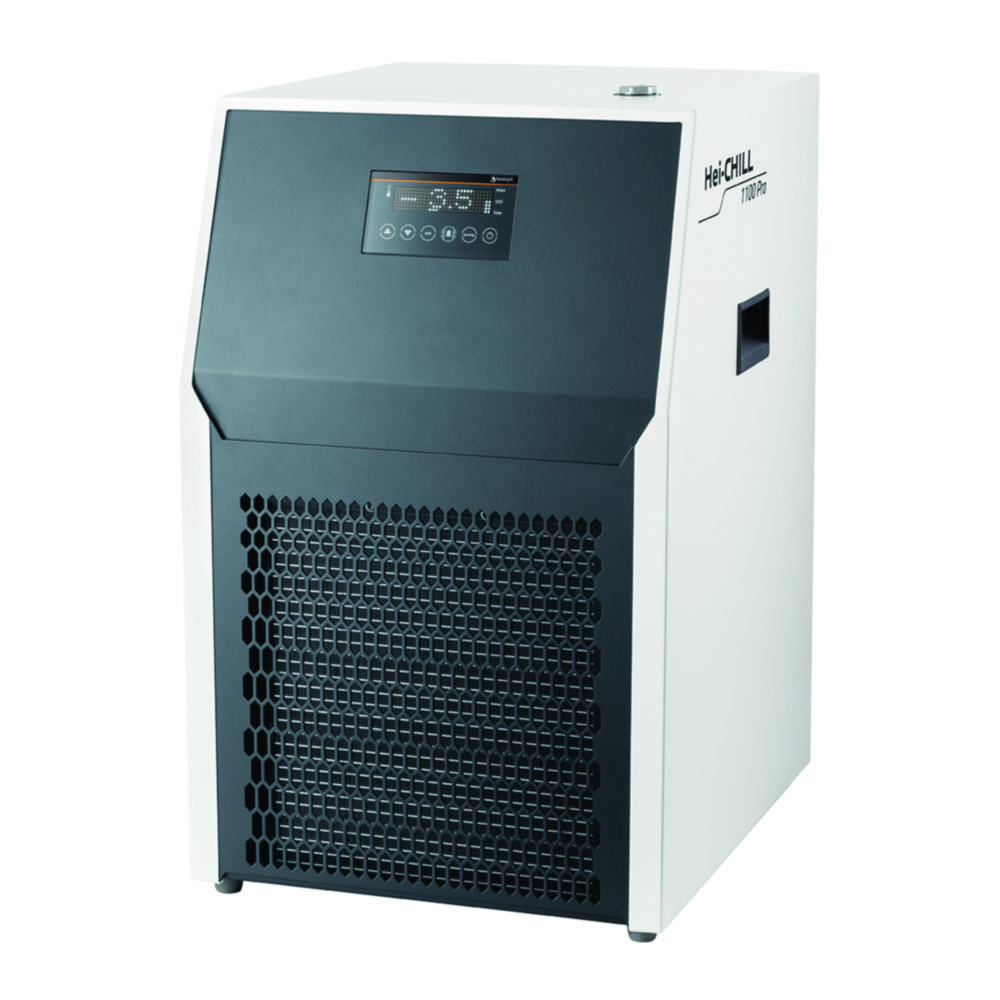

Chiller Hei-Chill 1100 Pro

Heidolph Scientific (761904)

Chiller Hei-Chill 1100 Pro
A cooling capacity of up to 1100 watt allows an effective and powerful cooling of every application, even at low temperatures, or the supply of multiple evaporation systems by a recirculation chiller. Maximum performance for achieving the set target values quickly and for keeping high temperature stability even when using high-polar solvents or during continuous evaporation processes, e.g. in combination with the automatic Hei-VOLUME Distimatic Pro module

-With natural refrigerant (R-290)
-Efficient cooling system with low-energy fans
-Touchscreen controller with glass surface and integrated level indicator
-Low noise level due to speed-controlled fans
-RS-232 interface
-Controlled e.g. via Hei-VAP Expert Control, Ultimate Control or via Heidolph laboratory software process solutions

PN	Manuf. PN	Supplier		Depth~mm	Flow rate	Height~mm	Max. pressure~bar	PK	Type	Weight~kg	Width~mm	Pressure	Temperature	General	Price	Quantity	Status	Add
6326198	591-01660-00	Heidolph Scientific		460	10.5 l/min	620	25	1	Hei-Chill 1100 Pro	41	380	25 bar	-10 ... 40 °C		7711.76 EU

Chiller Hei-Chill 400 Pro

Heidolph Scientific (761809)

Chiller Hei-Chill 400 Pro
Space-saving device with 400 watts of cooling power for a variety of evaporation tasks in the laboratory. Its low weight makes it particularly suitable for flexible positioning on the laboratory bench or in a fume hood. It can also be easily positioned underneath the laboratory bench due to its increased pump capacity.

-With natural refrigerant (R-290)
-Consumption-optimised control
-Low noise level
-RS-232 interface
-Controlled e.g. via Hei-VAP Expert Control, Ultimate Control or via Heidolph laboratory software process solutions

PN	Manuf. PN	Supplier		Depth~mm	Flow rate	Height~mm	Max. pressure~bar	PK	Type	Weight~kg	Width~mm	Pressure	Temperature	General	Price	Quantity	Status	Add
6326274	591-01640-00	Heidolph Scientific		370	6 l/min	405	25	1	Hei-Chill 400 Pro	18	260	25 bar	-10 ... 40 °C		5598.73 EU

Chiller Hei-Chill 700 Pro

Heidolph Scientific (761899)

Chiller Hei-Chill 700 Pro
Powerful 700 watt cooling for every evaporation process and large volumes. High performance for achieving the target temperature quickly and for keeping high temperature stability even when using high-polar solvents.

-With natural refrigerant (R-290)
-Efficient cooling system with low-energy fans
-Touchscreen controller with glass surface and integrated level indicator
-Low noise level due to speed-controlled fans
-RS-232 interface
-Controlled e.g. via Hei-VAP Expert Control, Ultimate Control or via Heidolph laboratory software solutions

PN	Manuf. PN	Supplier		Depth~mm	Flow rate	Height~mm	Max. pressure~bar	PK	Type	Weight~kg	Width~mm	Pressure	Temperature	General	Price	Quantity	Status	Add
6326309	591-01650-00	Heidolph Scientific		455	10.5 ml/min	505	25	1	Hei-Chill 700 Pro	39	355	25 bar	-10 ... 40 °C		7139.41 EU

Circulator bath HRC 2 lite

IKA-Werke GmbH & Co.KG (696141)

Circulator bath HRC 2 lite
Compact peripheral device designed for simple tempering tasks from -10 to 100 °C. Especially suitable for tempering bioreactors and laboratory reactors, open bath solutions or as a tempering source for measuring devices.
The pressure and suction pump enables the operation of several small applications as well as external applications in open baths in combination with a level controller.

-Natural refrigerant R290
-Easy-to-clean stainless steel mesh filter
-Interfaces: RS 232, USB
-Optional control and monitoring via labworldsoft® and other laboratory software

Scope of supply: Circulator bath, 2 x olive for DN 8 hoses, USB A-B cable

PN	Manuf. PN	Supplier	Ext. height~mm	PK	Type	Weight~kg	Temperature	Heating capacity~W	Plug type	Temperature stability	Price
6325256	0020104313	IKA-Werke GmbH & Co.KG	385	1	HRC 2 lite	24.9	-10 ... 100 °C	1000	UK	± 0,05 °K (70 °C)	4476.47 EU
6325257	0020104314	IKA-Werke GmbH & Co.KG	385	1	HRC 2 lite	24.9	-10 ... 100 °C	1000	CH	± 0,05 °K (70 °C)	4950.00 EU
6491839	0020104311	IKA-Werke GmbH & Co.KG	385	1	HRC 2 lite	24.9	-10 ... 100 °C	1000	EU	± 0,05 °K (70 °C)	4835.00 EU

Compact Recirculating Cooler, F-Series

Julabo GmbH (7777)

Compact Recirculating Cooler, F-Series
-Environmentally friendly operation with low energy consumption
-No side vents, instruments can be placed right next to other equipment
-All wetted parts made of stainless steel or high grade plastic
-Large, bright LED display
-Compact design and small foot print
-Splash-proof keypad
-Drain tap
-Easy filling

PN	Manuf. PN	Supplier	Ext. height~mm	PK	Type	Weight~kg	Temperature	IP code	Price
9698525	9620025	Julabo GmbH	520	1	F250	27	-10 ... 40 °C	IP 20	4217.73 EU
9698526	9620100	Julabo GmbH	640	1	F1000	45	0 ... 40 °C	IP 20	7470.59 EU
9698528	9620050	Julabo GmbH	590	1	F500	37	0 ... 40 °C	IP 20	6063.53 EU

Recirculating cooler FL

Julabo GmbH (7128)

Recirculating cooler FL
-Splash-proof keypad with integral mains switch
-Large, bright LED display
-Reliable Microprocessor PID temperature control
-Filling level indicator
-Powerful immersion pumps, suitable for continuous operation
-Permissible temperature within return line: 80 °C max.
-Easy filling from the top with hinged protective lid
-Low liquid level protection with visual and audible alarm signal
-Stainless steel bath tanks
-Removable venting grille for cleaning of the condenser
-Front drain
-No side vents
-RS232 interface for PC connection
-Pressure indicator

PN	Manuf. PN	Supplier	Ext. height~mm	PK	Type	Weight~kg	Temperature	IP code	Price
9698530	9660003	Julabo GmbH	600	1	FL300	35	-20 ... 40 °C	IP 21	5952.06 EU
9698531	9661006	Julabo GmbH	620	1	FL601	48	-20 ... 40 °C	IP 21	7885.00 EU
9698532	9661012	Julabo GmbH	640	1	FL1201	78	-20 ... 40 °C	IP 21	10238.24 EU
9698533	9663012	Julabo GmbH	640	1	FL1203	91	-20 ... 40 °C	IP 21	11797.06 EU
9698534	9661017	Julabo GmbH	640	1	FL1701	78	-20 ... 40 °C	IP 21	11069.41 EU
9698535	9663017	Julabo GmbH	640	1	FL1703	91	-20 ... 40 °C	IP 21	12182.35 EU
9698536	9663025	Julabo GmbH	1150	1	FL2503	146	-20 ... 40 °C	IP 21	16628.24 EU
9698537	9666025	Julabo GmbH	1150	1	FL2506	158	-15 ... 40 °C	IP 21	16102.94 EU
9698538	9663040	Julabo GmbH	1150	1	FL4003	148	-20 ... 40 °C	IP 21	18884.71 EU
9698539	9666040	Julabo GmbH	1150	1	FL4006	157	-20 ... 40 °C	IP 21	18970.59 EU
9698540	9666070	Julabo GmbH	1480	1	FL7006	252	-20 ... 40 °C	IP 21	28372.94 EU
9698541	9666110	Julabo GmbH	1480	1	FL11006	248	-20 ... 40 °C	IP 21	29397.06 EU
9698550	9666200	Julabo GmbH	1610	1	FL20006	375	-25 ... 40 °C	IP 21	42808.82 EU

Recirculating cooler VALEGRO

Julabo GmbH (866941)

Recirculating cooler VALEGRO
The modern, user-friendly recirculating cooler is characterised by its compact design and precise temperature control, and is suitable for a wide range of cooling and heating tasks in laboratories, industry and research. The refrigeration circuit works with environmentally friendly, natural refrigerant and can be customised to different applications thanks to the infinitely adjustable pump. Helpful features such as timer, autostart, data recording, a removable venting grid, and an illuminated and easy-to-clean level indicator support daily work. With the intuitive menu navigation, all functions are easily accessible via the easy-to-read, ergonomically tilted OLED touch display. All interfaces (RS232, USB-C) are located directly below the display and are easy to use from the front. Warnings and messages are displayed in easy-to-understand full-text language. Integrated castors facilitate handling on and under the lab bench.

PN	Manuf. PN	Supplier		Ext. height~mm	PK	Programmable	Type	Weight~kg	Temperature	Plug type			IP code	General	Price	Quantity	Status	Add
6522810	9610035	Julabo GmbH		450	1		VALEGRO 350	26	-20 ... 40 °C				IP 21		5465.88 EU
6522811	9610050	Julabo GmbH		450	1		VALEGRO 500	26	-20 ... 40 °C				IP 21		5838.24 EU

Unichiller(tower housing) with air cooled refrigeration

Peter Huber Kältemaschinenbau (591067)

Unichiller® (tower housing) with air cooled refrigeration
Many applications depend on a reliable source of cooling. Circulating chillers in the Unichiller range offer an ideal solution for environmentally friendly and economical cooling in laboratory and industry. There are over 50 air and water cooled models to choose from, with cooling powers from 0.3 to 50 kW. Efficient energy management in all Huber chillers ensures low operating costs and reduced usage of valuable fresh water. Huber circulating chillers are a resource saving solution with a quick return on investment.
Options on request: heating, natural refrigerant, externally open applications, winter option, outdoor setup.

PN	Manuf. PN	Supplier	Cooling capacity kW at 15/0/-10/-20°C	Dimensions (W x D x H)~mm	PK	Type	Working Temp. range~°C	Pump max.~l/min / bar	Price
4687691	3013.0067.01	Peter Huber Kältemaschinenbau	1,7 / 0,9 / 0,4 / --	450 x 510 x 1230	1	Unichiller® 017T	-10 ... 40	25 / 3,0	25147.06 EU
4687692	3054.0012.01	Peter Huber Kältemaschinenbau	2,5 / 1,2 / 0,6 / --	450 x 510 x 1230	1	Unichiller® 025T	-10 ... 40	25 / 3,0	27279.41 EU
9859302	3024.0057.01	Peter Huber Kältemaschinenbau	2,0 / 2,0 / 1,5 / 0,8	450 x 510 x 1230	1	Unichiller® 020T	-20 ... 40	25 / 3,0	30515.88 EU
9859304	3014.0052.01	Peter Huber Kältemaschinenbau	4,0 / 2,5 / 1,1 / --	500 x 552 x 1451	1	Unichiller® 040T	-10 ... 40	26 / 3,0	34228.82 EU
9859305	3055.0002.01	Peter Huber Kältemaschinenbau	4,5 / 4,0 / 2,7 / 1,4	500 x 552 x 1451	1	Unichiller® 045T	-20 ... 40	26 / 3,0	38431.76 EU
