Data Logger EBI 20-T1 / EBI 20-TE1

Xylem Analytics Germany (EBRO) (7110)

Data Logger EBI 20-T1 / EBI 20-TE1
Applications:
-Transport
-Storage monitoring
-Refrigeration areas and cold rooms
Features:
-Waterproof
-Visual alarm
-Max / min values on display
-Stores 40000 readings, can be read off at any time
-Replaceable battery

Scope of supply:
EBI 20-T1: Temperature Logger
EBI 20-T1-Set: Temperature Logger, evaluation software, Interface
EBI 20-TE1: Temperature Logger with external probe
EBI 20-TE1-Set: Temperature Logger with external sensor, evaluation software, Interface
Specifications
Measuring range temperature: -30 to +70 °C
Accuracy temperature: ±0.5 °C (-20 to +40 °C); ±0.8 °C for remaining measuring range
Resolution temperature: 0.1 °C
Memory: 40000 samples
Sensor: NTC
Operating temperature:
Storage temperature: -30 to +70 °C
-40 to +70 °C
Measuring period: 1 minute to 24 hours
Measuring mode: immediate loop measurement, measurement from starting point, start immediately until memory full, start/stop measuring, start when button pressed
Power supply: 3 V lithium (CR 2450), can be replaced by user
IP code: IP 67
Housing : ABS
Dimensions (L x W x H): 69 x 48 x 22 mm
Weight: approx. 45 g

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Width~mm	Accuracy temperature~± °C	Measuring range temperature~°C	Range start temperature~°C	Storage readings	General	Price
9908069	1601-0042	Xylem Analytics Germany (EBRO)	69	22	1	EBI 20-T1	48	0.8	70	-30	40000	Dangerous substance	Inquire
6228382	1601-0043	Xylem Analytics Germany (EBRO)	69	22	1	EBI 20-TE1	48	0.8	70	-30	40000	Dangerous substance	Inquire
6240382	1601-0047	Xylem Analytics Germany (EBRO)	69	22	1	EBI 20-TE1-Set	48	0.8	70	-30	40000	Dangerous substance	Inquire
9908073	1601-0046	Xylem Analytics Germany (EBRO)	69	22	1	EBI 20-T1-Set	48	0.8	70	-30	40000	Dangerous substance	Inquire

Temperature / Humidity data logger EBI 20-TH1

Xylem Analytics Germany (EBRO) (2054)

Temperature / Humidity data logger EBI 20-TH1
Applications:

-Reliable temperature and temperature / humidity recording
-Transport
-Storage monitoring
-Refrigeration areas and coldrooms

Features:

-Excellent price / performance ratio
-Visual Alarm
-Max. / min. values on display
-Stores 40000 readings, can be read off at any time
-Replaceable battery

Scope of supply:
EBI 20-TH1: Temperature humidity logger
EBI 20-TH1-Set: Temperature humidity logger, evaluation software, interface
Specifications
Measuring range temperature:
Measuring range humidity: -30 to 70 °C
0 to 100 % R.H.
Accuracy temperature: ±0.5 °C (-20 to 40 °C); ±0.8 °C for remaining measuring range
Accuracy humidity: ±5 % R.H. (10 to 30 % R.H.)
±3 % R.H. (>30 % R.H.)
Resolution temperature:
Resolution humidity: 0.1 °C
0.1 % R.H.
Memory: 40000 samples
Sensor: NTC for temperature / capacitive for humidity
Measuring period: 1 minute to 24 hours
Measuring mode: immediate loop measurement, measurement from starting point, start immediately until memory full, start/stop measuring, start when button pressed
Power supply: 3 V lithium (CR 2450), can be replaced by user
IP code: IP 52
Housing: ABS
Dimensions (L x W x H): 69 x 48 x 22 mm

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Width~mm	Accuracy humidity~± % r.F.	Accuracy temperature~± °C	Measuring range end humidity~% r.F.	Measuring range temperature~°C	Range start humidity~% r.F.	General	Price	Quantity	Status	Add
9908070	1601-0044-02	Xylem Analytics Germany (EBRO)		69	22	1	EBI 20-TH1	48	5	0.8	100	70		Dangerous substance	Inquire
9908074	1601-0048-02	Xylem Analytics Germany (EBRO)		69	22	1	EBI 20-TH1-Set	48	5	0.8	100	70		Dangerous substance	Inquire

Wireless temperature data logger EBI 25-TH

Xylem Analytics Germany (EBRO) (8261)

Wireless temperature data logger EBI 25-TH
Wireless temperature and humidity data logger. With internal temperature sensor and external humidity sensor.

-Readout via wireless interface
-Replaceable battery
-LCD display
-Memory for 288 values per channel

The IF 400 base station and the Winlog.web / Winlog.wave PC software (see "Accessories for EBI 25 data loggers) are required for programming and evaluating the EBI 25TH data logger.

Scope of supplyy: temperature and humidity data logger, operating manual
Specifications
Sensors:
Channels:
Measuring cycle: Temperature: NTC / Humidity: capacitive
1 x internal, 1 x external
1 min ... 24 Hrs.
Temperature measuring range:
Humidity measuring range: -30 ... 60 °C
0 ... 100 % r.H
Temperature accuracy (±1 digit): ±0.5 °C (-20 °C ... 40 °C)
±0.8 °C (40.1 ... 60 °C)
Humidity accuracy (±1 digit): ±3 %
Temperature resolution:
Humidity resolution: 0.1 °C
0.1 % r.H
IP code: IP 20
Battery life: approx. 2 years
Operation and storage temperature: -30 ... 60 °C / -40 ... 85 °C
Dimensions (W x D x H): 48 x 27 x 95 mm
Power supply: 1 x Lithium battery 3.6 V, replaceable

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Width~mm	Sensor type	Weight kg	Type of auxiliary energy	Protection class	Accuracy temperature~± °C	General	Price	Quantity	Status	Add
7656516	1340-6202	Xylem Analytics Germany (EBRO)		27	95	1	EBI 25-TH	48	Temperature: NTC / Humidity: capacitive		1 x Litium battery 3.6 V	IP20	0.5	Dangerous substance	Inquire

Accessories for data logger LOG220E

DOSTMANN electronic GmbH (9827)

Accessories for data logger LOG220E

PN	Manuf. PN	Supplier		Description	PK									General	Price	Quantity	Status	Add
6311948	6020-0221	DOSTMANN electronic GmbH		Combined temperature/humidity sensor, -40 ... 70 °C / 0 ... 100 % R.H., 2 m silicon cable	1										102.94 EU
6311949	6020-0223	DOSTMANN electronic GmbH		CO2sensor, 0 ... 5000 ppm, 1.8 m cable	1										139.71 EU

Accessories for EBI 25 data loggers

Xylem Analytics Germany (EBRO) (8271)

Accessories for EBI 25 data loggers
Accessories for EBI 25 temperature and humidity data loggers.

PN	Manuf. PN	Supplier	Description	PK	Price
4704937	1220-0355	Xylem Analytics Germany (EBRO)	Power supply 24 V for flash light and buzzer combination AL 251	1	144.12 EU
4704961	1340-6233	Xylem Analytics Germany (EBRO)	Flash light and buzzer combination AL 251	1	426.47 EU
6252695	1340-6215	Xylem Analytics Germany (EBRO)	Holder AG 152	1	24.55 EU
6252696	1340-6211	Xylem Analytics Germany (EBRO)	External antenna AL 116 for increasing the transmission power of the base station	1	211.76 EU
6252697	1340-2490	Xylem Analytics Germany (EBRO)	Software Winlog.web	1	1757.35 EU
6327682	1248-0250	Xylem Analytics Germany (EBRO)	Protection box for EBI 25 TE/TX	1	250.00 EU
6492368	1340-2491	Xylem Analytics Germany (EBRO)	Software IQ/OQ Winlog.web	1	1726.47 EU

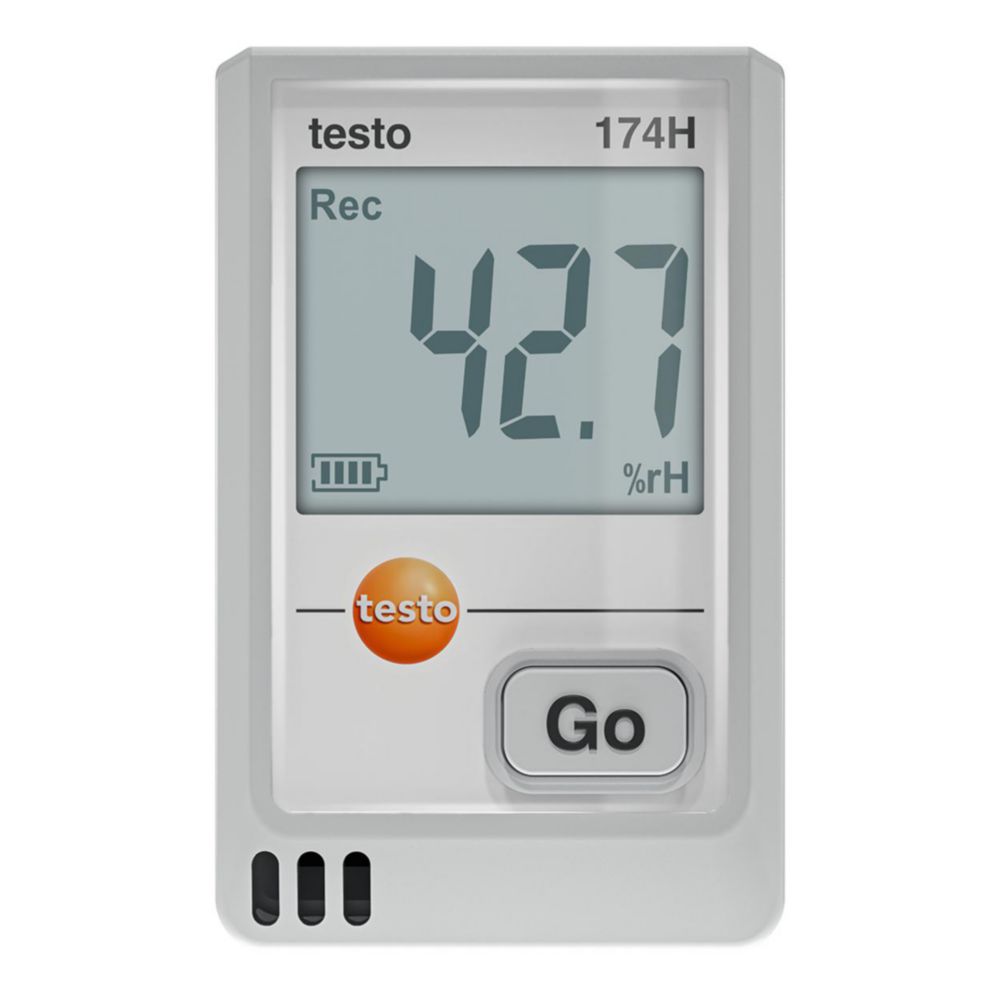

Mini temperature humidity logger testo 174 H

Testo SE & CO KGaA (866808)

Mini temperature humidity logger testo 174 H
The mini temperature humidity logger is used to monitor temperature and humidity-sensitive goods and to check the indoor climate. The device can store up to 16000 measured values and guarantees reliable protection against data loss thanks to automatic data backup in the event of an empty battery or battery change. Data can be read out quickly and easily via the USB-C interfaces without a separate readout station. The free ComSoft Basic software enables quick configuration and simple data analysis. It offers Excel export and PDF report generation, ensuring professional documentation. Certified according to HACCP.

Scope of supply: Mini temperature humidity logger, wall bracket, batteries, USB 2.0 data transfer cable, test report

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~g	Width~mm	Temperature				General	Price	Quantity	Status	Add
6523453	0572174101	Testo SE & CO KGaA		60	18.5	1	testo 174 H	35	38	-20 ... 70 °C					145.59 EU

Mini temperature humidity logger testo 174 H BT

Testo SE & CO KGaA (866812)

Mini temperature humidity logger testo 174 H BT
The mini temperature humidity logger is used to monitor temperature and humidity-sensitive goods and to check the indoor climate. The device can store up to 16000 measured values and guarantees reliable protection against data loss thanks to automatic data backup in the event of an empty battery or battery change. Thanks to the Bluetooth® connection, data can be read out directly at the measuring point up to 30 m away. The free testo Smart App enables simple and intuitive configuration as well as analysis of the measurement data. PDF reports and Excel exports can also be created in the app and supplemented with photos and comments. Certified according to HACCP.

Scope of supply: Mini temperature humidity logger, wall bracket, batteries, test report

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~g	Width~mm	Temperature				General	Price	Quantity	Status	Add
6523454	0572174301	Testo SE & CO KGaA		60	18.5	1	testo 174 H BT	35	38	-20 ... 70 °C					167.65 EU

PTFE filter AH 100

Xylem Analytics Germany (EBRO) (847370)

PTFE filter AH 100
The PTFE filter makes humidity probes dust-tight (IP 60) and thus prevents affecting the humidity measurement.

PN	Manuf. PN	Supplier		Description	For	PK	Type							General	Price	Quantity	Status	Add
6310155	1340-5627	Xylem Analytics Germany (EBRO)		PTFE filter		1	AH 100								79.41 EU

Stainless steel sintered filter AH 300

Xylem Analytics Germany (EBRO) (847374)

Stainless steel sintered filter AH 300
The stainless steel sintered filter increases the protection class to IP 40. The stainless steel used increases the mechanical protection and is highly resistant to corrosion, even in high-temperature applications.

PN	Manuf. PN	Supplier		Description	For	PK	Type							General	Price	Quantity	Status	Add
6281569	1340-5625	Xylem Analytics Germany (EBRO)		Stainless steel sintered filter		1	AH 300								144.12 EU

Temperature / Humidity / Shock data logger testo 184 G1

Testo SE & CO KGaA (10107)

Temperature / Humidity / Shock data logger testo 184 G1
Specifications
Battery life: 500 days ( at +25 °C, 15 min measuring rate)
Measuring range shock: 0 ... 27 g
Resolution: 0,1 g
Accuracy: ±0,1 g + 5 % of measured value
Memory: 64000 values + 1000 values (shock)

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Width~mm	Accuracy humidity~± % r.F.	Accuracy temperature~± °C	Measuring range end humidity~% r.F.	Measuring range temperature~°C	Range start humidity~% r.F.	General	Price	Quantity	Status	Add
6285849	05721846	Testo SE & CO KGaA		12	97	1	testo 184 G1	40	2	0.5	100	70			469.12 EU

Temperature / Humidity data logger LOG 110

DOSTMANN electronic GmbH (7714)

Temperature / Humidity data logger LOG 110
Large display for actual value, battery status display, easy to use software.Perfect designed instrument for transportation or storage after HACCP.

-Quality surveillance in laboratories, at the production or in the storage
-Ambient conditions in manufacturing facilities
-Ambient conditions in power plants
-Monitoring of fridges for the pharma industry
-Memory for 60000 data sets

Please order Software with USB-Cabel separately (9.726 413).
Specifications
Temperature
Measuring range int.:
Measuring range ext.: -30 ... 70 °C
-50 ... 125 °C
Accuracy: 0.1 °C
Precision: Int.: ±0.5 °C (-10 ... 40 °C), otherwise ±0.7 °C
Ext.: ±0.5 °C (0 ... 40 °C), otherwise ±0.7 °C
Humidity
Measuring range: 0 ... 99 % r.H.
Resolution: 0.1% r.H.
Accuracy: ±3 % r.H.
Housing: Plastic (ABS)
Power supply: 1 x CR2032 3 V
Dimensions: 88 x 55 x 20 mm
Weight: 95 g (incl. packaging)
Alarm function: Alarm for too low or too high temperature and/or humidity values
Calibration reminder

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Width~mm	Accuracy humidity~± % r.F.	Accuracy temperature~± °C	Measuring range end humidity~% r.F.	Measuring range temperature~°C	Range start humidity~% r.F.	General	Price	Quantity	Status	Add
9726412	5005-0110	DOSTMANN electronic GmbH		88	20	1	LOG 110	55	3	0.7	100	125			211.76 EU

Temperature-humidity data logger Traceable

Cole-Parmer Instrument (612852)

Temperature-humidity data logger Traceable®
Data logger with integrated sensors for monitoring temperature and relative humidity. The data logger can be connected to a Bluetooth®-enabled mobile device via the Bluetooth® interface. With the TraceableGO? app (free of charge) or the TraceableLIVE? cloud service (chargeable, registration required), measured values can be exported as a PDF, sent by e-mail, and stored on a mobile end device.

-Large LCD display
-Display changes between temperature and humidity every 5 seconds
-Switchable °C / °F
-Limit values and logging interval adjustable via TraceableGO? or TraceableLIVE? app
-Storage of up to 90 different alarm messages
-NIST-traceable certificate included

Scope of supply: Temperature-humidity data logger, batteries, NIST-traceable calibration certificate
Temperature range: -20 ... 70 °C
Accuracy: ±0.4 °C (-10 ... 70 °C), ±0.5 °C remaining range
Resolution: 0.1 °C
Humidity range: 0 ... 95 % RH
Accuracy: ±3 % RH (5 ... 75 % RH), ±5 % RH remaining range
Resolution: 0.1 % RH
Logging interval: 1 min ... 12 h
Memory: 65536 measured values
Power supply: 2 x AAA

PN	Manuf. PN	Supplier		Depth~mm	Description	Height~mm	PK	Width~mm						General	Price	Quantity	Status	Add
4687378	18004-13	Cole-Parmer Instrument		20	Temperature-humidity data logger Traceable®	51	1	89							124.71 EU

Thermohygrometer testo 622

Testo SE & CO KGaA (7775)

Thermohygrometer testo 622
In addition to temperature and humidity, the testo 622 also measures barometric pressure. The large, clear display indicates current readings, as well as the date and time. It thus provides all important values at a glance.
Specifications
Meas. units: Temperature: °C,°F
Humidity: % rH, td, wb
Pressure: hPa, mbar, kPa, in Hg, in H2O, psi
Meas. range: -10 to 60°C
0 to 100% rH
300 to 1200 hPa
Resolution: 0.1°C
0.1% rH
0.1 hPa
Accuracy ±1 digit: ±0.4°C
±2% rH at 25°C (10 to 90% rH)
±3% rH (rest of range)
±3hPA
Display: LCD
Measuring rate: 10 secs
Alarm function: LED alarm for too low or too high temperatur and/or humidity values
Calibration reminder
Storage temp.: -20 to 60°C
Oper. temp: -10 to 60°C
Power supply: 4 x AA
Battery life: 12 months
Dimensions (L x W x H): 185 x 105 x 36mm
Weight: 240g (without batteries)

PN	Manuf. PN	Supplier		PK	Type									General	Price	Quantity	Status	Add
9718667	05606220	Testo SE & CO KGaA		1	testo 622										452.94 EU
