Digital horizontal autoclave Type AH

R. ESPINAR S.L. (Raypa) (10009)

Digital horizontal autoclave Type AH
This autoclave is microprocessor controlled and monitored with 10 sterilisation programmes of which 4 are fixed and 6 are freely selectable and has bacteriological filters included by default.
-Operating temperature range 100 °C to 134 °C
-On request, also available with B Class
-RS 232 interface
-Fully automatic functions
-With water reservoir, pre-vacuum and drying
-Case and lid shrouding are AISI 304 stainless steel
-Sterilisation chamber, lid and sealing system are AISI 316 stainless steel
-Electrical heating with protected heating elements
-Safety pressure valve
-Safety thermostat
-Automatic steam controlled by Touch Screen microprocessor
-Manual valves for emptying the sterilisation chamber and for draining steam
-Equipped with mesh stand on the chamber base and trays
-Supply requirements: 230 V 16 A single phase

PN	Manuf. PN	Supplier	Capacity~L	Chamber diam. x depth~mm	Height~mm	Length~mm	PK	Power~W	Type	Width~mm	Price
6267579	AHS-50-DRY	R. ESPINAR S.L. (Raypa)	50	400 x 400	630	780	1	2000	AHS-50 DRY	760	15268.88 EU
9851888	AHS-75-DRY	R. ESPINAR S.L. (Raypa)	75	400 x 600	630	980	1	3200	AHS-75 DRY	760	17113.53 EU
9851898	AH-21-L	R. ESPINAR S.L. (Raypa)	21	250 x 430	425	590	1	2000	AH-21 L	680	9068.53 EU

Digital vertical autoclaves, AES series

R. ESPINAR S.L. (Raypa) (10008)

Digital vertical autoclaves, AES series
These autoclaves are microprocessor controlled and monitored with 10 sterilisation programmes of which 4 are fixed and 6 are freely programmable.
-Operating temperature range 100 °C to 134 °C
-On request also available with with vacuum pump and steam generator
-Agar modus (40 °C to 80 °C)
-RS 232 interface
-Timer
-Programmable auto-start (24 h)
-Fully automatic functions
-Case and lid shrouding are AISI 304 stainless steel
-Sterilisation chamber, lid and sealing system are AISI 316 stainless steel
-Electrical heating with protected heating elements in the interior of the chamber
-Safety pressure valve
-Safety thermostat
-Automatic steam controlled by microprocessor
-Manual valves for emptying the sterilisation chamber and for draining steam
-Supply requirements:
AES-12 and AES-75: 230 V 16 A single phase
AES-110 and AES-150: 400 V + Neutral (3-phase)

PN	Manuf. PN	Supplier	Capacity~L	Chamber diam. x depth~mm	Height~mm	Length~mm	PK	Power~W	Type	Width~mm	Price
6267578	AES-50	R. ESPINAR S.L. (Raypa)	50	300 x 700	1300	560	1	3200	AES-50	510	11160.00 EU
9851893	AES-12	R. ESPINAR S.L. (Raypa)	12	250 x 270	650	500	1	1000	AES-12	490	7620.00 EU
9851894	AES-28	R. ESPINAR S.L. (Raypa)	28	300 x 400	1120	560	1	2000	AES-28	510	9783.82 EU
9851895	AES-75	R. ESPINAR S.L. (Raypa)	75	400 x 600	1190	730	1	3200	AES-75	620	12477.65 EU
9851896	AES-110	R. ESPINAR S.L. (Raypa)	110	400 x 850	1440	730	1	4500	AES-110	620	17647.65 EU
9851897	AES-150	R. ESPINAR S.L. (Raypa)	150	500 x 750	1400	850	1	6000	AES-150	760	25467.35 EU

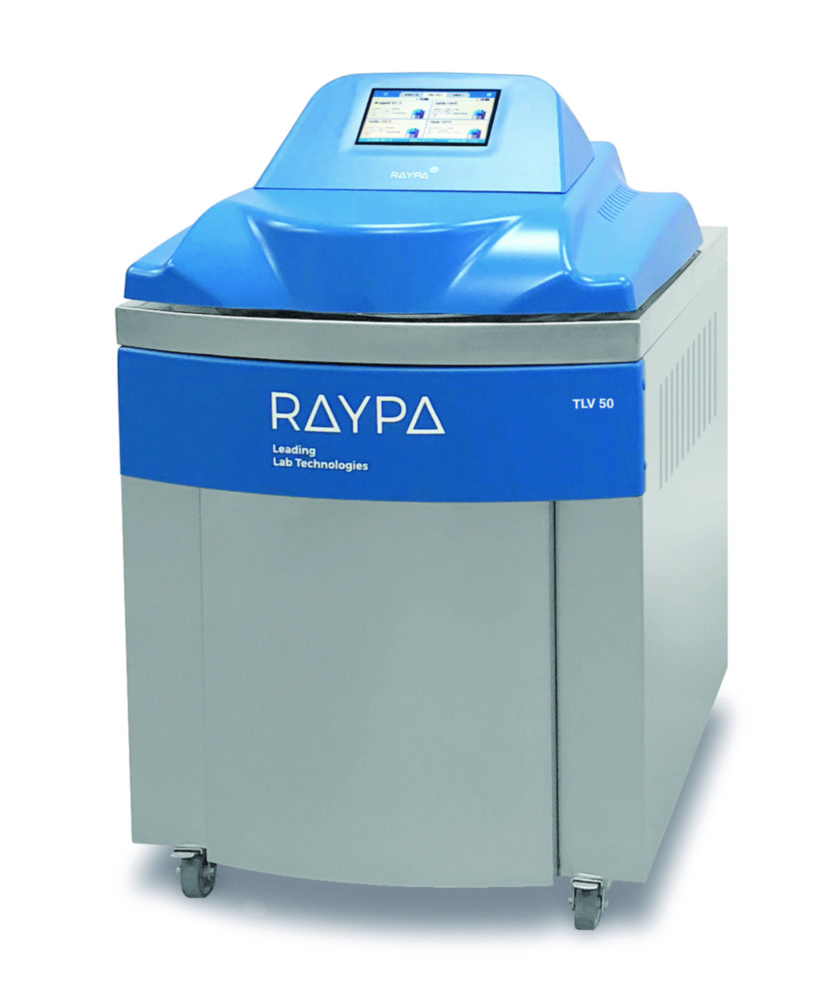

Smart vertical autoclaves, TLV series

R. ESPINAR S.L. (Raypa) (10351)

Smart vertical autoclaves, TLV series
These autoclaves are microprocessor controlled and monitored with 50 sterilisation programmes and comes with bacteriological filters included by default.

-Operating temperature range 100 °C to 140 °C
-With with vacuum pump and steam generator
-Maximum working pressure 2.6 bar (37psi)
-RS 232 interface, USB and WiFi
-Timer
-Fully automatic functions
-PT 100 temperature sensor
-Case and lid shrouding, stainless steel
-Sterilisation chamber, lid and sealing system, stainless steel
-Electrical heating with protected heating elements in the interior of the chamber
-Safety pressure valve
-Safety thermostat
-Automatic steam controlled by microprocessor
-Pressure gauge
-4 casters (with brakes in two of them

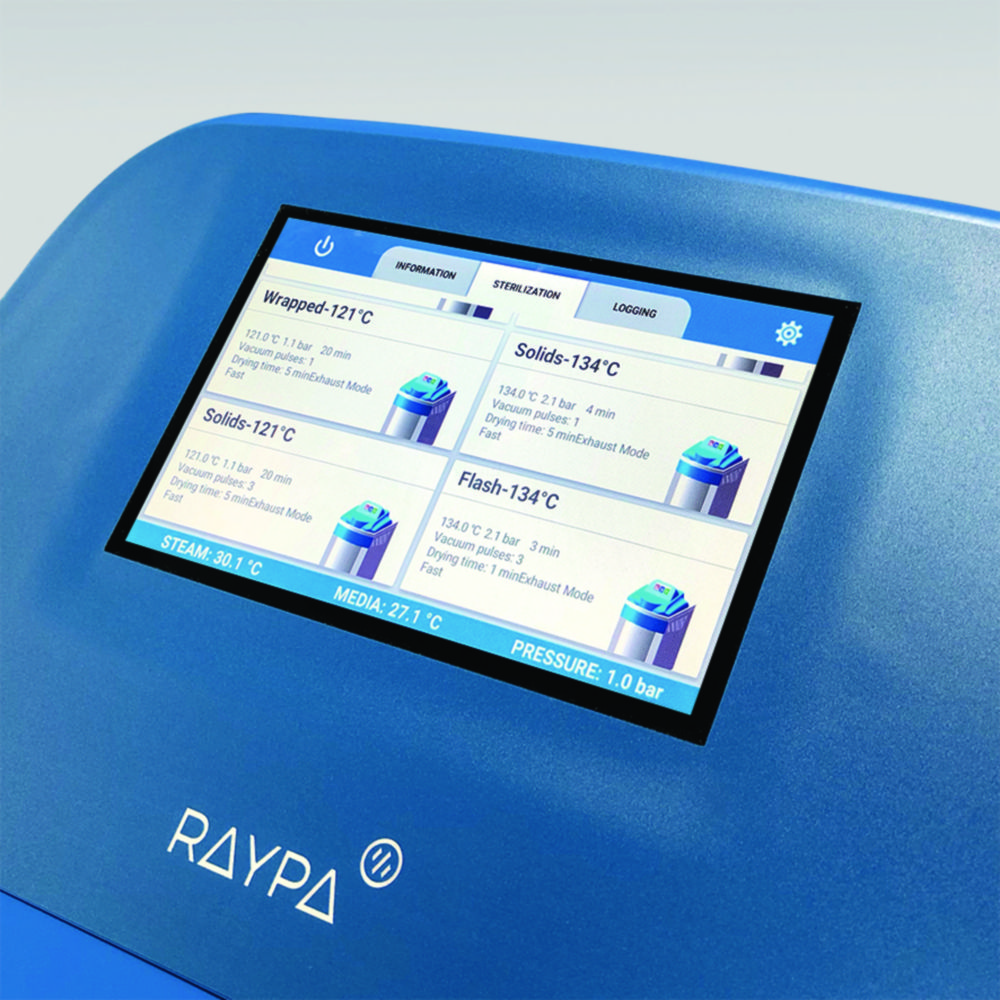

-7" capacitive colour touch screen
-Power Supply: 230V 50/60 Hz
-Remote maintenance and diagnosis via cloud
-Remote operation monitoring via cloud

TLV: Basic
TLV-FA: with Air Ballast and Fast Cooling
TLV-PD: with Super Drying

PN	Manuf. PN	Supplier	Capacity~L	Chamber diam. x depth~mm	Dimensions (W x D x H)~mm	PK	Power~W	Type	Weight~kg	Price
4672183	TLV-50	R. ESPINAR S.L. (Raypa)	58	400 x 450	610 x 870 x 1000	1	3600	TLV-50	140	28001.47 EU
4672184	TLV-75	R. ESPINAR S.L. (Raypa)	83	400 x 650	610 x 870 x 1080	1	3600	TLV-75	150	30301.47 EU
4672185	TLV-50FA	R. ESPINAR S.L. (Raypa)	58	400 x 450	610 x 870 x 1000	1	3600	TLV-50FA	140	33426.76 EU
4672186	TLV-75FA	R. ESPINAR S.L. (Raypa)	83	400 x 650	610 x 870 x 1080	1	3600	TLV-75FA	150	37504.41 EU
4672187	TLV-50PD	R. ESPINAR S.L. (Raypa)	58	400 x 450	610 x 870 x 1000	1	3600	TLV-50PD	140	36107.35 EU
4672188	TLV-75PD	R. ESPINAR S.L. (Raypa)	83	400 x 650	610 x 870 x 1080	1	3600	TLV-75PD	150	42544.12 EU
