O-rings, silicone

Lenz-Laborglas GmbH & Co. KG (2227)

O-rings, silicone
Seals for flat flanges.

PN	Manuf. PN	Supplier	Material	PK	For DN	Price
9142846	06248010	Lenz-Laborglas GmbH & Co. KG	Silicone	1	100	22.35 EU
9142857	06248015	Lenz-Laborglas GmbH & Co. KG	Silicone	1	150	44.12 EU
9142834	06248006	Lenz-Laborglas GmbH & Co. KG	Silicone	1	60	13.75 EU
9142861	06248020	Lenz-Laborglas GmbH & Co. KG	Silicone	1	200	54.41 EU

Quick-acting closure

Lenz-Laborglas GmbH & Co. KG (669473)

Quick-acting closure
For fixing lids onto reaction vessels.

PN	Manuf. PN	Supplier	PK	For DN	Price
9142946	06246010	Lenz-Laborglas GmbH & Co. KG	1	100	136.91 EU
4679146	06246006	Lenz-Laborglas GmbH & Co. KG	1	60	110.44 EU
9142957	06246015	Lenz-Laborglas GmbH & Co. KG	1	150	160.29 EU
9142964	06246020	Lenz-Laborglas GmbH & Co. KG	1	200	188.38 EU

DWK Life Sciences GmbH (Duran) (2229)

Quick-acting closure
Stainless steel. With retaining clips.

PN	Manuf. PN	Supplier	Material	PK	For DN	Price
4665210	290714609	DWK Life Sciences GmbH (Duran)	stainless steel	1	100	124.86 EU
6901260	290713407	DWK Life Sciences GmbH (Duran)	stainless steel	1	60	97.94 EU
7940799	290715708	DWK Life Sciences GmbH (Duran)	stainless steel	1	150	146.92 EU
9142951	290715108	DWK Life Sciences GmbH (Duran)	stainless steel	1	120	131.92 EU
9142958	290716104	DWK Life Sciences GmbH (Duran)	stainless steel	1	200	167.79 EU

2-way/3-way stopcocks, PTFE for reactor lids

Bohlender GmbH (8739)

2-way/3-way stopcocks, PTFE for reactor lids
With NPT 1/2" and GL18 screw thread. Grip made of PP. The media is only exposed to PTFE. Universal chemical resistance. Temperature resistant from 0 to 110 °C.

PN	Manuf. PN	Supplier		Colour	Description	Material	PK	Type	Length				Standard	General	Price	Quantity	Status	Add
6283020	B 156-02	Bohlender GmbH			2-way	PTFE	1								284.12 EU
6283021	B 156-08	Bohlender GmbH			3-way, L-shape key bore	PTFE	1								377.35 EU

Clamps with stand rod

Lenz-Laborglas GmbH & Co. KG (5292)

Clamps with stand rod
For fixing lids onto reaction vessels and mounting on a stand,
Material: polyester-glass compound (clamp), steel (rod)

PN	Manuf. PN	Supplier		Material	PK	Type	For DN	autoclavable				Max. temp. resistance		General	Price	Quantity	Status	Add
9142697	06246506	Lenz-Laborglas GmbH & Co. KG			1		60								761.61 EU

Connectors with ground joint, PTFE for Reactor lids

Bohlender GmbH (8728)

Connectors with ground joint, PTFE for Reactor lids
With NPT screw thread. Universal chemical resistance. With hexagonal gripping surface in standard wrench size. Temperature resistant from -200 to 250 °C

PN	Manuf. PN	Supplier	Material	PK	Thread	Price
6283022	B 154-02	Bohlender GmbH	PTFE	1	1/4''	71.02 EU
6283023	B 154-04	Bohlender GmbH	PTFE	1	1/2''	126.76 EU
6283024	B 154-06	Bohlender GmbH	PTFE	1	1/2''	71.18 EU
6283025	B 154-08	Bohlender GmbH	PTFE	1	3/4''	86.62 EU
6283026	B 154-10	Bohlender GmbH	PTFE	1	1''	122.65 EU

Fittings with connecting thread, PTFE for Reactor lids

Bohlender GmbH (8729)

Fittings with connecting thread, PTFE for Reactor lids
With NPT screw thread. Universal chemical resistance. With hexagonal gripping surface in standard wrench size. Temperature resistant from -200 to 250 °C

PN	Manuf. PN	Supplier	Material	PK	Price
6283014	B 152-14	Bohlender GmbH	PTFE	1	58.24 EU
6283015	B 152-16	Bohlender GmbH	PTFE	1	48.96 EU
6283016	B 152-18	Bohlender GmbH	PTFE	1	42.65 EU
6283017	B 152-20	Bohlender GmbH	PTFE	1	66.92 EU
6283018	B 152-32	Bohlender GmbH	PTFE	1	149.27 EU
6283019	B 152-45	Bohlender GmbH	PTFE	1	192.65 EU

Flat flange beakers, DURAN

DWK Life Sciences GmbH (Duran) (705)

Flat flange beakers, DURAN®
Flanged neck with groove for vacuum use. Maximum 0.5bar working pressure at 250°C. Capacities indicated are brim-full volumes. We recommend that these beakers are heated in water or oil baths. Glass Type I / neutral glass as per USP, EP and JP. Autoclavable.

PN	Manuf. PN	Supplier	DN	Material	Max. pressure~bar	Overall height~mm	PK	autoclavable	Nominal capacity~ml	Price
9142271	243945409	DWK Life Sciences GmbH (Duran)	120	Boro 3.3	0.5	125	1	Yes	1360	218.82 EU
9142272	243946302	DWK Life Sciences GmbH (Duran)	120	Boro 3.3	0.5	200	1	Yes	2200	317.87 EU
9142273	243946808	DWK Life Sciences GmbH (Duran)	120	Boro 3.3	0.5	290	1	Yes	3220	320.00 EU

Flat flange lids

H W S Hans W. Schmidt (2353)

Flat flange lids
Flange in accordance with DIN 12214.

PN	Manuf. PN	Supplier	DN	Height~mm	PK	Price
9142120	3 310 033S	H W S Hans W. Schmidt	100	125	1	419.12 EU
9142122	3 310 043S	H W S Hans W. Schmidt	100	125	1	492.65 EU
9142128	3 312 029S	H W S Hans W. Schmidt	120	125	1	448.53 EU
9142130	3 312 043S	H W S Hans W. Schmidt	120	125	1	514.71 EU
9142131	3 312 061S	H W S Hans W. Schmidt	120	125	1	580.88 EU
9142136	3 315 032S	H W S Hans W. Schmidt	150	125	1	470.59 EU
9142138	3 315 042S	H W S Hans W. Schmidt	150	125	1	536.76 EU
9142142	3 315 074S	H W S Hans W. Schmidt	150	150	1	551.47 EU
9142146	3 320 042S	H W S Hans W. Schmidt	200	145	1	636.84 EU
9142148	3 320 055S	H W S Hans W. Schmidt	200	170	1	593.31 EU
9142150	3 320 057S	H W S Hans W. Schmidt	200	170	1	651.18 EU

Flat flange lids, center neck, three angled side necks, one vertical side neck

7635341

Flange lids for reaction vessels, with laboratory flange LF, material: DURAN®

PN	Manuf. PN	Supplier	Centre neck~NS	Angled side necks NS										General	Price	Quantity	Status	Add
7635341	6 1054 44	Lenz	29/32	29/32										vertical side neck 14/23	Inquire

Flat ground flange lids, DURAN

DWK Life Sciences GmbH (Duran) (703)

Flat ground flange lids, DURAN®
With four ground joint necks as outlined below. 1 bar max. operating pressure at 250 °C. Glass Type I / neutral glass as per USP, EP and JP. Autoclavable.

PN	Manuf. PN	Supplier	DN	Height~mm	Material	Max. pressure~bar	PK	autoclavable	Price
9142246	243924608	DWK Life Sciences GmbH (Duran)	100	125	DURAN® glass	1	1	Yes	467.49 EU
9142247	243924702	DWK Life Sciences GmbH (Duran)	100	125	DURAN® glass	1	1	Yes	467.49 EU
9142251	243925107	DWK Life Sciences GmbH (Duran)	120	130	DURAN® glass	1	1	Yes	477.49 EU
9142257	243925707	DWK Life Sciences GmbH (Duran)	150	130	DURAN® glass	1	1	Yes	497.51 EU
9142258	243925801	DWK Life Sciences GmbH (Duran)	150	130	DURAN® glass	1	1	Yes	497.51 EU
9142259	243925904	DWK Life Sciences GmbH (Duran)	150	120	DURAN® glass	1	1	Yes	497.51 EU
9142260	243926009	DWK Life Sciences GmbH (Duran)	150	140	DURAN® glass	1	1	Yes	527.49 EU
9142476	243964603	DWK Life Sciences GmbH (Duran)	100	105	DURAN® glass	1	1	Yes	427.49 EU

Flat ground flange reaction vessels, jacketed

H W S Hans W. Schmidt (2329)

Flat ground flange reaction vessels, jacketed
Flange with groove in accordance with DIN 12214. Flask with thermostatic jacket and type "T" 10mm bore PTFE drain valve.

PN	Manuf. PN	Supplier		DN	Material	Overall height~mm	PK	Thread	Bottom shape	autoclavable	Nominal capacity~ml			General	Price	Quantity	Status	Add
9142056	3 152 091S	H W S Hans W. Schmidt		200		445	1				10000				6365.12 EU

Flat ground flange reaction vessels, unjacketed

H W S Hans W. Schmidt (2306)

Flat ground flange reaction vessels, unjacketed
Flange in accordance with DIN 12214. Basic flask, without fittings.
Form:
A = cylindrical form
B = short form

PN	Manuf. PN	Supplier		DN	Material	Overall height~mm	PK	Thread	Bottom shape	autoclavable	Nominal capacity~ml			General	Price	Quantity	Status	Add
6265316	3 011 520	H W S Hans W. Schmidt		150		180	1				2000				494.86 EU

O-rings

DWK Life Sciences GmbH (Duran) (669459)

O-rings
Elastic silicone core with FEP coating. Autoclavable.

PN	Manuf. PN	Supplier	PK	Thickness~mm	For DN	Ext. Ø~mm	Price
7023677	292225107	DWK Life Sciences GmbH (Duran)	1	4	120	133	100.44 EU
9142866	292223406	DWK Life Sciences GmbH (Duran)	1	4	60	75	71.18 EU
9142867	292224608	DWK Life Sciences GmbH (Duran)	1	4	100	110	85.88 EU
9142868	292225707	DWK Life Sciences GmbH (Duran)	1	5	150	157	111.04 EU
9142869	292226103	DWK Life Sciences GmbH (Duran)	1	5	200	215	129.85 EU

O-rings, FEP coated

Lenz-Laborglas GmbH & Co. KG (881703)

O-rings, FEP coated
Seals for flat flanges.

PN	Manuf. PN	Supplier		Material	PK	For DN	Thickness	Ground size			Ext. Ø	Int. Ø	Chemical resistant	General	Price	Quantity	Status	Add
6203478	06248206	Lenz-Laborglas GmbH & Co. KG			1	60									41.76 EU
7616276	06248220	Lenz-Laborglas GmbH & Co. KG			1	200									101.61 EU

PF - laboratory-flange triple clamp, 18/10 stainless steel

BOCHEM Instrumente GmbH (2231)

PF - laboratory-flange triple clamp, 18/10 stainless steel
Holder for all PF- laboratory flasks for the alternating removal of vessel and lid. This special quick-release fastener ensures that the two laboratory flat flanges of reaction tube and flat flange lid are connected and, in addition, that the reaction tube and flat flange lid are held individually (optimal flange angle 45°). Without accessories.

PN	Manuf. PN	Supplier	Material	PK	Clamping range	Shaft Ø~mm	Price
9224851	17021	BOCHEM Instrumente GmbH	Stainless steel 1.4301	1	100 mm	15	1266.47 EU
9224852	17022	BOCHEM Instrumente GmbH	Stainless steel 1.4301	1	120 mm	15	1444.86 EU
9224853	17023	BOCHEM Instrumente GmbH	Stainless steel 1.4301	1	150 mm	15	1556.62 EU
9224854	17024	BOCHEM Instrumente GmbH	Stainless steel 1.4301	1	200 mm	26.9	1632.79 EU

Reaction flasks, flat flange, DURAN, cylindrical

DWK Life Sciences GmbH (Duran) (701)

Reaction flasks, flat flange, DURAN®, cylindrical
Flanged neck with groove for vacuum use. Capacities indicated are brim-full volumes. Glass Type I / neutral glass as per USP, EP and JP. Autoclavable.

PN	Manuf. PN	Supplier	DN	Material	Max. pressure~bar	Overall height~mm	PK	autoclavable	Nominal capacity~ml	Price
9142024	243902408	DWK Life Sciences GmbH (Duran)	60	Boro 3.3	2.5	85	1	Yes	195	71.91 EU
9142036	243903601	DWK Life Sciences GmbH (Duran)	60	Boro 3.3	2.5	125	1	Yes	315	170.88 EU
9142044	243904409	DWK Life Sciences GmbH (Duran)	100	Boro 3.3	1.5	120	1	Yes	740	102.94 EU
9142054	243905405	DWK Life Sciences GmbH (Duran)	100	Boro 3.3	1.5	205	1	Yes	1395	257.80 EU

Reaction flasks, flat flange, DURAN, flask shaped

DWK Life Sciences GmbH (Duran) (464178)

Reaction flasks, flat flange, DURAN®, flask shaped
Flanged neck with groove for vacuum use. Capacities indicated are brim-full volumes. Glass Type I / neutral glass as per USP, EP and JP. Autoclavable.

PN	Manuf. PN	Supplier	DN	Material	Max. pressure~bar	Overall height~mm	PK	autoclavable	Nominal capacity~ml	Price
9142063	243906307	DWK Life Sciences GmbH (Duran)	100	Boro 3.3	1.5	270	1	Yes	2620	309.93 EU
9142071	243907106	DWK Life Sciences GmbH (Duran)	150	Boro 3.3	1	290	1	Yes	5765	497.80 EU
9142076	243907603	DWK Life Sciences GmbH (Duran)	150	Boro 3.3	1	320	1	Yes	7320	557.72 EU

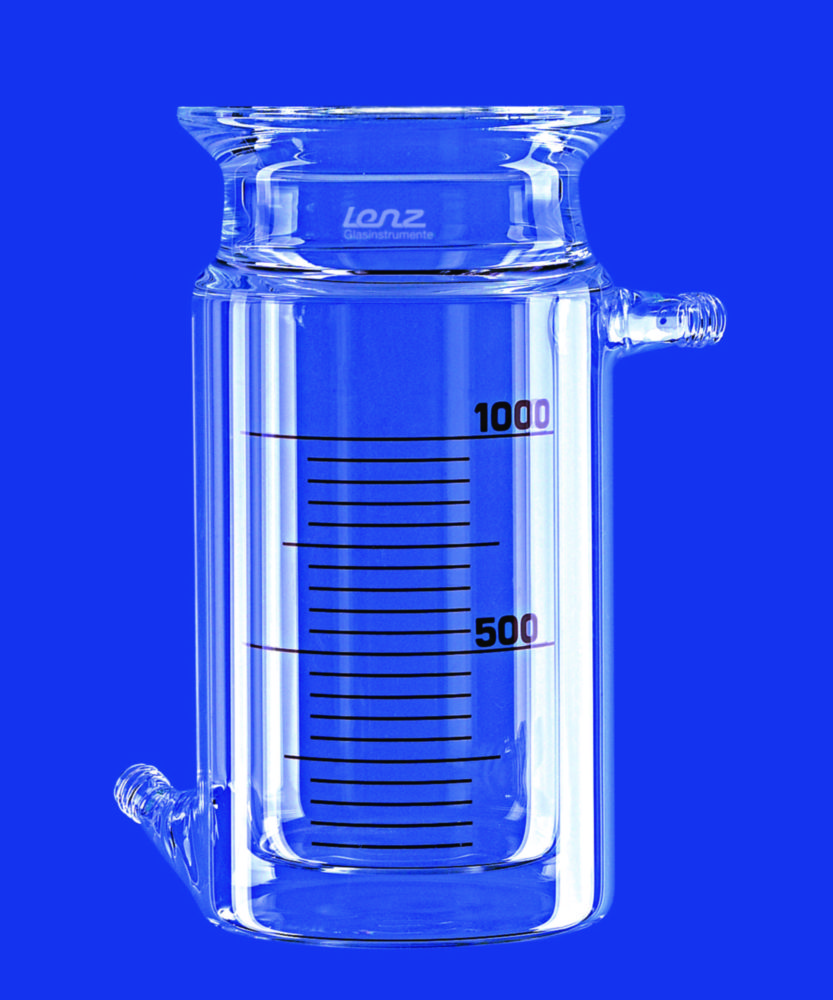

Reaction vessels, cylindrical, with thermostatic jacket

Lenz-Laborglas GmbH & Co. KG (5310)

Reaction vessels, cylindrical, with thermostatic jacket
-With graduation
-Laboratory flange LF
-Groove
-Flat bottom
-Two connectors with threads GL 14 or GL 18
-Made of DURAN® tubing

Other sizes on request.

PN	Manuf. PN	Supplier	Material	Overall height~mm	PK	Thread	Bottom shape	Nominal capacity~ml	Price
6089893	06010476	Lenz-Laborglas GmbH & Co. KG	DURAN® tubing	320	1	GL 18	flat	3000	1701.76 EU
6243105	06010249	Lenz-Laborglas GmbH & Co. KG	DURAN® tubing	160	1	GL 18	flat	250	845.59 EU
6243106	06010276	Lenz-Laborglas GmbH & Co. KG	DURAN® tubing	325	1	GL 18	flat	3000	1513.53 EU
6243107	06010482	Lenz-Laborglas GmbH & Co. KG	DURAN® tubing	430	1	GL 18	flat	5000	1961.18 EU
9142726	06010137	Lenz-Laborglas GmbH & Co. KG	DURAN® tubing	135	1	GL 14	flat	100	637.65 EU
9142727	06010149	Lenz-Laborglas GmbH & Co. KG	DURAN® tubing	190	1	GL 14	flat	250	652.06 EU
9142728	06010158	Lenz-Laborglas GmbH & Co. KG	DURAN® tubing	275	1	GL 14	flat	500	666.92 EU
9142742	06010270	Lenz-Laborglas GmbH & Co. KG	DURAN® tubing	245	1	GL 18	flat	1000	906.32 EU
9142744	06010273	Lenz-Laborglas GmbH & Co. KG	DURAN® tubing	375	1	GL 18	flat	2000	974.71 EU
9142747	06010279	Lenz-Laborglas GmbH & Co. KG	DURAN® tubing	380	1	GL 18	flat	4000	1724.86 EU
9142754	06010473	Lenz-Laborglas GmbH & Co. KG	DURAN® tubing	265	1	GL 18	flat	2000	1664.64 EU
9142757	06010479	Lenz-Laborglas GmbH & Co. KG	DURAN® tubing	375	1	GL 18	flat	4000	1810.00 EU
9142759	06010485	Lenz-Laborglas GmbH & Co. KG	DURAN® tubing	485	1	GL 18	flat	6000	2194.12 EU

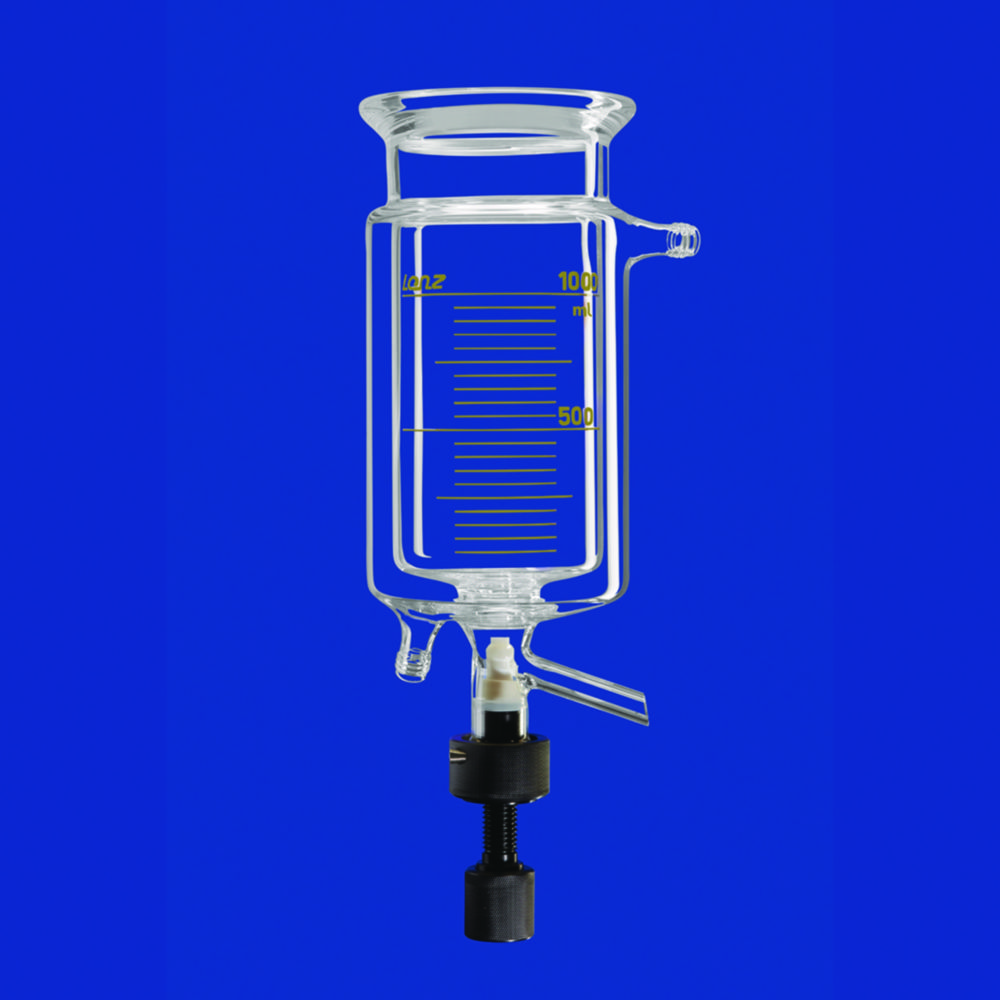

Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve

Lenz-Laborglas GmbH & Co. KG (9599)

Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve
-With graduation
-Laboratory flange LF
-With groove
-Two connectors with threads GL 14 or GL 18
-Made of DURAN® tubing

Other sizes on request.

PN	Manuf. PN	Supplier	DN	Material	Overall height~mm	PK	Thread	Nominal capacity~ml	General	Price
6224194	06030482	Lenz-Laborglas GmbH & Co. KG	150	DURAN® tubing	540	1	GL 18	5000		2601.33 EU
6230277	06030249	Lenz-Laborglas GmbH & Co. KG	100	DURAN® tubing	275	1	GL 18	250	LF 100 Cap. 0.25	1525.95 EU
6240516	06030488	Lenz-Laborglas GmbH & Co. KG	150	DURAN® tubing	640	1	GL 18	10000		3801.33 EU
6243114	06030276	Lenz-Laborglas GmbH & Co. KG	100	DURAN® tubing	440	1	GL 18	3000		2142.94 EU
6243116	06030485	Lenz-Laborglas GmbH & Co. KG	150	DURAN® tubing	595	1	GL 18	6000		2592.21 EU
7635340	06030479	Lenz-Laborglas GmbH & Co. KG	150	DURAN® tubing	485	1	GL 18	4000		2481.76 EU
9142766	06030137	Lenz-Laborglas GmbH & Co. KG	60	DURAN® tubing	245	1	GL 14	100		1206.76 EU
9142767	06030149	Lenz-Laborglas GmbH & Co. KG	60	DURAN® tubing	300	1	GL 14	250		1215.59 EU
9142768	06030158	Lenz-Laborglas GmbH & Co. KG	60	DURAN® tubing	385	1	GL 14	500		1243.82 EU
9142782	06030270	Lenz-Laborglas GmbH & Co. KG	100	DURAN® tubing	360	1	GL 18	1000		1608.89 EU
9142787	06030279	Lenz-Laborglas GmbH & Co. KG	100	DURAN® tubing	495	1	GL 18	4000		2241.47 EU

Reactor lids for Glass reactors, PTFE

Bohlender GmbH (1488)

Reactor lids for Glass reactors, PTFE
Suitable for glass reactors with SCHOTT flat flange DN 60, DN 100 and DN 150. All Reactor Lids dispose of a centric screw-in thread NPT for connection of a stirrer bearing. The lateral necks, that even dispose of NPT screw-in threads, are arranged round the centric connector. The angles of lateral necks are made for an insertion of probes and tubes aside the centre in order to avoid collisions with the stirrer shaft. With screw in threads for connection of transition fittings and a center neck NPT 1/2". Temperature resistance from -200°C to +250°C, universal chemical resistance, FDA conformity, further combinations on request.

B 150-02: NPT 1/4" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection aside the shaft
B 150-04: NPT 1/2" connection aside the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection aside the shaft
B 150-12: NPT 1/2" connection aside the shaft, NPT 1/2" connection directly to the shaft, NPT 1/2" connection directly to the shaft
B 150-14: NPT 1/2" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection directly to the shaft, NPT 3/4" connection aside the shaft, NPT 1/4" vertical connector
B 150-16: NPT 1/2" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection directly to the shaft, NPT 1/4" connection aside the shaft, NPT 1/4" vertical connector
B 150-22: NPT 1/2" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection directly to the shaft, NPT 1/4" connection aside the shaft, NPT 1/4" vertical connector
B 150-24: NPT 1/2" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection directly to the shaft, NPT 3/4" connection aside the shaft, NPT 1/4" vertical connector
B 150-26: NPT 1/2" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1" connection directly to the shaft, NPT 1/4" connection aside the shaft, NPT 1/4" vertical connector

PN	Manuf. PN	Supplier	DN	Height~mm	Material	Ø~mm	PK	Type	Price
6283003	B 150-02	Bohlender GmbH	60	31	PTFE	100	1	B 150-02	360.29 EU
6283004	B 150-04	Bohlender GmbH	60	31	PTFE	100	1	B 150-04	337.79 EU
6283005	B 150-12	Bohlender GmbH	100	31	PTFE	138	1	B 150-12	427.21 EU
6283006	B 150-14	Bohlender GmbH	100	31	PTFE	138	1	B 150-14	507.80 EU
6283007	B 150-16	Bohlender GmbH	100	31	PTFE	138	1	B 150-16	511.92 EU
6283008	B 150-22	Bohlender GmbH	150	25	PTFE	184	1	B 150-22	789.12 EU
6283009	B 150-24	Bohlender GmbH	150	25	PTFE	184	1	B 150-24	780.59 EU
