Heating thermostat Universa MAX

Lauda Dr.R.Wobser GmbH & Co.KG (917555)

Heating thermostat Universa MAX
The heating thermostat with advanced electronics ensures precise control accuracy and uniform temperature distribution. It can be used for internal and external temperature control tasks. The innovative bath edge ventilation prevents icing and blocks condensate and vapours from entering the control head. The integrated web server allows flexible remote control within the company network via the LAUDA Command App or browser-based, secured by PKI and 2-factor authentication. The connection to LAUDA.LIVE enables cloud-based data analysis and remote maintenance.

-Powerful pressure-suction pump with eight selectable performance levels
-Front switch on the control head for adjusting the pump output during operation
-Colour 5" TFT display with progression graph
-Clear menu navigation in six languages and clear operating status icons
-Integrated Ethernet and USB interface
-Interface for an external Pt100 temperature probe
-With programmer, safe mode, calibration options, controller self-adaptation, and weekly scheduler for process control
-Effective over- and under-level protection
-Adjustable overtemperature protection with acoustic alarm
-Automatic system diagnostics at start-up with alarm and error message display
-Smart temperature control media management with automatic limit value adjustment
-Tmax button allows direct access to overtemperature protection setting
-Insulated stainless steel bath with drain tap
-Pump connection M16x1
-Safety class III/FL

PN	Manuf. PN	Supplier	Ext. height~mm	Heating capacity~kW	PK	Programmable	Type	Weight~kg	Temperature	Plug type	Price
4713276	L004139	Lauda Dr.R.Wobser GmbH & Co.KG	497	3.7	1	Yes	U 12 M	18	70 ... 300 °C	CEE	7926.47 EU
4713293	L004140	Lauda Dr.R.Wobser GmbH & Co.KG	617	3.7	1	Yes	U 20 M	22.5	65 ... 300 °C	CEE	8235.29 EU
4713300	L004141	Lauda Dr.R.Wobser GmbH & Co.KG	499	3.7	1	Yes	U 40 M	29	65 ... 300 °C	CEE	8602.94 EU
4713314	L004138	Lauda Dr.R.Wobser GmbH & Co.KG	497	3.7	1	Yes	U 8 M	14.5	70 ... 300 °C	CEE	7500.00 EU

Heating thermostat Universa MAX, WLAN capable

Lauda Dr.R.Wobser GmbH & Co.KG (917568)

Heating thermostat Universa MAX, WLAN capable
The heating thermostat with advanced electronics ensures precise control accuracy and uniform temperature distribution. It can be used for internal and external temperature control tasks. The innovative bath edge ventilation prevents icing and blocks condensate and vapours from entering the control head. The integrated web server allows flexible remote control within the company network via the LAUDA Command App or browser-based, secured by PKI and 2-factor authentication. The connection to LAUDA.LIVE enables cloud-based data analysis and remote maintenance.

-Powerful pressure-suction pump with eight selectable performance levels
-Front switch on the control head for adjusting the pump output during operation
-Colour 5" TFT display with progression graph
-Clear menu navigation in six languages and clear operating status icons
-Integrated Ethernet and USB interface
-Interface for an external Pt100 temperature probe
-With programmer, safe mode, calibration options, controller self-adaptation, and weekly scheduler for process control
-Effective over- and under-level protection
-Adjustable overtemperature protection with acoustic alarm
-Automatic system diagnostics at start-up with alarm and error message display
-Smart temperature control media management with automatic limit value adjustment
-Tmax button allows direct access to overtemperature protection setting
-Insulated stainless steel bath with drain tap
-Pump connection M16x1
-Safety class III/FL
-Integrated WLAN enables easy connection to PC, tablet, and smartphone

PN	Manuf. PN	Supplier	Ext. height~mm	Heating capacity~kW	PK	Programmable	Type	Weight~kg	Temperature	Plug type	Price
4713278	L003750	Lauda Dr.R.Wobser GmbH & Co.KG	497	3.7	1	Yes	U 12 M	18	70 ... 300 °C	CEE	7926.47 EU
4713284	L003822	Lauda Dr.R.Wobser GmbH & Co.KG	497	3.7	1	Yes	U 16 M	20	70 ... 300 °C	CEE	8088.24 EU
4713294	L003751	Lauda Dr.R.Wobser GmbH & Co.KG	617	3.7	1	Yes	U 20 M	22.5	65 ... 300 °C	CEE	8235.29 EU
4713302	L003752	Lauda Dr.R.Wobser GmbH & Co.KG	499	3.7	1	Yes	U 40 M	29	65 ... 300 °C	CEE	8602.94 EU
4713316	L003749	Lauda Dr.R.Wobser GmbH & Co.KG	497	3.7	1	Yes	U 8 M	14.5	70 ... 300 °C	CEE	7500.00 EU

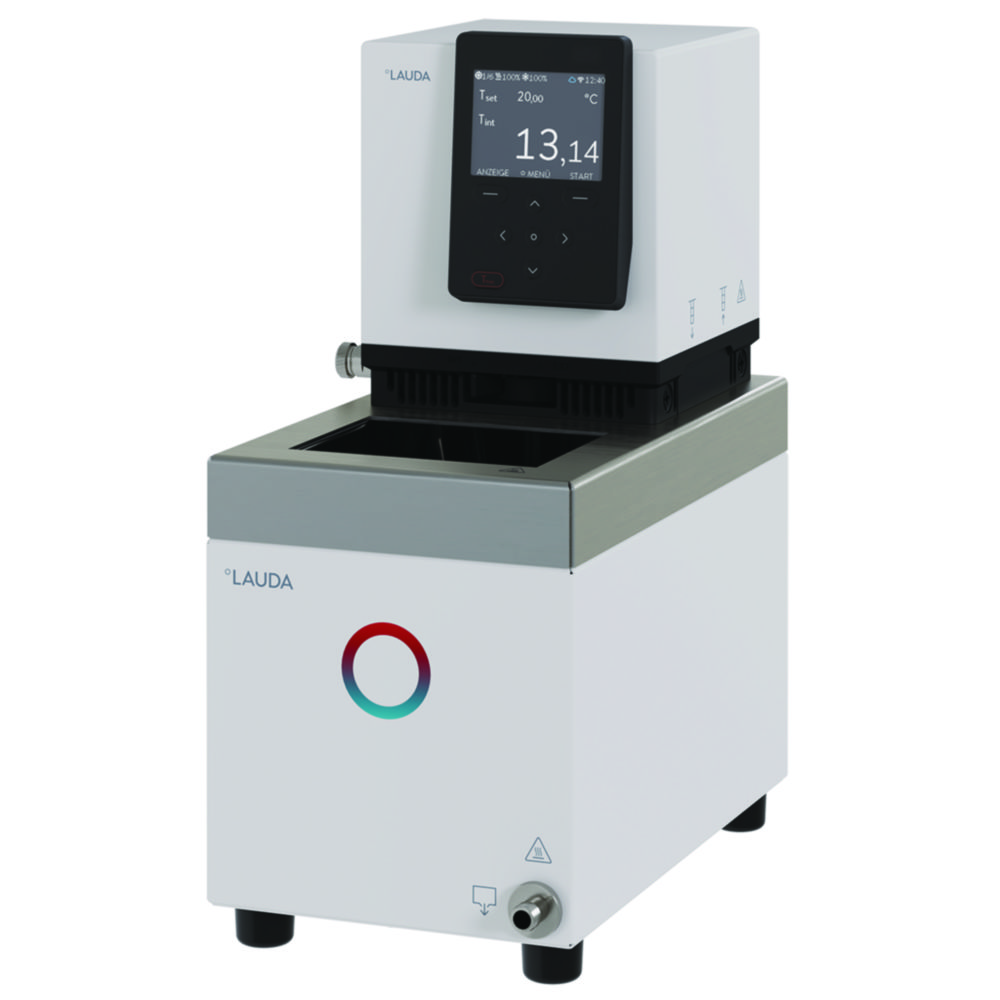

Heating thermostat Universa PRO

Lauda Dr.R.Wobser GmbH & Co.KG (917526)

Heating thermostat Universa PRO
The heating thermostat with advanced electronics ensures precise control accuracy and uniform temperature distribution. It can be used for internal and external temperature control tasks. The innovative bath edge ventilation prevents icing and blocks condensate and vapours from entering the control head. The integrated web server allows flexible remote control within the company network via the LAUDA Command App or browser-based, secured by PKI and 2-factor authentication. The connection to LAUDA.LIVE enables cloud-based data analysis and remote maintenance.

-Efficient vario pump with six adjustable performance levels
-Front switch on the control head for adjusting the pump output during operation
-Colour 3.5" TFT display with progression graph
-Clear menu navigation in six languages and clear operating status icons
-Integrated Ethernet and USB interface
-With programmer, calibration options, and weekly scheduler for process control
-Reliable low-level protection with float technology
-Adjustable overtemperature protection with acoustic alarm
-Smart temperature control media management with automatic limit value adjustment
-Tmax button allows direct access to overtemperature protection setting
-Insulated stainless steel bath with drain tap
-Pump connection M16x1
-Safety class III/FL

PN	Manuf. PN	Supplier	Ext. height~mm	Heating capacity~kW	PK	Programmable	Type	Weight~kg	Temperature	Plug type	Price
4713286	L004225	Lauda Dr.R.Wobser GmbH & Co.KG	476	2.8	1	Yes	U 16 P	19	40 ... 200 °C	CEE	4779.41 EU
4713298	L004223	Lauda Dr.R.Wobser GmbH & Co.KG	436	2.8	1	Yes	U 4 P	10.5	30 ... 200 °C	CEE	4264.71 EU
4713304	L004226	Lauda Dr.R.Wobser GmbH & Co.KG	478	2.8	1	Yes	U 40 P	28	40 ... 200 °C	CEE	6176.47 EU
4713318	L004224	Lauda Dr.R.Wobser GmbH & Co.KG	476	2.8	1	Yes	U 8 P	15	40 ... 200 °C	CEE	4485.29 EU

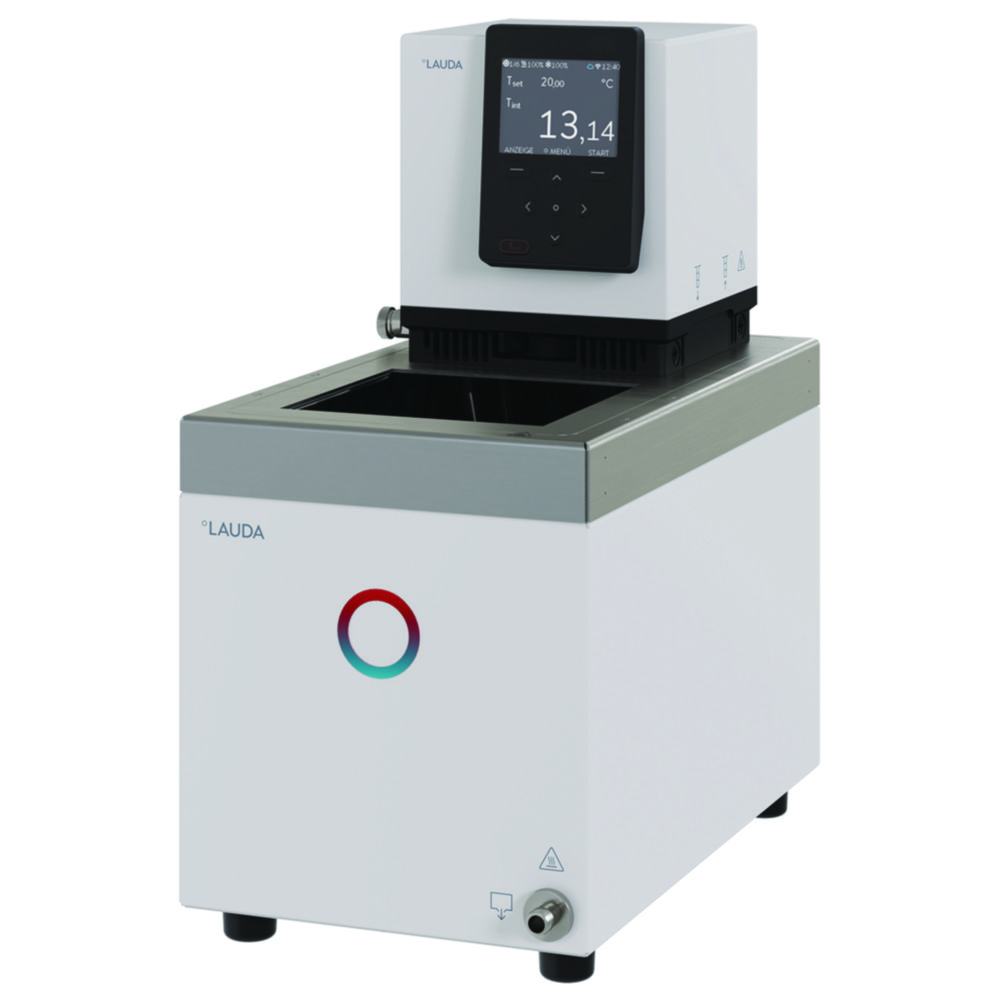

Heating thermostat Universa PRO, WLAN capable

Lauda Dr.R.Wobser GmbH & Co.KG (917530)

Heating thermostat Universa PRO, WLAN capable
The heating thermostat with advanced electronics ensures precise control accuracy and uniform temperature distribution. It can be used for internal and external temperature control tasks. The innovative bath edge ventilation prevents icing and blocks condensate and vapours from entering the control head. The integrated web server allows flexible remote control within the company network via the LAUDA Command App or browser-based, secured by PKI and 2-factor authentication. The connection to LAUDA.LIVE enables cloud-based data analysis and remote maintenance.

-Efficient vario pump with six adjustable performance levels
-Front switch on the control head for adjusting the pump output during operation
-Colour 3.5" TFT display with progression graph
-Clear menu navigation in six languages and clear operating status icons
-Integrated Ethernet and USB interface
-With programmer, calibration options, and weekly scheduler for process control
-Reliable low-level protection with float technology
-Adjustable overtemperature protection with acoustic alarm
-Smart temperature control media management with automatic limit value adjustment
-Tmax button allows direct access to overtemperature protection setting
-Insulated stainless steel bath with drain tap
-Pump connection M16x1
-Safety class III/FL
-Integrated WLAN enables easy connection to PC, tablet, and smartphone

PN	Manuf. PN	Supplier	Ext. height~mm	Heating capacity~kW	PK	Programmable	Type	Weight~kg	Temperature	Plug type	Price
4713285	L003893	Lauda Dr.R.Wobser GmbH & Co.KG	476	2.8	1	Yes	U 16 P	19	40 ... 200 °C	CEE	4779.41 EU
4713297	L003891	Lauda Dr.R.Wobser GmbH & Co.KG	436	2.8	1	Yes	U 4 P	10.5	30 ... 200 °C	CEE	4264.71 EU
4713303	L003894	Lauda Dr.R.Wobser GmbH & Co.KG	478	2.8	1	Yes	U 40 P	28	40 ... 200 °C	CEE	6176.47 EU
4713317	L003892	Lauda Dr.R.Wobser GmbH & Co.KG	476	2.8	1	Yes	U 8 P	15	40 ... 200 °C	CEE	4485.29 EU

Heating thermostat with ball bearing Universa MAX

Lauda Dr.R.Wobser GmbH & Co.KG (917577)

Heating thermostat with ball bearing Universa MAX
The heating thermostat with advanced electronics ensures precise control accuracy and uniform temperature distribution. It can be used for internal and external temperature control tasks. The version with a ball-bearing pump guarantees safe operation with highly viscous and dense temperature control fluids, as well as with impurities in the temperature control bath. The innovative bath edge ventilation prevents icing and blocks condensate and vapours from entering the control head. The integrated web server allows flexible remote control within the company network via the LAUDA Command App or browser-based, secured by PKI and 2-factor authentication. The connection to LAUDA.LIVE enables cloud-based data analysis and remote maintenance.

-Powerful pressure-suction pump with eight selectable performance levels
-Front switch on the control head for adjusting the pump output during operation
-Colour 5" TFT display with progression graph
-Clear menu navigation in six languages and clear operating status icons
-Integrated Ethernet and USB interface
-Interface for an external Pt100 temperature probe
-With programmer, safe mode, calibration options, controller self-adaptation, and weekly scheduler for process control
-Effective over- and under-level protection
-Adjustable overtemperature protection with acoustic alarm
-Automatic system diagnostics at start-up with alarm and error message display
-Smart temperature control media management with automatic limit value adjustment
-Tmax button allows direct access to overtemperature protection setting
-Insulated stainless steel bath with drain tap
-Pump connection M16x1
-Safety class III/FL

PN	Manuf. PN	Supplier	Ext. height~mm	Heating capacity~kW	PK	Programmable	Type	Weight~kg	Temperature	Plug type	Price
4713277	L004149	Lauda Dr.R.Wobser GmbH & Co.KG	497	3.7	1	Yes	U 12 M	18	70 ... 300 °C	CEE	8147.06 EU
4713301	L004150	Lauda Dr.R.Wobser GmbH & Co.KG	499	3.7	1	Yes	U 40 M	29	65 ... 300 °C	CEE	9338.24 EU
4713315	L004148	Lauda Dr.R.Wobser GmbH & Co.KG	497	3.7	1	Yes	U 8 M	14.5	70 ... 300 °C	CEE	7720.59 EU

Heating thermostat with ball bearing Universa MAX, WLAN capable

Lauda Dr.R.Wobser GmbH & Co.KG (917580)

Heating thermostat with ball bearing Universa MAX, WLAN capable
The heating thermostat with advanced electronics ensures precise control accuracy and uniform temperature distribution. It can be used for internal and external temperature control tasks. The version with a ball-bearing pump guarantees safe operation with highly viscous and dense temperature control fluids, as well as with impurities in the temperature control bath. The innovative bath edge ventilation prevents icing and blocks condensate and vapours from entering the control head. The integrated web server allows flexible remote control within the company network via the LAUDA Command App or browser-based, secured by PKI and 2-factor authentication. The connection to LAUDA.LIVE enables cloud-based data analysis and remote maintenance.

-Powerful pressure-suction pump with eight selectable performance levels
-Front switch on the control head for adjusting the pump output during operation
-Colour 5" TFT display with progression graph
-Clear menu navigation in six languages and clear operating status icons
-Integrated Ethernet and USB interface
-Interface for an external Pt100 temperature probe
-With programmer, safe mode, calibration options, controller self-adaptation, and weekly scheduler for process control
-Effective over- and under-level protection
-Adjustable overtemperature protection with acoustic alarm
-Automatic system diagnostics at start-up with alarm and error message display
-Smart temperature control media management with automatic limit value adjustment
-Tmax button allows direct access to overtemperature protection setting
-Insulated stainless steel bath with drain tap
-Pump connection M16x1
-Safety class III/FL
-Integrated WLAN enables easy connection to PC, tablet, and smartphone

PN	Manuf. PN	Supplier	Ext. height~mm	Heating capacity~kW	PK	Programmable	Type	Weight~kg	Temperature	Plug type	Price
4713275	L003760	Lauda Dr.R.Wobser GmbH & Co.KG	497	3.7	1	Yes	U 12 M	18	70 ... 300 °C	CEE	8147.06 EU
4713283	L003823	Lauda Dr.R.Wobser GmbH & Co.KG	497	3.7	1	Yes	U 16 M	20	70 ... 300 °C	CEE	8382.35 EU
4713299	L003761	Lauda Dr.R.Wobser GmbH & Co.KG	499	3.7	1	Yes	U 40 M	29	65 ... 300 °C	CEE	9338.24 EU
4713313	L003759	Lauda Dr.R.Wobser GmbH & Co.KG	497	3.7	1	Yes	U 8 M	14.5	70 ... 300 °C	CEE	7720.59 EU
