Compressor station SICOLAB

Dürr Technik GmbH & Co. KG (919904)

Compressor station SICOLAB
Small, quiet compressor for use with compressed air in laboratories. The oil-free piston compressor is long-lasting, reduces maintenance requirements, and ensures clean air and accurate measurement results. The compressor station runs with low vibration and reduces noise levels thanks to special sound insulation. Swivel castors and integrated carrying handles enable mobile use.

-Compact 'under-bench design'
-Suitable for 100 % continuous operation
-Ready to connect: quick and easy start-up thanks to plug-and-play
-Intuitive operation thanks to clearly arranged controls
-Automatic condensate evaporator - no manual emptying required
-Adjustable output pressure up to 8 bar
-Corrosion-protected, antibacterial container interior coating
-Two compressed air outlets: air extraction via a quick coupling at the front and an additional compressed air outlet at the rear
-Environmentally friendly thanks to oil-free technology
-Maintenance-free except for filter replacement, no oil change

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	Max. pressure~bar	PK	Type	Weight~kg	Width~mm	Pressure	Plug type	Rated capacity~kW	General	Price	Quantity	Status	Add
4714491	0626 1100	Dürr Technik GmbH & Co. KG		580	653	8	1	SICOLAB 062	66	510	0 ... 8 bar		0.47		7602.94 EU
4714494	0626 3100	Dürr Technik GmbH & Co. KG		580	653	8	1	SICOLAB 200	93	510	0 ... 8 bar		1.41		9020.59 EU

Compressor station SICOLAB M, with membrane dryer

Dürr Technik GmbH & Co. KG (919905)

Compressor station SICOLAB M, with membrane dryer
Small, quiet compressor for use with compressed air in laboratories. The oil-free piston compressor is long-lasting, reduces maintenance requirements, and ensures clean air and accurate measurement results. The compressor station runs with low vibration and reduces noise levels thanks to special sound insulation. Swivel castors and integrated carrying handles enable mobile use.

-Compact 'under-bench design'
-Suitable for 100 % continuous operation
-Ready to connect: quick and easy start-up thanks to plug-and-play
-Intuitive operation thanks to clearly arranged controls
-Automatic condensate evaporator - no manual emptying required
-Adjustable output pressure up to 8 bar
-Corrosion-protected, antibacterial container interior coating
-Two compressed air outlets: air extraction via a quick coupling at the front and an additional compressed air outlet at the rear
-Environmentally friendly thanks to oil-free technology
-Maintenance-free except for filter replacement, no oil change
The membrane drying system ensures dry compressed air even during continuous operation to protect sensitive instruments and ensure hygienic conditions. It does not require any regeneration interruptions, and the patented pressure relief valve optimises start-up behaviour. The pressure dew point can be adjusted to the individual requirements using various nozzles (pressure dew point reduction of up to 65 K possible).

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	Max. pressure~bar	PK	Type	Weight~kg	Width~mm	Pressure	Plug type	Rated capacity~kW	General	Price	Quantity	Status	Add
4714492	0626 1200	Dürr Technik GmbH & Co. KG		580	653	8	1	SICOLAB 062M	68	510	0 ... 8 bar		0.47		10235.29 EU
4714495	0626 3200	Dürr Technik GmbH & Co. KG		580	653	8	1	SICOLAB 200M	95	510	0 ... 8 bar		1.41		11591.18 EU

Compressor station SICOLAB MFA, with membrane dryer, fine filter (0.01 µm) and activated carbon fi

Dürr Technik GmbH & Co. KG (919909)

Compressor station SICOLAB MFA, with membrane dryer, fine filter (0.01 µm) and activated carbon filter
Small, quiet compressor for use with compressed air in laboratories. The oil-free piston compressor is long-lasting, reduces maintenance requirements, and ensures clean air and accurate measurement results. The compressor station runs with low vibration and reduces noise levels thanks to special sound insulation. Swivel castors and integrated carrying handles enable mobile use.

-Compact 'under-bench design'
-Suitable for 100 % continuous operation
-Ready to connect: quick and easy start-up thanks to plug-and-play
-Intuitive operation thanks to clearly arranged controls
-Automatic condensate evaporator - no manual emptying required
-Adjustable output pressure up to 8 bar
-Corrosion-protected, antibacterial container interior coating
-Two compressed air outlets: air extraction via a quick coupling at the front and an additional compressed air outlet at the rear
-Environmentally friendly thanks to oil-free technology
-Maintenance-free except for filter replacement, no oil change
The membrane drying system ensures dry compressed air even during continuous operation to protect sensitive instruments and ensure hygienic conditions. It does not require any regeneration interruptions, and the patented pressure relief valve optimises start-up behaviour. The pressure dew point can be adjusted to the individual requirements using various nozzles (pressure dew point reduction of up to 65 K possible).

The activated carbon filter removes odours and other gaseous components from the compressed air.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	Max. pressure~bar	PK	Type	Weight~kg	Width~mm	Pressure	Plug type	Rated capacity~kW	General	Price	Quantity	Status	Add
4714493	0626 1220	Dürr Technik GmbH & Co. KG		580	653	8	1	SICOLAB 062MFA	68	510	0 ... 8 bar		0.47		11058.82 EU
4714496	0626 3220	Dürr Technik GmbH & Co. KG		580	653	8	1	SICOLAB 200MFA	95	510	0 ... 8 bar		1.41		12411.76 EU

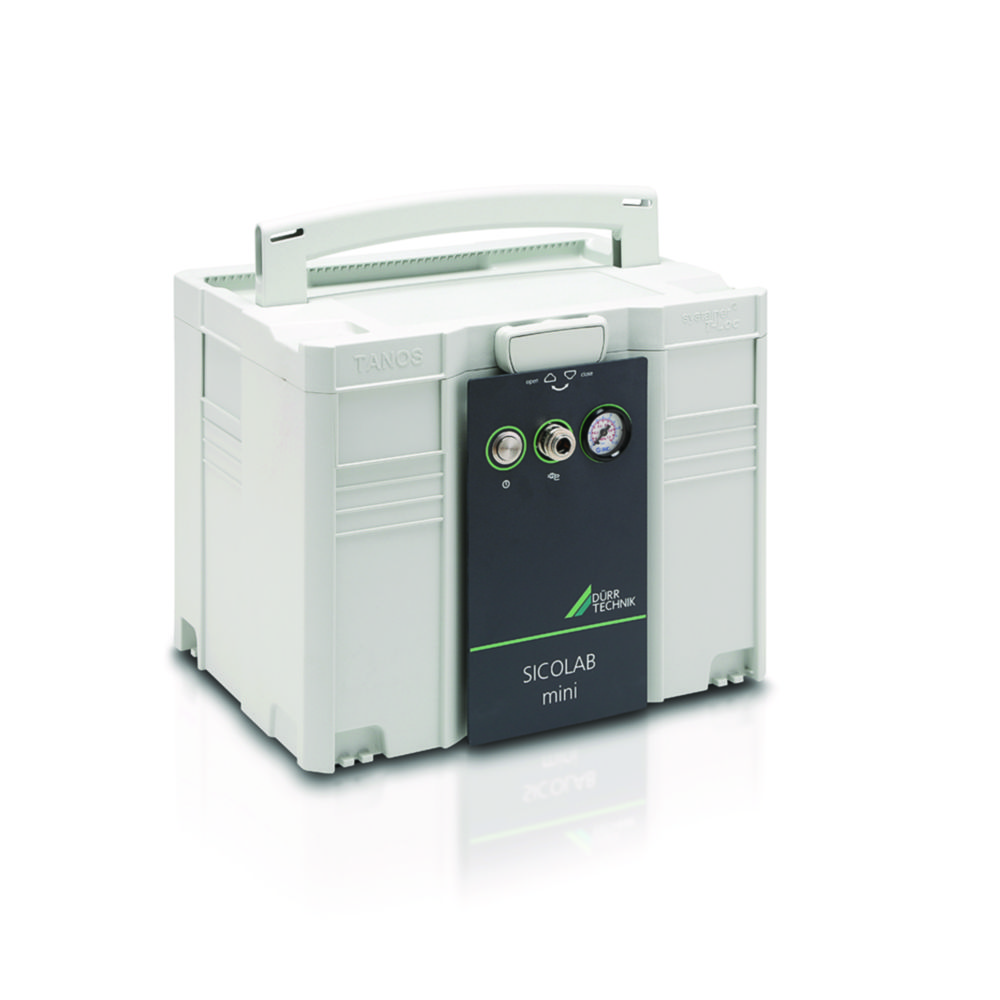

Compressor station SICOLAB mini

Dürr Technik GmbH & Co. KG (919896)

Compressor station SICOLAB mini
Compact, soundproofed compressor for use with compressed air in laboratories. The oil-free plug-and-play compressor unit with integrated carrying handle offers minimal maintenance and maximum flexibility. The SICOLAB mini is equipped with a 2 l pressure receiver, automatic condensate drain, electromagnetic start-up relief, and an operating hours meter.

-Very smooth start-up
-Extremely quiet
-Maintenance-free except for filter replacement
-Compressed air connection via quick coupling directly in the housing
-Oil-free compressor aggregate
-Air receiver with internal coating
-Pressure reducer
-Pressure switch
-Pressure gauge readable from the outside
-Safety valve
-On/off switch with fuse

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	Max. pressure~bar	PK	Type	Weight~kg	Width~mm	Pressure	Plug type	Rated capacity~kW	General	Price	Quantity	Status	Add
4714489	0715100033	Dürr Technik GmbH & Co. KG		347	343	7	1	SICOLAB 038 mini	16	396	7 bar		0.34		3826.47 EU
4714490	0715100007	Dürr Technik GmbH & Co. KG		347	343	7	1	SICOLAB 062 mini	20	396	7 bar		0.44		4641.18 EU
