Chemistry vacuum system MD 12C NT EK

Vacuubrand GmbH & Co.KG (909334)

Chemistry vacuum system MD 12C NT EK
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The waste vapor condenser at the outlet (EK) enables near 100 percent solvent recovery.

-Good chemical resistance and vapor tolerance
-High performance even at low vacuum
-Good vacuum even with gas ballast
-Quiet and ultra low vibration
-Oilfree
-A separator at the inlet (AK) can be mounted later to this system

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Width~mm	Plug type	Price
4701125	20743503	Vacuubrand GmbH & Co.KG	528	395	1	MD 12C NT + EK	2	387	US	13397.06 EU
9880965	20743500	Vacuubrand GmbH & Co.KG	528	395	1	MD 12C NT + EK	2	387	EU	13698.53 EU
9880966	20743501	Vacuubrand GmbH & Co.KG	528	395	1	MD 12C NT + EK	2	387	CH	13680.88 EU
9880967	20743502	Vacuubrand GmbH & Co.KG	528	395	1	MD 12C NT + EK	2	387	UK	13680.88 EU

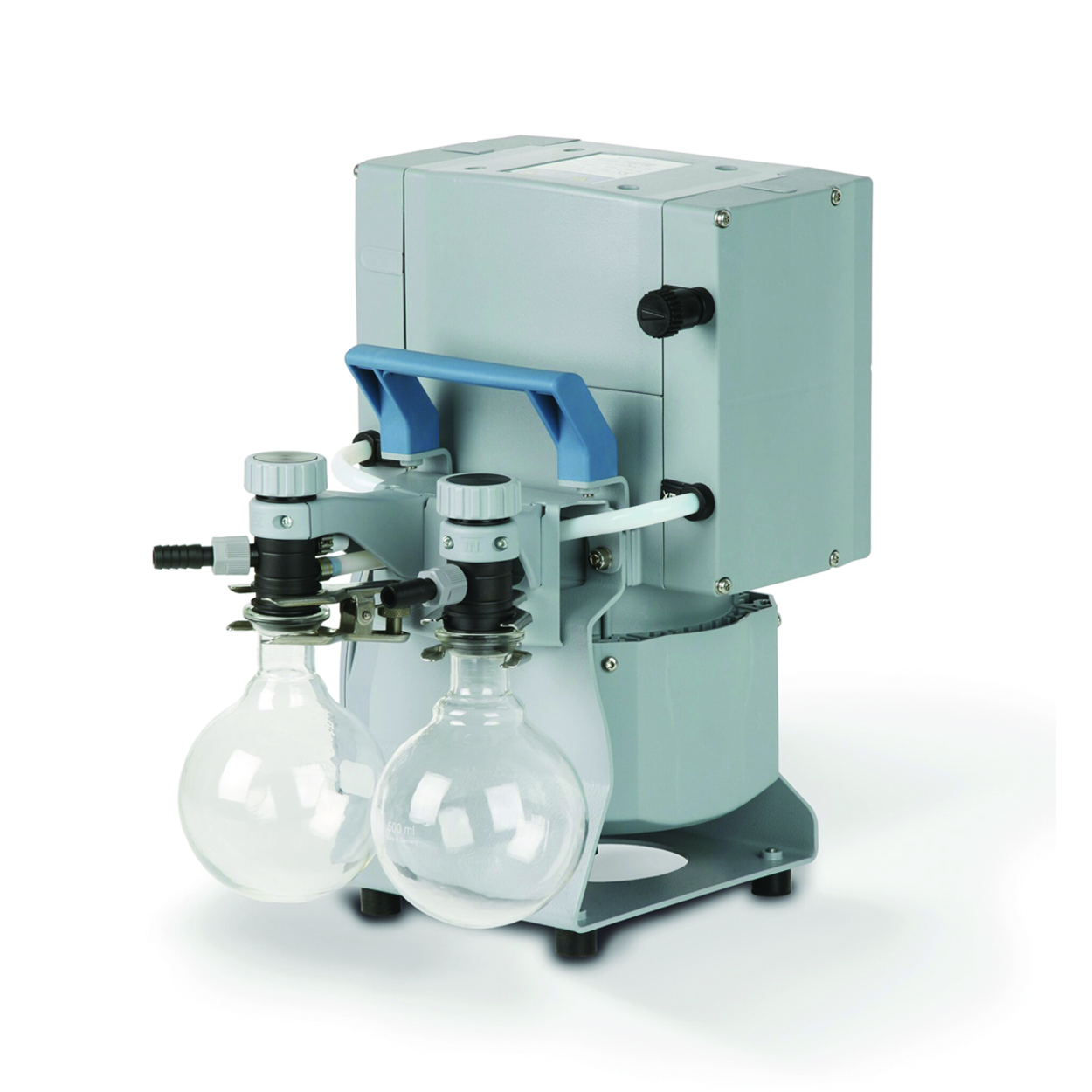

Chemistry vacuum system MD 4C NT 2AK

Vacuubrand GmbH & Co.KG (992722)

Chemistry vacuum system MD 4C NT 2AK
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The separator at the outlet collects condensate and avoids condensate backflow towards the pump.

-Good chemical resistance and vapor tolerance
-High performance even at low vacuum
-Good vacuum even with gas ballast
-Quiet and ultra low vibration
-Oilfree
-Inlet and outlet separator

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Weight~kg	Width~mm	Plug type	Rated capacity		General	Price	Quantity	Status	Add
4661095	20736600	Vacuubrand GmbH & Co.KG		243	374	1	MD 4C NT 2AK	1.5	16.7	319	EU				7581.33 EU
4670505	20736603	Vacuubrand GmbH & Co.KG		243	374	1	MD 4C NT 2AK	1.5	16.7	319	US				7433.82 EU

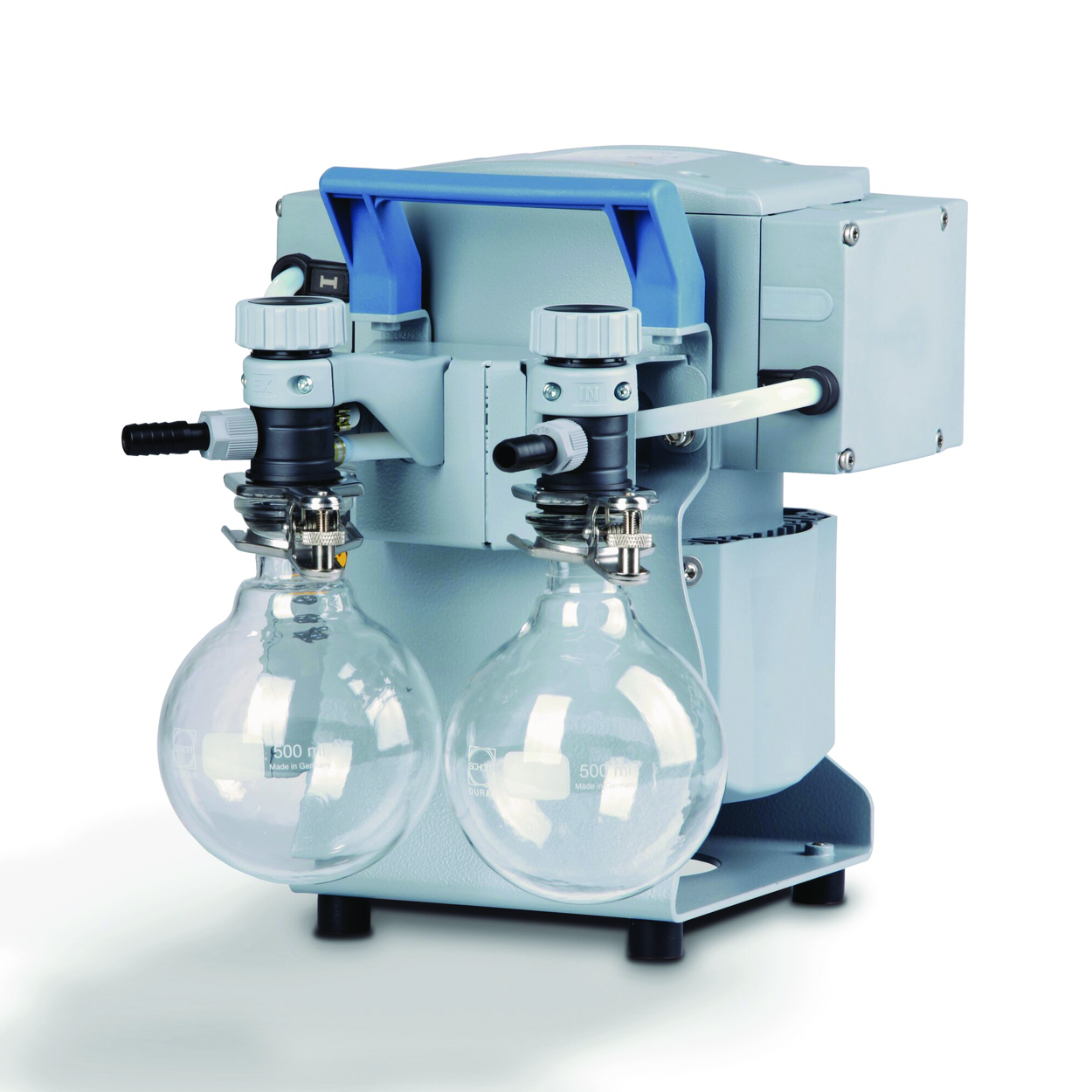

Chemistry vacuum system ME 4C NT 2AK

Vacuubrand GmbH & Co.KG (992947)

Chemistry vacuum system ME 4C NT 2AK
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The separator at the outlet collects condensate and avoids condensate backflow towards the pump.

-Good chemical resistance and vapor tolerance
-High performance even at low vacuum
-Good vacuum even with gas ballast
-Quiet and ultra low vibration
-Oilfree
-Inlet and outlet separator
Without mains cable, please order separately.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Weight~kg	Width~mm	Plug type	Rated capacity		General	Price	Quantity	Status	Add
6289584	22614080	Vacuubrand GmbH & Co.KG		242	291	1	ME 4C NT 2AK	70	13.6	316					4404.41 EU

Chemistry vacuum system ME 8C NT 2AK

Vacuubrand GmbH & Co.KG (909341)

Chemistry vacuum system ME 8C NT 2AK
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The separator at the outlet collects condensate and avoids condensate backflow towards the pump.

-Good chemical resistance and vapor tolerance
-High performance even at low vacuum
-Good vacuum even with gas ballast
-Quiet and ultra low vibration
-Oilfree
-Inlet and outlet separator

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Width~mm	Weight	Plug type	Rated capacity		General	Price	Quantity	Status	Add
6267643	20734405	Vacuubrand GmbH & Co.KG		319	374	1	ME 8C NT + 2AK	70	243						7584.56 EU

Chemistry vacuum system MV 10C NT EK

Vacuubrand GmbH & Co.KG (909335)

Chemistry vacuum system MV 10C NT EK
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The waste vapor condenser at the outlet (EK) enables near 100 percent solvent recovery.

-Good chemical resistance and vapor tolerance
-High performance even at low vacuum
-Good vacuum even with gas ballast
-Quiet and ultra low vibration
-Oilfree
-A separator at the inlet (AK) can be mounted later to this system

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Width~mm	Weight	Plug type	Rated capacity		General	Price	Quantity	Status	Add
4701130	20744503	Vacuubrand GmbH & Co.KG		387	395	1	MV 10C NT + EK	0.9	528		US				13727.94 EU
9880976	20744500	Vacuubrand GmbH & Co.KG		387	395	1	MV 10C NT + EK	0.9	528		EU				14036.76 EU

Chemistry vacuum system MZ 2C NT 2AK

Vacuubrand GmbH & Co.KG (909340)

Chemistry vacuum system MZ 2C NT 2AK
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The separator at the outlet collects condensate and avoids condensate backflow towards the pump.

-Good chemical resistance and vapor tolerance
-High performance even at low vacuum
-Good vacuum even with gas ballast
-Quiet and ultra low vibration
-Oilfree
-Inlet and outlet separator

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Width~mm	Plug type	Price
4670442	20732502	Vacuubrand GmbH & Co.KG	319	309	1	MZ 2C NT + 2AK	7	243	UK	4382.35 EU
4670443	20732503	Vacuubrand GmbH & Co.KG	319	309	1	MZ 2C NT + 2AK	7	243	US	4511.04 EU
9880832	20732500	Vacuubrand GmbH & Co.KG	319	309	1	MZ 2C NT + 2AK	7	243	EU	4512.79 EU
9880844	20732501	Vacuubrand GmbH & Co.KG	319	309	1	MZ 2C NT + 2AK	7	243	CH	4510.52 EU

Chemistry vacuum system, MD 12C NT AK/EK

Vacuubrand GmbH & Co.KG (909324)

Chemistry vacuum system, MD 12C NT AK/EK
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) enables near 100 percent solvent recovery.

-Good chemical resistance and vapor tolerance
-High performance even at low vacuum
-Good vacuum even with gas ballast
-Quiet and ultra low vibration
-Oilfree

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Width~mm	Plug type	Price
4701126	20743603	Vacuubrand GmbH & Co.KG	616	395	1	MD 12C NT + AK + EK	2	387	US	14044.12 EU
9880968	20743600	Vacuubrand GmbH & Co.KG	616	395	1	MD 12C NT + AK + EK	2	387	EU	14352.94 EU
9880969	20743601	Vacuubrand GmbH & Co.KG	616	395	1	MD 12C NT + AK + EK	2	387	CH	14352.94 EU
9880970	20743602	Vacuubrand GmbH & Co.KG	616	395	1	MD 12C NT + AK + EK	2	387	UK	14352.94 EU

Chemistry vacuum system, MD 1C AK/EK

Vacuubrand GmbH & Co.KG (909318)

Chemistry vacuum system, MD 1C AK/EK
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) enables near 100 percent solvent recovery.

-Good chemical resistance and vapor tolerance
-High performance even at low vacuum
-Good vacuum even with gas ballast
-Quiet and ultra low vibration
-Oilfree

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Width~mm	Plug type	Price
4670345	20696622	Vacuubrand GmbH & Co.KG	316	405	1	MD 1C + AK + EK	2	239	UK	5830.88 EU
4670346	20696623	Vacuubrand GmbH & Co.KG	316	405	1	MD 1C + AK + EK	2	239	US	5830.88 EU
9880828	20696620	Vacuubrand GmbH & Co.KG	316	405	1	MD 1C + AK + EK	2	239	EU	5926.47 EU
9880925	20696621	Vacuubrand GmbH & Co.KG	316	405	1	MD 1C + AK + EK	2	239	CH	5933.89 EU

Chemistry vacuum system, MD 4C NT AK SYNCHRO/EK

Vacuubrand GmbH & Co.KG (909327)

Chemistry vacuum system, MD 4C NT AK SYNCHRO/EK
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) enables near 100 percent solvent recovery.

-Good chemical resistance and vapor tolerance
-High performance even at low vacuum
-Good vacuum even with gas ballast
-Quiet and ultra low vibration
-Oilfree
-Simultaneous operation of two independent vacuum applications, with reliable check valves to prevent interference between systems

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Width~mm	Plug type	Price
4670509	20736801	Vacuubrand GmbH & Co.KG	326	402	1	MD 4C NT +AK SYNCHRO+EK	1.5	248	CH	8602.94 EU
4670510	20736802	Vacuubrand GmbH & Co.KG	326	402	1	MD 4C NT +AK SYNCHRO+EK	1.5	248	UK	8602.94 EU
4670511	20736803	Vacuubrand GmbH & Co.KG	326	402	1	MD 4C NT +AK SYNCHRO+EK	1.5	248	US	8602.94 EU
6245040	20736800	Vacuubrand GmbH & Co.KG	326	402	1	MD 4C NT +AK SYNCHRO+EK	1.5	248	EU	8756.18 EU

Chemistry vacuum system, MD 4C NT AK/EK

Vacuubrand GmbH & Co.KG (909323)

Chemistry vacuum system, MD 4C NT AK/EK
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) enables near 100 percent solvent recovery.

-Good chemical resistance and vapor tolerance
-High performance even at low vacuum
-Good vacuum even with gas ballast
-Quiet and ultra low vibration
-Oilfree

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Width~mm	Plug type	Price
4670506	20736702	Vacuubrand GmbH & Co.KG	326	402	1	MD 4C NT + AK + EK	1.5	243	UK	7992.65 EU
4670507	20736703	Vacuubrand GmbH & Co.KG	326	402	1	MD 4C NT + AK + EK	1.5	243	US	7838.24 EU
9880837	20736700	Vacuubrand GmbH & Co.KG	326	402	1	MD 4C NT + AK + EK	1.5	243	EU	8029.41 EU
9880924	20736701	Vacuubrand GmbH & Co.KG	326	402	1	MD 4C NT + AK + EK	1.5	243	CH	8029.41 EU

Chemistry vacuum system, MZ 2C NT AK SYNCHRO/EK

Vacuubrand GmbH & Co.KG (909328)

Chemistry vacuum system, MZ 2C NT AK SYNCHRO/EK
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) enables near 100 percent solvent recovery.

-Good chemical resistance and vapor tolerance
-High performance even at low vacuum
-Good vacuum even with gas ballast
-Quiet and ultra low vibration
-Oilfree
-Simultaneous operation of two independent vacuum applications, with reliable check valves to prevent interference between systems

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Width~mm	Plug type	Price
4670449	20732802	Vacuubrand GmbH & Co.KG	326	402	1	MZ 2C NT + AK SYNCHRO + EK	7	248	UK	5404.41 EU
4670450	20732803	Vacuubrand GmbH & Co.KG	326	402	1	MZ 2C NT + AK SYNCHRO + EK	7	248	US	5404.41 EU
9880921	20732800	Vacuubrand GmbH & Co.KG	326	402	1	MZ 2C NT + AK SYNCHRO + EK	7	248	EU	5540.29 EU
9880922	20732801	Vacuubrand GmbH & Co.KG	326	402	1	MZ 2C NT + AK SYNCHRO + EK	7	248	CH	5541.47 EU

Chemistry vacuum system, MZ 2C NT AK/EK

Vacuubrand GmbH & Co.KG (909322)

Chemistry vacuum system, MZ 2C NT AK/EK
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) enables near 100 percent solvent recovery.

-Good chemical resistance and vapor tolerance
-High performance even at low vacuum
-Good vacuum even with gas ballast
-Quiet and ultra low vibration
-Oilfree

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Width~mm	Plug type	Price
4670445	20732602	Vacuubrand GmbH & Co.KG	326	402	1	MZ 2C NT + AK + EK	7	243	UK	4902.21 EU
4670446	20732603	Vacuubrand GmbH & Co.KG	326	402	1	MZ 2C NT + AK + EK	7	243	US	4764.71 EU
6234067	20732600	Vacuubrand GmbH & Co.KG	326	402	1	MZ 2C NT + AK + EK	7	243	EU	4898.98 EU
9880923	20732601	Vacuubrand GmbH & Co.KG	326	402	1	MZ 2C NT + AK + EK	7	243	CH	4897.21 EU

Chemistry vacuum system, MZ 2C NT AK/EK Peltronic

Vacuubrand GmbH & Co.KG (909325)

Chemistry vacuum system, MZ 2C NT AK/EK Peltronic
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) enables near 100 percent solvent recovery.

-Good chemical resistance and vapor tolerance
-High performance even at low vacuum
-Good vacuum even with gas ballast
-Quiet and ultra low vibration
-Oilfree

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Width~mm	Weight	Plug type	Rated capacity		General	Price	Quantity	Status	Add
6260612	22613944	Vacuubrand GmbH & Co.KG		326	392	1	MZ 2C NT + AK + EK PELTRONIC	7	360						8036.76 EU
