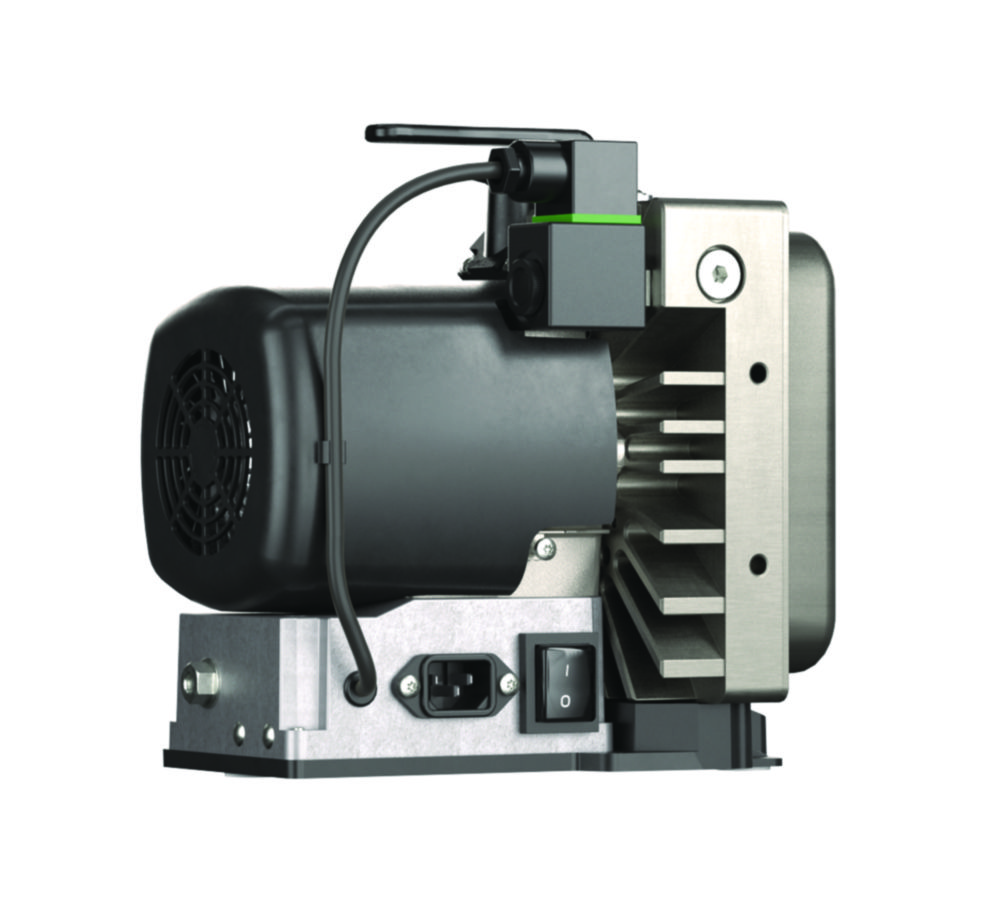

Scroll vacuum pump SCROLLVAC 3S plus

Leybold GmbH (830819)

Scroll vacuum pump SCROLLVAC 3S plus
The oil-free, dry-compressing vacuum pump works on the principle of a scroll compressor and combines a high pumping speed with a good ultimate vacuum. Ideal for small laboratories as well as applications in research and development. The integrated exhaust valve provides effective protection against a rapid pressure rise in the event of a power failure. Additional system protection is provided by the solenoid inlet valve with delay relay, which isolates the pump from the system and preserve the vacuum inside the system.

-Powerful, dry-operating alternative to diaphragm pumps
-Can be operated horizontally or vertically
-Compact design with low weight
-Max. pump speed of 3 m3/h
-Carrying handle facilitates transport of the pump
-Build-in manual gas ballast
-Long maintenance intervals due to oil-free operation, low maintenance
-Low vibration and quiet operation

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Weight~kg	Width~mm	Plug type	Price
4700564	142030V430+80010	Leybold GmbH	224	231	1	SCROLLVAC 3S plus	0.1	8	158	EU	6620.81 EU
6523175	142030V430+80010	Leybold GmbH	224	231	1	SCROLLVAC 3S plus	0.1	8	158	UK	6569.41 EU
6523176	142030V430+80010	Leybold GmbH	224	231	1	SCROLLVAC 3S plus	0.1	8	158	US	6543.96 EU

Scroll vacuum pump SCROLLVAC C plus

Leybold GmbH (830762)

Scroll vacuum pump SCROLLVAC C plus
The oil-free, dry-compressing vacuum pump works on the principle of a scroll compressor and is characterised by high pumping speed, with low ultimate pressure, low power consumption and low noise level. Ideal for general laboratory, light industrial, research, and chemical applications. The gas ballast enables the pumping of condensable vapours, including water, solvents, dilute acids, and bases. Absolute separation of the bearings from the pump mechanism prevents contamination. The integrated smart drive with auto sensing voltage input ensures optimised pump performance worldwide.

-Compact design with low weight
-Control panel for convenient control of the pump with remote control interface
-Running time hours-counter included as standard
-Universal voltage drive (100 to 127 V/200 to 240 V, 50/60 Hz)
-High water vapour capacity
-Low noise level for a quiet working and laboratory environment
-Low-maintenance, simple seal replacement (maintenance kits can be ordered separately)
-ATEX-certified (Ex II 3 G c IIB T4)
Specially developed for aggressive applications. By using purge gas, the SCROLLVAC C plus can be configured to process corrosive solvents and chemicals without any problems.

-Chemical resistant exhaust check valve and gas ballast valve
-Stainless steel inlet and exhaust flanges

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Weight~kg	Width~mm	Plug type	Rated capacity		General	Price	Quantity	Status	Add
4700562	141018V12	Leybold GmbH		298	312	1	SCROLLVAC 18 C plus	0.03	25	432					16783.82 EU

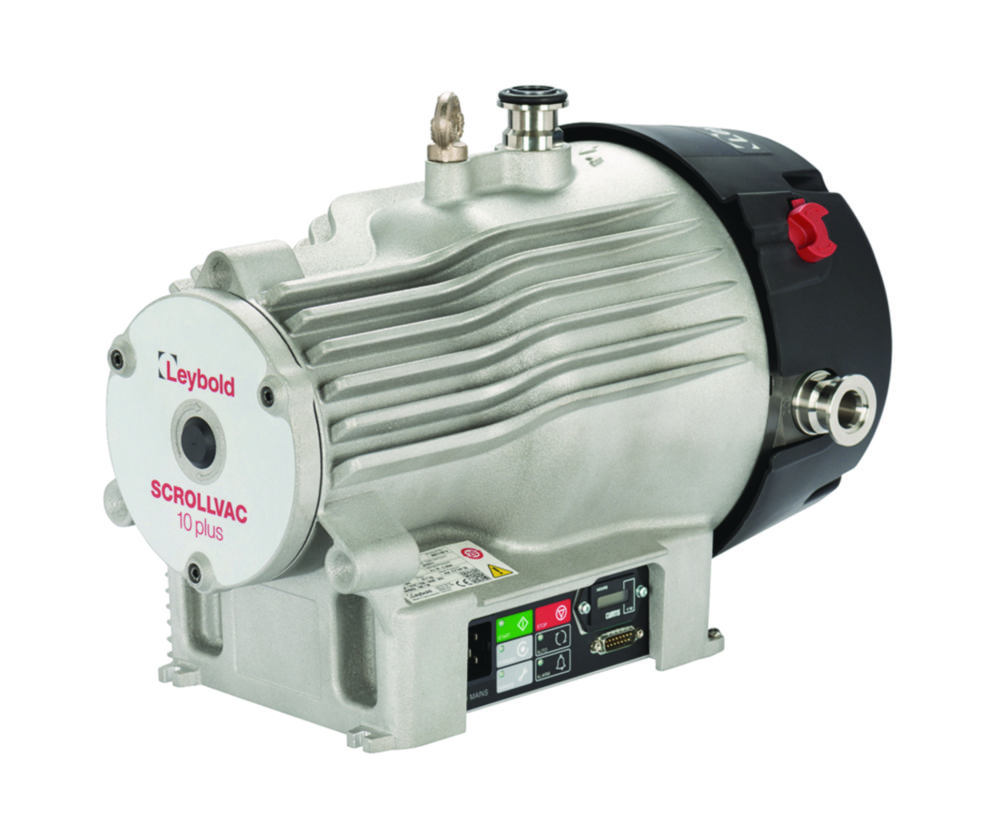

Scroll vacuum pump SCROLLVAC plus

Leybold GmbH (830739)

Scroll vacuum pump SCROLLVAC plus
The oil-free, dry-compressing vacuum pump works on the principle of a scroll compressor and is characterised by high pumping speed, with low ultimate pressure, low power consumption and low noise level. Ideal for general laboratory, light industrial, research, and chemical applications. The gas ballast enables the pumping of condensable vapours, including water, solvents, dilute acids, and bases. Absolute separation of the bearings from the pump mechanism prevents contamination. The integrated smart drive with auto sensing voltage input ensures optimised pump performance worldwide.

-Compact design with low weight
-Control panel for convenient control of the pump with remote control interface
-Running time hours-counter included as standard
-Universal voltage drive (100 to 127 V/200 to 240 V, 50/60 Hz)
-High water vapour capacity
-Low noise level for a quiet working and laboratory environment
-Low-maintenance, simple seal replacement (maintenance kits can be ordered separately)
-ATEX-certified (Ex II 3 G c IIB T4)

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Weight~kg	Width~mm	Plug type	Rated capacity		General	Price	Quantity	Status	Add
4700563	141018V10	Leybold GmbH		298	312	1	SCROLLVAC 18 plus	0.03	25	432					15244.12 EU
