​​​​​​​Mini immersion cylinders
Search ​​​​​​​Mini immersion cylinders Bürkle GmbH (802590)

Bürkle GmbH (802590)

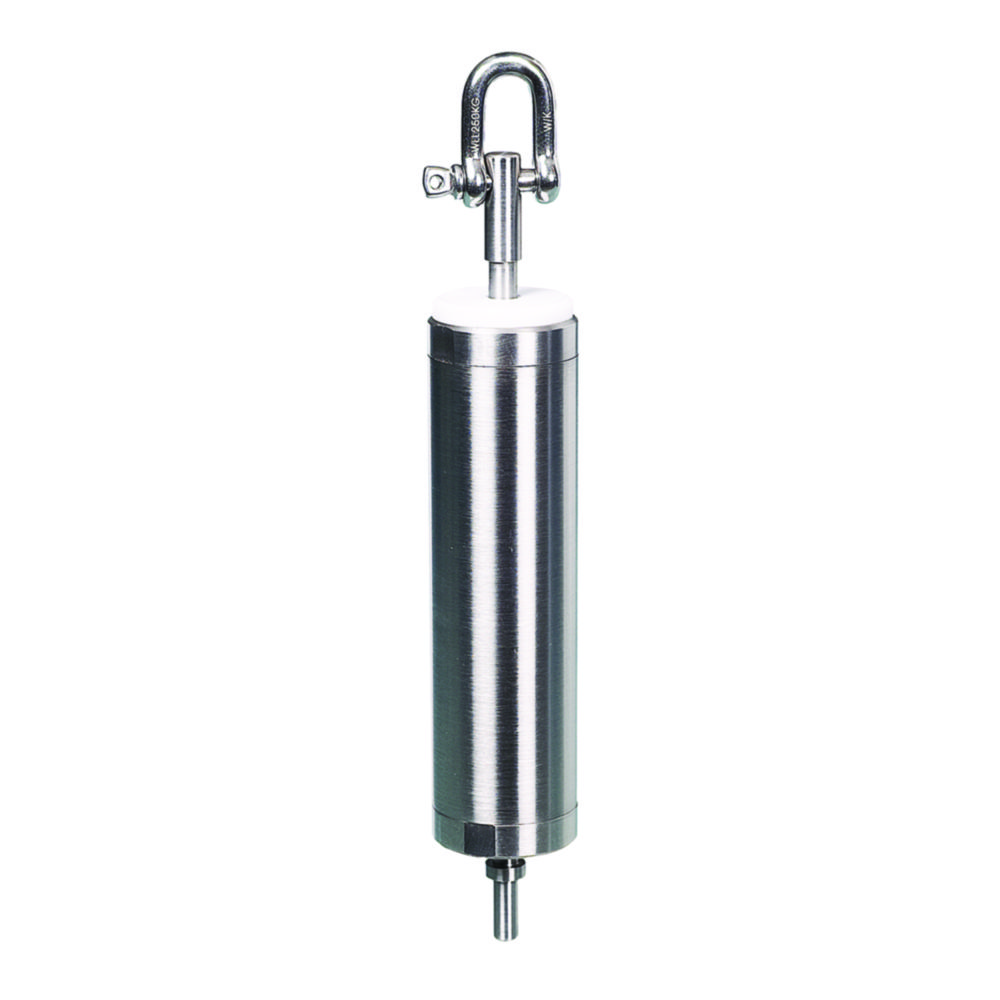

???????Mini immersion cylinders
For sampling liquids in narrow places where access is difficult. Can also be used in curved dipping tubes and barrels with narrow openings. Without lowering cable. Upper body unscrews for easy cleaning.
 ???????Mini immersion cylinders
For sampling liquids in narrow places where access is difficult. Can also be used in curved dipping tubes and barrels with narrow openings. Without lowering cable. Upper body unscrews for easy cleaning.
PN Manuf. PN Supplier Height~mm Material Ø~mm PK Type Weight~g Nominal capacity~ml General Price Quantity Status Add
9303933 5365-5000 Bürkle GmbH 180 Stainless steel 1.4401 32 1 330 50 512.79 EU Search Please contact us

Dipping bottle glass
Search Dipping bottle glass Bürkle GmbH (802578)

Bürkle GmbH (802578)

Dipping bottle glass
For sewage disposal plants, sludge and water samples. Nickel-plated brass frame with glass sample bottle.


-With Easy-Click for a rapid bottle exchange
-With handle
-High weight for fast lowering
-Without lowering cable


Operation: 1. Low... Dipping bottle glass
For sewage disposal plants, sludge and water samples. Nickel-plated brass frame with glass sample bottle.


-With Easy-Click for a rapid bottle exchange
-With handle
-High weight for fast lowering
-Without lowering cable


Operation: 1. Lower bottle into liquid. 2. Pull cable when target depth is reached and open stopper. 3. Sample flows in. 4. Pull bottle back up and remove sample.
PN Manuf. PN Supplier Height~mm Material Ø~mm PK Type Weight~g Nominal capacity~ml General Price Quantity Status Add
9303938 5365-4000 Bürkle GmbH 330 Brass 148 1 3200 1000 878.44 EU Search Please contact us

Dipping bottles Ex, for sampling flammable liquids
Search Dipping bottles Ex, for sampling flammable liquids Bürkle GmbH (802572)

Bürkle GmbH (802572)

Dipping bottles Ex, for sampling flammable liquids
For sampling category A mineral oil products, Explosion Categories IIA, IIB and IIC. Made from brass that do not produce sparks, nickel-plated.


-Screw-off bottle head
-With handle
-Heigh weight for fast lowering
-With... Dipping bottles Ex, for sampling flammable liquids
For sampling category A mineral oil products, Explosion Categories IIA, IIB and IIC. Made from brass that do not produce sparks, nickel-plated.


-Screw-off bottle head
-With handle
-Heigh weight for fast lowering
-Without lowering cable


Operation: 1. Lower bottle into liquid. 2. Pull the cable when the target spot has been reached and the stopper opens. 3. Sample flows in. 4. Pull up dipping bottle and remove sample. Use an electrically conductive, manually operated reel and lowering cable or chain.
PN Manuf. PN Supplier Height~mm Material Ø~mm PK Type Weight~g Nominal capacity~ml General Price Quantity Status Add
9303937 5365-3000 Bürkle GmbH 443 Brass 89 1 3300 1000 898.00 EU Search Please contact us

Dipping vessels for sampling
Search Dipping vessels for sampling Bürkle GmbH (1082)

Bürkle GmbH (1082)

Dipping vessels for sampling
For sampling liquids from tanks, lorry tankers, etc. Made of brass or stainless steel AISI 304 (1.4301) for Ex areas. With handle. Without lowering cable.
Operation: When the dipping vessel is lowered, the liquid constantly runs through it. By pulling back... Dipping vessels for sampling
For sampling liquids from tanks, lorry tankers, etc. Made of brass or stainless steel AISI 304 (1.4301) for Ex areas. With handle. Without lowering cable.
Operation: When the dipping vessel is lowered, the liquid constantly runs through it. By pulling back, both valves close automatically.
Emptying at the top via the open flaps.
PN Manuf. PN Supplier Height~mm Material Ø~mm PK Type Weight~g Nominal capacity~ml General Price Quantity Status Add
9303935 5365-1000 Bürkle GmbH 427 Brass 75 1 2300 1000 960.31 EU Search Please contact us
9303936 5365-2000 Bürkle GmbH 427 Stainless steel 1.4301 76 1 2000 1000 1859.56 EU Search Please contact us

Immersion Cylinders
Search Immersion Cylinders Bürkle GmbH (802581)

Bürkle GmbH (802581)

Immersion Cylinders
For target spot and bottom samples of mineral oil products. Made of nickel-plated brass.


-Screw-off top
-With handle
-Heavy design for fast lowering
-Without lowering and pull cables


Target spot sample: 1. Immersion cylinder is lowered i... Immersion Cylinders
For target spot and bottom samples of mineral oil products. Made of nickel-plated brass.


-Screw-off top
-With handle
-Heavy design for fast lowering
-Without lowering and pull cables


Target spot sample: 1. Immersion cylinder is lowered in the tank to be sampled by the manually operated reel. 2. The separate pull cable is used to open the valve when the target spot is reached and the sample then enters the immersion cylinder.
Bottom sample: 1. Lower the immersion cylinder to the bottom. 2. The weight of the immersion cylinder opens the valve automatically when the bottom is reached and the sample then enters the immersion cylinder.
PN Manuf. PN Supplier Height~mm Material Ø~mm PK Type Weight~g Nominal capacity~ml General Price Quantity Status Add
4681429 5365-7500 Bürkle GmbH 300 Brass 75 1 3000 500 1070.96 EU Search Please contact us
9303939 5365-7000 Bürkle GmbH 450 Brass 75 1 4300 1000 1126.71 EU Search Please contact us

Target immersion cylinder
Search Target immersion cylinder Bürkle GmbH (802587)

Bürkle GmbH (802587)

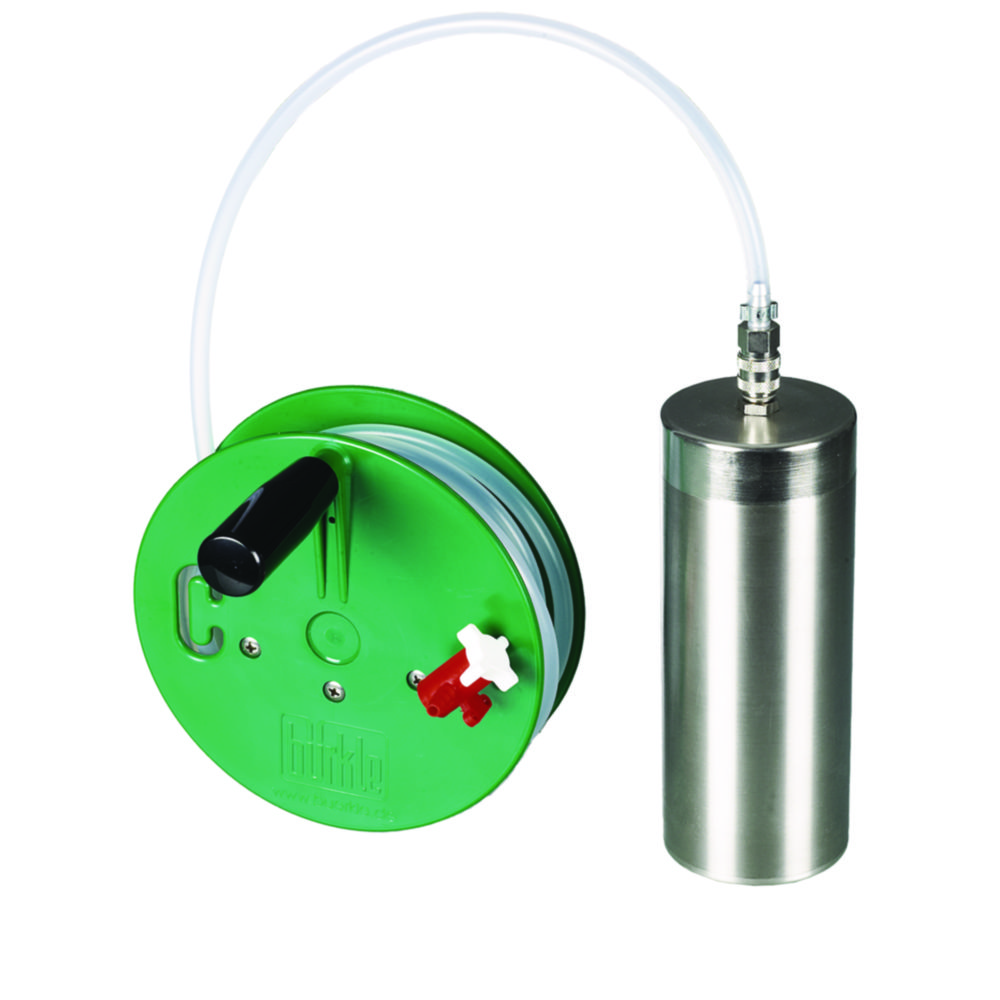

Target immersion cylinder
With the Target immersion cylinder, liquid samples can be taken from a particular point. The immersion cylinder is lowered on a strong and sealed tube. When the target has been reached, a valve at the tube end is opened. This vents the immersion cylinder and fil... Target immersion cylinder
With the Target immersion cylinder, liquid samples can be taken from a particular point. The immersion cylinder is lowered on a strong and sealed tube. When the target has been reached, a valve at the tube end is opened. This vents the immersion cylinder and fills it with the sample. The immersion cylinder is pulled up and emptied via the screw thread. With 5 m venting tube. Screw off top enables easy cleaning.
PN Manuf. PN Supplier Height~mm Material Ø~mm PK Type Weight~g Nominal capacity~ml General Price Quantity Status Add
7623934 5365-6000 Bürkle GmbH 210 75 1 2600 500 786.04 EU Search Please contact us
6 items found Page 1 of 1
