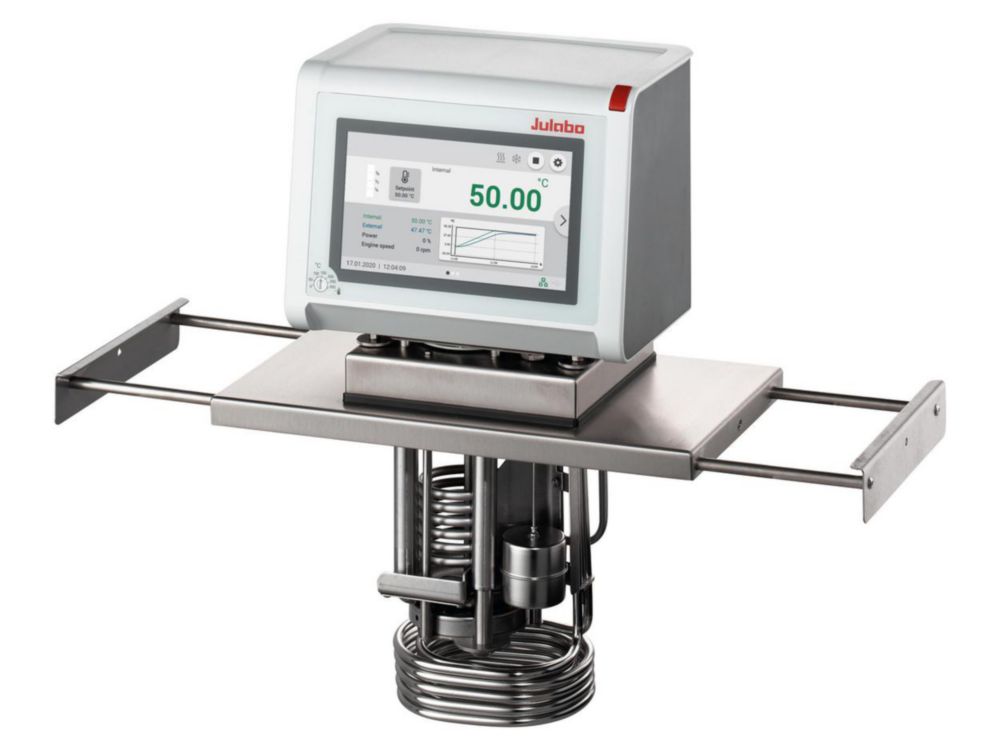

Bridge circulators MAGIO MS and MX

Julabo GmbH (10612)

Bridge circulators MAGIO MS and MX
Thanks to the adjustable stainless steel bridge the thermostats can be used with bath tanks up to a filling volume of 100 litres and bath widths from 33 to 68 cm.

-Simple control of complex applications
-Infinitely adjustable, extremely powerful pressure and suction pump
-Large, high-resolution TFT touch display with multilingual user interface
-Medium-contacting parts made of stainless steel
-Integrated programmer
-External Pt100 connection
-USB interface
-RS232 interface
-Ethernet interface
-Analogue interfaces (optionally)
-Classification III according to DIN 12876-1

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Programmable	Type	Weight~kg	Width~mm	Heating capacity~kW	Temperature	Plug type	General	Price	Quantity	Status	Add
4678302	9032201	Julabo GmbH		190	360	1	Yes	MS-Z	7.2	340	2	20 ... 300 °C			6248.53 EU
4678309	9033201	Julabo GmbH		190	410	1	Yes	MX-Z	7.6	340	3	20 ... 300 °C			6458.82 EU

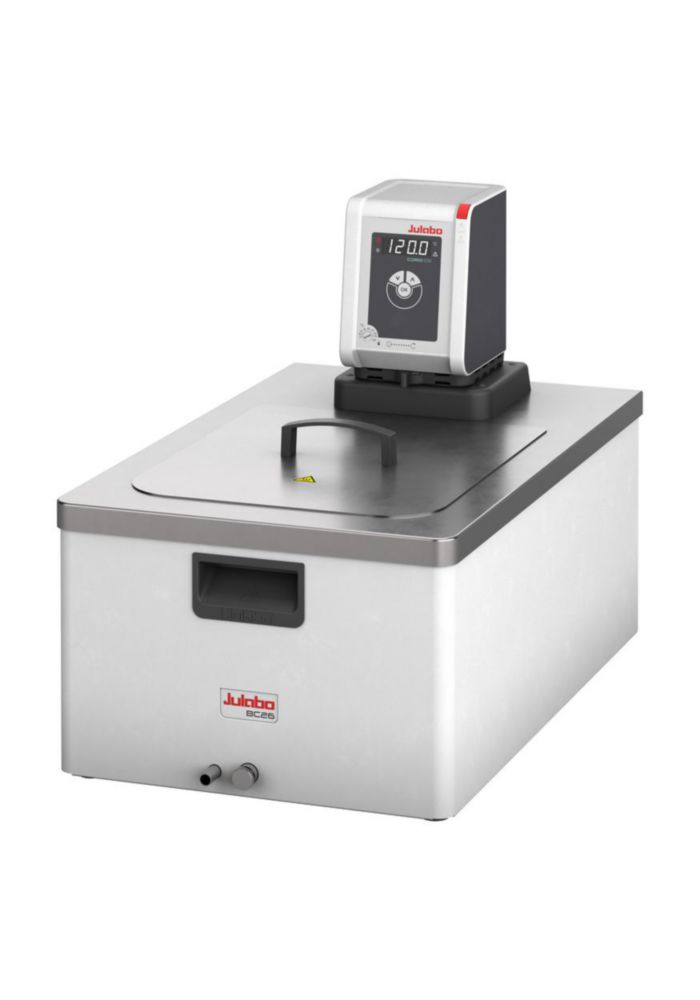

Circulator Baths, CORIO CD

Julabo GmbH (160)

Circulator Baths, CORIO™ CD
CORIO? CD Heating Circulators for internal and external temperature applications with stainless steel baths for working temperatures from 20 °C to 150 °C. CORIO? Heating Circulators feature professional technology for demanding applications. These units facilitate internal temperature control in the bath tank or control of externally connected applications.
-For internal and external applications
-Bright, white, easy to read display
-Very quiet
-Pump change-over between internal and external circulation
-USB connection
-High-quality bath tanks made of stainless steel with bath lid and drain tap
-Integrated cooling coil for counter-cooling

PN	Manuf. PN	Supplier	PK	Type	Weight~kg	Heating capacity~kW	Temperature	Price
4658004	9012504	Julabo GmbH	1	CD-BC4	8.8	2	20 ... 150 °C	3103.68 EU
4658005	9012506	Julabo GmbH	1	CD-BC6	10	2	20 ... 150 °C	3411.62 EU
4658006	9012512	Julabo GmbH	1	CD-BC12	12.2	2	20 ... 150 °C	3826.47 EU
4658007	9012526	Julabo GmbH	1	CD-BC26	19	2	20 ... 150 °C	4260.29 EU

Heating bath circulator CORIO CD-BT, with transparent bath tank

Julabo GmbH (2803)

Heating bath circulator CORIO™ CD-BT, with transparent bath tank
Heating bath circulator for internal and external temperature applications with transparent bath tank and pump connections.

-Bright, white, easy to read display
-Very quiet
-Pump change-over between internal and external circulation
-USB connection
-Class III (FL) according to DIN 12876-1

PN	Manuf. PN	Supplier	PK	Type	Weight~kg	Heating capacity~kW	Temperature	Price
4657994	9012305	Julabo GmbH	1	CD-BT5	8.2	2	20 ... 100 °C	2300.22 EU
4657995	9012319	Julabo GmbH	1	CD-BT19	8	2	20 ... 100 °C	2561.25 EU
4657996	9012327	Julabo GmbH	1	CD-BT27	8.1	2	20 ... 100 °C	2626.25 EU

Heating bath circulator, CORIO CD-B, with stainless steel bath tank

Julabo GmbH (2805)

Heating bath circulator, CORIO™ CD-B, with stainless steel bath tank
Heating bath circulator for internal and external temperature applications with stainless steel bath tank and pump connections.

-Bright, white, easy to read display
-Very quiet
-Pump change-over between internal and external circulation
-USB connection
-Integrated drain screw (except for B5)
-Class III (FL) according to DIN 12876-1

PN	Manuf. PN	Supplier	PK	Type	Weight~kg	Heating capacity~kW	Temperature	Plug type	Price
4657997	9012405	Julabo GmbH	1	CD-B5	8.2	2	20 ... 150 °C	EU	2456.84 EU
4657998	9012413	Julabo GmbH	1	CD-B13	9.1	2	20 ... 150 °C	EU	2845.59 EU
4657999	9012417	Julabo GmbH	1	CD-B17	9.3	2	20 ... 150 °C	EU	2961.76 EU
4658000	9012419	Julabo GmbH	1	CD-B19	11.5	2	20 ... 150 °C	EU	3013.24 EU
4658001	9012427	Julabo GmbH	1	CD-B27	13	2	20 ... 150 °C	EU	3233.09 EU
4658002	9012433	Julabo GmbH	1	CD-B33	21	2	20 ... 150 °C	EU	4811.76 EU
4658003	9012439	Julabo GmbH	1	CD-B39	18	2	20 ... 150 °C	EU	5100.74 EU
6312391	9012433.04	Julabo GmbH	1	CD-B33	21	2	20 ... 150 °C	UK	5032.35 EU
6312392	9012427.04	Julabo GmbH	1	CD-B27	13	2	20 ... 150 °C	UK	3216.92 EU
6313519	9012439.04	Julabo GmbH	1	CD-B39	18	2	20 ... 150 °C	UK	5135.29 EU
6324196	9012413.03 CN	Julabo GmbH	1	CD-B13	9.1	2	20 ... 150 °C	CN	2745.59 EU
6328657	9012419.05	Julabo GmbH	1	CD-B19	11.5	2	20 ... 150 °C	CH	2917.65 EU

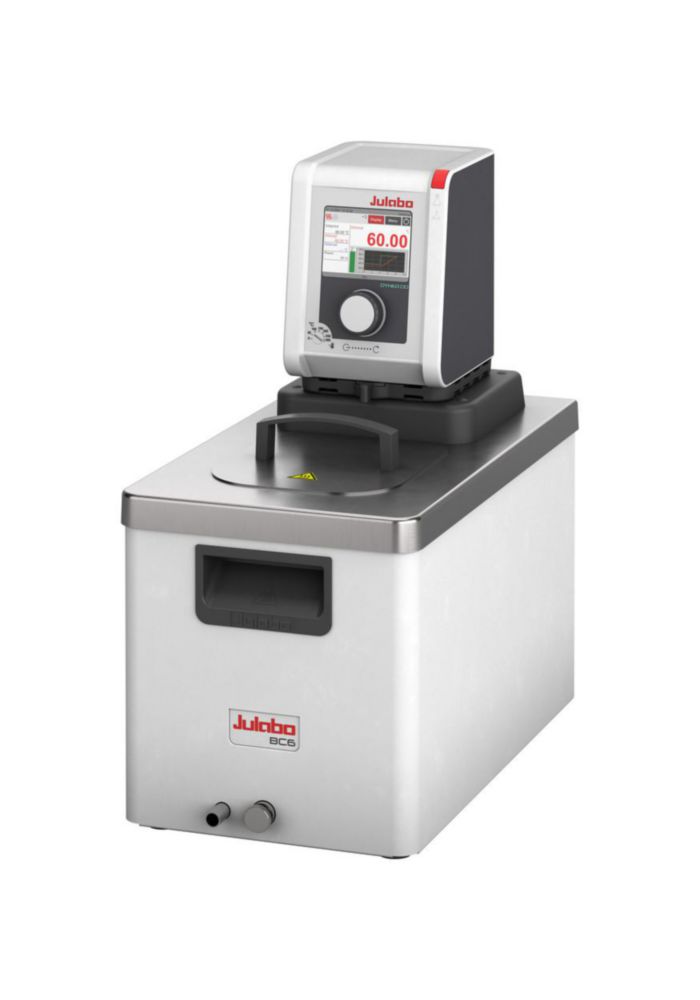

Heating circulator bath DYNEO DD-BC

Julabo GmbH (6404)

Heating circulator bath DYNEO™ DD-BC
For internal and external applications. With powerful components and a large, easy-to-read coloured TFT display. Operation is simple and intuitive via the central controller on the front of the device.

-Easy switching between internal and external circulation
-Integrated cooling coil for counter-cooling
-Built-in drain tap
-Integrated programmer for 8 x 60 program steps
-Continuously adjustable, powerful pressure pump
-Pump connections M16 x 1 (outer thread)
-USB interface
-External Pt100 sensor connection
-High-quality bath tanks made of stainless steel
-Class III (FL) acc. to DIN 12876-1

2 hose connectors for 8 and 12 mm I.W. and bath lid included.

PN	Manuf. PN	Supplier	PK	Programmable	Type	Weight~kg	Heating capacity~kW	Temperature	Price
4663221	9021504	Julabo GmbH	1	Yes	DD-BC4	8.5	2	20 ... 200 °C	4663.53 EU
4663222	9021506	Julabo GmbH	1	Yes	DD-BC6	9.7	2	20 ... 200 °C	4992.65 EU
4663223	9021512	Julabo GmbH	1	Yes	DD-BC12	11.9	2	20 ... 200 °C	5285.29 EU
4663224	9021526	Julabo GmbH	1	Yes	DD-BC26	18.7	2	20 ... 200 °C	5836.76 EU

Heating circulator bath DYNEO DD-BC.A, with analogue interface

Julabo GmbH (824471)

Heating circulator bath DYNEO™ DD-BC.A, with analogue interface
For internal and external applications. With powerful components and a large, easy-to-read coloured TFT display. Operation is simple and intuitive via the central controller on the front of the device.

-Easy switching between internal and external circulation
-Integrated cooling coil for counter-cooling
-Built-in drain tap
-Integrated programmer for 8 x 60 program steps
-Continuously adjustable, powerful pressure pump
-Pump connections M16 x 1 (outer thread)
-USB interface
-External Pt100 sensor connection
-High-quality bath tanks made of stainless steel
-Class III (FL) acc. to DIN 12876-1

2 hose connectors for 8 and 12 mm I.W. and bath lid included.

PN	Manuf. PN	Supplier	PK	Programmable	Type	Weight~kg	Heating capacity~kW	Temperature	Price
4663234	9021504.A	Julabo GmbH	1	Yes	DD-BC4.A	8.5	2	20 ... 200 °C	5242.65 EU
4663235	9021506.A	Julabo GmbH	1	Yes	DD-BC6.A	9.7	2	20 ... 200 °C	5552.94 EU
4663236	9021512.A	Julabo GmbH	1	Yes	DD-BC12.A	11.9	2	20 ... 200 °C	5948.53 EU
4663237	9021526.A	Julabo GmbH	1	Yes	DD-BC26.A	18.7	2	20 ... 200 °C	6500.00 EU

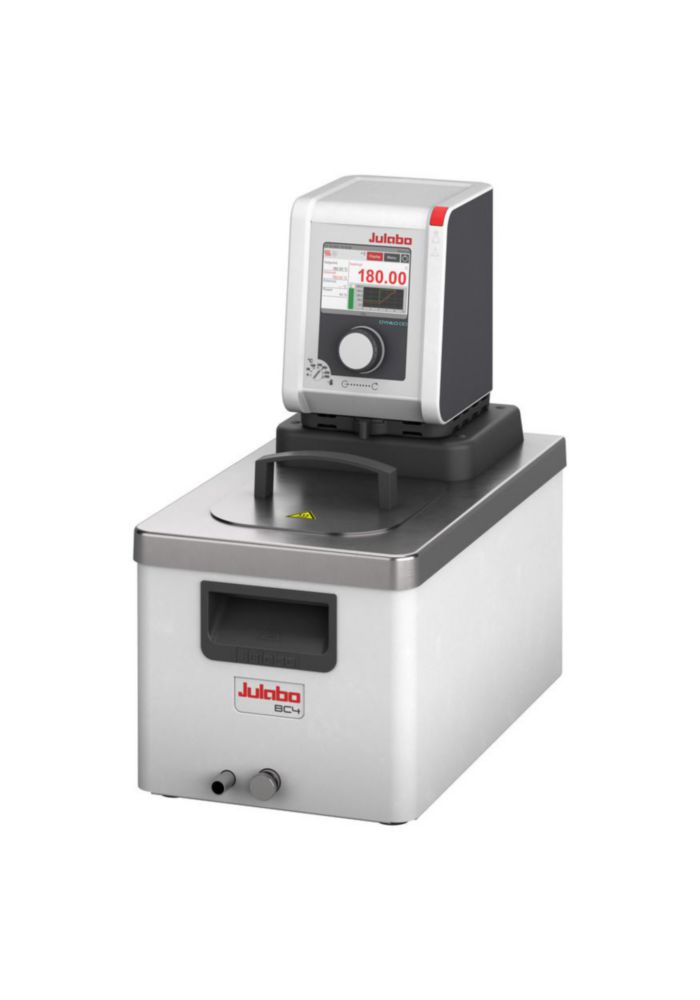

Heating circulator bath DYNEO DD-BC.D, with RS232 interface

Julabo GmbH (824489)

Heating circulator bath DYNEO™ DD-BC.D, with RS232 interface
For internal and external applications. With powerful components and a large, easy-to-read coloured TFT display. Operation is simple and intuitive via the central controller on the front of the device.

-Easy switching between internal and external circulation
-Integrated cooling coil for counter-cooling
-Built-in drain tap
-Integrated programmer for 8 x 60 program steps
-Continuously adjustable, powerful pressure pump
-Pump connections M16 x 1 (outer thread)
-USB interface
-External Pt100 sensor connection
-High-quality bath tanks made of stainless steel
-Class III (FL) acc. to DIN 12876-1

2 hose connectors for 8 and 12 mm I.W. and bath lid included.

PN	Manuf. PN	Supplier	PK	Programmable	Type	Weight~kg	Heating capacity~kW	Temperature	Price
4663247	9021504.D	Julabo GmbH	1	Yes	DD-BC4.D	8.5	2	20 ... 200 °C	4963.24 EU
4663248	9021506.D	Julabo GmbH	1	Yes	DD-BC6.D	9.7	2	20 ... 200 °C	5273.53 EU
4663249	9021512.D	Julabo GmbH	1	Yes	DD-BC12.D	11.9	2	20 ... 200 °C	5669.12 EU
4663250	9021526.D	Julabo GmbH	1	Yes	DD-BC26.D	18.7	2	20 ... 200 °C	6220.59 EU

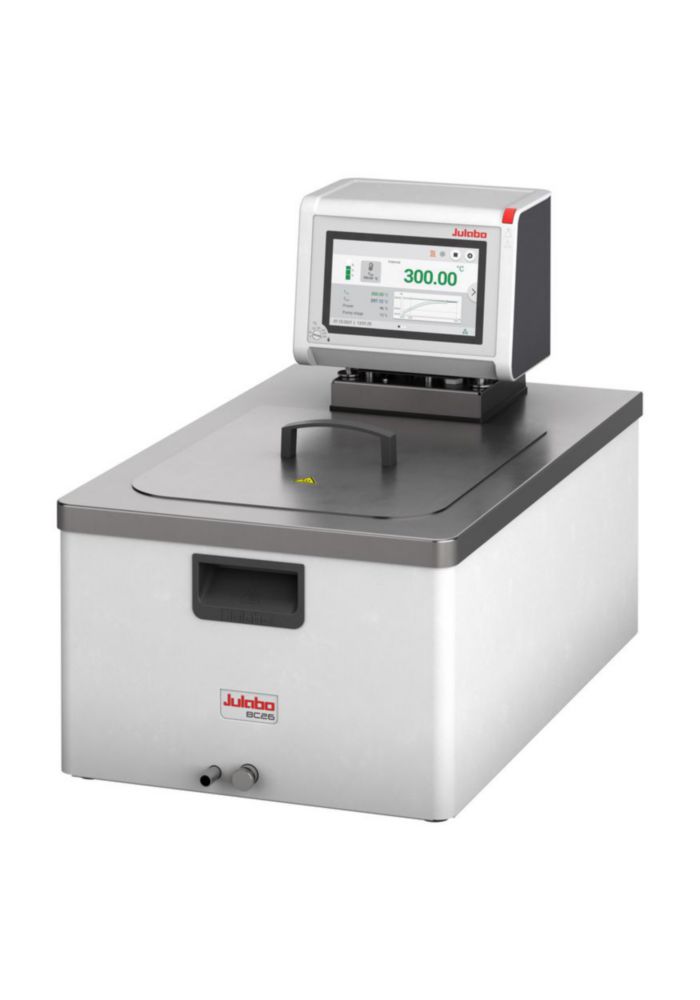

Heating circulator MAGIO MS/MX

Julabo GmbH (10611)

Heating circulator MAGIO MS/MX
For precise temperature control of internal and external applications.

-Simple control of complex applications
-Infinitely adjustable, extremely powerful pressure and suction pump
-Large, high-resolution TFT touch display with multilingual user interface
-Medium-contacting parts made of stainless steel
-Integrated programmer
-External Pt100 connection
-USB interface
-RS232 interface
-Ethernet interface
-High quality thermal insulation of the bath tanks
-Integrated drain cock for easy and safe emptying
-Classification III according to DIN 12876-1

PN	Manuf. PN	Supplier	PK	Programmable	Type	Weight~kg	Heating capacity~kW	Temperature	Price
4678303	9032504	Julabo GmbH	1	Yes	MS-BC4	11.1	2	20 ... 300 °C	6726.47 EU
4678310	9033506	Julabo GmbH	1	Yes	MX-BC6	12.8	3	20 ... 300 °C	7247.06 EU
4678311	9033512	Julabo GmbH	1	Yes	MX-BC12	14.6	3	20 ... 300 °C	7789.71 EU
4678312	9033526	Julabo GmbH	1	Yes	MX-BC26	21.4	3	20 ... 300 °C	8194.12 EU
