You Searched For:

Your filters:

Cross beater mill SK 300

Retsch GmbH (2522)

Cross beater mill SK 300
The cross beater mill SK 300 is used for batch-wise or continuous preliminary and fine size reduction. This robust mill is suited for laboratories as well as for the rough conditions of a production environment. Thanks to the powerful drive and rotor speed up to 4000 rpm it is often possible to achieve a final fineness Scope of supply: Cross Beater Mill with grinding insert, cross beater, baffle plates, filter hose, 5 l collecting vessel

Bottom sieves and base frame, please order separately.
Feeders and bottom sieves in further sizes are available on request.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Speed	Plug type	Max. throughput	Rated capacity~kW	General	Price	Quantity	Status	Add
4676373	20.751.0004	Retsch GmbH		700	1200	1	SK 300	50	600	2,000 ... 4,000 1/min	EU		1.5		13279.41 EU

Cyclones for rotor beater mills SR 300

Retsch GmbH (1000812)

Cyclones for rotor beater mills SR 300
For use with an industrial vacuum cleaner. Incl. collection vessel.

PN	Manuf. PN	Supplier		Description	For	Material	PK	Type						General	Price	Quantity	Status	Add
4676362	22.935.0020	Retsch GmbH		With 5 l collection vessel			1								6374.55 EU
4676363	22.935.0021	Retsch GmbH		With 30 l collection vessel			1								6404.48 EU

Ring sieves for rotor beater mill SR 300

Retsch GmbH (831710)

Ring sieves for rotor beater mill SR 300
360°, stainless.

PN	Manuf. PN	Supplier	For	Material	PK	Mesh size~mm	Type of~perforation	Price
4676355	02.407.0120	Retsch GmbH	SR 300	Steel, stainless	1	0.35	trapezoid	382.35 EU
9738911	02.407.0057	Retsch GmbH	SR 300	Steel, stainless	1	0.08	trapezoid	370.59 EU
9738918	02.407.0058	Retsch GmbH	SR 300	Steel, stainless	1	1.25	trapezoid	370.59 EU
9738921	02.407.0035	Retsch GmbH	SR 300	Steel, stainless	1	3	round	370.59 EU
9738922	02.407.0036	Retsch GmbH	SR 300	Steel, stainless	1	4	round	370.59 EU
9738923	02.407.0037	Retsch GmbH	SR 300	Steel, stainless	1	5	round	370.59 EU
9738924	02.407.0043	Retsch GmbH	SR 300	Steel, stainless	1	6	round	370.59 EU
9738925	02.407.0039	Retsch GmbH	SR 300	Steel, stainless	1	8	round	370.59 EU
9738926	02.407.0040	Retsch GmbH	SR 300	Steel, stainless	1	10	round	370.59 EU

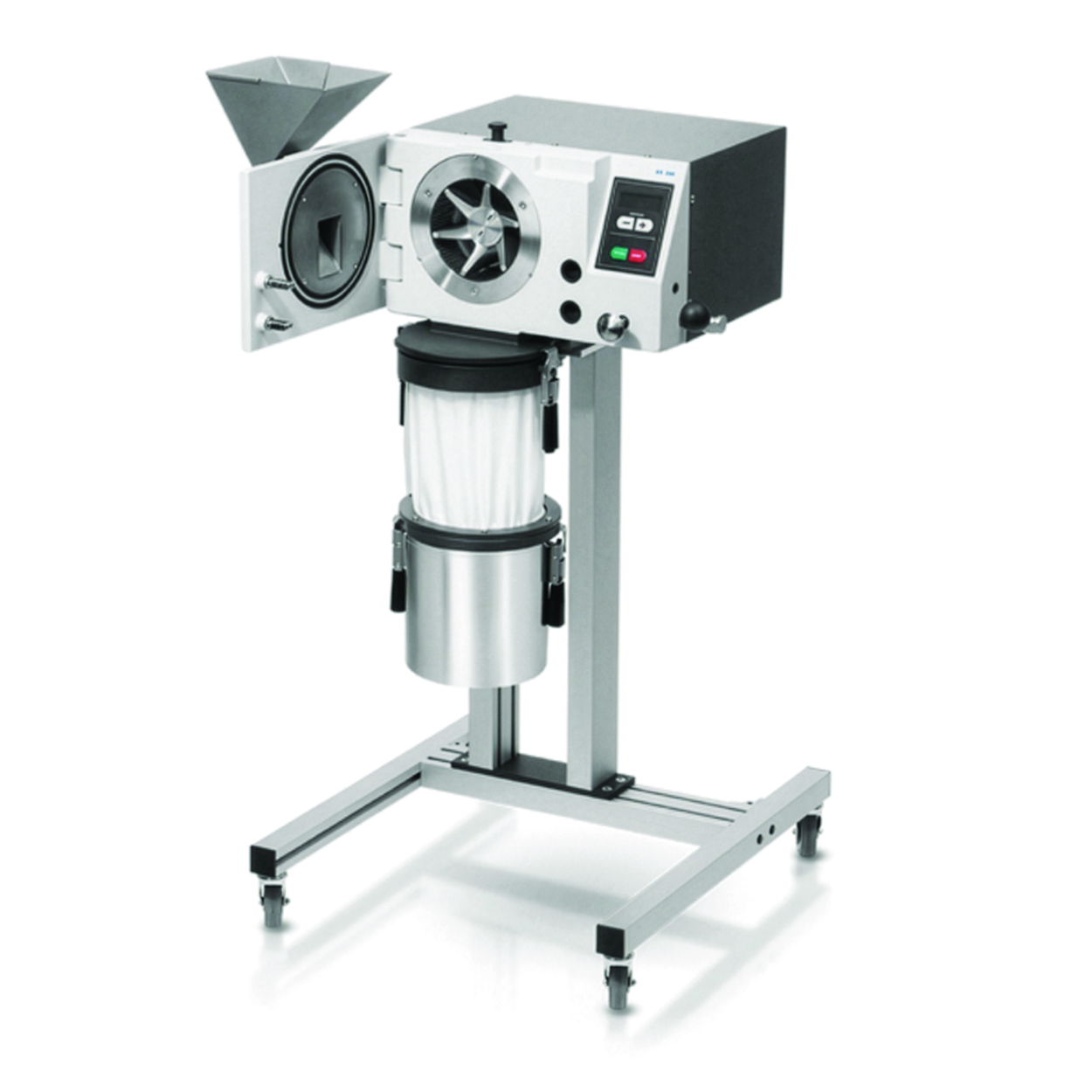

Rotor beater mill SR 300, with distance rotor

Retsch GmbH (1000720)

Rotor beater mill SR 300, with distance rotor
The rotor beater mill SR 300 is ideally suited for use in the laboratory and for small series production due to its robust design and the possibility to process large sample volumes. Grinding chamber, feed hopper and material inlet and outlet are completely made of high-quality stainless steel. The variable speed of up to 10000 rpm allows for adaptation to specific application requirements.

-High throughput for batchwise size reduction of large sample volumes
-Speed from 3000 to 10000 rpm
-Optional 180° grinding insert suitable for grinding hard, brittle samples
-Defined final fineness due to bottom sieves with aperture sizes from 0.08 to 10 mm
-Easy cleaning thanks to removable cassette, hopper and push fit rotor
-Ring filter and collecting vessel with convenient, dust-tight bayonet catch
-Quick-action door lock and motor brake

Function principle:
Size reduction and deagglomeration in the SR 300 are achieved by impact and shear effects. The quick-acting door lock ensures easy access to the grinding chamber for quick cleaning. With their motor brake (braking time Scope of supply: Mill with rotor, 5 l collecting vessel, filter hose

Please order base frame, sieves and sieve frames separately.
Distance rotor is suitable for heat-sensitive samples.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Speed	Plug type	Max. throughput	Rated capacity~W	General	Price	Quantity	Status	Add
4676354	20.752.0002	Retsch GmbH		700	1200	1	SR 300	60	600	3,000 ... 10,000 1/min	EU		2500		21639.71 EU

Sieve inserts for rotor beater mill SR 300

Retsch GmbH (1000570)

Sieve inserts for rotor beater mill SR 300
180°, stainless steel.

PN	Manuf. PN	Supplier	For	Material	PK	Mesh size~mm	Type of~perforation	Price
4676357	03.647.0395	Retsch GmbH	SR 300	Steel, stainless	1	0.35	trapezoid	283.82 EU
9738931	03.647.0081	Retsch GmbH	SR 300	Steel, stainless	1	0.08	trapezoid	283.82 EU
9738932	03.647.0039	Retsch GmbH	SR 300	Steel, stainless	1	0.12	trapezoid	283.82 EU
9738933	03.647.0040	Retsch GmbH	SR 300	Steel, stainless	1	0.2	trapezoid	283.82 EU
9738934	03.647.0041	Retsch GmbH	SR 300	Steel, stainless	1	0.25	trapezoid	283.82 EU
9738935	03.647.0042	Retsch GmbH	SR 300	Steel, stainless	1	0.5	trapezoid	283.82 EU
9738936	03.647.0043	Retsch GmbH	SR 300	Steel, stainless	1	0.75	trapezoid	283.82 EU
9738937	03.647.0044	Retsch GmbH	SR 300	Steel, stainless	1	1	trapezoid	283.82 EU
9738938	03.647.0045	Retsch GmbH	SR 300	Steel, stainless	1	1.25	trapezoid	283.82 EU
9738939	03.647.0046	Retsch GmbH	SR 300	Steel, stainless	1	1.5	trapezoid	283.82 EU
9738940	03.647.0047	Retsch GmbH	SR 300	Steel, stainless	1	2	trapezoid	283.82 EU
9738941	03.647.0048	Retsch GmbH	SR 300	Steel, stainless	1	3	round	283.82 EU
9738942	03.647.0049	Retsch GmbH	SR 300	Steel, stainless	1	4	round	283.82 EU
9738943	03.647.0050	Retsch GmbH	SR 300	Steel, stainless	1	5	round	283.82 EU
9738944	03.647.0051	Retsch GmbH	SR 300	Steel, stainless	1	6	round	283.82 EU
9738945	03.647.0052	Retsch GmbH	SR 300	Steel, stainless	1	8	round	283.82 EU
9738946	03.647.0053	Retsch GmbH	SR 300	Steel, stainless	1	10	round	283.82 EU

5 items found Page 1 of 1
