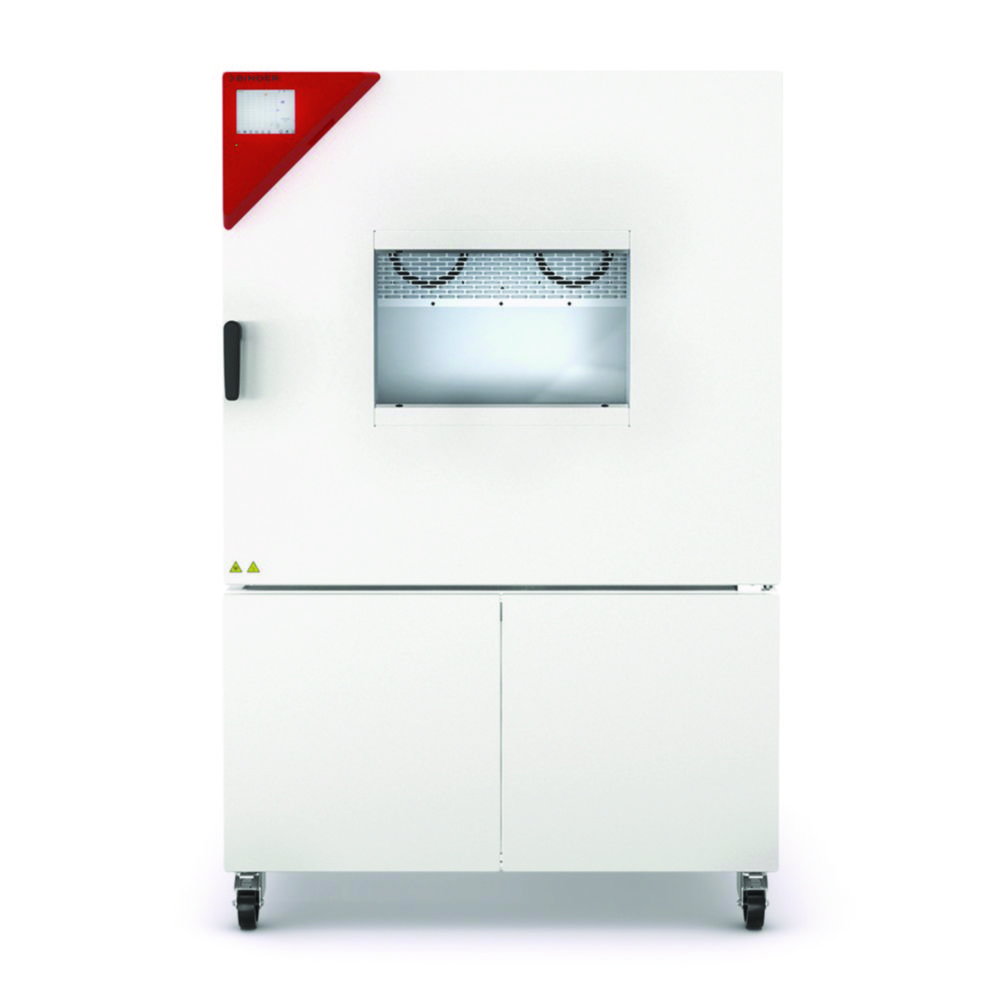

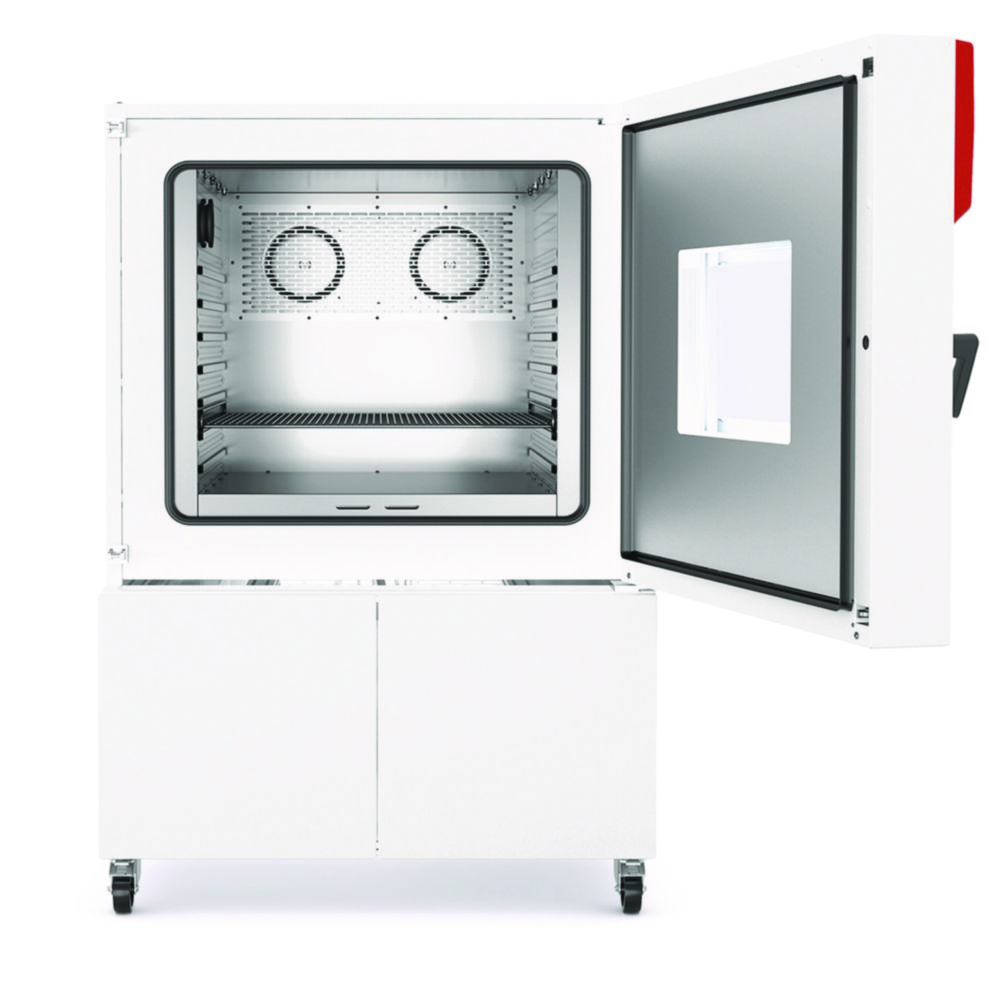

Dynamic climate chambers MK

BINDER GmbH (492278)

Dynamic climate chambers MK
Environmental chambers are ideal for material testing under dynamic conditions. The standard rapid alternation speeds of approx. 5 K/min enable standard-compliant testing.

-Homogeneous climate conditions thanks to APT.line? preheating chamber technology
-Touchscreen controller with time-segment and real-time programming
-Internal data logger, measured values can be read out via USB
-Programmable condensation protection
-Troubleshooting system with visual and acoustic alarms
-Heated viewing window with LED interior lighting
-BINDER Multi Management Software APT-COM? Basic Edition
-Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
-Ethernet interface
-Adjustable ramp function
-Integrated chart recorder
-Door heating
-Inner chamber made of stainless steel
-1 stainless steel rack
-CFC-free refrigerant R-452A

Models with 480 V nominal voltage are equipped with a voltage and frequency converter.

PN	Manuf. PN	Supplier	Ext. height~mm	PK	Type	Weight~kg	Temperature	Plug type	Nominal capacity~l	Rated capacity~kW	Price
4685701	9020-0445	BINDER GmbH	1710	1	MK 400	413	-40 ... 180 °C	CEE	417	7	74251.47 EU
4685703	9020-0447	BINDER GmbH	2005	1	MK 1020	621	-40 ... 180 °C	CEE	991	11.5	104682.94 EU
4705659	9020-0388	BINDER GmbH	1445	1	MK 56	165	-40 ... 180 °C	US	60	2.8	34884.71 EU
4705660	9020-0303	BINDER GmbH	1725	1	MK 115	255	-40 ... 180 °C	CEE	115	3.5	50855.00 EU
4705661	9020-0355	BINDER GmbH	1710	1	MK 240	321	-40 ... 180 °C	CEE	228	5.6	59477.35 EU
4705663	9020-0356	BINDER GmbH	2005	1	MK 720	570	-40 ... 180 °C	CEE	734	8.7	84592.94 EU

Dynamic climate chambers MKF, with humidity control

BINDER GmbH (492349)

Dynamic climate chambers MKF, with humidity control
Environmental chambers are ideal for material testing under dynamic conditions. The standard rapid alternation speeds of approx. 5 K/min enable standard-compliant testing.

-Homogeneous climate conditions thanks to APT.line? preheating chamber technology
-Touchscreen controller with time-segment and real-time programming
-Internal data logger, measured values can be read out via USB
-Programmable condensation protection
-Troubleshooting system with visual and acoustic alarms
-Heated viewing window with LED interior lighting
-BINDER Multi Management Software APT-COM? Basic Edition
-Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
-Ethernet interface
-Adjustable ramp function
-Integrated chart recorder
-Door heating
-Inner chamber made of stainless steel
-1 stainless steel rack
-Humidity regulation with capacitive humidity sensor and responsive steam humidification
-Automatic water and wastewater management
-Integrated 20 l water storage tank
-4 zero-voltage relay contacts
-CFC-free refrigerant R-452A

Models with 480 V nominal voltage are equipped with a voltage and frequency converter.

PN	Manuf. PN	Supplier	Ext. height~mm	PK	Type	Weight~kg	Temperature	Plug type	Nominal capacity~l	Rated capacity~kW	Price
4685705	9020-0446	BINDER GmbH	1710	1	MKF 400	432	-40 ... 180 °C	CEE	417	8	88858.82 EU
4685707	9020-0448	BINDER GmbH	2005	1	MKF 1020	636	-40 ... 180 °C	CEE	991	12.5	120507.06 EU
4705664	9020-0389	BINDER GmbH	1445	1	MKF 56	175	-40 ... 180 °C	US	60	2.8	41254.71 EU
4705666	9020-0357	BINDER GmbH	1725	1	MKF 115	280	-40 ... 180 °C	CEE	115	4.8	61243.82 EU
4705667	9020-0358	BINDER GmbH	1715	1	MKF 240	360	-40 ... 180 °C	CEE	228	6.8	79062.94 EU
4705669	9020-0359	BINDER GmbH	2005	1	MKF 720	590	-40 ... 180 °C	CEE	734	11	103171.76 EU

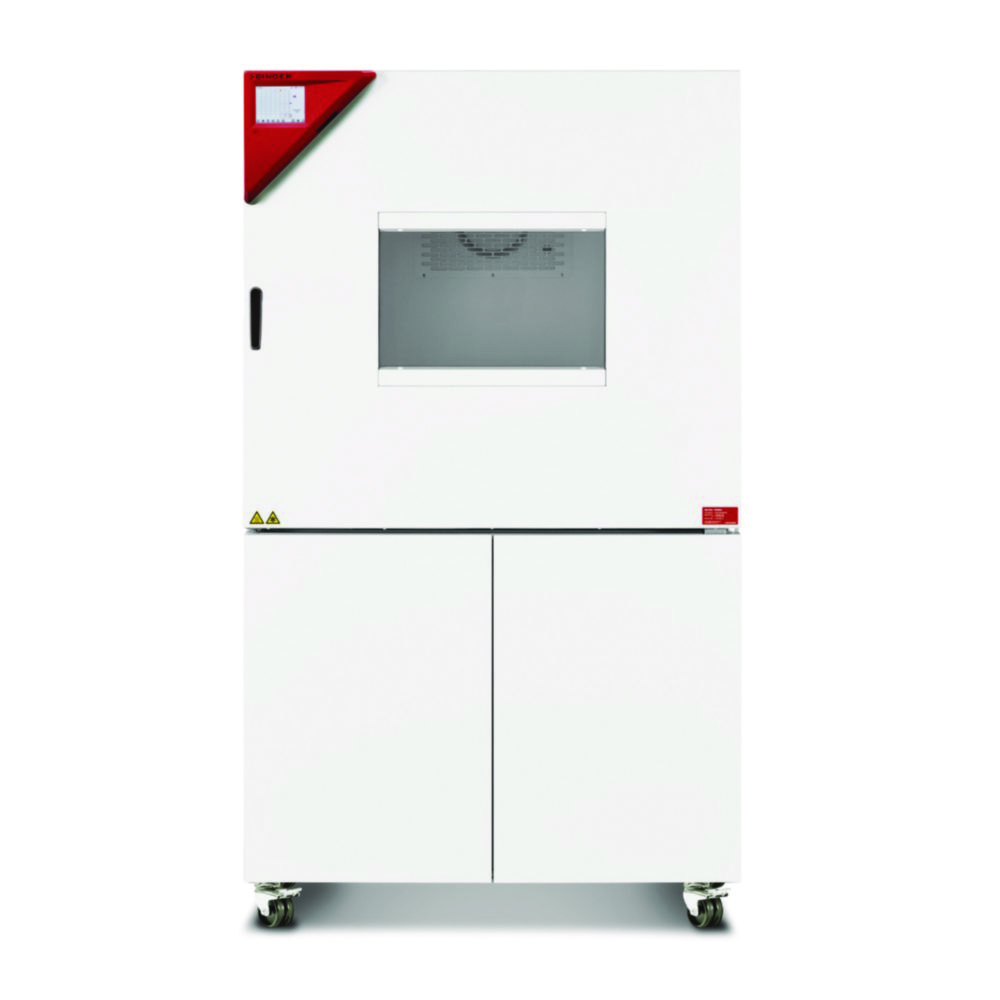

Dynamic climate chambers MKFT, with humidity control and extended low temperature range

BINDER GmbH (852688)

Dynamic climate chambers MKFT, with humidity control and extended low temperature range
Environmental chambers are ideal for material testing under dynamic conditions. The standard rapid alternation speeds of approx. 5 K/min enable standard-compliant testing.

-Homogeneous climate conditions thanks to APT.line? preheating chamber technology
-Touchscreen controller with time-segment and real-time programming
-Internal data logger, measured values can be read out via USB
-Programmable condensation protection
-Troubleshooting system with visual and acoustic alarms
-Heated viewing window with LED interior lighting
-BINDER Multi Management Software APT-COM? Basic Edition
-Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
-Ethernet interface
-Adjustable ramp function
-Integrated chart recorder
-Door heating
-Inner chamber made of stainless steel
-1 stainless steel rack
-Humidity regulation with capacitive humidity sensor and responsive steam humidification
-Automatic water and wastewater management
-Integrated 20 l water storage tank
-4 zero-voltage relay contacts
-CFC-free refrigerant R-452A and R-23

Models with 480 V nominal voltage are equipped with a voltage and frequency converter.

PN	Manuf. PN	Supplier	Ext. height~mm	PK	Type	Weight~kg	Temperature	Plug type	Nominal capacity~l	Rated capacity~kW	Price
4705671	9020-0362	BINDER GmbH	1725	1	MKFT 115	494	-70 ... 180 °C	CEE	115	5	85323.82 EU
4705672	9020-0361	BINDER GmbH	1940	1	MKFT 240	579	-70 ... 180 °C	CEE	228	6	101495.88 EU
4705674	9020-0360	BINDER GmbH	2005	1	MKFT 720	887	-70 ... 180 °C	CEE	734	11	121361.47 EU

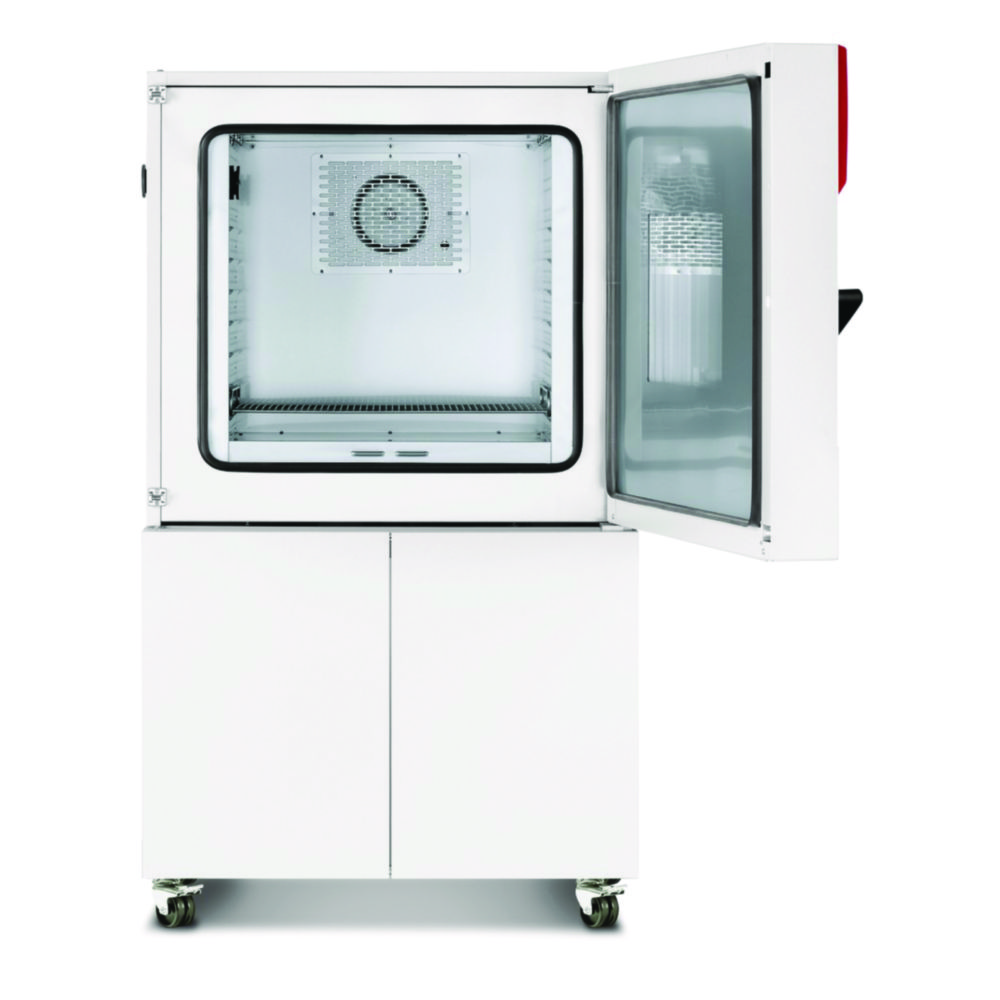

Dynamic climate chambers MKT, with extended low temperature range

BINDER GmbH (852600)

Dynamic climate chambers MKT, with extended low temperature range
Environmental chambers are ideal for material testing under dynamic conditions. The standard rapid alternation speeds of approx. 5 K/min enable standard-compliant testing.

-Homogeneous climate conditions thanks to APT.line? preheating chamber technology
-Touchscreen controller with time-segment and real-time programming
-Internal data logger, measured values can be read out via USB
-Programmable condensation protection
-Troubleshooting system with visual and acoustic alarms
-Heated viewing window with LED interior lighting
-BINDER Multi Management Software APT-COM? Basic Edition
-Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
-Ethernet interface
-Adjustable ramp function
-Integrated chart recorder
-Door heating
-Inner chamber made of stainless steel
-1 stainless steel rack
-4 zero-voltage relay contacts
-CFC-free refrigerant R-452A and R-23

Models with 480 V nominal voltage are equipped with a voltage and frequency converter.

PN	Manuf. PN	Supplier	Ext. height~mm	PK	Type	Weight~kg	Temperature	Plug type	Nominal capacity~l	Rated capacity~kW	Price
4705676	9020-0363	BINDER GmbH	1725	1	MKT 115	305	-70 ... 180 °C	CEE	115	5.5	68252.06 EU
4705678	9020-0364	BINDER GmbH	1935	1	MKT 240	380	-70 ... 180 °C	CEE	228	6.5	83724.12 EU
4705679	9020-0365	BINDER GmbH	2005	1	MKT 720	610	-70 ... 180 °C	CEE	734	13	109562.35 EU
