Vacuum stopcocks, one-way, borosilicate glass 3.3, parallel

Lenz-Laborglas GmbH & Co. KG (881683)

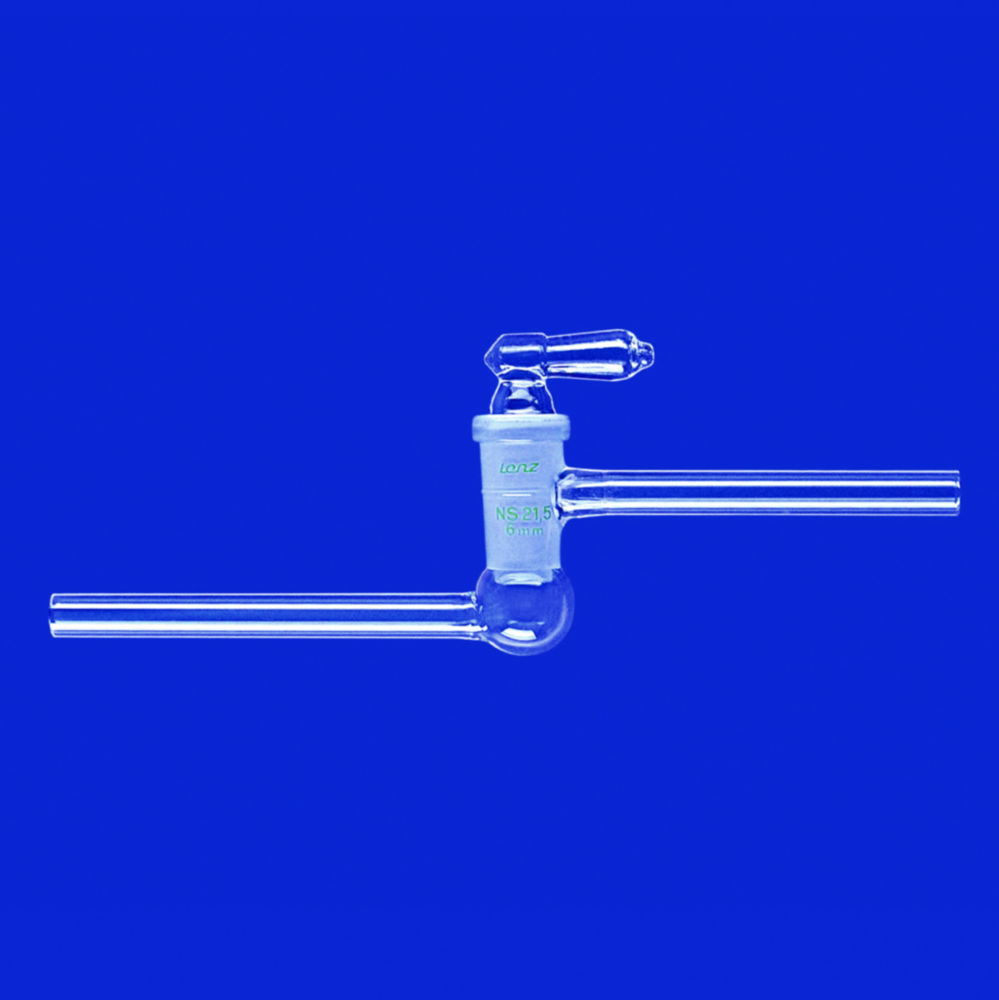

Vacuum stopcocks, one-way, borosilicate glass 3.3, parallel
With parallel side arms and hollow NS glass plug. Leakage rate acc. to DIN 12540-1.

PN	Manuf. PN	Supplier	Bore~mm	Material	PK	Ground size	Standard	Material stopcock	Price
4712784	02941402	Lenz-Laborglas GmbH & Co. KG	2.5	Boro 3.3	1	NS 14,5	DIN 12545	Glass key	88.67 EU
4712785	02942106	Lenz-Laborglas GmbH & Co. KG	6	Boro 3.3	1	NS 21,5	DIN 12545	Glass key	117.51 EU
4712786	02942408	Lenz-Laborglas GmbH & Co. KG	8	Boro 3.3	1	NS24		Glass key	143.98 EU
6223019	02941804	Lenz-Laborglas GmbH & Co. KG	4	Boro 3.3	1	NS 18,8	DIN 12545	Glass key	90.74 EU
6223143	02942910	Lenz-Laborglas GmbH & Co. KG	10	Boro 3.3	1	NS29	DIN 12545	Glass key	180.74 EU

Vacuum stopcocks, one-way, borosilicate glass 3.3, straight

Lenz-Laborglas GmbH & Co. KG (6918)

Vacuum stopcocks, one-way, borosilicate glass 3.3, straight
With straight side arms and hollow NS glass plug. Leakage rate acc. to DIN 12540-1.

PN	Manuf. PN	Supplier	Bore~mm	Material	PK	Ground size	Shape	Material stopcock	Price
6072114	02901402	Lenz-Laborglas GmbH & Co. KG	2.5	Boro 3.3	1	NS 14,5	1-way, straight	Glass key	90.74 EU
9116705	02901804	Lenz-Laborglas GmbH & Co. KG	4	Boro 3.3	1	NS 18,8	1-way, straight	Glass key	94.26 EU
9116707	02902106	Lenz-Laborglas GmbH & Co. KG	6	Boro 3.3	1	NS 21,5	1-way, straight	Glass key	114.56 EU
9116708	02902408	Lenz-Laborglas GmbH & Co. KG	8	Boro 3.3	1	NS24	1-way, straight	Glass key	145.15 EU
9116709	02902910	Lenz-Laborglas GmbH & Co. KG	10	Boro 3.3	1	NS29	1-way, straight	Glass key	179.55 EU

Vacuum-stopcocks, one-way, right-angled, borosilicate glass 3.3

Lenz-Laborglas GmbH & Co. KG (6919)

Vacuum-stopcocks, one-way, right-angled, borosilicate glass 3.3
One-way, acc. to DIN 12545 / DIN 12554 and in addition to DIN standard, with right-angled side arm and hollow glass plug. Leakage rate to DIN 12540-1.

PN	Manuf. PN	Supplier	Bore~mm	Material	PK	Ground size	Shape	Standard	Material stopcock	Price
9116401	02921402	Lenz-Laborglas GmbH & Co. KG	2.5	Boro 3.3	1	NS 14,5	1-way, 90°	DIN 12545	Glass key	103.08 EU
9116405	02921804	Lenz-Laborglas GmbH & Co. KG	4	Boro 3.3	1	NS 18,8	1-way, 90°	DIN 12545	Glass key	110.73 EU
9116407	02922106	Lenz-Laborglas GmbH & Co. KG	6	Boro 3.3	1	NS 21,5	1-way, 90°	DIN 12545	Glass key	114.85 EU
9116408	02922408	Lenz-Laborglas GmbH & Co. KG	8	Boro 3.3	1	NS24	1-way, 90°		Glass key	126.91 EU
9116409	02922910	Lenz-Laborglas GmbH & Co. KG	10	Boro 3.3	1	NS29	1-way, 90°	DIN 12554	Glass key	160.44 EU

Vacuum-stopcocks, T-shape, borosilicate glass 3.3

Lenz-Laborglas GmbH & Co. KG (701449)

Vacuum-stopcocks, T-shape, borosilicate glass 3.3
Acc. to DIN 12545 / DIN 12554 and in addition to DIN standard, T-shape, with right-angled side arms and hollow glass plug. Leakage rate to DIN 12540-1.

PN	Manuf. PN	Supplier	Bore~mm	Material	PK	Ground size	Standard	Material stopcock	Price
4712787	02962408	Lenz-Laborglas GmbH & Co. KG	8	Boro 3.3	1	NS24		Glass key	147.65 EU
6070310	02962910	Lenz-Laborglas GmbH & Co. KG	10	Boro 3.3	1	NS29	DIN 12554	Glass key	189.12 EU
6073267	02961804	Lenz-Laborglas GmbH & Co. KG	4	Boro 3.3	1	NS 18,8	DIN 12545	Glass key	105.00 EU
6204889	02962106	Lenz-Laborglas GmbH & Co. KG	6	Boro 3.3	1	NS 21,5	DIN 12545	Glass key	119.71 EU
6803554	02961402	Lenz-Laborglas GmbH & Co. KG	2.5	Boro 3.3	1	NS 14,5	DIN 12545	Glass key	101.76 EU
