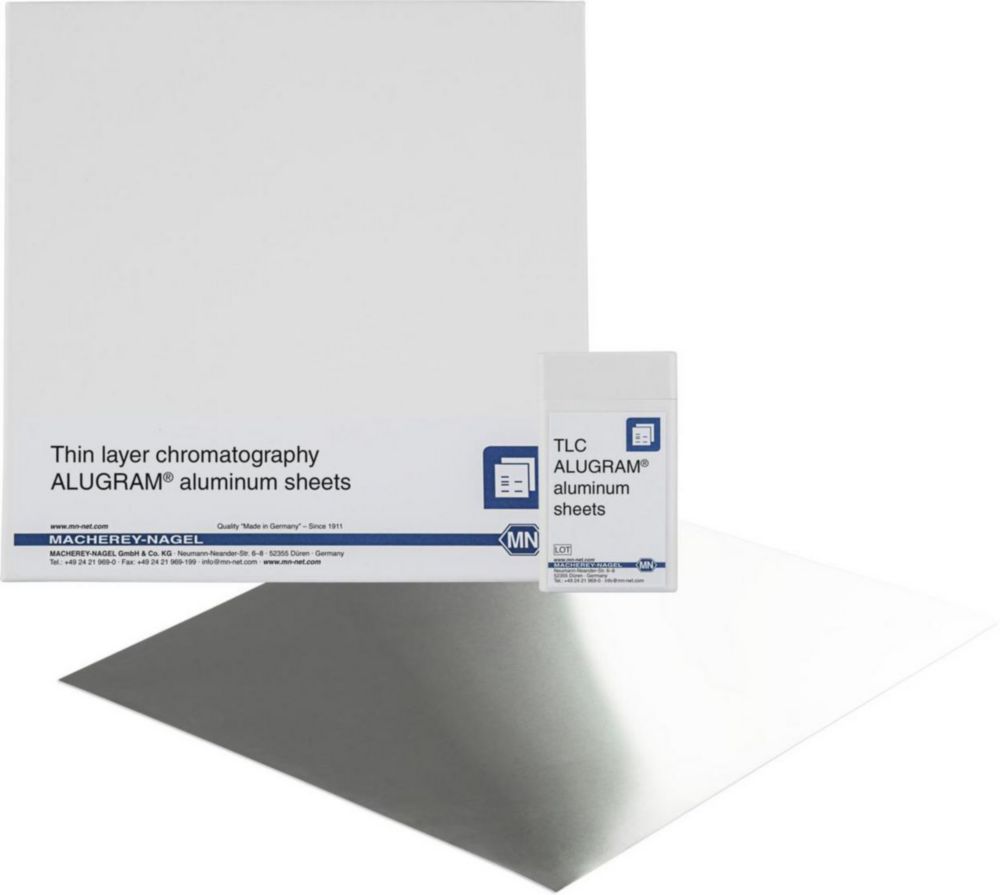

SIL G unmodified standard silica layers for TLC, ALUGRAM

Macherey-Nagel GmbH & Co. KG (939235)

SIL G unmodified standard silica layers for TLC, ALUGRAM®
-Silica 60
-Specific surface (BET) ~500 m²/g
-Mean pore size 60 ?
-Specific pore volume 0.75 ml/g
-Standard grade
-Thickness of layer for analytical plates 0.25 mm, for preparative plates 0.5 and 1 mm
-For 2 mm preparative layers a slightly coarser material is used, indicators: manganese activated zinc silicate with green fluorescence for short-wave UV (254 nm)
-Binders: highly polymeric products, which are stable in almost all organic solvents and resistant towards aggressive visualisation reagents
-Available with or without fluorescent indicator (UV 254)

PN	Manuf. PN	Supplier	Film thickness~µm	Length~mm	Material	PK	Type	Width~mm	Dimensions (WxL)	Price
6242312	818333	Macherey-Nagel GmbH & Co. KG	200	200	Aluminium	25	ALUGRAM® Xtra SIL G UV254	200	200 x 200 mm	223.53 EU
7059745	818033	Macherey-Nagel GmbH & Co. KG	200	200	Aluminium	25	ALUGRAM® SIL G	200	200 x 200 mm	223.53 EU
9003477	818160	Macherey-Nagel GmbH & Co. KG	200	100	Aluminium	50	ALUGRAM® SIL G UV254	50	50 x 100 mm	92.21 EU
9003496	818131	Macherey-Nagel GmbH & Co. KG	200	80	Aluminium	50	ALUGRAM® SIL G UV254	40	40 x 80 mm	60.59 EU
4005042	818030.20	Macherey-Nagel GmbH & Co. KG	200	75	Aluminium	20	ALUGRAM® SIL G	50	50 x 75 mm	40.15 EU
4005043	818129	Macherey-Nagel GmbH & Co. KG	200	75	Aluminium	200	ALUGRAM® SIL G UV254	25	25 x 75 mm	225.00 EU
4005052	818163	Macherey-Nagel GmbH & Co. KG	200	200	Aluminium	20	ALUGRAM® SIL G	100	100 x 200 mm	106.62 EU
6227948	818130.20	Macherey-Nagel GmbH & Co. KG	200	75	Aluminium	20	ALUGRAM® SIL G UV254	50	50 x 75 mm	40.15 EU
6233568	818162	Macherey-Nagel GmbH & Co. KG	200	200	Aluminium	20	ALUGRAM® SIL G UV254	100	100 x 200 mm	106.62 EU
6259756	818331	Macherey-Nagel GmbH & Co. KG	200	80	Aluminium	50	ALUGRAM® Xtra SIL G UV254	40	40 x 80 mm	60.59 EU
6802883	818161	Macherey-Nagel GmbH & Co. KG	200	100	Aluminium	50	ALUGRAM® SIL G	50	50 x 100 mm	92.21 EU
7084918	818032	Macherey-Nagel GmbH & Co. KG	200	200	Aluminium	50	ALUGRAM® SIL G	50	50 x 200 mm	121.47 EU
9003465	818233	Macherey-Nagel GmbH & Co. KG	200	200	Aluminium	25	ALUGRAM® Xtra SIL G	200	200 x 200 mm	223.53 EU
9003478	818132	Macherey-Nagel GmbH & Co. KG	200	200	Aluminium	50	ALUGRAM® SIL G UV254	50	50 x 200 mm	121.47 EU
9003497	818133	Macherey-Nagel GmbH & Co. KG	200	200	Aluminium	25	ALUGRAM® SIL G UV254	200	200 x 200 mm	223.53 EU

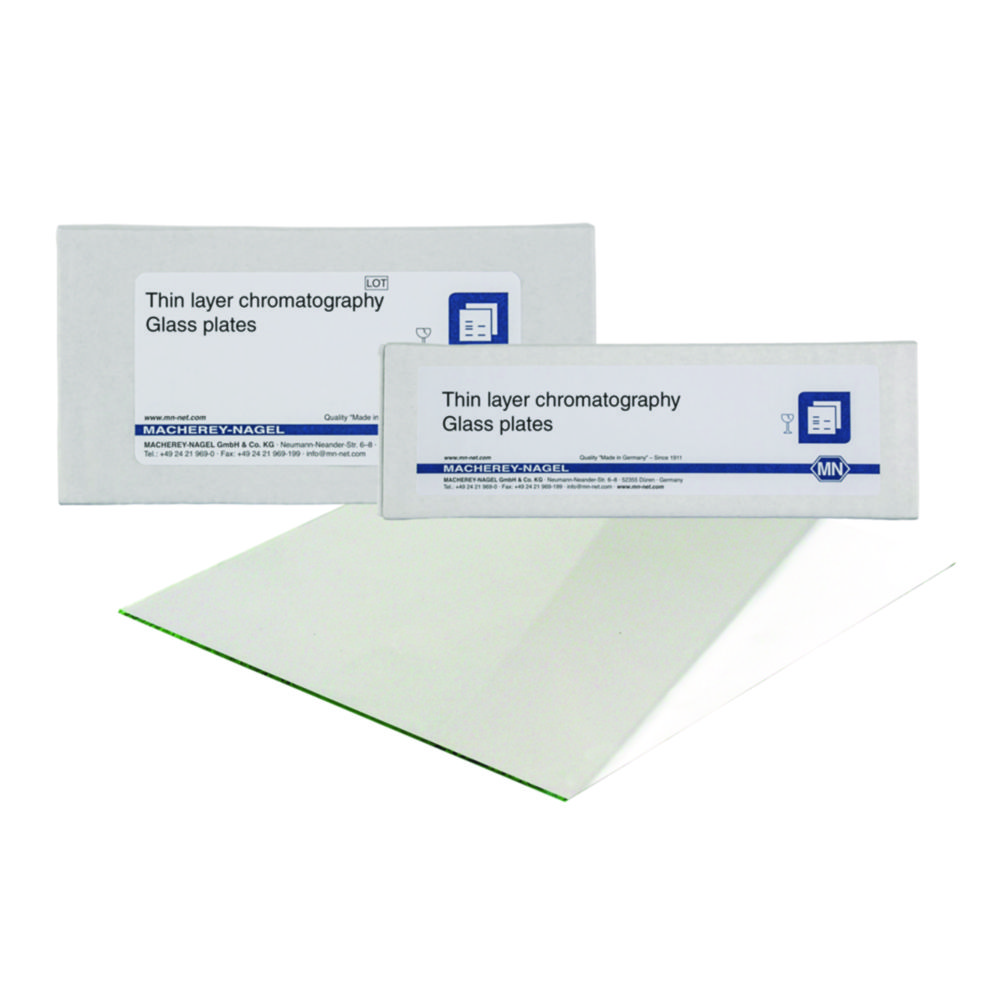

SIL G unmodified standard silica layers for TLC, glass

Macherey-Nagel GmbH & Co. KG (15104)

SIL G unmodified standard silica layers for TLC, glass
-Silica 60
-Specific surface (BET) ~500 m²/g
-Mean pore size 60 ?
-Specific pore volume 0.75 ml/g
-Standard grade
-Thickness of layer for analytical plates 0.25 mm, for preparative plates 0.5 and 1 mm
-For 2 mm preparative layers a slightly coarser material is used, indicators: manganese activated zinc silicate with green fluorescence for short-wave UV (254 nm)
-Binders: highly polymeric products, which are stable in almost all organic solvents and resistant towards aggressive visualisation reagents
-Available with or without fluorescent indicator (UV 254)

PN	Manuf. PN	Supplier	Film thickness~µm	Length~mm	Material	PK	Type	Width~mm	Dimensions (WxL)	Price
9003491	809013	Macherey-Nagel GmbH & Co. KG	250	200	Glass	25	SIL G-25	200	200 x 200 mm	309.85 EU
4004846	809011	Macherey-Nagel GmbH & Co. KG	250	200	Glass	100	SIL G-25	50	50 x 200 mm	386.47 EU
4004847	809017.200	Macherey-Nagel GmbH & Co. KG	250	100	Glass	200	SIL G-25	50	50 x 100 mm	498.16 EU
4004848	809027	Macherey-Nagel GmbH & Co. KG	250	100	Glass	50	SIL G-25 UV254	50	50 x 100 mm	219.12 EU
4004849	809027.200	Macherey-Nagel GmbH & Co. KG	250	100	Glass	200	SIL G-25 UV254	50	50 x 100 mm	498.53 EU
4004850	809028.100	Macherey-Nagel GmbH & Co. KG	250	75	Glass	100	SIL G-25 UV254	25	25 x 75 mm	323.53 EU
4004853	809061	Macherey-Nagel GmbH & Co. KG	1000	200	Glass	15	SIL G-100	200	200 x 200 mm	407.58 EU
4004854	809083	Macherey-Nagel GmbH & Co. KG	2000	200	Glass	12	SIL G-200 UV254	200	200 x 200 mm	438.39 EU
6224417	809073	Macherey-Nagel GmbH & Co. KG	2000	200	Glass	12	SIL G-200	200	200 x 200 mm	438.82 EU
6227917	809012	Macherey-Nagel GmbH & Co. KG	250	200	Glass	50	SIL G-25	100	100 x 200 mm	345.29 EU
6230274	809022	Macherey-Nagel GmbH & Co. KG	250	200	Glass	50	SIL G-25 UV254	100	100 x 200 mm	345.45 EU
6230729	809017	Macherey-Nagel GmbH & Co. KG	250	100	Glass	50	SIL G-25	50	50 x 100 mm	219.12 EU
6232660	809021	Macherey-Nagel GmbH & Co. KG	250	200	Glass	100	SIL G-25 UV254	50	50 x 200 mm	386.54 EU
7300555	809063	Macherey-Nagel GmbH & Co. KG	1000	200	Glass	15	SIL G-100 UV254	200	200 x 200 mm	407.94 EU
9003474	809020	Macherey-Nagel GmbH & Co. KG	250	100	Glass	25	SIL G-25 UV254	100	100 x 100 mm	119.86 EU

SIL G unmodified standard silica layers for TLC, glass plates/ POLYGRAM

Macherey-Nagel GmbH & Co. KG (15104)

SIL G unmodified standard silica layers for TLC, glass plates/ POLYGRAM®
Support materials for TLC ready-to-use layers

Glass plates: glass, ~ 1.3 mm thick, high requirements for weight, packaging and storage, ideal torsional strength, high temperature stability, susceptible to breakage, can not be cut with scissors, high resistance against solvents, mineral acids and conc. ammonia, suitability for aqueous detection reagents depends on the phase

POLYGRAM®: polyester, ~ 0.2 mm thick, low requirements for weight, packaging and storage, low torsional strength, max. 185 °C temperature stability, not susceptible to breakage, can be cut with scissors, high resistance against solvents, mineral acids and conc. ammonia, very suitable for aqueous detection reagents

ALUGRAM®: aluminium, ~ 0.15 mm thick, low requirements for weight, packaging and storage, relatively high torsional strength, high temperature stability, not susceptible to breakage, can be cut with scissors, high resistance against solvents, low resistance against mineral acids and conc. ammonia, limited suitability for aqueous detection reagents
Glass plates, POLYGRAM®, ALUGRAM®
-Silica 60
-Specific surface (BET) ~500 m²/g
-Mean pore size 60 ?
-Specific pore volume 0.75 ml/g
-Particle size 5 to 17 µm
-Standard grade
-Thickness of layer for analytical plates 0.25 mm, for preparative plates 0.5 and 1 mm
-For 2 mm preparative layers a slightly coarser material is used, indicators: manganese activated zinc silicate with green fluorescence for short-wave UV (254 nm)
-Binders: highly polymeric products, which are stable in almost all organic solvents and resistant towards aggressive visualisation reagents
-Binder system for Polygram® sheets is also completely stable in purely aqueous eluents
-Available as glass plates, Polygram polyester sheets and Alugram aluminium sheets
-Available with or without fluorescent indicator (UV 254)

PN	Manuf. PN	Supplier		PK	Plate format~cm	Type	Gel thickness~mm							General	Price	Quantity	Status	Add
9003492	809023	Macherey-Nagel GmbH & Co. KG		25	20 x 20	Glass plates SIL G-25 UV254	0.25								286.40 EU

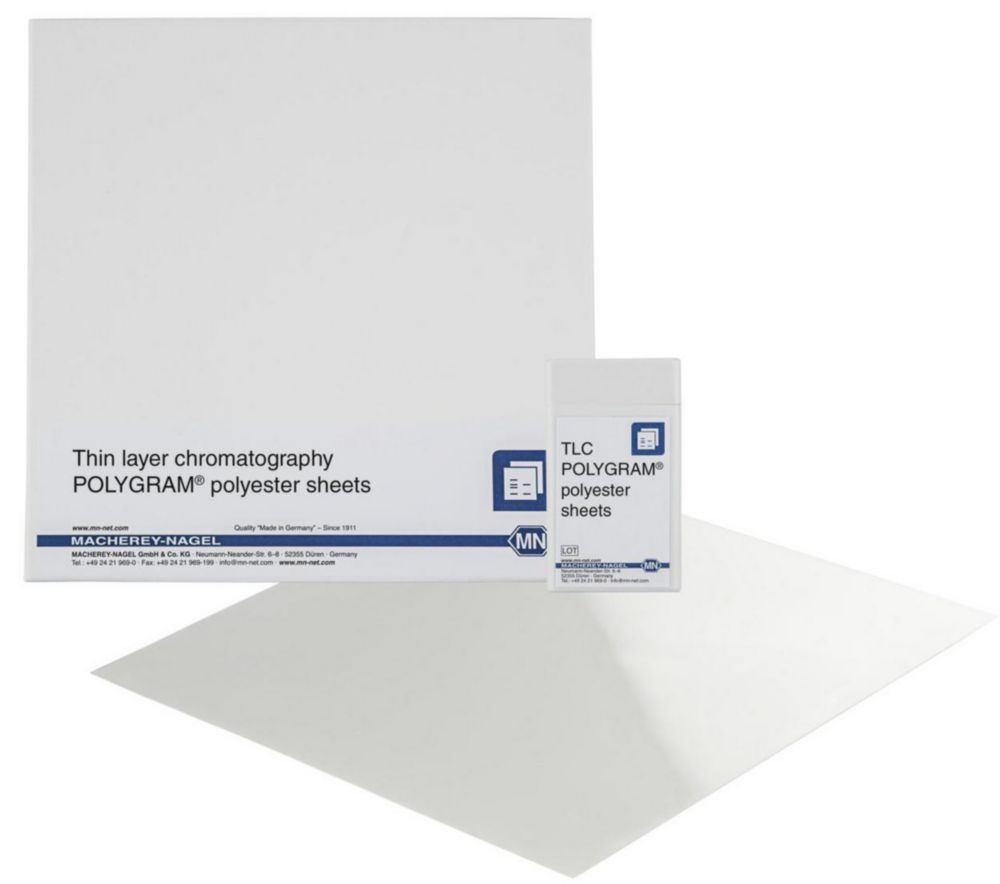

SIL G unmodified standard silica layers for TLC, POLYGRAM

Macherey-Nagel GmbH & Co. KG (939239)

SIL G unmodified standard silica layers for TLC, POLYGRAM®
-Silica 60
-Specific surface (BET) ~500 m²/g
-Mean pore size 60 ?
-Specific pore volume 0.75 ml/g
-Standard grade
-Thickness of layer for analytical plates 0.25 mm, for preparative plates 0.5 and 1 mm
-For 2 mm preparative layers a slightly coarser material is used, indicators: manganese activated zinc silicate with green fluorescence for short-wave UV (254 nm)
-Binders: highly polymeric products, which are stable in almost all organic solvents and resistant towards aggressive visualisation reagents
-Available with or without fluorescent indicator (UV 254)
-Silica 60
-Specific surface (BET) ~500 m²/g
-Mean pore size 60 ?
-Specific pore volume 0.75 ml/g
-Standard grade
-Thickness of layer for analytical plates 0.25 mm, for preparative plates 0.5 and 1 mm
-For 2 mm preparative layers a slightly coarser material is used, indicators: manganese activated zinc silicate with green fluorescence for short-wave UV (254 nm)
-Binders: highly polymeric products, which are stable in almost all organic solvents and resistant towards aggressive visualisation reagents
-Binder system for Polygram® sheets is also completely stable in purely aqueous eluents
-Available with or without fluorescent indicator (UV 254)

PN	Manuf. PN	Supplier	Film thickness~µm	Length~mm	Material	PK	Type	Width~mm	Dimensions (WxL)	Price
9003493	805021	Macherey-Nagel GmbH & Co. KG	200	80	Polyester	50	POLYGRAM® SIL G UV254	40	40 x 80 mm	60.59 EU
9003494	805023	Macherey-Nagel GmbH & Co. KG	200	200	Polyester	25	POLYGRAM® SIL G UV254	200	200 x 200 mm	223.53 EU
4004822	805014	Macherey-Nagel GmbH & Co. KG	200	200	Polyester	25	POLYGRAM® SIL G	400	400 x 200 mm	400.00 EU
4004824	805024	Macherey-Nagel GmbH & Co. KG	200	200	Polyester	25	POLYGRAM® SIL G UV254	400	400 x 200 mm	400.00 EU
4004825	805032	Macherey-Nagel GmbH & Co. KG	200	80	Polyester	50	POLYGRAM® SIL G	40	40 x 80 mm	60.59 EU
4004826	805901	Macherey-Nagel GmbH & Co. KG	200	75	Polyester	200	POLYGRAM® SIL G UV254	25	25 x 75 mm	225.00 EU
4004827	805902	Macherey-Nagel GmbH & Co. KG	200	75	Polyester	200	POLYGRAM® SIL G	25	25 x 75 mm	225.00 EU
6202190	805013	Macherey-Nagel GmbH & Co. KG	200	200	Polyester	25	POLYGRAM® SIL G	200	200 x 200 mm	223.53 EU
6803651	805012	Macherey-Nagel GmbH & Co. KG	200	200	Polyester	50	POLYGRAM® SIL G	50	50 x 200 mm	121.47 EU
9003476	805022	Macherey-Nagel GmbH & Co. KG	200	200	Polyester	50	POLYGRAM® SIL G UV254	50	50 x 200 mm	121.47 EU

ADAMANT unmodified standard silica layers for TLC

Macherey-Nagel GmbH & Co. KG (15103)

ADAMANT unmodified standard silica layers for TLC
Support materials for TLC ready-to-use layers

Glass plates: glass, ~ 1.3 mm thick, high requirements for weight, packaging and storage, ideal torsional strength, high temperature stability, susceptible to breakage, can not be cut with scissors, high resistance against solvents, mineral acids and conc. ammonia, suitability for aqueous detection reagents depends on the phase

POLYGRAM®: polyester, ~ 0.2 mm thick, low requirements for weight, packaging and storage, low torsional strength, max. 185 °C temperature stability, not susceptible to breakage, can be cut with scissors, high resistance against solvents, mineral acids and conc. ammonia, very suitable for aqueous detection reagents

ALUGRAM®: aluminium, ~ 0.15 mm thick, low requirements for weight, packaging and storage, relatively high torsional strength, high temperature stability, not susceptible to breakage, can be cut with scissors, high resistance against solvents, low resistance against mineral acids and conc. ammonia, limited suitability for aqueous detection reagents
Silica 60, specific surface (BET) ~ 500m²/g, mean pore size 60?, specific pore volume 0.75ml/g, particle size 5 to 17µm. Outstanding hardness and abrasion resistance due to an optimized binder system. Increased separation efficiency due to an optimized particle size distirbution. High suitability for trace analyses resulting from a UV indicator with brilliance and a low-noise background of the layer.

Available as glass plates with or without fluorescent indicator (UV254).

PN	Manuf. PN	Supplier	Film thickness~µm	Length~mm	Material	PK	Type	Width~mm	Dimensions (WxL)	Price
4005060	821005	Macherey-Nagel GmbH & Co. KG	250	75	Glass	100	ADAMANT UV254	25	25 x 75 mm	323.53 EU
4005061	821010	Macherey-Nagel GmbH & Co. KG	250	100	Glass	50	ADAMANT UV254	50	50 x 100 mm	219.12 EU
4005062	821010.200	Macherey-Nagel GmbH & Co. KG	250	100	Glass	200	ADAMANT UV254	50	50 x 100 mm	498.38 EU
4005063	821015	Macherey-Nagel GmbH & Co. KG	250	200	Glass	100	ADAMANT UV254	50	50 x 200 mm	386.32 EU
4005064	821020	Macherey-Nagel GmbH & Co. KG	250	100	Glass	25	ADAMANT UV254	100	100 x 100 mm	119.86 EU
4005065	821025	Macherey-Nagel GmbH & Co. KG	250	200	Glass	50	ADAMANT UV254	100	100 x 200 mm	345.14 EU
4005066	821030	Macherey-Nagel GmbH & Co. KG	250	200	Glass	25	ADAMANT UV254	200	200 x 200 mm	310.29 EU
4005067	821040	Macherey-Nagel GmbH & Co. KG	250	100	Glass	50	ADAMANT	50	50 x 100 mm	219.12 EU
4005068	821040.200	Macherey-Nagel GmbH & Co. KG	250	100	Glass	200	ADAMANT	50	50 x 100 mm	498.08 EU
4005069	821050	Macherey-Nagel GmbH & Co. KG	250	100	Glass	25	ADAMANT	100	100 x 100 mm	119.86 EU
4005070	821060	Macherey-Nagel GmbH & Co. KG	250	200	Glass	25	ADAMANT	200	200 x 200 mm	309.56 EU

RP-18 W/UV254 octadecyl-modified nano silica layers for HPTLC, ALUGRAM

Macherey-Nagel GmbH & Co. KG (15108)

RP-18 W/UV254 octadecyl-modified nano silica layers for HPTLC, ALUGRAM®
Base material: Nano-K silica 60, specific surface (BET) ~500 m²/g, mean pore size 60 ?, specific pore volume 0.75 ml/g, particle size 2 to 10 µm; for preparative plates (1 mm thickness of layer) standard silica 60, particle size 5 to 17 µm, pH stability 2 to 10 indicator: acid-resistant product with a pale blue fluorescence for short-wave UV (254 nm); UV-absorbing substances apppear as dark-blue to black spots on a light-blue background; partial octadecyl modification, wettable with water, carbon content 14 %. 18-100 normal phase or reversed phase separation modes with eluents from anhydrous solvents to mixtures with high concentrations of water (see figure); the relative polarity of the eluent determines the polarity of the layer.
Recommended application: aminophenols, barbiturates, preservatives, nucleobases, polycyclic aromatic hydrocarbons, steroids, tetracyclines, plasticizers (phthalates).

Available as glass plates with or without fluorescent indicator (UV 254).

Glass plates available on request.

PN	Manuf. PN	Supplier	Film thickness~µm	Length~mm	Material	PK	Width~mm	Dimensions (WxL)	Price
4005046	818145	Macherey-Nagel GmbH & Co. KG	150	200	Aluminium	50	50	50 x 200 mm	439.71 EU
4005047	818147	Macherey-Nagel GmbH & Co. KG	150	100	Aluminium	25	100	100 x 100 mm	230.88 EU
6704046	818146	Macherey-Nagel GmbH & Co. KG	150	200	Aluminium	25	200	200 x 200 mm	580.88 EU
6901143	818152	Macherey-Nagel GmbH & Co. KG	150	100	Aluminium	50	50	50 x 100 mm	239.71 EU
7400375	818144	Macherey-Nagel GmbH & Co. KG	150	80	Aluminium	50	40	40 x 80 mm	200.00 EU

RP-18 W/UV254 octadecyl-modified nano silica layers for HPTLC, glass

Macherey-Nagel GmbH & Co. KG (939219)

RP-18 W/UV254 octadecyl-modified nano silica layers for HPTLC, glass
Base material: Nano-K silica 60, specific surface (BET) ~500 m²/g, mean pore size 60 ?, specific pore volume 0.75 ml/g, particle size 2 to 10 µm; for preparative plates (1 mm thickness of layer) standard silica 60, particle size 5 to 17 µm, pH stability 2 to 10 indicator: acid-resistant product with a pale blue fluorescence for short-wave UV (254 nm); UV-absorbing substances apppear as dark-blue to black spots on a light-blue background; partial octadecyl modification, wettable with water, carbon content 14 %. 18-100 normal phase or reversed phase separation modes with eluents from anhydrous solvents to mixtures with high concentrations of water (see figure); the relative polarity of the eluent determines the polarity of the layer.
Recommended application: aminophenols, barbiturates, preservatives, nucleobases, polycyclic aromatic hydrocarbons, steroids, tetracyclines, plasticizers (phthalates).

Available as glass plates with or without fluorescent indicator (UV 254).

PN	Manuf. PN	Supplier	Film thickness~µm	Length~mm	Material	PK	Width~mm	Dimensions (WxL)	Price
4004878	811071	Macherey-Nagel GmbH & Co. KG	250	200	Glass	25	200	200 x 200 mm	798.82 EU
4004879	811072	Macherey-Nagel GmbH & Co. KG	250	200	Glass	50	100	100 x 200 mm	996.84 EU
4004880	811073	Macherey-Nagel GmbH & Co. KG	250	200	Glass	50	50	50 x 200 mm	558.24 EU
4004881	811074	Macherey-Nagel GmbH & Co. KG	1000	200	Glass	15	200	200 x 200 mm	1003.31 EU
6206173	811075	Macherey-Nagel GmbH & Co. KG	250	100	Glass	25	100	100 x 100 mm	413.24 EU
