Real-time PCR-system QPCR-500

Cole-Parmer Instrument (422057)

Real-time PCR-system QPCR-500
High specification, economically priced real-time thermocycler. The QPCR-500 system has a unique high thermal block uniformity (±0.1 °C). This uniformity as well as validated sample volumes of down to 5 µl enable an optimized reaction run time for 40 cycles down to only 15 minutes. The uniform temperature across the plate is achieved with a unique heating and cooling system that quickly enables a uniform temperature of ±0.1 °C in every well of the block within a fraction of a second of reaching each well temperature. This high uniformity eliminates the need for triplicates which reduces reagent running costs. QPCR-500 accommodates a unique and economical 48-well PCR plate, the size of which is only 1/8 the size of a standard 96-well plate. The well format mirrors a 384-well plate therefore allowing the use of a 16-channel micropipette. The small plate cuts reagent costs in half whilst still producing a strong fluorescent signal. Applications include e.g. absolute and relative quantification, Allelic Discrimination and High Resolution Melt.

Features:

-Validated volume per well: 5 to 20 µl
-High temperature uniformity of ±0.1 °C across the whole block instantly after every temperature change
-40 cycles in 40 minutes before optimization, and down to only 15 minutes when optimized
-Genotype in 4 minutes with over 99 % accuracy
-Patented "Adaptive LED Control" minimizes optical artifacts and prevents premature detector saturation
-Dual LED excitation (452 nm to 486 nm and 542 nm to 582 nm)
-4 emission filters (505 nm to 545 nm, 562 nm to 596 nm, 604 nm to 644 nm, 665 nm to 705 nm)
-Data is always collected in all four filters for all wells
-Distinguishes 5000 and 10000 template copies with 99 percent confidence

Additional features:

-48-well block
-MIQE compliant
-400 analyte specific qPCR reagent kits available
-No calibration required
-Calibrated dyes: SYBR®, FAMTM, HEXTM, ROXTM, Cy®5.
-Additional dyes within the filter wavelength range are supported with no additional calibration required
-Unlimited software licence
-2 years warranty

Scope of supply: Real-time PCR-system QPCR-500, EcoControl and EcoStudy software, USB stick, 50 plates, 50 plate seals, power and Ethernet cable

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity	General	Price	Quantity	Status	Add
6320624	93947-00	Cole-Parmer Instrument		310	320	1	QPCR-500	13.6	345	30 ... 100 °C					30207.21 EU

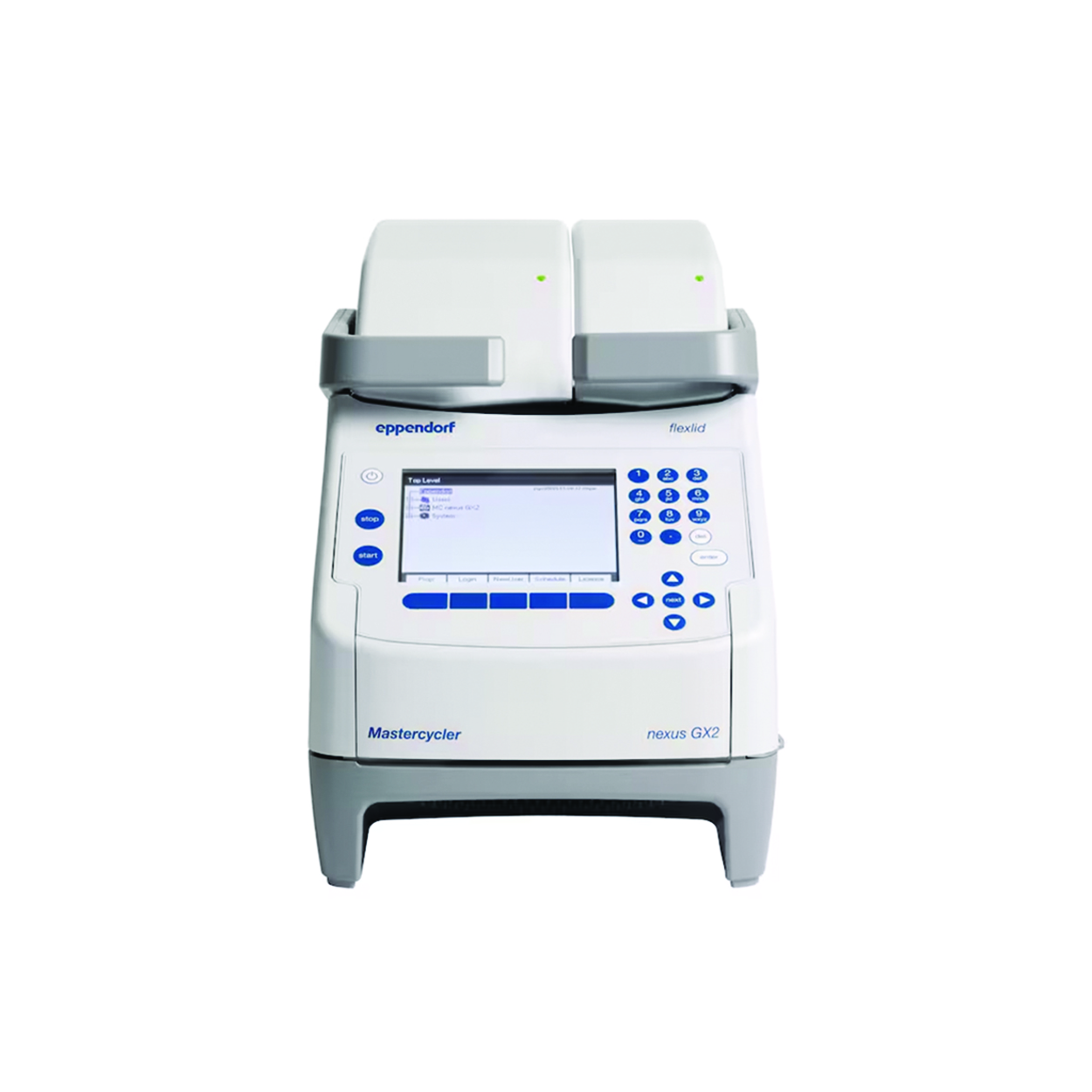

Thermal cycler Mastercycler nexus GX2 (Master model)

Eppendorf SE (994884)

Thermal cycler Mastercycler® nexus GX2 (Master model)
The thermal cycler is equipped with a 32-well block and a 64-well block, which allow to run two completely independent protocols. In addition, up to three devices can be networked together.

-Asymmetrically divided block for the simultaneous running of different assays
-Temperature control modes: Fast, Standard, Safe
-Heating lid flexlid® with automatic lid height adjustment allows the use of various consumables
-Email notification
-Small footprint
-Intuitive graphic programming via control panel
-64-well block with gradient function for PCR optimization
-Gradient temperature range: 30 to 99 °C
-Gradient range: 1 to 12 °C
-Interfaces: USB, Ethernet, CAN_in/CAN_out

The device can control up to two Eco models.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity~W	General	Price	Quantity	Status	Add
4701063	6336000040	Eppendorf SE		412	330	1	Mastercycler® nexus GX2	11	250	4 ... 99 °C		UK	700		16970.59 EU
6313974	6336000015	Eppendorf SE		412	330	1	Mastercycler® nexus GX2	11	250	4 ... 99 °C		EU	700		16970.59 EU

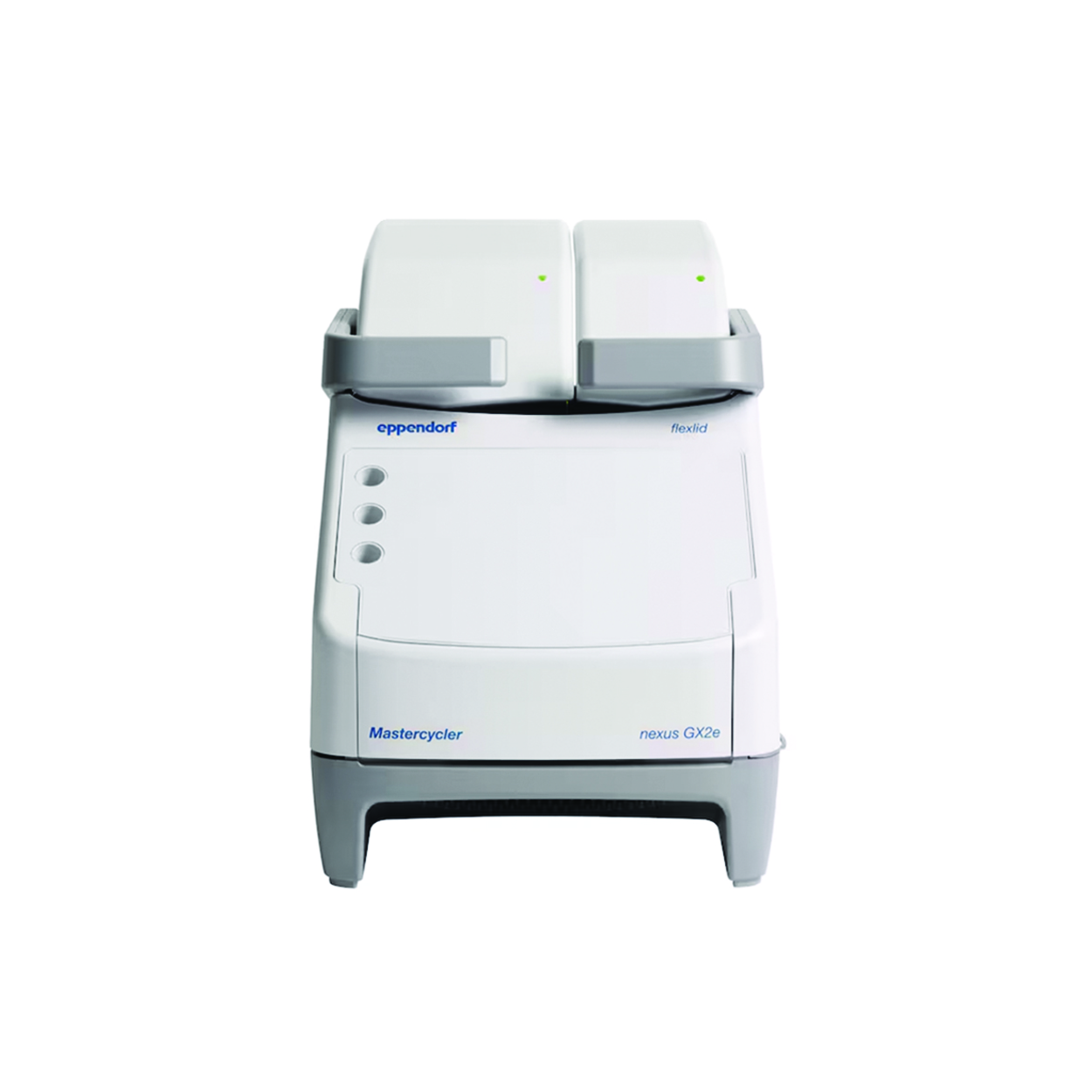

Thermal cycler Mastercycler nexus GX2e (Eco model)

Eppendorf SE (994886)

Thermal cycler Mastercycler® nexus GX2e (Eco model)
The thermal cycler is equipped with a 32-well block and a 64-well block, which allow to run two completely independent protocols. In addition, up to three devices can be networked together.

-Asymmetrically divided block for the simultaneous running of different assays
-Temperature control modes: Fast, Standard, Safe
-Heating lid flexlid® with automatic lid height adjustment allows the use of various consumables
-Email notification
-Small footprint
-64-well block with gradient function for PCR optimization
-Gradient temperature range: 30 to 99 °C
-Gradient range: 1 to 12 °C
-Interfaces: CAN_in/CAN_out

The device has no control panel and is controlled via a Master model.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity~W	General	Price	Quantity	Status	Add
4701064	6338000012	Eppendorf SE		412	330	1	Mastercycler® nexus GX2e	10.5	250	4 ... 99 °C		EU	700		12869.12 EU
4701065	6338000047	Eppendorf SE		412	330	1	Mastercycler® nexus GX2e	10.5	250	4 ... 99 °C		UK	700		12869.12 EU

Thermal cycler Mastercycler nexus X2 (Master model)

Eppendorf SE (994878)

Thermal cycler Mastercycler® nexus X2 (Master model)
The thermal cycler is equipped with a 32-well block and a 64-well block, which allow to run two completely independent protocols. In addition, up to three devices can be networked together.

-Asymmetrically divided block for the simultaneous running of different assays
-Temperature control modes: Fast, Standard, Safe
-Heating lid flexlid® with automatic lid height adjustment allows the use of various consumables
-Email notification
-Small footprint
-Intuitive graphic programming via control panel
-Interfaces: USB, Ethernet, CAN_in/CAN_out

The device can control up to two Eco models.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity~W	General	Price	Quantity	Status	Add
4701061	6337000019	Eppendorf SE		412	330	1	Mastercycler® nexus X2	11	250	4 ... 99 °C		EU	700		14173.53 EU
4701062	6337000043	Eppendorf SE		412	330	1	Mastercycler® nexus X2	11	250	4 ... 99 °C		UK	700		14173.53 EU

Thermal cycler Mastercycler nexus X2e (Eco model)

Eppendorf SE (994885)

Thermal cycler Mastercycler® nexus X2e (Eco model)
The thermal cycler is equipped with a 32-well block and a 64-well block, which allow to run two completely independent protocols. In addition, up to three devices can be networked together.

-Asymmetrically divided block for the simultaneous running of different assays
-Temperature control modes: Fast, Standard, Safe
-Heating lid flexlid® with automatic lid height adjustment allows the use of various consumables
-Email notification
-Small footprint
-Interfaces: CAN_in/CAN_out

The device has no control panel and is controlled via a Master model.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity~W	General	Price	Quantity	Status	Add
4701066	6339000016	Eppendorf SE		412	330	1	Mastercycler® nexus X2e	10.5	250	4 ... 99 °C		EU	700		10816.18 EU
4701067	6339000040	Eppendorf SE		412	330	1	Mastercycler® nexus X2e	10.5	250	4 ... 99 °C		UK	700		10816.18 EU

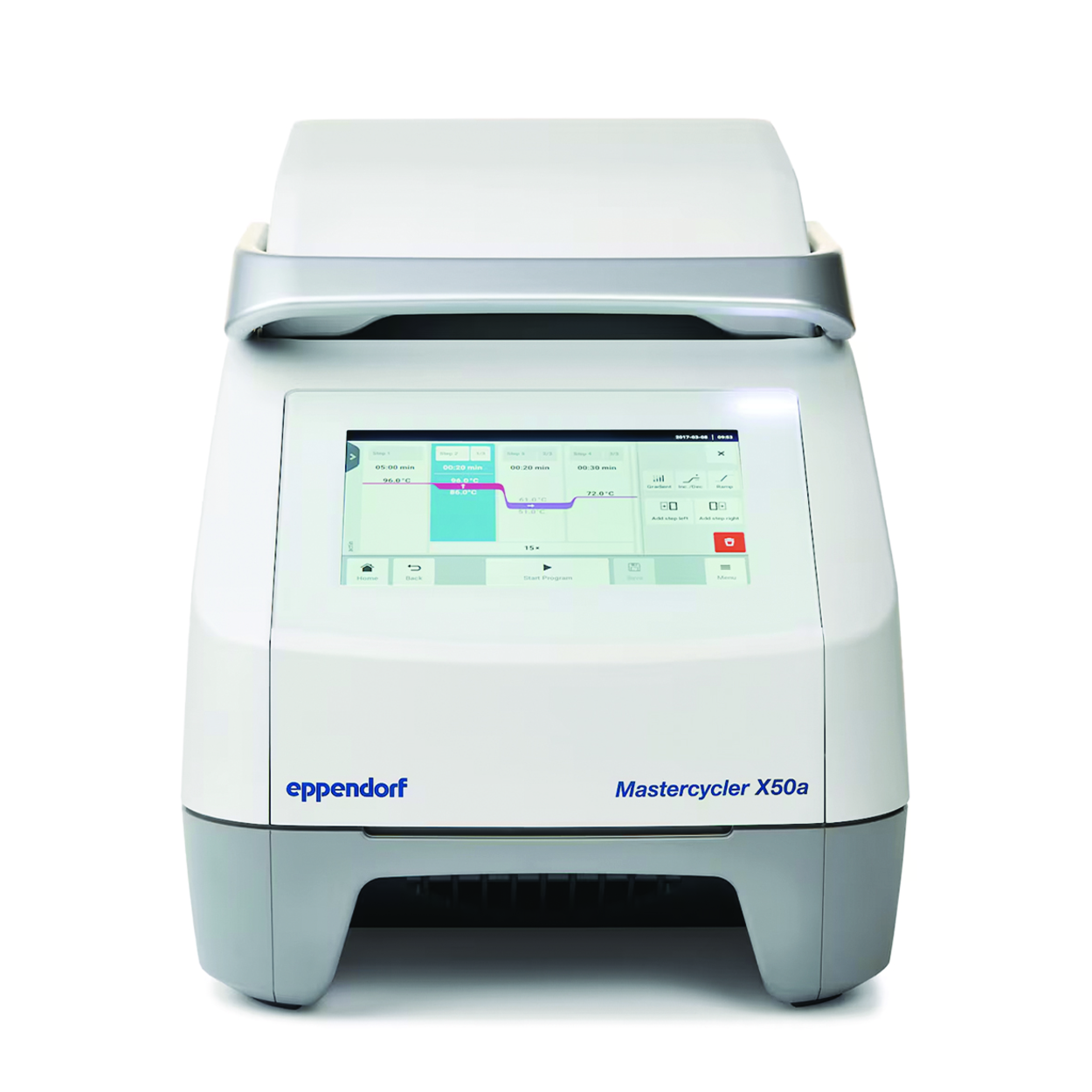

Thermal cycler Mastercycler X50a (Master model)

Eppendorf SE (995146)

Thermal cycler Mastercycler® X50a (Master model)
Thermal cycler with an intuitive touchscreen for applications in molecular biology research, as well as for routine PCR applications. The 2D-Gradient function allows both the denaturation temperature and the annealing temperature to be optimised simultaneously. Furthermore, up to 10 devices can be connected together.

-Temperature control modes: Fast, Intermediate, Standard, Safe
-Heating lid flexlid® with automatic lid height adjustment allows the use of various consumables
-Constant block temperature of 20 °C during the heating lid's warm-up phase reduces thermal load on samples and minimizes the formation of non-specific products
-Gradient temperature range: 30 to 99 °C
-Gradient range: 1 to 30 °C
-Interfaces: USB, Ethernet
-Small footprint
-7" touchscreen control panel
-With aluminium thermoblock
-For 96-well PCR plate or 0.1/0.2 ml PCR tubes

The device can control up to 9 Eco models.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity~W	General	Price	Quantity	Status	Add
4701068	6313000042	Eppendorf SE		430	330	1	Mastercycler® X50a	11.5	275	4 ... 99 °C		UK	850		15852.94 EU

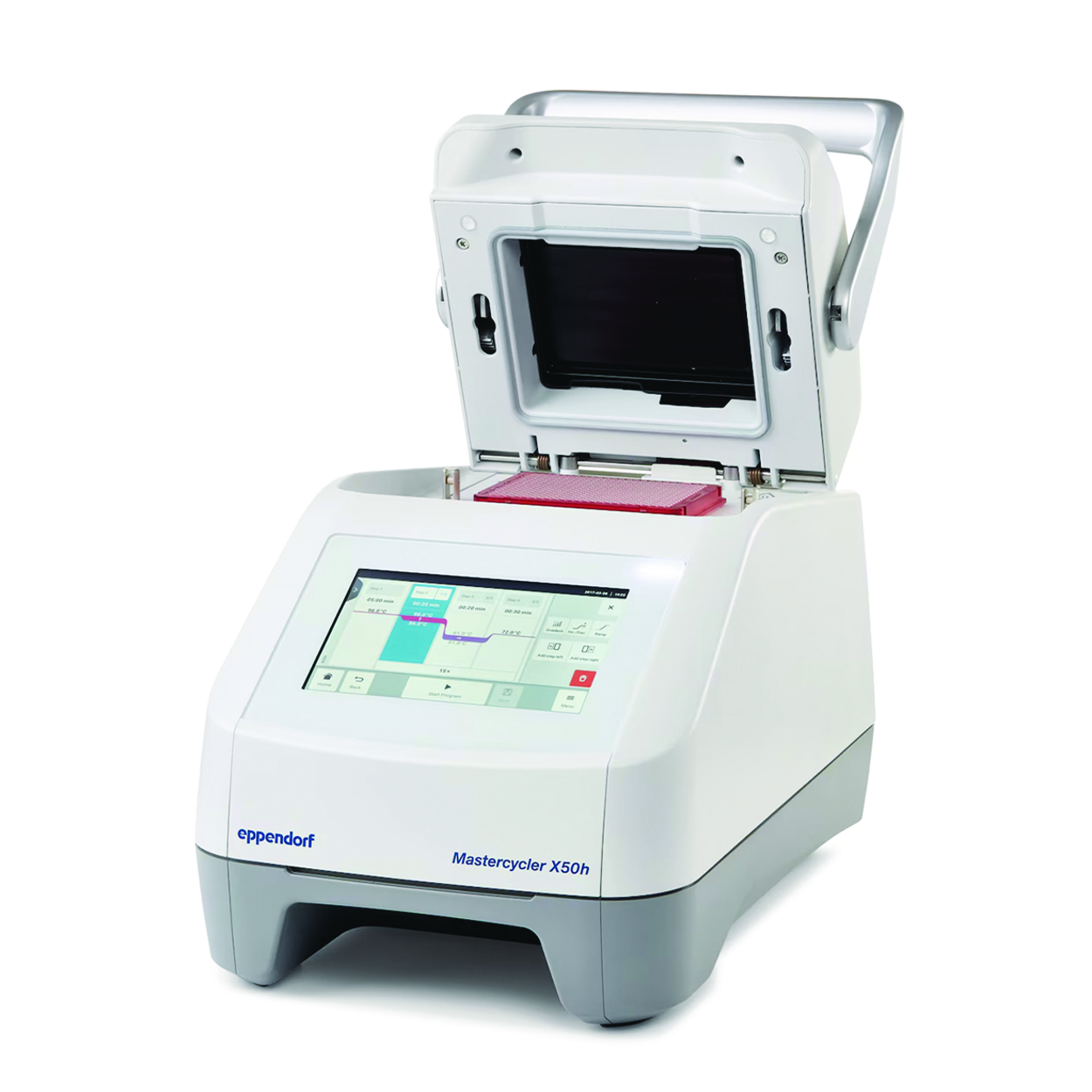

Thermal cycler Mastercycler X50h (Master model)

Eppendorf SE (995160)

Thermal cycler Mastercycler® X50h (Master model)
Thermal cycler with an intuitive touchscreen for applications in molecular biology research, as well as for routine PCR applications. The 2D-Gradient function allows both the denaturation temperature and the annealing temperature to be optimised simultaneously. Furthermore, up to 10 devices can be connected together.

-Temperature control modes: Fast, Intermediate, Standard, Safe
-Heating lid flexlid® with automatic lid height adjustment allows the use of various consumables
-Constant block temperature of 20 °C during the heating lid's warm-up phase reduces thermal load on samples and minimizes the formation of non-specific products
-Gradient temperature range: 30 to 99 °C
-Gradient range: 1 to 30 °C
-Interfaces: USB, Ethernet
-Small footprint
-7" touchscreen control panel
-With aluminium thermoblock
-For 384-well PCR plate

The device can control up to 9 Eco models.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity~W	General	Price	Quantity	Status	Add
4701070	6316000019	Eppendorf SE		430	330	1	Mastercycler® X50h	11.5	275	4 ... 99 °C		EU	850		16883.53 EU
4701071	6316000043	Eppendorf SE		430	330	1	Mastercycler® X50h	11.5	275	4 ... 99 °C		UK	850		16779.41 EU

Thermal cycler Mastercycler X50i (Eco model)

Eppendorf SE (995209)

Thermal cycler Mastercycler® X50i (Eco model)
Thermal cycler with an intuitive touchscreen for applications in molecular biology research, as well as for routine PCR applications. The 2D-Gradient function allows both the denaturation temperature and the annealing temperature to be optimised simultaneously. Furthermore, up to 10 devices can be connected together.

-Temperature control modes: Fast, Intermediate, Standard, Safe
-Heating lid flexlid® with automatic lid height adjustment allows the use of various consumables
-Constant block temperature of 20 °C during the heating lid's warm-up phase reduces thermal load on samples and minimizes the formation of non-specific products
-Gradient temperature range: 30 to 99 °C
-Gradient range: 1 to 30 °C
-Interfaces: USB, Ethernet
-Small footprint
-With silver thermoblock
-For 96-well PCR plate or 0.1/0.2 ml PCR tubes

The device has no control panel and is controlled via a Master model.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity~W	General	Price	Quantity	Status	Add
4701073	6301000047	Eppendorf SE		430	330	1	Mastercycler® X50i	10.7	275	4 ... 99 °C		UK	850		13798.53 EU

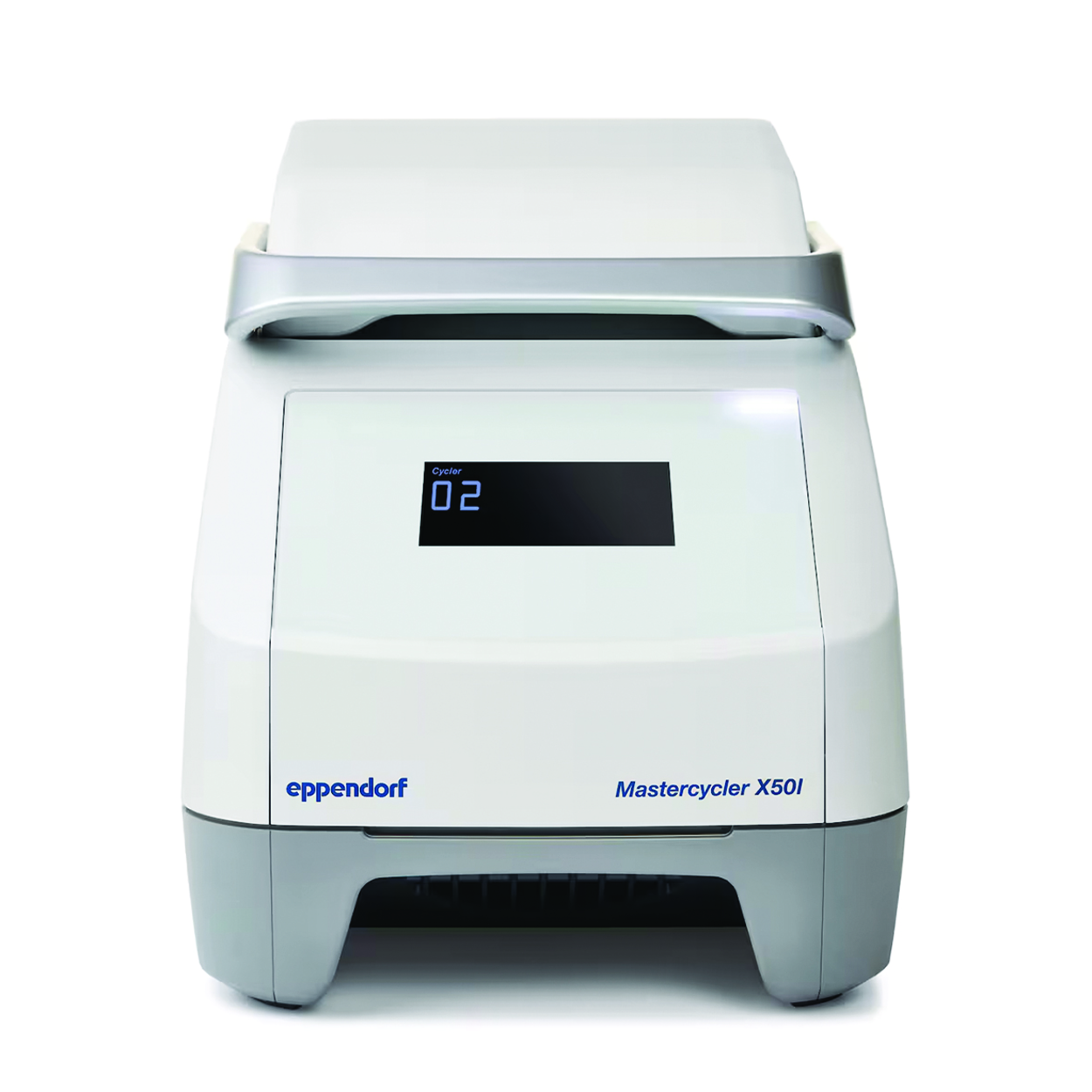

Thermal cycler Mastercycler X50l (Eco model)

Eppendorf SE (995201)

Thermal cycler Mastercycler® X50l (Eco model)
Thermal cycler with an intuitive touchscreen for applications in molecular biology research, as well as for routine PCR applications. The 2D-Gradient function allows both the denaturation temperature and the annealing temperature to be optimised simultaneously. Furthermore, up to 10 devices can be connected together.

-Temperature control modes: Fast, Intermediate, Standard, Safe
-Heating lid flexlid® with automatic lid height adjustment allows the use of various consumables
-Constant block temperature of 20 °C during the heating lid's warm-up phase reduces thermal load on samples and minimizes the formation of non-specific products
-Gradient temperature range: 30 to 99 °C
-Gradient range: 1 to 30 °C
-Interfaces: USB, Ethernet
-Small footprint
-With aluminium thermoblock
-For 96-well PCR plate or 0.1/0.2 ml PCR tubes

The device has no control panel and is controlled via a Master model.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity~W	General	Price	Quantity	Status	Add
4701074	6303000010	Eppendorf SE		430	330	1	Mastercycler® X50l	10.7	275	4 ... 99 °C		EU	850		12869.12 EU
4701075	6303000044	Eppendorf SE		430	330	1	Mastercycler® X50l	10.7	275	4 ... 99 °C		UK	850		12869.12 EU

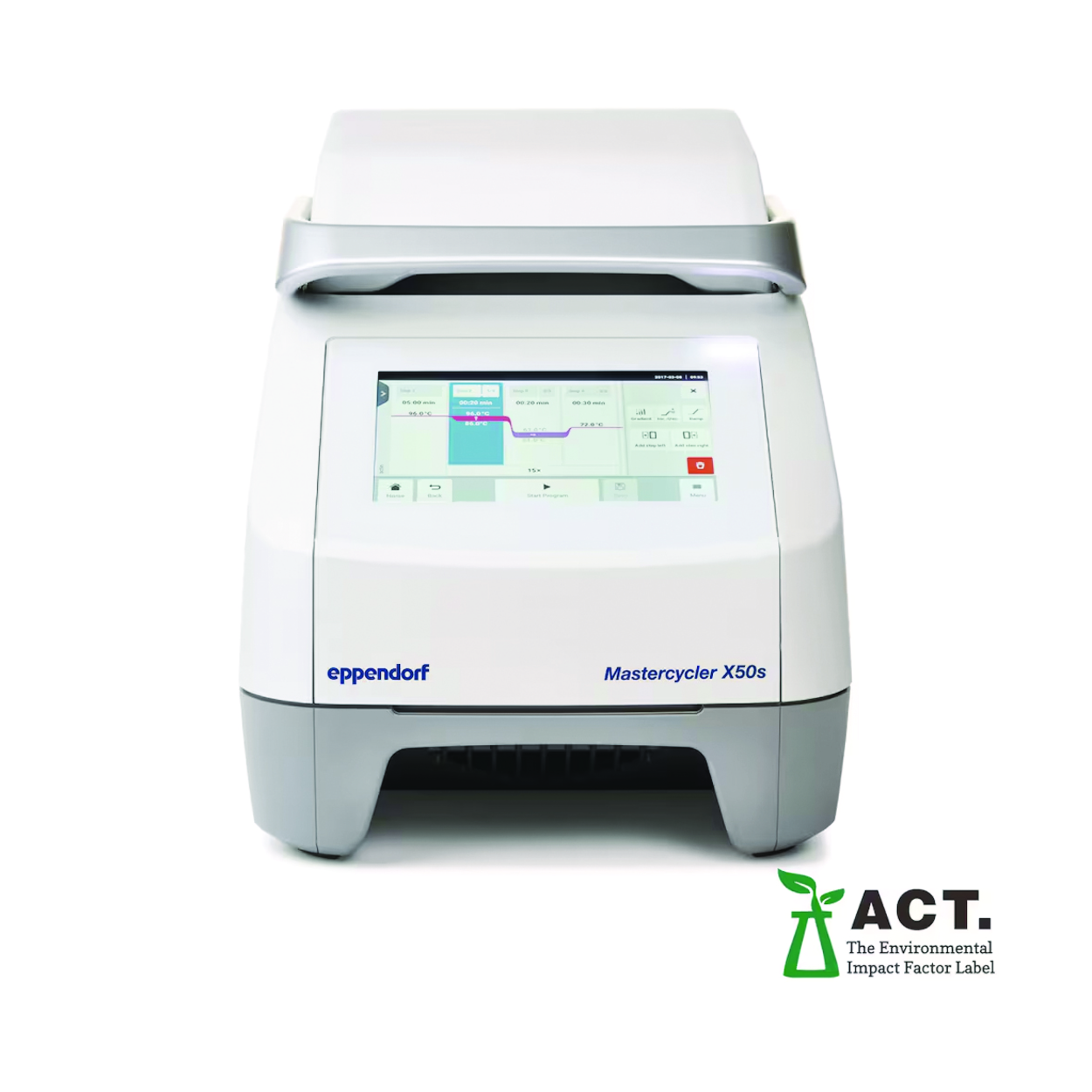

Thermal cycler Mastercycler X50s (Master model)

Eppendorf SE (995162)

Thermal cycler Mastercycler® X50s (Master model)
Thermal cycler with an intuitive touchscreen for applications in molecular biology research, as well as for routine PCR applications. The 2D-Gradient function allows both the denaturation temperature and the annealing temperature to be optimised simultaneously. Furthermore, up to 10 devices can be connected together.

-Temperature control modes: Fast, Intermediate, Standard, Safe
-Heating lid flexlid® with automatic lid height adjustment allows the use of various consumables
-Constant block temperature of 20 °C during the heating lid's warm-up phase reduces thermal load on samples and minimizes the formation of non-specific products
-Gradient temperature range: 30 to 99 °C
-Gradient range: 1 to 30 °C
-Interfaces: USB, Ethernet
-Small footprint
-7" touchscreen control panel
-With silver thermoblock
-For 96-well PCR plate or 0.1/0.2 ml PCR tubes

The device can control up to 9 Eco models.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity~W	General	Price	Quantity	Status	Add
4664720	6311000010	Eppendorf SE		430	330	1	Mastercycler® X50s	11.5	275	4 ... 99 °C		EU	850		16779.41 EU
4701072	6311000045	Eppendorf SE		430	330	1	Mastercycler® X50s	11.5	275	4 ... 99 °C		UK	850		16779.41 EU

Thermal cycler Mastercycler X50t (Eco model)

Eppendorf SE (995205)

Thermal cycler Mastercycler® X50t (Eco model)
Thermal cycler with an intuitive touchscreen for applications in molecular biology research, as well as for routine PCR applications. The 2D-Gradient function allows both the denaturation temperature and the annealing temperature to be optimised simultaneously. Furthermore, up to 10 devices can be connected together.

-Temperature control modes: Fast, Intermediate, Standard, Safe
-Heating lid flexlid® with automatic lid height adjustment allows the use of various consumables
-Constant block temperature of 20 °C during the heating lid's warm-up phase reduces thermal load on samples and minimizes the formation of non-specific products
-Gradient temperature range: 30 to 99 °C
-Gradient range: 1 to 30 °C
-Interfaces: USB, Ethernet
-Small footprint
-With aluminium thermoblock
-For 384-well PCR plate

The device has no control panel and is controlled via a Master model.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity~W	General	Price	Quantity	Status	Add
4701077	6306000010	Eppendorf SE		430	330	1	Mastercycler® X50t	10.7	275	4 ... 99 °C		EU	850		14735.29 EU
4701078	6306000045	Eppendorf SE		430	330	1	Mastercycler® X50t	10.7	275	4 ... 99 °C		UK	850		14735.29 EU

Thermalcycler Mastercycler® X40

Eppendorf SE (986905)

Thermalcycler Mastercycler® X40
The Mastercycler® X40 sets new standards in endpoint PCR. It features a 12-column gradient, excellent temperature homogeneity of the aluminium block for reproducible results, a large, intuitive touchscreen interface, and a SafeLid that adapts to different vessel heights, ensuring optimal heat transfer and protection against evaporation.

-User management to set permissions to change settings or programmes, and detailed GLP- and audit-compliant run documentation
-Remote monitoring with VisioNize® Lab Suite
-Programme migration function supports the import of programmes from slower cyclers
-Dedicated service and maintenance plans are available as options, e.g. IQ/OQ GxP or temperature verification with sensors calibrated according to ISO 9001 or ISO/IEC 17025, and the TVS-T6 Temperature Verification System
-Supports sustainability goals: ACT-certified, low noise level and energy consumption, energy-saving mode

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity~W	General	Price	Quantity	Status	Add
4701083	6381000042	Eppendorf SE		385	230	1	Mastercycler® X40	7.3	245	4 ... 99 °C	96-well plate or 0.1/0.2 ml tubes	UK	500		10147.06 EU
6325777	6381000018	Eppendorf SE		385	230	1	Mastercycler® X40	7.3	245	4 ... 99 °C	96-well plate or 0.1/0.2 ml tubes	EU/US/JP/TW	500		10147.06 EU

Thermocycler Alpha Cycler

Cole-Parmer Instrument (3022)

Thermocycler Alpha Cycler
The Alpha Cycler family form PCRmax provides a range of features which are specifically designed to meet the needs of modern researchers when amplifying DNA. Given the flexibility in format and block options (96 or 384 well) scaleability is core in the Alpha Cycler range. Alpha Cycler software has features such as recently used programmes, allowing users to quickly access their most commonly used protocols without the need to navigate through folders to find it, individual user logins, with protected protocols. The Alpha Cycler systems also contain a novel programme wizard which allows users to define a protocol based specifically on their primer sequence and template source. Primer sequences or TM's are entered, amplicon length and source defined and the on board algorithm generates an optimised protocol for your assay. The Alpha Cyclers range of block options allow for use of the most commonly used consumables from different manufacturers and includes 96 well plates (0.2 ml), tubes (0.2 ml), strip tubes (0.2 ml) and 384 well plates.
-Single, dual or four block options available with either 96 or 384 well gradient blocks
-Multi-block units have totally independent blocks for maximum flexibility
-HD Android driven touchscreen interface for simplified programming
-Generate and send instrument reports to diagnose the health of your system and identify any issues before they impact users work
-Lock programs with user defined password
-Alpha Track mobile app allows remote monitoring of run progress

Alpha Track App (free of charge): Track the progress of runs and health of your system remotely via the mobile app
The Alpha Track Application is used in conjunction with your Alpha Cycler and allows users to:
-Remotely track the progress of runs
-Send a health report for diagnosis by the technical support team
-Be notified of any issues and prevent system failures before occurring

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Price
4658855	93945-02	Cole-Parmer Instrument	260	200	1	AC196	12	430	10 ... 100 °C	1 x 96 well block	7984.41 EU
4658856	93945-00	Cole-Parmer Instrument	260	200	1	AC1384	12	430	10 ... 100 °C	1 x 384 well block	7984.71 EU
4658857	93945-22	Cole-Parmer Instrument	535	330	1	AC296	30	470	10 ... 100 °C	2 x 96 well blocks	17032.51 EU
4658858	93945-28	Cole-Parmer Instrument	535	330	1	AC2384	30	470	10 ... 100 °C	2 x 384 well blocks	17088.53 EU
4658859	93945-20	Cole-Parmer Instrument	535	330	1	AC2196	30	470	10 ... 100 °C	1 x 96 + 1 x 384 well blocks	16801.76 EU
4658860	93945-12	Cole-Parmer Instrument	535	330	1	AC496	45	700	10 ... 100 °C	4 x 96 well blocks	32894.86 EU
4658861	93945-08	Cole-Parmer Instrument	535	330	1	AC4384	45	700	10 ... 100 °C	4 x 384 well blocks	32902.21 EU
4658862	93945-04	Cole-Parmer Instrument	535	330	1	AC4196	45	700	10 ... 100 °C	1 x 96 + 3 x 384 well blocks	32285.29 EU
4658863	93945-06	Cole-Parmer Instrument	535	330	1	AC4296	45	700	10 ... 100 °C	2 x 96 + 2 x 384 well blocks	32285.29 EU
4658864	93945-10	Cole-Parmer Instrument	535	330	1	AC4396	45	700	10 ... 100 °C	3 x 96 + 1 x 384 well blocks	32931.62 EU
