You Searched For:
Your filters:
×
Laboratory reactors
Accessories for Laboratory reactor LR 1000 basic / control
IKA-Werke GmbH & Co.KG (7589)
Accessories for Laboratory reactor LR 1000 basic / control
Accessories for Laboratory reactor LR 1000 basic / control
More Info
PN
Manuf. PN
Supplier
Description
DN
For
Material
PK
Type
Nominal capacity
General
Price
Quantity
Status
Add
4656210
0025001955
IKA-Werke GmbH & Co.KG
Reactor vessel, 1000 ml, FFKM Sealings, 6 connectors
1
LR 1000.3
8207.94 EU
4656213
0004663200
IKA-Werke GmbH & Co.KG
Flow breaker/baffle, stainless steel
1
LR 1000.20
648.68 EU
4656214
0004664300
IKA-Werke GmbH & Co.KG
Shaft receptacle
1
LR 1000.41
909.12 EU
4656215
0004664400
IKA-Werke GmbH & Co.KG
Sensor receptacle
1
LR 1000.61
833.09 EU
4656216
0004663300
IKA-Werke GmbH & Co.KG
pH electrode
1
LR 1000.64
1658.09 EU
4656217
0004663400
IKA-Werke GmbH & Co.KG
pH electrode receptacle
1
LR 1000.65
1405.74 EU
6283215
0025003123
IKA-Werke GmbH & Co.KG
Lid Holder
1
LR 1000.70
470.74 EU
Accessories for Laboratory reactor LR-2.ST
IKA-Werke GmbH & Co.KG (7592)
Accessories for Laboratory reactor LR-2.ST
Accessories for Laboratory reactor LR-2.ST
More Info
PN
Manuf. PN
Supplier
Description
DN
For
Material
PK
Type
Nominal capacity
General
Price
Quantity
Status
Add
4656218
0020000878
IKA-Werke GmbH & Co.KG
Lock Coupling set
1
LT 5.25
1023.96 EU
4656219
0020000879
IKA-Werke GmbH & Co.KG
Lock Adapter set
1
LT 5.26
700.45 EU
4656220
0020000880
IKA-Werke GmbH & Co.KG
Hose adapter set
1
LT 5.27
1023.96 EU
4656221
0003172600
IKA-Werke GmbH & Co.KG
pH measuring sensor receptacle
1
LR 2000.65
1661.33 EU
4691533
0020106236
IKA-Werke GmbH & Co.KG
Hose adapter
1
LT 5.23 M 16
263.68 EU
6237447
0003318300
IKA-Werke GmbH & Co.KG
Safety stop
1
LR-2.SI
1844.12 EU
6287903
0020010075
IKA-Werke GmbH & Co.KG
pH Process electrode
1
LR 2000.64
2353.68 EU
7017925
0002508300
IKA-Werke GmbH & Co.KG
Glass Reactor vessel, double-walled, 2000 ml
1
LR 2000.1
7230.32 EU
7017934
0002509200
IKA-Werke GmbH & Co.KG
Shaft receptacle
1
LR 2000.40
1127.51 EU
7636384
0003326400
IKA-Werke GmbH & Co.KG
Splinter shield
1
LR-2.SP
849.27 EU
Laboratory reactor LR 1000 basic System
IKA-Werke GmbH & Co.KG (9672)
Laboratory reactor LR 1000 basic System
Modular laboratory reactors designed for optimizing chemical reaction processes as well as for mixing, dispersing and homogenization applications at the laboratory scale. The reactors are especially designed for the unique applications requirements...
Laboratory reactor LR 1000 basic System
Modular laboratory reactors designed for optimizing chemical reaction processes as well as for mixing, dispersing and homogenization applications at the laboratory scale. The reactors are especially designed for the unique applications requirements that define the cosmetic and pharmaceutical industries. The temperature of the medium can be as high as 120 °C. The temperature of the heating source, which is located at the bottom of the vessel, is controlled accordingly to reach the set temperature inside the medium.
Scope of supply: Basic device, laboratory reactor vessel LR 1000.1, sensor receptacle LR 1000.61, temperature sensor PT 100.30, support rod, 2 hose connectors for cooling hoses
Specifications
Usable volume:
Max. working temperature:
Nominal torque: 300 - 1000ml
120°C
3Nm
Attainable vacuum:
Max. viscosity:
Speed range: 25mbar
100,000mPas
10 - 150rpm
Display:
Material in contact with medium:
Heat output: LED
AISI 316L, borosilicate glass 3.3, PTFE, FKM
1000W
Heat control accuracy:
Connection for ext. temperature sensor:
Temperature measurement resolution: ± 1K
yes
0.1K
Temperature control accuracy with PT 100:
Min. cooling medium temperature:
pH sensor interface: ± 0.2K
3°C
no
Timer / counter function:
Support rod diameter:
Dimensions (W x D x H): yes
16mm
443 x 295 x 360mm
Weight:
Permissible ambient temperature:
Permissible relative moisture: 16kg
5 - 40°C
80%
Protection class according to DIN EN 60529:
USB and RS 232 interface:
Voltage: IP 21
no
230V
Frequency:
Power input: 50/60Hz
1200W
More Info
PN
Manuf. PN
Supplier
PK
General
Price
Quantity
Status
Add
4691532
0020119960
IKA-Werke GmbH & Co.KG
1
12861.92 EU
Laboratory reactor LR 1000 control System
IKA-Werke GmbH & Co.KG (762046)
Laboratory reactor LR 1000 control System
Modular laboratory reactors designed for optimizing chemical reaction processes as well as for mixing, dispersing and homogenization applications at the laboratory scale. The reactors are especially designed for the unique applications requiremen...
Laboratory reactor LR 1000 control System
Modular laboratory reactors designed for optimizing chemical reaction processes as well as for mixing, dispersing and homogenization applications at the laboratory scale. The reactors are especially designed for the unique applications requirements that define the cosmetic and pharmaceutical industries. The temperature of the medium can be as high as 120 °C. The temperature of the heating source, which is located at the bottom of the vessel, is controlled accordingly to reach the set temperature inside the medium.
Prominent features are its intuitive menu navigation, integrated pH and temperature sensor connection as well as several interfaces that allow display and storage of process-relevant data on a PC. By using the optional laboratory software labworldsoft® it is possible to even control the reactor via PC and make further settings. In addition, a control valve connection to attach an optional magnetic valve for program-based cooling water control is integrated.
Scope of supply: Basic device, laboratory reactor vessel LR 1000.3, anchor stirrer LR 1000.10, sensor receptacle LR 1000.62, temperature sensor PT 100.30, flow breaker, support rod, 2 hose connectors, USB cable
Specifications
Usable volume:
Max. working temperature:
Nominal torque: 300 - 1000ml
120°C
3Nm
Attainable vacuum:
Max. viscosity:
Speed range: 25mbar
100,000mPas
10 - 150rpm
Display:
Material in contact with medium:
Heat output: TFT
AISI 316L, borosilicate glass 3.3, PTFE, FKM
1000W
Heat control accuracy:
Connection for ext. temperature sensor:
Temperature measurement resolution: ± 1K
yes
0.1K
Temperature control accuracy with PT 100:
Min. cooling medium temperature:
pH sensor interface: ± 0.2K
3°C
yes
Timer / counter function:
Support rod diameter:
Dimensions (W x D x H): yes
16mm
443 x 295 x 360mm
Weight:
Permissible ambient temperature:
Permissible relative moisture: 16kg
5 - 40°C
80%
Protection class according to DIN EN 60529:
USB and RS 232 interface:
Voltage: IP 21
yes
230V
Frequency:
Power input: 50/60Hz
1200W
More Info
PN
Manuf. PN
Supplier
PK
General
Price
Quantity
Status
Add
9729969
0025001991
IKA-Werke GmbH & Co.KG
1
23639.16 EU
Laboratory reactor LR-2.ST STARVISC 200
IKA-Werke GmbH & Co.KG (856794)
Laboratory reactor LR-2.ST STARVISC 200
Modularly configured laboratory reactors for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a lab scale. The system is particularly characterised by the agitator mounting, which allows for a ...
Laboratory reactor LR-2.ST STARVISC 200
Modularly configured laboratory reactors for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a lab scale. The system is particularly characterised by the agitator mounting, which allows for a safe transfer of the higher motor torque. ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.
-Suitable for vacuum operation
-Solvent- and temperature-resistant perfluoroelastomer (FFPM) seals come into contact with sample
-Infinitely variable speed
-Torque trend display for measuring changes in viscosity
-Microprocessor-controlled speed regulation, enables steady speed, also under load
-Removable WiCo (wiresless controller) for remote and safe use in a fume hood
Scope of supply: Stand system, laboratory stirrer STARVISC 200-2.5 control, safety stop, reactor cover
More Info
PN
Manuf. PN
Supplier
Depth~mm
Height~mm
PK
Type
Weight~kg
Width~mm
Speed
Plug type
General
Price
Quantity
Status
Add
4672726
0020020603
IKA-Werke GmbH & Co.KG
580
1240
1
LR-2.ST STARVISC 200
25
670
6 ... 2,000 1/min
28270.00 EU

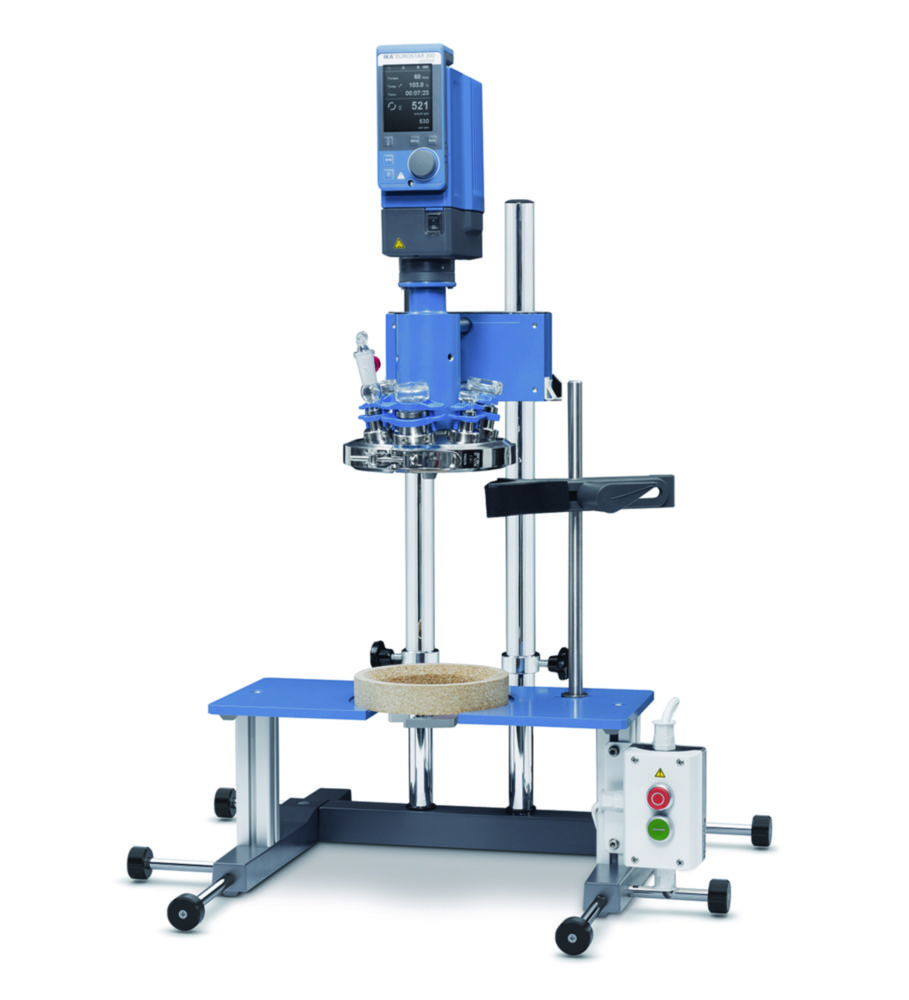

Laboratory reactor LR-2.ST the Allrounder
IKA-Werke GmbH & Co.KG (10346)
Laboratory reactor LR-2.ST the Allrounder
Modularly configured laboratory reactors for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a lab scale. The system is particularly characterised by the agitator mounting, which allows for ...
Laboratory reactor LR-2.ST the Allrounder
Modularly configured laboratory reactors for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a lab scale. The system is particularly characterised by the agitator mounting, which allows for a safe transfer of the higher motor torque. ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.
-Suitable for vacuum operation
-Solvent- and temperature-resistant perfluoroelastomer (FFPM) seals come into contact with sample
-Infinitely variable speed
-Torque trend display for measuring changes in viscosity
-Microprocessor-controlled speed regulation, enables steady speed, also under load
-Removable WiCo (wiresless controller) for remote and safe use in a fume hood
Scope of supply: Stand system, laboratory stirrer EUROSTAR 200 control, safety stop, reactor cover
More Info
PN
Manuf. PN
Supplier
Depth~mm
Height~mm
PK
Type
Weight~kg
Width~mm
Speed
Plug type
General
Price
Quantity
Status
Add
4672740
0020013292
IKA-Werke GmbH & Co.KG
580
1240
1
LR-2.ST the Allrounder
25
670
8 ... 290 1/min
23549.71 EU
Laboratory reactor LR-2.ST the Compact Power
IKA-Werke GmbH & Co.KG (856835)
Laboratory reactor LR-2.ST the Compact Power
Modularly configured laboratory reactors for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a lab scale. The system is particularly characterised by the agitator mounting, which allows f...
Laboratory reactor LR-2.ST the Compact Power
Modularly configured laboratory reactors for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a lab scale. The system is particularly characterised by the agitator mounting, which allows for a safe transfer of the higher motor torque. ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.
-Suitable for vacuum operation
-Solvent- and temperature-resistant perfluoroelastomer (FFPM) seals come into contact with sample
-Infinitely variable speed
-Torque trend display for measuring changes in viscosity
-Microprocessor-controlled speed regulation, enables steady speed, also under load
-Removable WiCo (wiresless controller) for remote and safe use in a fume hood
Scope of supply: Stand system, laboratory stirrer EUROSTAR 60 control, safety stop, reactor cover
More Info
PN
Manuf. PN
Supplier
Depth~mm
Height~mm
PK
Type
Weight~kg
Width~mm
Speed
Plug type
General
Price
Quantity
Status
Add
4672742
0020013294
IKA-Werke GmbH & Co.KG
580
1240
1
LR-2.ST the Compact Power
25
670
8 ... 290 1/min
21399.86 EU
Laboratory reactor LR-2.ST the Versatile
IKA-Werke GmbH & Co.KG (856824)
Laboratory reactor LR-2.ST the Versatile
Modularly configured laboratory reactors for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a lab scale. The system is particularly characterised by the agitator mounting, which allows for a...
Laboratory reactor LR-2.ST the Versatile
Modularly configured laboratory reactors for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a lab scale. The system is particularly characterised by the agitator mounting, which allows for a safe transfer of the higher motor torque. ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.
-Suitable for vacuum operation
-Solvent- and temperature-resistant perfluoroelastomer (FFPM) seals come into contact with sample
-Infinitely variable speed
-Torque trend display for measuring changes in viscosity
-Microprocessor-controlled speed regulation, enables steady speed, also under load
-Removable WiCo (wiresless controller) for remote and safe use in a fume hood
Scope of supply: Stand system, laboratory stirrer EUROSTAR 100 control, safety stop, reactor cover
More Info
PN
Manuf. PN
Supplier
Depth~mm
Height~mm
PK
Type
Weight~kg
Width~mm
Speed
Plug type
General
Price
Quantity
Status
Add
4672741
0020013293
IKA-Werke GmbH & Co.KG
580
1240
1
LR-2.ST the Versatile
34
670
8 ... 290 1/min
22575.88 EU
×
20
50
100
8 items found
Page 1 of 1
