Filtration capsules, Sartobran 150 and 300

Sartorius Stedim Biotech GmbH (2086)

Filtration capsules, Sartobran 150 and 300
Ready-to-use pressure filtration capsules for sterile filtration of media and aqueous solutions with volumes of up to 20 litres (Sartobran 150), or 40 litres (Sartobran 300). The units consist of a polypropylene housing containing a double-layer cellulose acetate membrane (0.2 µm and 0.45 µm). The membranes, which have an area of 150 cm² or 300 cm², have extremely low protein adsorption levels. Autoclavable at up to 134°C. Automatically air vented via an integral PTFE membrane. Sterile and individually packed. With 6 to 12 mm flexible tubing connections (SO) or 1/2 inch tri-clamp (TC).

PN	Manuf. PN	Supplier	PK	Type	Price
9604619	5231307H5--OO--B	Sartorius Stedim Biotech GmbH	5	Sartobran 300 SO/SO	770.59 EU
2000472	5231307H5--NO--B	Sartorius Stedim Biotech GmbH	5	Sartobran 300 -/SO	805.88 EU
2000473	5231307H5--NO--V	Sartorius Stedim Biotech GmbH	2	Sartobran 300 -/SO	301.47 EU
9604615	5231307H4--OO--B	Sartorius Stedim Biotech GmbH	5	Sartobran 150 SO/SO	366.18 EU
9604616	5231307H4--SO--B	Sartorius Stedim Biotech GmbH	5	Sartobran 150 TC/SO	398.53 EU
9604617	5231307H4--SS--B	Sartorius Stedim Biotech GmbH	5	Sartobran 150 TC/TC	366.18 EU
9604618	5231307H5--OO--V	Sartorius Stedim Biotech GmbH	2	Sartobran 300 SO/SO	277.94 EU

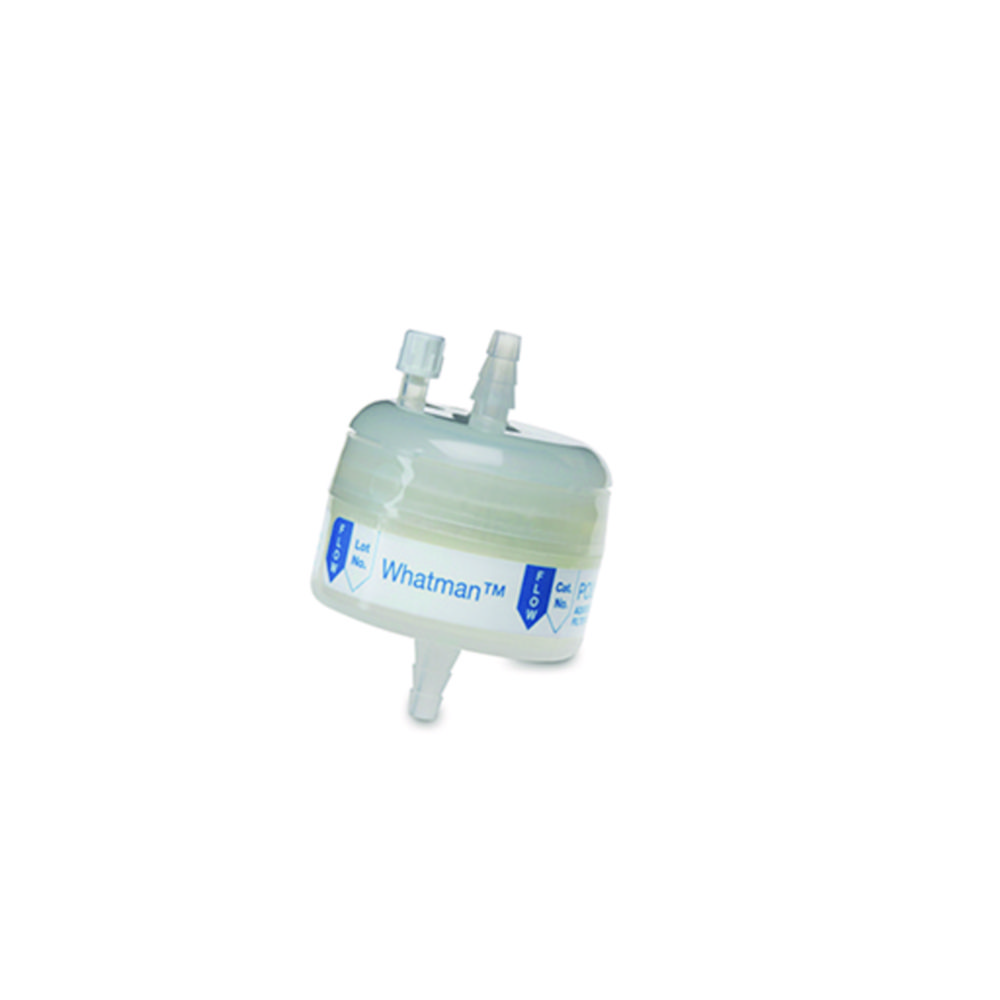

Disposable Filtration Capsules, Polycap AS

Cytiva Europe GmbH (5238)

Disposable Filtration Capsules, Polycap AS™
Used for large volumes of aqueous samples. Presterilized. Contains a nylon membrane which is inherently hydrophilic, has low extractables, is bio-safe and has excellent flow rates. A glass microfibre prefilter ensures a long working life for the main filter and allows the easy filtration of large volumes and difficult samples.
-Connectors: stepped barb (SB) and female national pipe thread (FNPT)
-Filter: GMF/Nylon

PN	Manuf. PN	Supplier	PK	Pore size~µm	Sterile	Price
6202515	6705-3604	Cytiva Europe GmbH	1	0,45	yes	103.24 EU
6206290	6709-3602	Cytiva Europe GmbH	1	0,2	yes	103.82 EU
6259753	2606T	Cytiva Europe GmbH	5	0,2	yes	685.29 EU
6267845	2706T	Cytiva Europe GmbH	5	0,2	yes	763.24 EU
9951130	6705-3602	Cytiva Europe GmbH	1	0,2	yes	103.24 EU

Disposable Filtration Capsules, Polycap HD, PP

Cytiva Europe GmbH (5236)

Disposable Filtration Capsules, Polycap HD™, PP
PP monofilament depth filters for use as prefilters or for the filtration of samples in water or organic solvents. The high loading capacity allows the purification of solutions with a high particle load.
-Choice of filtration areas and porosities
-Maximum operating pressure 4.1 bar forward, 3.0 bar reverse
-Capsules may be used in either direction
-Low hold-up volume with air purge
-Autoclavable
-Operating temperature max. 60 °C
-Connectors: stepped barb (SB), hose barb (HB) and female national pipe thread (FNPT)
-Filter PP

PN	Manuf. PN	Supplier	Max. pressure~bar	PK	Pore size~µm	Sterile	autoclavable	Price
6267857	2814T	Cytiva Europe GmbH	4.1	5	20	no	Yes	850.00 EU
6268427	2812T	Cytiva Europe GmbH	4.1	5	5	no	Yes	849.05 EU
7657846	2713T	Cytiva Europe GmbH	4.1	5	10	no	Yes	683.82 EU
9951118	6703-3610	Cytiva Europe GmbH	4.1	1	1	no	Yes	102.65 EU
9951119	6703-3650	Cytiva Europe GmbH	4.1	1	5	no	Yes	112.13 EU
9951120	6703-3611	Cytiva Europe GmbH	4.1	1	10	no	Yes	102.65 EU
9951121	6703-3621	Cytiva Europe GmbH	4.1	1	20	no	Yes	102.65 EU
9951122	6703-7510	Cytiva Europe GmbH	4.1	1	1	no	Yes	147.94 EU
9951123	6703-7550	Cytiva Europe GmbH	4.1	1	5	no	Yes	147.94 EU
9951124	6703-7511	Cytiva Europe GmbH	4.1	1	10	no	Yes	147.94 EU
9951125	6703-7521	Cytiva Europe GmbH	4.1	1	20	no	Yes	147.94 EU

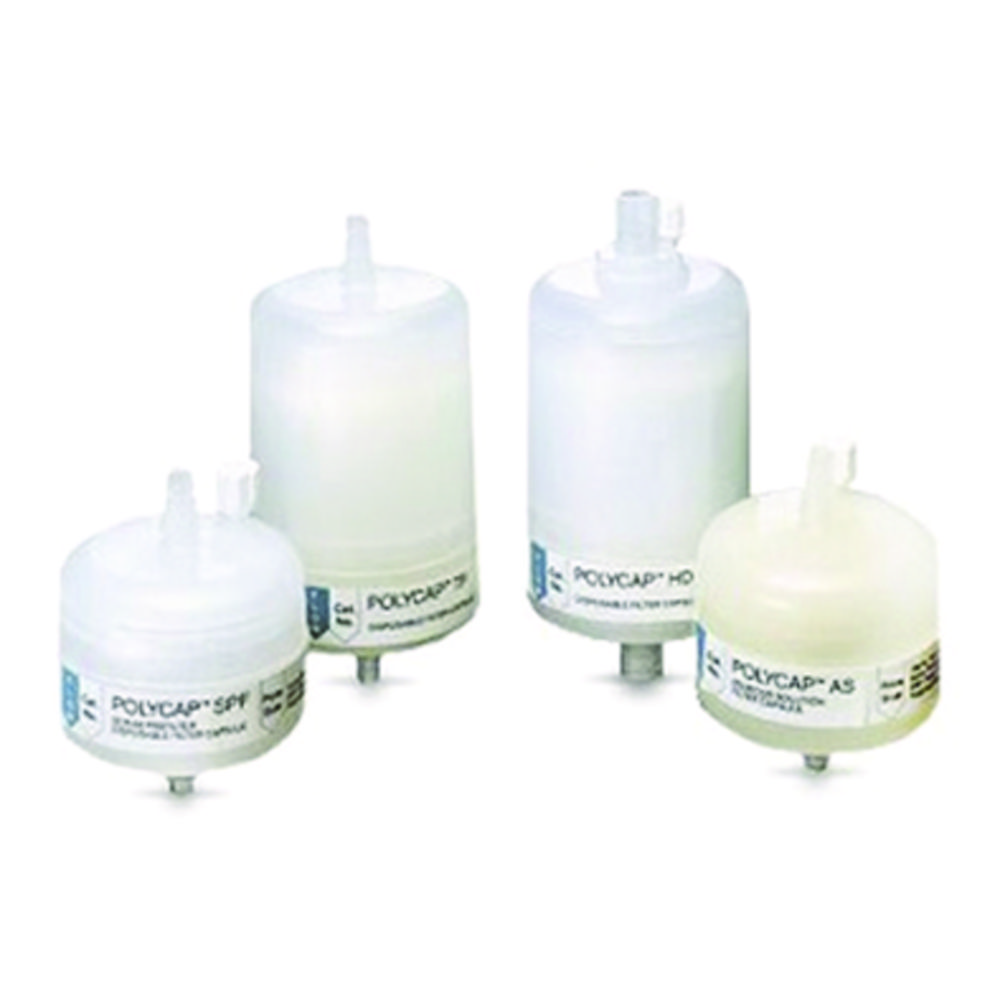

Disposable Filtration Capsules, Polycap TF

Cytiva Europe GmbH (5237)

Disposable Filtration Capsules, Polycap TF™
Hydrophobic PTFE membrane for applications involving organic solvents and chemically aggressive solutions.
-Maximum operating pressure of 4.1 bar forward and 3.0 bar reverse
-1 µm capsules incorporate a PP prefilter
-Autoclavable up to 132 °C maximum
-Connectors: stepped barb (SB) and female national pipe thread (FNPT)

PN	Manuf. PN	Supplier	PK	Pore size~µm	Sterile	autoclavable	Price
6235690	6700-7504	Cytiva Europe GmbH	1	0,45	no	Yes	229.41 EU
6280995	6710-7502	Cytiva Europe GmbH	1	0,2	no	Yes	220.29 EU
6803130	2601T	Cytiva Europe GmbH	5	0,2	no	Yes	744.12 EU
6803246	2702T	Cytiva Europe GmbH	5		no	Yes	969.12 EU
9951126	6700-3602	Cytiva Europe GmbH	1	0,2	no	Yes	155.00 EU
9951127	6700-3610	Cytiva Europe GmbH	1	1,0	no	Yes	158.09 EU
9951128	6700-7502	Cytiva Europe GmbH	1	0,2	no	Yes	232.35 EU
9951129	6701-7510	Cytiva Europe GmbH	1	1,0	no	Yes	229.41 EU

Disposable filtration capsules, VacuGuard 150, Activated carbon

Cytiva Europe GmbH (5240)

Disposable filtration capsules, VacuGuard™ 150, Activated carbon
Mounted in a robust PP housing. All have a low hold-up volume. Dimensions: (diameter x length) 53 x 46mm. Connections: For 6mm to 10mm diameter bore tubing. Also accept male luer slip.

-Hydrophobic PTFE membrane and choice of chemical trap:
-Activated carbon with 82000m2 filtration area removes organic vapours and radioactive particles
-99.99% of particulates 0.1µm or larger are retained
-Maximum operating pressure 1 bar (wet gas) / 4.2 bar (dry gas)

For vacuum pump protection from corrosive vapours and contaminants. With end connectors for 12mm bore tubing. Supplied singly.

PN	Manuf. PN	Supplier		Flow rate	PK	Sterile	Type	Height	Ø	autoclavable			Material housing	General	Price	Quantity	Status	Add
9951137	6722-1001	Cytiva Europe GmbH			1								PP		301.47 EU

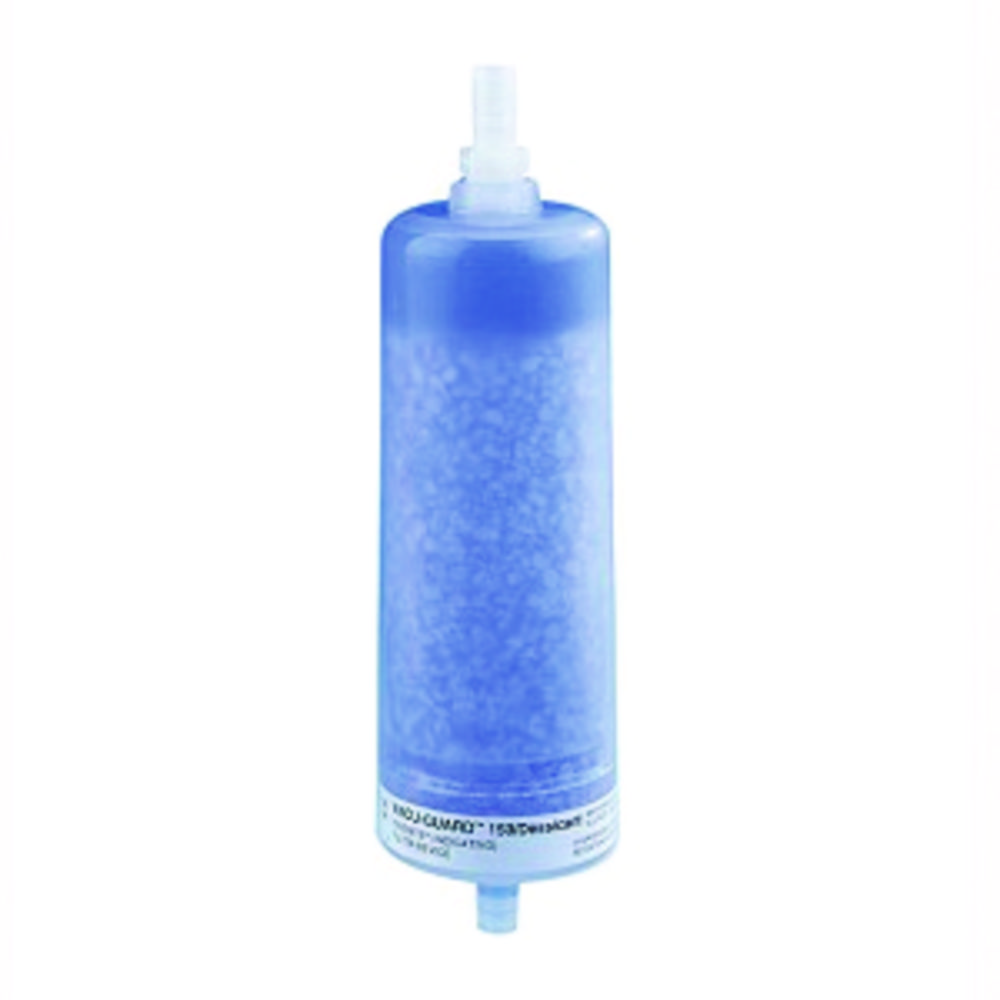

Disposable filtration capsules, VacuGuard 150, Desiccant

Cytiva Europe GmbH (854746)

Disposable filtration capsules, VacuGuard™ 150, Desiccant
Mounted in a robust PP housing. All have a low hold-up volume. Dimensions: (diameter x length) 53 x 46mm. Connections: For 6mm to 10mm diameter bore tubing. Also accept male luer slip.

-Hydrophobic PTFE membrane and choice of chemical trap:
-Desiccant removes water from acidic air streams
-99.99% of particulates 0.1µm or larger are retained
-Maximum operating pressure 1 bar (wet gas) / 4.2 bar (dry gas)

For vacuum pump protection from corrosive vapours and contaminants. With end connectors for 12mm bore tubing. Supplied singly.

PN	Manuf. PN	Supplier		Flow rate	PK	Sterile	Type	Height	Ø	autoclavable			Material housing	General	Price	Quantity	Status	Add
9951139	6722-1002	Cytiva Europe GmbH			1								PP		261.76 EU

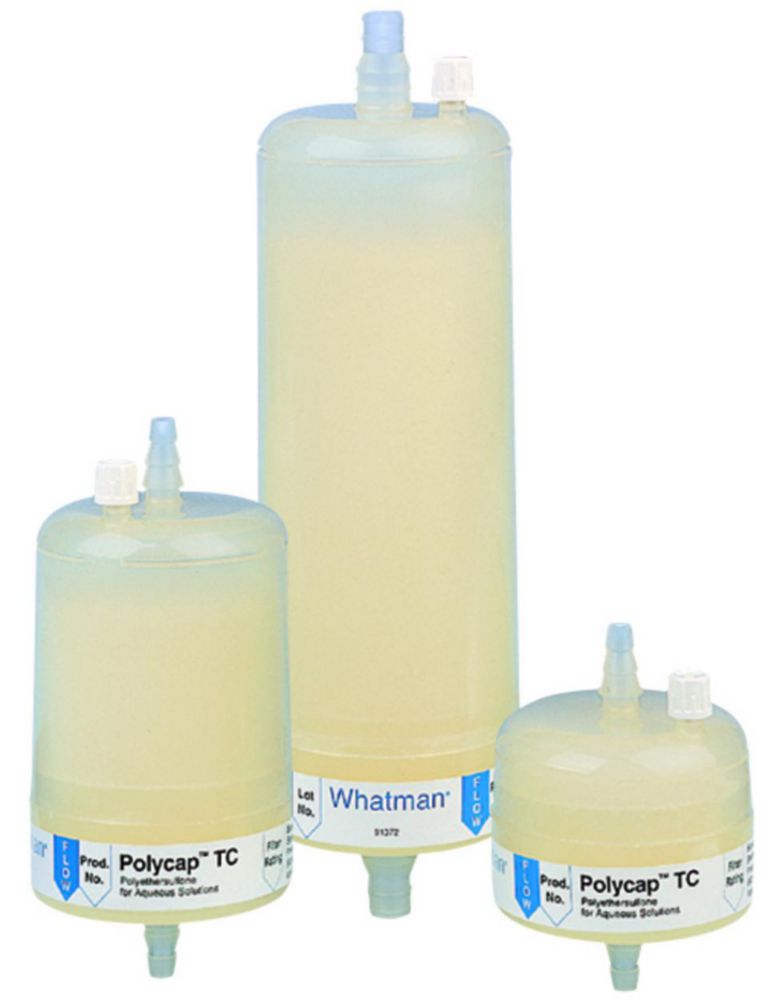

Filtration Capsules Polycap TC

Cytiva Europe GmbH (4675)

Filtration Capsules Polycap TC
Polycap TC filtration capsules feature dual layer polyethersulfone (PES) membranes and provide efficient filtration for aqueous solutions.
-100% integrity-tested during manufacturing
-Polypropylene housing thermally fused to eliminate surfactants and mold releasing agents that could affect analysis
-Manufactured according to ISO9001:2008 QMS standards
-Available in sterile versions with a filling bell option
-PES membranes protein adsorption characteristics: HAS 0.4 µg/cm²; Insulin 2.0 µg/cm²; gammaglobulin 1.5 µg/cm²
-Connectors: stepped barb (SB)

PN	Manuf. PN	Supplier	PK	Pore size~µm	Sterile	Price
6258902	6717-9504	Cytiva Europe GmbH	1	0,45	yes	292.65 EU
6261550	6714-7502	Cytiva Europe GmbH	1	0,2	yes	225.00 EU
7638111	6717-9502	Cytiva Europe GmbH	1	0,2	yes	300.00 EU

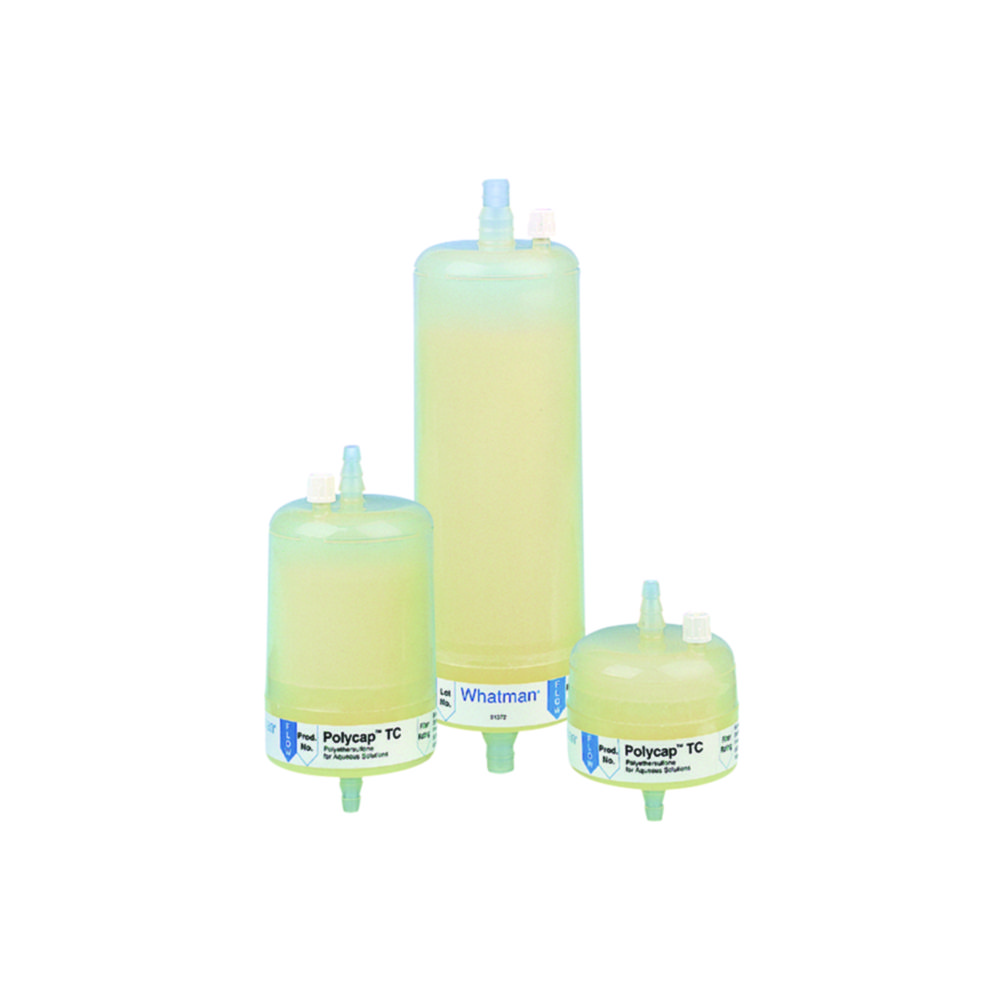

Filtration Capsules Polycap TC, filling bell

Cytiva Europe GmbH (854769)

Filtration Capsules Polycap TC, filling bell
Polycap TC filtration capsules feature dual layer polyethersulfone (PES) membranes and provide efficient filtration for aqueous solutions.

-100% integrity-tested during manufacturing
-Polypropylene housing thermally fused to eliminate surfactants and mold releasing agents that could affect analysis
-Manufactured according to ISO9001:2008 QMS standards
-PES membranes protein adsorption characteristics: HAS 0.4 µg/cm²; Insulin 2.0 µg/cm²; gammaglobulin 1.5 µg/cm²
-Connectors: stepped barb (SB)

PN	Manuf. PN	Supplier	PK	Pore size~µm	Sterile	Price
6207274	6715-3682	Cytiva Europe GmbH	1	0,2	yes	142.35 EU
6233928	6715-3604	Cytiva Europe GmbH	1	0,45	yes	158.96 EU
6257668	6715-7582	Cytiva Europe GmbH	1	0,2	yes	154.41 EU
6257914	6718-9582	Cytiva Europe GmbH	1	0,2	yes	247.06 EU
