BDL | Search Diaphragm vacuum pumps

Diaphragm pumps chemistry design, ME 1C

Vacuubrand GmbH & Co.KG (5895)

Diaphragm pumps chemistry design, ME 1C
The diaphragm pumps ME 1C offer a compact and high performance solution. With their easy-to-use functionality, they are the perfect partner for both single and multiple filtrations.
One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors for modest vacuum requirements. In contrast to water-jet pumps, they do not consume water and therefore do not produce any contaminated waste water in daily use.
Vacuum filtration is frequently used for sample preparation in chemistry, microbiology, waste water control and analysis.
In the chemistry diaphragm pumps ("C") all major parts in contact with pumped media are made of chemically resistant fluoroplastics. The ME 1C is also often used for solid phase extraction (SPE).
An optional manual regulator valve with dial gauge enables variable fine adjustment of the pumping speed and the ultimate vacuum.

Gas ballast for reliable pump performance.
Two up to four stage chemistry diaphragm pumps (letters in the product name Z, D or V) are equipped with a manual gas ballast valve as standard. The supply of gas ballast minimizes the risk of condensation inside the pump.

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Weight~kg	Width~mm	Plug type	Price
9880934	20721100	Vacuubrand GmbH & Co.KG	270	154	1	ME 1C	100	5	121	EU	1564.34 EU
9880935	20721101	Vacuubrand GmbH & Co.KG	270	154	1	ME 1C	100	5	121	CH	1566.69 EU
9880936	20721102	Vacuubrand GmbH & Co.KG	270	154	1	ME 1C	100	5	121	UK	1566.92 EU
9880937	20721103	Vacuubrand GmbH & Co.KG	270	154	1	ME 1C	100	5	121	US	1514.71 EU

Diaphragm vacuum pumps LABOPORT N 820 G / N 840 G, chemically-resistant

KNF NEUBERGER GmbH (10225)

Diaphragm vacuum pumps LABOPORT® N 820 G / N 840 G, chemically-resistant
The compact pumps feature a control knob for manual adjustments of the flow rate, making them well suited to a wide variety of applications, e.g. rotary evaporation, distillation, gel drying, degassing as well as the use with vacuum ovens and vacuum concentrators. Due to the manual rotational speed control, the pumps are quiet, very energy efficient, and can be optimally adjusted in accordance with the application.

-Easy-to-clean surface
-Adjustable in flow rate due to manual rotational speed control
-Combination of PTFE pump head and PTFE-coated diaphragm makes the pump ideal for extremely aggressive/corrosive gases and vapors
-High level of compatibility with vapor and condensation
-Integrated gas ballast valve
-3-color status display: In operation / Stand-by / Error
-ATEX-compliant in accordance with II 2/-G IIB+H2 T3 internal atmpsphere only
-100% oil-free transfer to ensure uncontaminated transfer, evacuation and compression
-Optional: Easily expandable with separators and/or condensers

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Weight~kg	Width~mm	Plug type	Price
4672375	317121/313452	KNF NEUBERGER GmbH	259	220	1	N 820 G	6	8.8	163	EU/UK/CH	3189.85 EU
4672376	317123/315994	KNF NEUBERGER GmbH	289	240	1	N 840 G	6	11.3	177	EU/UK/CH	3520.66 EU
4686738	U317123/315995	KNF NEUBERGER GmbH	289	240	1	U N 840 G	6	11.3	177	US	5950.00 EU
4686739	U317121/313453	KNF NEUBERGER GmbH	259	220	1	U N 820 G	6	8.8	163	US	4408.82 EU

Diaphragm vacuum pumps LABOPORT, ATEX-compliant

KNF NEUBERGER GmbH (3844)

Diaphragm vacuum pumps LABOPORT®, ATEX-compliant
-Application: Fluid aspiration, Degassing, Gel drying, Rotary evaporation, Centrifugal concentration, Distillation
-High level of vapor and condensate compatibility
-PTFE pump head combined with PTFE-coated diaphragm are ideal for extremely aggressive/corrosive gases and vapors
-In accordance with ATEX II 2/-G IIB+H2 T3 Gb internal atmosphere only

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Width~mm	Weight	Plug type	Rated capacity		General	Price	Quantity	Status	Add
9880614	309579/026365	KNF NEUBERGER GmbH		341	226	1	N 840.3 FT.18	8	166						3367.35 EU
9880613	309577/026366	KNF NEUBERGER GmbH		312	207	1	N 820.3 FT.18	8	154						3065.07 EU

Fine control valves for Vacuum Pumps LABOPORT/ N 920 G

KNF NEUBERGER GmbH (701784)

Fine control valves for Vacuum Pumps LABOPORT® / N 920 G

PN	Manuf. PN	Supplier	Description	For	PK	Price
6237598	057830	KNF NEUBERGER GmbH	suction side	N 816.3 KT.18, N 816.1.2 KT.18	1	133.82 EU
7970584	112432	KNF NEUBERGER GmbH	suction side	N 938.50 KT.18, N 920 G	1	158.68 EU
9880531	001787	KNF NEUBERGER GmbH	suction side	N 86 KT.18, N 86 KN.18	1	129.12 EU
9880532	001786	KNF NEUBERGER GmbH	pressure side	N 86 KT.18, N 86 KN.18	1	129.12 EU

Mini Diaphragm Vacuum Pumps LABOPORT® N 938.50 KT.18

KNF NEUBERGER GmbH (871454)

Mini Diaphragm Vacuum Pumps LABOPORT® N 938.50 KT.18
For filtration, degassing desiccation, liquid extraction and solid phase extraction.

-N 938.50 KT.18 ensures exceptionally fast evacuation by the parallel and in series connection of both pump heads
-PTFE-coated diaphragm is ideal for aggressive/corrosive gases and vapors
-Pump head made from PPS (Polyphenylsulfide), valves made from FFPM (Perfluoro rubber)

PN	Manuf. PN	Supplier		PK	Type	Ultimate vacuum~mbar	Depth	Height	Weight	Width	Plug type	Rated capacity		General	Price	Quantity	Status	Add
7940228	120677/120694	KNF NEUBERGER GmbH		1	N 938.50 KT.18	15					EU				2330.07 EU
4686728	U120678/120692	KNF NEUBERGER GmbH		1	U N 938.50 KT.18	15					US				4064.71 EU

Mini Diaphragm Vacuum Pumps LABOPORTN 816.1.2 KT.18

KNF NEUBERGER GmbH (557413)

Mini Diaphragm Vacuum Pumps LABOPORT® N 816.1.2 KT.18
For filtration, desiccation, fluid aspiration.

-Suitable for handling wet vapours
-PTFE-coated diaphragm is ideal for aggressive/corrosive gases and vapors
-Pump head made from PPS (Polyphenylsulfide), valves made from FFPM (Perfluoro rubber)

PN	Manuf. PN	Supplier		PK	Type	Ultimate vacuum~mbar	Depth	Height	Weight	Width	Plug type	Rated capacity		General	Price	Quantity	Status	Add
6206850	057016/055163	KNF NEUBERGER GmbH		1	N 816.1.2 KT.18	160					EU				1412.42 EU
4686730	U057017/055162	KNF NEUBERGER GmbH		1	U N 816.1.2 KT.18	160					US				2085.29 EU

Mini Diaphragm Vacuum Pumps LABOPORTN 816.3 KT.18

KNF NEUBERGER GmbH (871468)

Mini Diaphragm Vacuum Pumps LABOPORT® N 816.3 KT.18
For filtration, degassing desiccation, liquid extraction and solid phase extraction.

-PTFE-coated diaphragm is ideal for aggressive/corrosive gases and vapors
-Pump head made from PPS (Polyphenylsulfide), valves made from FFPM (Perfluoro rubber)

PN	Manuf. PN	Supplier		PK	Type	Ultimate vacuum~mbar	Depth	Height	Weight	Width	Plug type	Rated capacity		General	Price	Quantity	Status	Add
7620376	057012/055163	KNF NEUBERGER GmbH		1	N 816.3 KT.18	20					EU				1362.51 EU
4686729	U057013/055162	KNF NEUBERGER GmbH		1	U N 816.3 KT.18	20					US				2085.29 EU

Mini-Diaphragm vacuum pumps LABOPORTN 96, chemically-resistant

KNF NEUBERGER GmbH (10215)

Mini-Diaphragm vacuum pumps LABOPORT® N 96, chemically-resistant
The Pump combines a high flow rate with a very compact design. Suitable for filtration, SPE, and liquid aspiration using a vacuum. Due to the manual rotational speed control, the pump is quiet, very energy efficient, and can be optimally adjusted in accordance with the application.

-Easy-to-clean surface
-Very small footprint
-Adjustable in flowrate due to manual rotational speed control
-PTFE-coated diaphragm for use with aggressive/corrosive gases and vapors

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Weight~kg	Width~mm	Plug type	Rated capacity		General	Price	Quantity	Status	Add
4672374	322806/000000	KNF NEUBERGER GmbH		156	119	1	N 96	130	1.3	75	EU/UK/CH				747.72 EU
4686731	U322806/000000	KNF NEUBERGER GmbH		156	119	1	U N 96	130	1.3	75	US				1201.47 EU

Spare parts kits for Diaphragm vacuum pumps and pump systems LABOPORT/LABOBASE^®

KNF NEUBERGER GmbH (6079)

Spare parts kits for Diaphragm vacuum pumps and pump systems LABOPORT®/LABOBASE®

PN	Manuf. PN	Supplier	For	PK	Price
6204267	057359	KNF NEUBERGER GmbH	N 840.3 FT.18, N 842.3 FT.18, SC 840, SBC 840.40, N 840.3 FT.40.18	1	396.33 EU
4679747	317435	KNF NEUBERGER GmbH	N 820 G	1	265.00 EU
4679748	317436	KNF NEUBERGER GmbH	N 840 G	1	372.51 EU
4679749	322636	KNF NEUBERGER GmbH	N 96	1	57.06 EU
6202161	057357	KNF NEUBERGER GmbH	N 810.3 FT.18	1	233.09 EU
6902434	057358	KNF NEUBERGER GmbH	N 820.3 FT.18, SC 820, N 820.3 FT.40.18	1	304.86 EU
7671499	047499	KNF NEUBERGER GmbH	N 860.3 FT.40.18, SBC 860.40	1	439.12 EU

Accessories for chemical membrane pumps VP

BINDER GmbH (895529)

Accessories for chemical membrane pumps VP

PN	Manuf. PN	Supplier	Description	For	PK	Price
4714143	8012-2613	BINDER GmbH	Connection kit VD	VP1, VP2	1	392.65 EU
4714144	8012-2724	BINDER GmbH	Connection kit VDL, stainless steel	VP5 EX	1	535.29 EU
4714145	8012-2614	BINDER GmbH	Connection kit VDL, PTFE	VP5 EX	1	1354.41 EU
4714146	8012-2615	BINDER GmbH	Emission condenser	VP1, VP2	1	532.35 EU
4714147	8500-0542	BINDER GmbH	Membrane wrench SW 66	VP1, VP2, VP5 EX	1	483.82 EU

ATEX Chemical membrane pump VP5 EX

BINDER GmbH (895519)

ATEX Chemical membrane pump VP5 EX
The VP5 EX vacuum pump, together with the VDL series vacuum drying ovens, is ideally suited for the safe drying of flammable solvents.

-Resistant to a wide range of chemicals
-Very quiet and low-vibration operation
-Designed for S1 operating mode (continuous operation)
-Suction and pressure-side separators for collecting condensate
-Emission condenser at the pump outlet for solvent recondensation
-Power connection via fixed connection, pump supplied with blank cable ends without plug
-ATEX-compliant

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Plug type	Rated capacity~kW			General	Price	Quantity	Status	Add
4714142	5013-0258	BINDER GmbH		357	470	1	VP5 EX	25.4	308		0.15				12480.88 EU

Chemical membrane pump VP1

BINDER GmbH (895489)

Chemical membrane pump VP1
The VP1 vacuum pump, together with the VD series vacuum drying ovens, is ideally suited for drying aqueous and non-flammable solvents.

-Resistant to a wide range of chemicals
-Very quiet and low-vibration operation
-Designed for S1 operating mode (continuous operation)
-Suction and pressure-side separators for collecting condensate

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Plug type	Rated capacity~kW			General	Price	Quantity	Status	Add
4714139	5013-0256	BINDER GmbH		319	309	1	VP1	13.6	243	EU	0.18				4489.71 EU
4714140	5013-0256 UK	BINDER GmbH		319	309	1	VP1	13.6	243	UK	0.18				4489.71 EU

Chemical membrane pump VP2

BINDER GmbH (895512)

Chemical membrane pump VP2
The VP2 vacuum pump, together with the VD series vacuum drying ovens, is ideally suited for drying aqueous and non-flammable solvents.

-Resistant to a wide range of chemicals
-Very quiet and low-vibration operation
-Designed for S1 operating mode (continuous operation)
-Suction and pressure-side separators for collecting condensate

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Plug type	Rated capacity~kW			General	Price	Quantity	Status	Add
4714141	5013-0257	BINDER GmbH		319	309	1	VP2	13.6	243		0.25				7579.41 EU

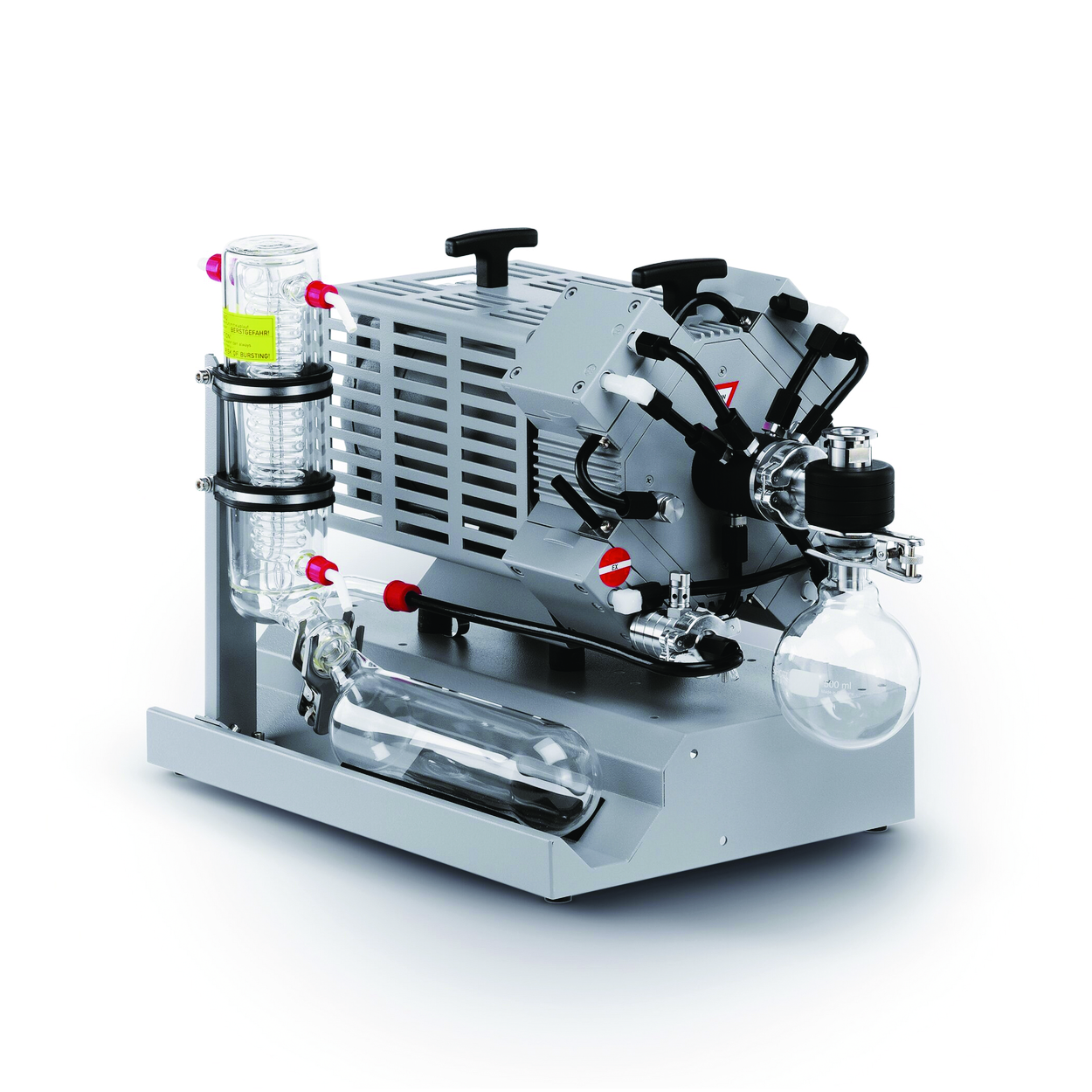

Chemistry Diaphragm Vacuum Pump MD 4C EX +AK+EK with ATEX compliance

Vacuubrand GmbH & Co.KG (992965)

Chemistry Diaphragm Vacuum Pump MD 4C EX +AK+EK with ATEX compliance
ATEX chemistry diaphragm pumps offer all advantages of oil-free chemistry diaphragm pumps. Typical applications are rotary evaporators and drying ovens with potentially explosive atmospheres. The ATEX approval includes the interior of the pump (in contact with pumped gases) as well as the surrounding area of the pump.

-Outstanding chemical resistance and superior vapor tolerance
-Mainly made of antistatic materials
-Flame proof motor with integrated, self-locking overload and excess temperature protection for direct 230V / 50Hz single phase power supply
-Overpressure safety relief valves internally and at outlet
-With separate gas ballast connection part for use of inert gas
-Safety diaphragm technology with option for inert gas purge and detection of diaphragm breakage

ATEX compliance:
Pump chamber (pumped gases): II 2G Ex h IIC T3 Gb X
Exterior space (pump environment): II 2G Ex h IIB T4 Gb X (with inert gas purging) / II 3G Ex h IIB T4 Gc X (without inert gas purging)
Separator AK and emission condenser EK for pump protection and solvent recovery.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Width~mm	Weight	Plug type	Rated capacity		General	Price	Quantity	Status	Add
6242649	20696931	Vacuubrand GmbH & Co.KG		600	420	1	MD 4C EX +AK+EK	3	365		stranded wire				18536.76 EU

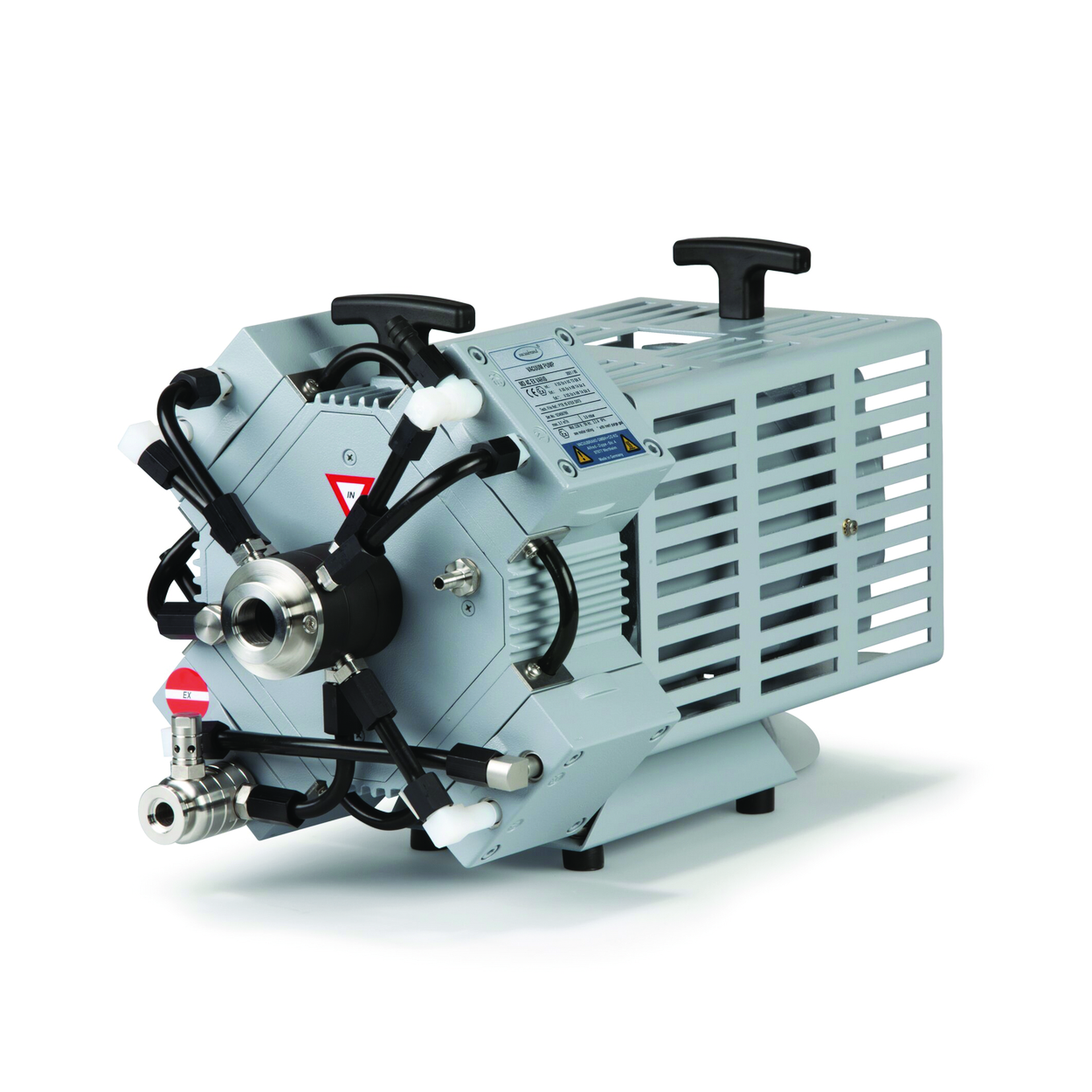

Chemistry Diaphragm Vacuum Pump MD 4C EX VARIO

Vacuubrand GmbH & Co.KG (992412)

Chemistry Diaphragm Vacuum Pump MD 4C EX VARIO
With the ATEX VARIO® chemical diaphragm pumps, the vacuum can be precisely controlled by adjusting the motor speed. The pump is driven by an additional control signal line. The optional vacuum controller VACUU·SELECT, with an ATEX vacuum sensor and Connection Box 100, enables fully automatic evaporation without the need for parameter setting or user programming. With the adaptive control, it finds the boiling pressure indepentently and adjusts the vacuum continuously and optimally according to the vapour pressure.

-High chemical resistance and oil-free operation
-The absence of sliding surfaces ensures that ignition sources are avoided
-Short process times thanks to hysteresis-free VARIO® vacuum control
-The pump runs only as fast as necessary, according to demand: minimal power consumption, extended maintenance intervals, quiet operation

ATEX compliance:
Pumping chamber (gases pumped): II 2G Ex h IIC T3 Gb X
External area (pump surroundings): II 2G Ex h IIB T4 Gb X (with inert gas purging) / II 3G Ex h IIB T4 Gc X (without inert gas purging)
Motor: II 2G Ex db IIB T4 Gb

A vacuum controller, ATEX vacuum sensor and Connection Box 100 are required for operation. Please order separately.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Weight~kg	Width~mm	Plug type	Rated capacity		General	Price	Quantity	Status	Add
4670368	20696936	Vacuubrand GmbH & Co.KG		265	305	1	MD 4C EX VARIO	3	28.9	469	stranded wire				14786.76 EU

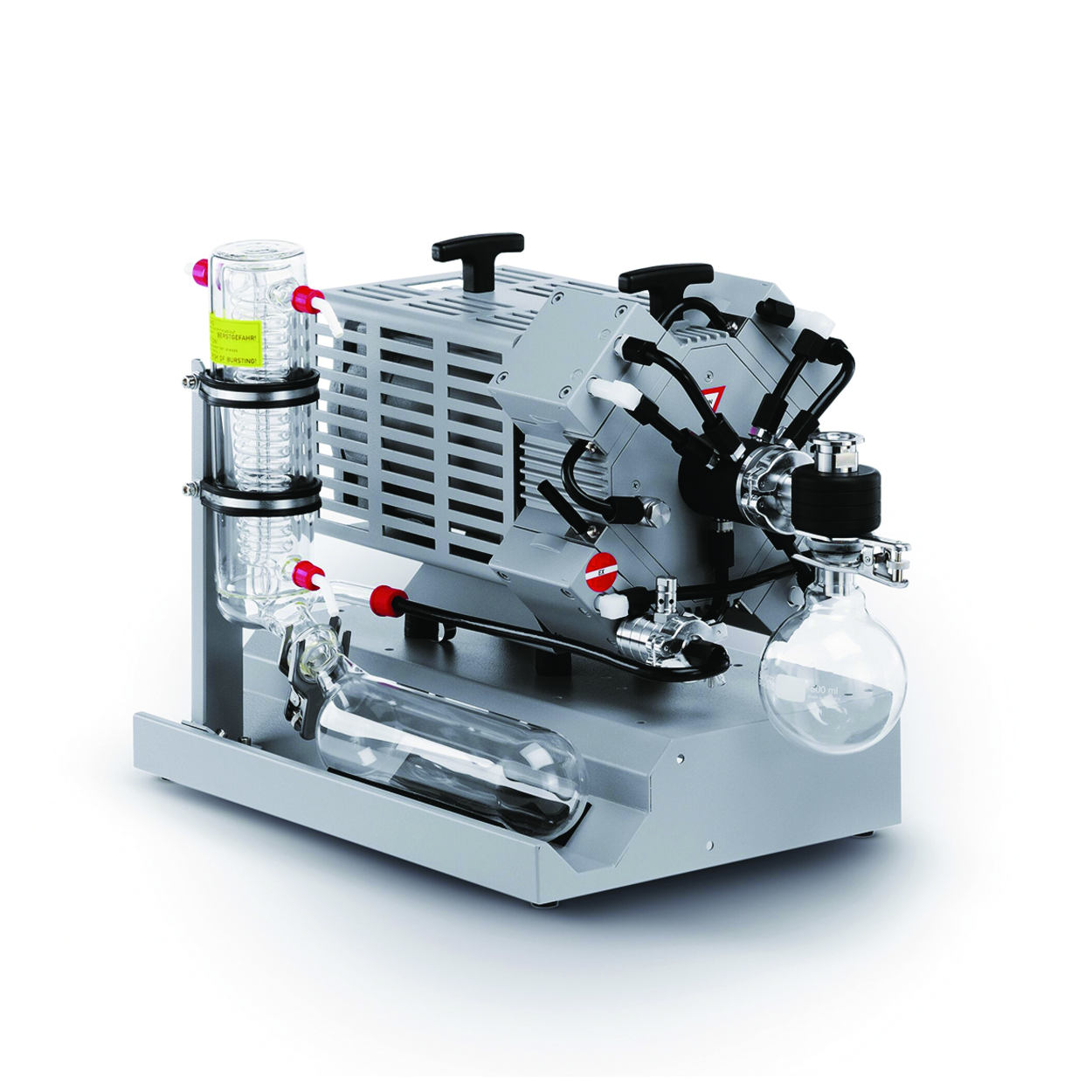

Chemistry Diaphragm Vacuum Pump MD 4C EX VARIO +AK+EK

Vacuubrand GmbH & Co.KG (992563)

Chemistry Diaphragm Vacuum Pump MD 4C EX VARIO +AK+EK
With the ATEX VARIO® chemical diaphragm pumps, the vacuum can be precisely controlled by adjusting the motor speed. The pump is driven by an additional control signal line. The optional vacuum controller VACUU·SELECT, with an ATEX vacuum sensor and Connection Box 100, enables fully automatic evaporation without the need for parameter setting or user programming. With the adaptive control, it finds the boiling pressure indepentently and adjusts the vacuum continuously and optimally according to the vapour pressure.

-High chemical resistance and oil-free operation
-The absence of sliding surfaces ensures that ignition sources are avoided
-Short process times thanks to hysteresis-free VARIO® vacuum control
-The pump runs only as fast as necessary, according to demand: minimal power consumption, extended maintenance intervals, quiet operation

ATEX compliance:
Pumping chamber (gases pumped): II 2G Ex h IIC T3 Gb X
External area (pump surroundings): II 2G Ex h IIB T4 Gb X (with inert gas purging) / II 3G Ex h IIB T4 Gc X (without inert gas purging)
Motor: II 2G Ex db IIB T4 Gb

A vacuum controller, ATEX vacuum sensor and Connection Box 100 are required for operation. Please order separately.
With separator AK and emission condenser EK.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Weight~kg	Width~mm	Plug type	Rated capacity		General	Price	Quantity	Status	Add
4670369	20696937	Vacuubrand GmbH & Co.KG		600	420	1	MD 4C EX VARIO +AK+EK	3	36.8	365	stranded wire				20036.76 EU

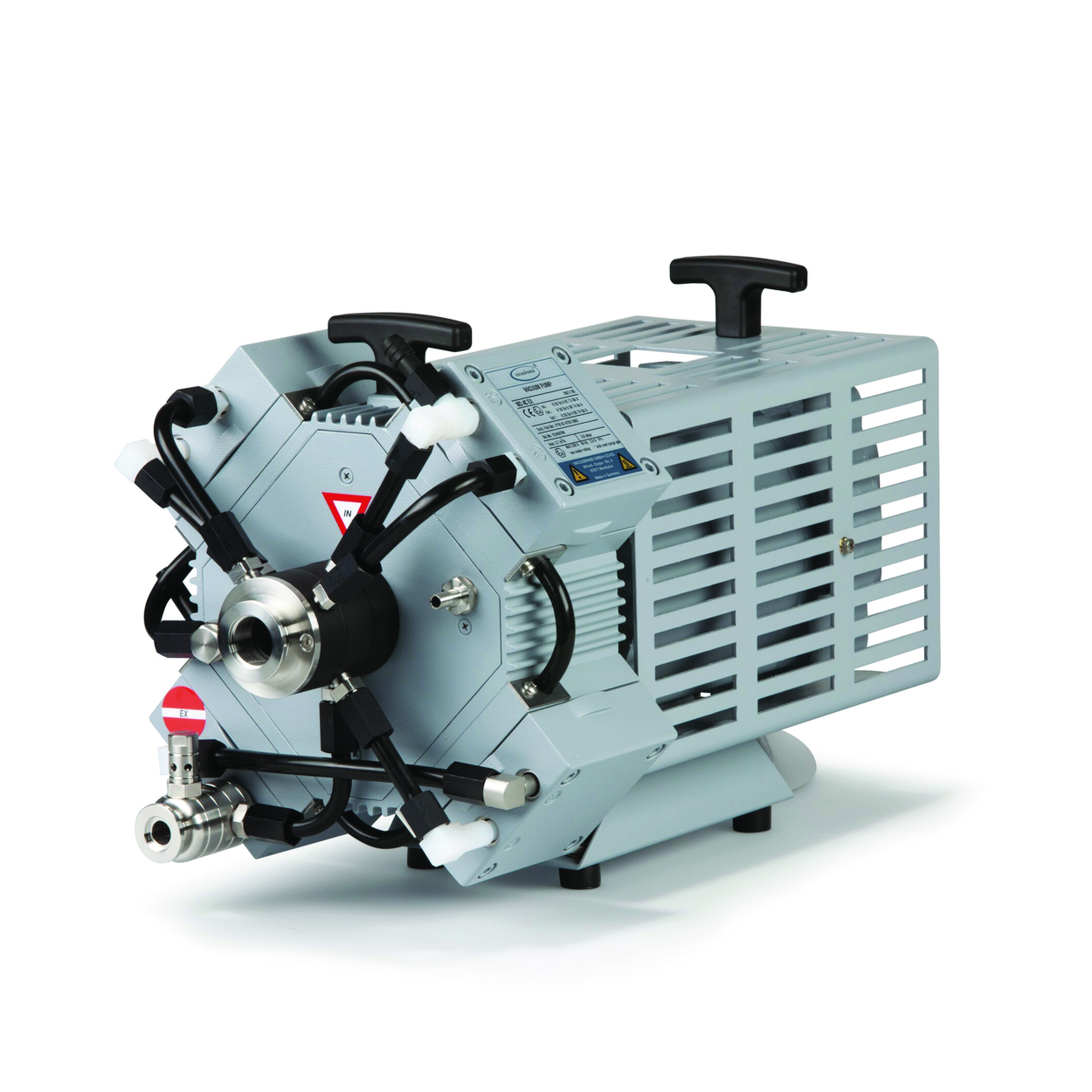

Chemistry Diaphragm Vacuum Pump MD 4C EX with ATEX compliance

Vacuubrand GmbH & Co.KG (992960)

Chemistry Diaphragm Vacuum Pump MD 4C EX with ATEX compliance
ATEX chemistry diaphragm pumps offer all advantages of oil-free chemistry diaphragm pumps. Typical applications are rotary evaporators and drying ovens with potentially explosive atmospheres. The ATEX approval includes the interior of the pump (in contact with pumped gases) as well as the surrounding area of the pump.

-Outstanding chemical resistance and superior vapor tolerance
-Mainly made of antistatic materials
-Flame proof motor with integrated, self-locking overload and excess temperature protection for direct 230V / 50Hz single phase power supply
-Overpressure safety relief valves internally and at outlet
-With separate gas ballast connection part for use of inert gas
-Safety diaphragm technology with option for inert gas purge and detection of diaphragm breakage

ATEX compliance:
Pump chamber (pumped gases): II 2G Ex h IIC T3 Gb X
Exterior space (pump environment): II 2G Ex h IIB T4 Gb X (with inert gas purging) / II 3G Ex h IIB T4 Gc X (without inert gas purging)

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Width~mm	Weight	Plug type	Rated capacity		General	Price	Quantity	Status	Add
6266205	20696930	Vacuubrand GmbH & Co.KG		440	305	1	MD 4C EX	3	265		stranded wire				13654.41 EU

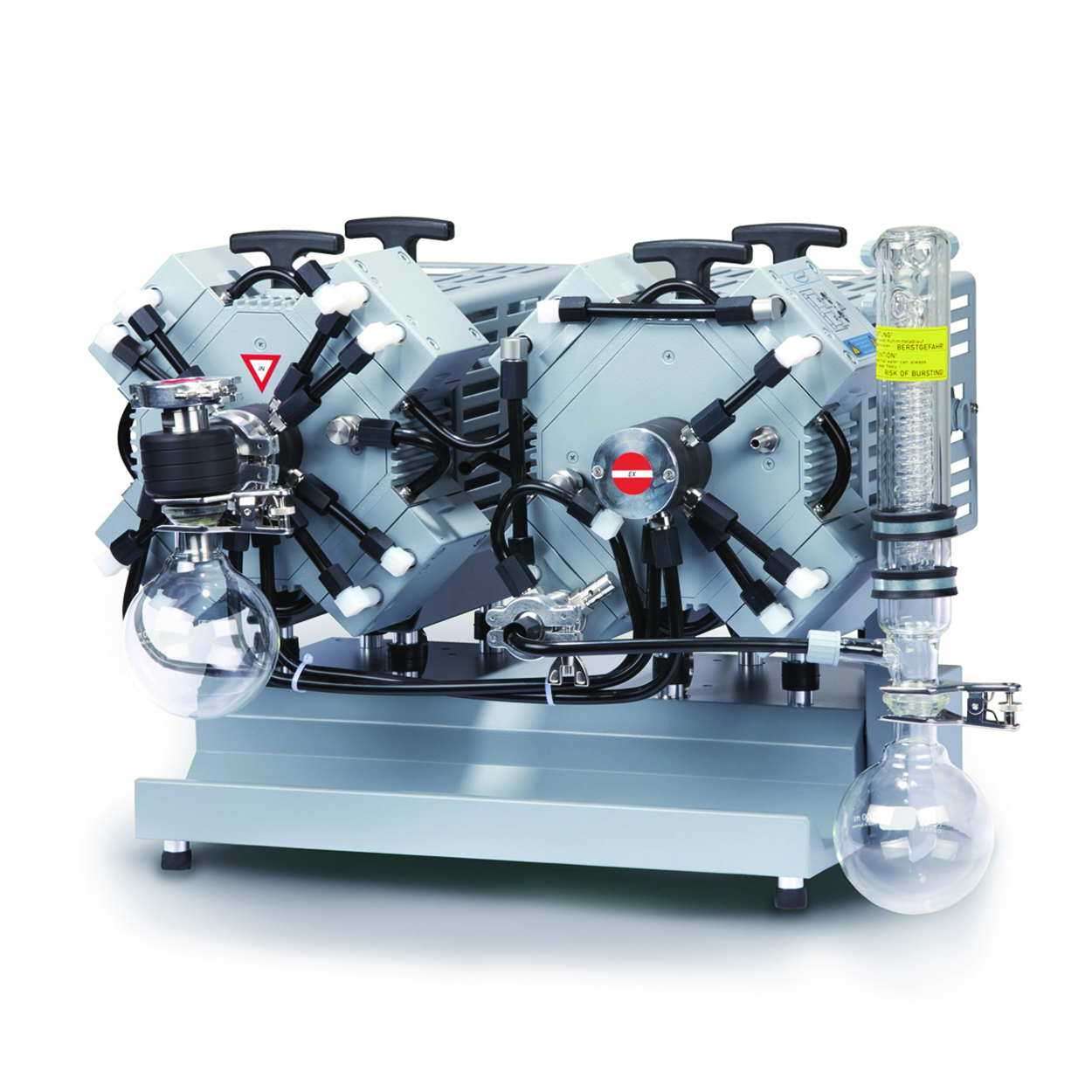

Chemistry Diaphragm Vacuum Pump MV 10C EX +AK+EK with ATEX compliance

Vacuubrand GmbH & Co.KG (992970)

Chemistry Diaphragm Vacuum Pump MV 10C EX +AK+EK with ATEX compliance
ATEX chemistry diaphragm pumps offer all advantages of oil-free chemistry diaphragm pumps. Typical applications are rotary evaporators and drying ovens with potentially explosive atmospheres. The ATEX approval includes the interior of the pump (in contact with pumped gases) as well as the surrounding area of the pump.

-Outstanding chemical resistance and superior vapor tolerance
-Mainly made of antistatic materials
-Flame proof motor with integrated, self-locking overload and excess temperature protection for direct 230V / 50Hz single phase power supply
-Overpressure safety relief valves internally and at outlet
-With separate gas ballast connection part for use of inert gas
-Safety diaphragm technology with option for inert gas purge and detection of diaphragm breakage

ATEX compliance:
Pump chamber (pumped gases): II 2G Ex h IIC T3 Gb X
Exterior space (pump environment): II 2G Ex h IIB T4 Gb X (with inert gas purging) / II 3G Ex h IIB T4 Gc X (without inert gas purging)
Separator AK and emission condenser EK for pump protection and solvent recovery.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Weight~kg	Width~mm	Plug type	Rated capacity		General	Price	Quantity	Status	Add
6314809	22614250	Vacuubrand GmbH & Co.KG		525	452	1	MV 10C EX +AK+EK	2	68	649	stranded wire				30102.94 EU

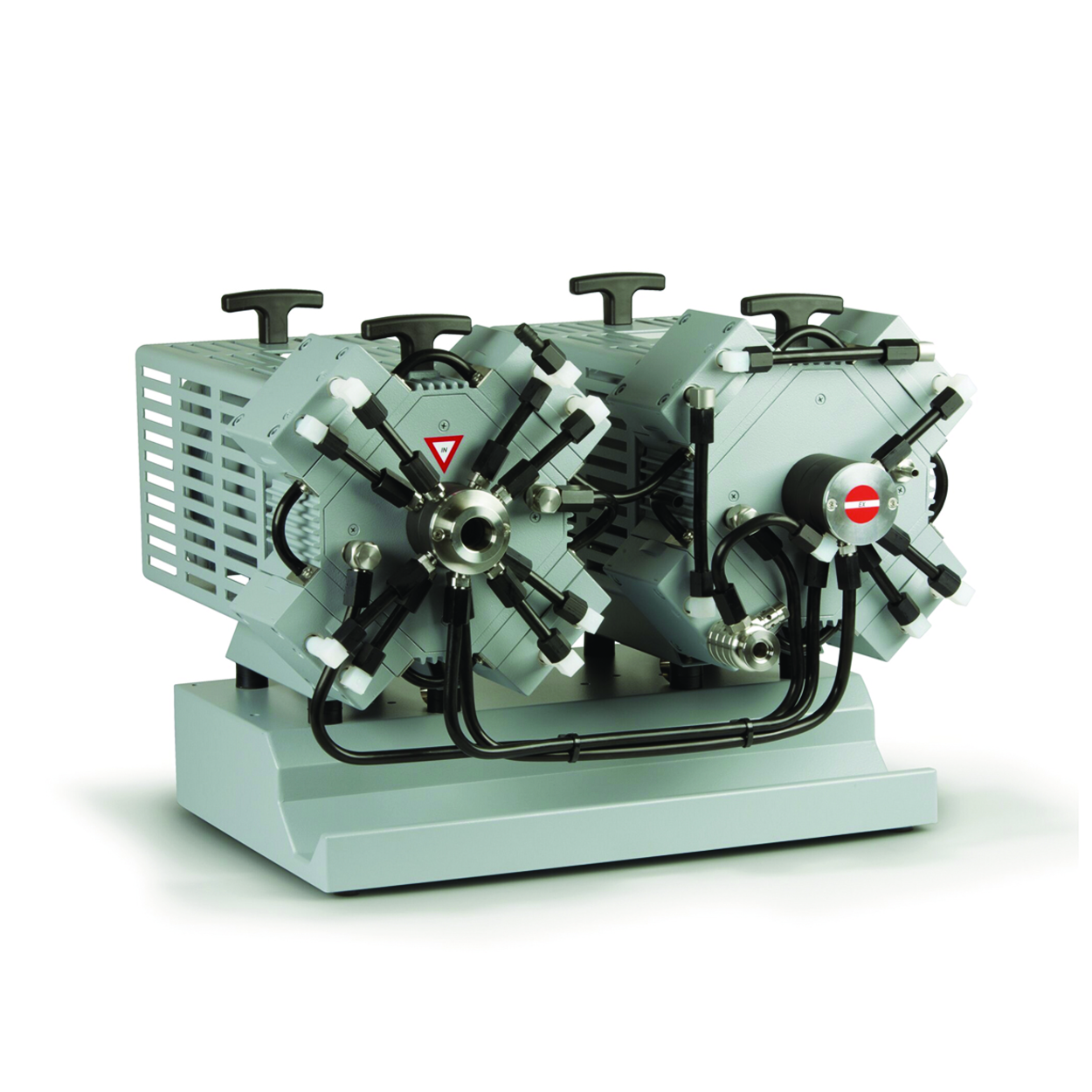

Chemistry Diaphragm Vacuum Pump MV 10C EX VARIO

Vacuubrand GmbH & Co.KG (992583)

Chemistry Diaphragm Vacuum Pump MV 10C EX VARIO
With the ATEX VARIO® chemical diaphragm pumps, the vacuum can be precisely controlled by adjusting the motor speed. The pump is driven by an additional control signal line. The optional vacuum controller VACUU·SELECT, with an ATEX vacuum sensor and Connection Box 100, enables fully automatic evaporation without the need for parameter setting or user programming. With the adaptive control, it finds the boiling pressure indepentently and adjusts the vacuum continuously and optimally according to the vapour pressure.

-High chemical resistance and oil-free operation
-The absence of sliding surfaces ensures that ignition sources are avoided
-Short process times thanks to hysteresis-free VARIO® vacuum control
-The pump runs only as fast as necessary, according to demand: minimal power consumption, extended maintenance intervals, quiet operation

ATEX compliance:
Pumping chamber (gases pumped): II 2G Ex h IIC T3 Gb X
External area (pump surroundings): II 2G Ex h IIB T4 Gb X (with inert gas purging) / II 3G Ex h IIB T4 Gc X (without inert gas purging)
Motor: II 2G Ex db IIB T4 Gb

A vacuum controller, ATEX vacuum sensor and Connection Box 100 are required for operation. Please order separately.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Weight~kg	Width~mm	Plug type	Rated capacity		General	Price	Quantity	Status	Add
4667821	20696946	Vacuubrand GmbH & Co.KG		457	410	1	MV 10C EX VARIO	2	63.2	560	stranded wire				30974.27 EU

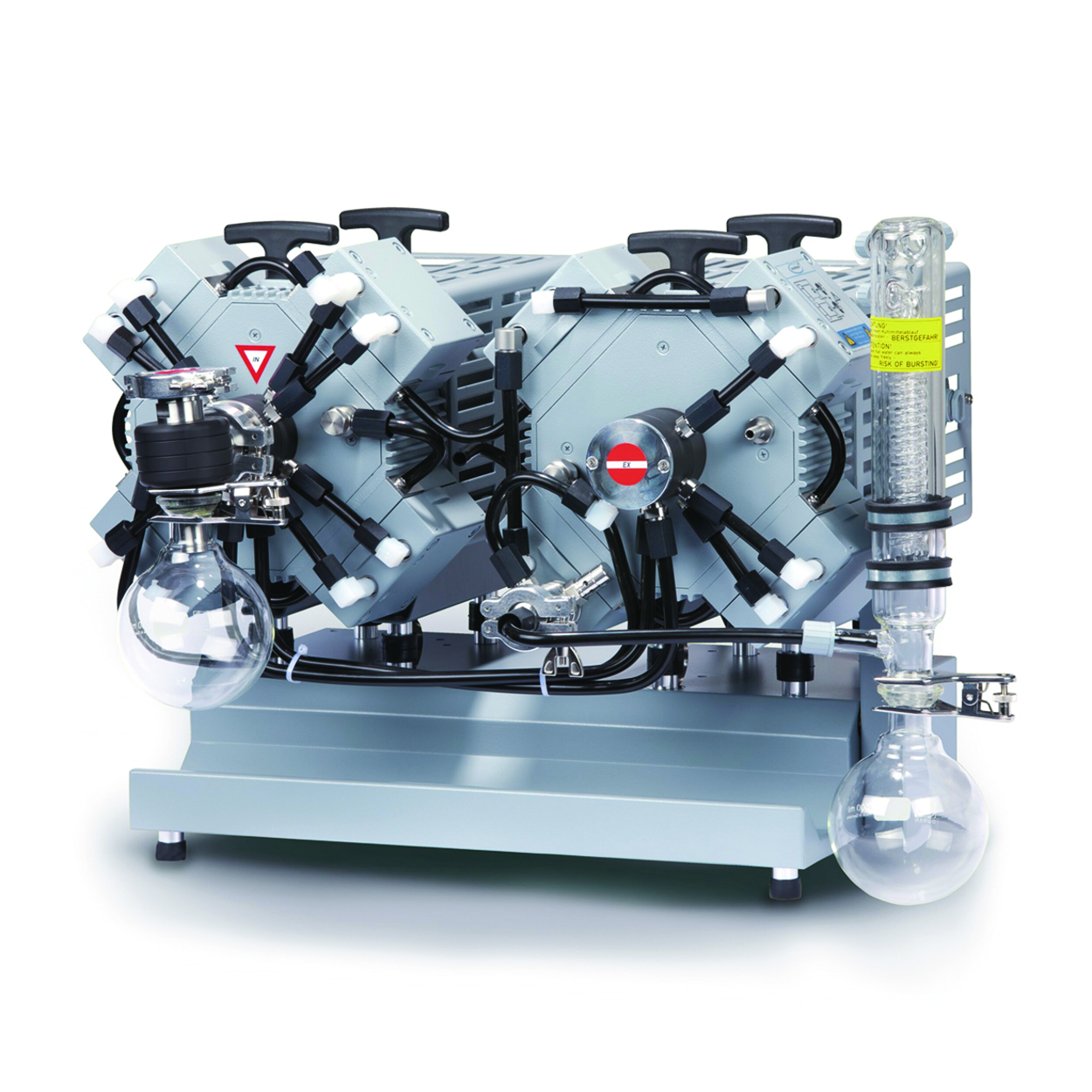

Chemistry Diaphragm Vacuum Pump MV 10C EX VARIO +AK+EK

Vacuubrand GmbH & Co.KG (992584)

Chemistry Diaphragm Vacuum Pump MV 10C EX VARIO +AK+EK
With the ATEX VARIO® chemical diaphragm pumps, the vacuum can be precisely controlled by adjusting the motor speed. The pump is driven by an additional control signal line. The optional vacuum controller VACUU·SELECT, with an ATEX vacuum sensor and Connection Box 100, enables fully automatic evaporation without the need for parameter setting or user programming. With the adaptive control, it finds the boiling pressure indepentently and adjusts the vacuum continuously and optimally according to the vapour pressure.

-High chemical resistance and oil-free operation
-The absence of sliding surfaces ensures that ignition sources are avoided
-Short process times thanks to hysteresis-free VARIO® vacuum control
-The pump runs only as fast as necessary, according to demand: minimal power consumption, extended maintenance intervals, quiet operation

ATEX compliance:
Pumping chamber (gases pumped): II 2G Ex h IIC T3 Gb X
External area (pump surroundings): II 2G Ex h IIB T4 Gb X (with inert gas purging) / II 3G Ex h IIB T4 Gc X (without inert gas purging)
Motor: II 2G Ex db IIB T4 Gb

A vacuum controller, ATEX vacuum sensor and Connection Box 100 are required for operation. Please order separately.
With separator AK and emission condenser EK.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Ultimate vacuum~mbar	Weight~kg	Width~mm	Plug type	Rated capacity		General	Price	Quantity	Status	Add
4701118	20696947	Vacuubrand GmbH & Co.KG		555	452	1	MV 10C EX VARIO +AK+EK	2	66	651	stranded wire				34647.06 EU

Diaphragm pumps chemistry design, ME 1C

Vacuubrand GmbH & Co.KG (5895)

Diaphragm vacuum pumps LABOPORT N 820 G / N 840 G, chemically-resistant

KNF NEUBERGER GmbH (10225)

Diaphragm vacuum pumps LABOPORT, ATEX-compliant

KNF NEUBERGER GmbH (3844)

Fine control valves for Vacuum Pumps LABOPORT/ N 920 G

KNF NEUBERGER GmbH (701784)

Mini Diaphragm Vacuum Pumps LABOPORT® N 938.50 KT.18

KNF NEUBERGER GmbH (871454)

Mini Diaphragm Vacuum Pumps LABOPORTN 816.1.2 KT.18

KNF NEUBERGER GmbH (557413)

Mini Diaphragm Vacuum Pumps LABOPORTN 816.3 KT.18

KNF NEUBERGER GmbH (871468)

Mini-Diaphragm vacuum pumps LABOPORTN 96, chemically-resistant

KNF NEUBERGER GmbH (10215)

Spare parts kits for Diaphragm vacuum pumps and pump systems LABOPORT/LABOBASE®

KNF NEUBERGER GmbH (6079)

Accessories for chemical membrane pumps VP

BINDER GmbH (895529)

ATEX Chemical membrane pump VP5 EX

BINDER GmbH (895519)

Chemical membrane pump VP1

BINDER GmbH (895489)

Chemical membrane pump VP2

BINDER GmbH (895512)

Chemistry Diaphragm Vacuum Pump MD 4C EX +AK+EK with ATEX compliance

Vacuubrand GmbH & Co.KG (992965)

Chemistry Diaphragm Vacuum Pump MD 4C EX VARIO

Vacuubrand GmbH & Co.KG (992412)

Chemistry Diaphragm Vacuum Pump MD 4C EX VARIO +AK+EK

Vacuubrand GmbH & Co.KG (992563)

Chemistry Diaphragm Vacuum Pump MD 4C EX with ATEX compliance

Vacuubrand GmbH & Co.KG (992960)

Chemistry Diaphragm Vacuum Pump MV 10C EX +AK+EK with ATEX compliance

Vacuubrand GmbH & Co.KG (992970)

Chemistry Diaphragm Vacuum Pump MV 10C EX VARIO

Vacuubrand GmbH & Co.KG (992583)

Chemistry Diaphragm Vacuum Pump MV 10C EX VARIO +AK+EK

Vacuubrand GmbH & Co.KG (992584)

Spare parts kits for Diaphragm vacuum pumps and pump systems LABOPORT/LABOBASE^®
