BDL | Search Climate chambers

Access ports for constant climate chambers KBF PRO

BINDER GmbH (851637)

Access ports for constant climate chambers KBF PRO
With silicone plug.

PN	Manuf. PN	Supplier		Description	For	Material	PK	Type	Depth	Height	Width			General	Price	Quantity	Status	Add
6523268	8012-2490	BINDER GmbH		50 mm, left			1								866.18 EU
6523269	8012-2493	BINDER GmbH		50 mm, right			1								866.18 EU

Climate Chambers ICH

Memmert GmbH + Co. KG (10261)

Climate Chambers ICH
The climate chamber generation with the unique ControlCOCKPIT for a quick and intuitive operation. Unparalleled temperature and humidity homogeneity for long-term stable ambient conditions. Specially designed for testing pharmaceutical products according to ICH, Q1A ... Climate Chambers ICH
The climate chamber generation with the unique ControlCOCKPIT for a quick and intuitive operation. Unparalleled temperature and humidity homogeneity for long-term stable ambient conditions. Specially designed for testing pharmaceutical products according to ICH, Q1A and Q1B, option 2, and similar global standards for stability tests of cosmetics and food.
Standard equipment :
-PID microprocessor control with integrated auto-diagnostic system
-Interior stainless steel 1.4301 (ASTM 304), deep-drawn
-Structured stainless steel housing, rear of zinc-plated steel
-High-Operation and adjustment of all parameters directly at the ControlCOCKPIT temperature connectors on the rear of the appliance for single-phase power connection according to country specific systems and IEC standards
-Internal data logger with a storage capacity of at least 10 years
-German, English, French, Spanish language settings available on the ControlCOCKPIT
-Digital backwards counter with target time setting adjustable between 1 minute and 99 days
-The SetpointWAIT function guarantees that the process time does not start until the set temperature is reached at all measuring points - optional for temperature values recorded by the freely positionable Pt100 sensors inside the chamber
-Adjustment of three calibration values for temperature and additional appliance specific parameters directly at the ControlCOCKPIT, for example relative humidity
-Moisture tight standard entry port, at the back, 40 mm inner diameter, can be closed by silicone stopper

TwinDISPLAY: ControlCOCKPIT with two TFT colour displays
-Available parameters on the ControlCOCKPIT: Temperature (Celsius or Fahrenheit), programme time, relative humidity, time zones, summertime/wintertime
-Two Pt100 sensors DIN class A in a 4-wire circuit for mutual monitoring, taking over functions in case of an error
-AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
-ControlCOCKPIT with USB port for uploading programmes, reading out protocol logs, activating the User-ID function
-Displaying of already logged protocol data on the ControlCOCKPIT (max 10,000 values correspond to approx. 1 week)
-Ethernet interface on the rear of the appliance for reading out the protocol log and for uploading programmes and for online logging
-Multiple overtemperature protection: Electronic temperature monitoring TWW/TWB (protection class 3.3 or 2 and mechanical temperature limiter TB (protection class 1) acc. to DIN 12880, AutoSAFETY automatically adjusts to the set value within a freely adjustable tolerance range. Setting individual MIN / MAX values for over/undertemperature alarm
Climate chamber variants:
ICH climate chamber
ICH L climate chamber with light
ICH C climate chamber with CO2 control
Specifications
Working-temperature range with humidity and/or light (ICH/ICH L)
Working-temperature range without humidity (ICH) +10 °C to +60 °C
-10°C to +60°C
Working-temperature range without humidity
Working-temperature range with and without humidity (ICH C) 0 °C to +60 °C
+10°C to +50°C
Setting temperature range
Setting temperature range ICH L
Setting temperature range ICH C -10 to +60 °C
0°C to +60°C
+10 °C to +50°C
Setting accuracy temperature 0.1 °C
Adjustment range humidity rh 10 to 80%
Setting accuracy humidity 0.5 % rh
Power supply 230 V 50/60 Hz; 115 V 50/60 Hz at extra cost

PN	Manuf. PN	Supplier	Capacity~L		Housing (W x D x H)~mm	PK	Rating~W	Shelf~support ribs/shelves	Type	Weight~kg	Internal dimensions (W x D x H)~mm			General	Price	Quantity	Status	Add
6261060	ICH750C	Memmert GmbH + Co. KG	749		1224 x 834** x 1950	1	1350	14/2	ICH750C	249	1040 x 600* x 1200				34419.12 EU

Constant climate chamber KBF PRO

BINDER GmbH (851578)

Constant climate chamber KBF PRO
The constant climate chambers of the KBF PRO series are equipped with APT.line? preheating chamber technology and a wide temperature and humidity range, making them suitable for all types of material testing. The humidity range is controlled by means of a...

PN	Manuf. PN	Supplier	Ext. height~mm	PK	Type	Weight~kg	Temperature	Plug type	Temperature stability	Nominal capacity~l	Rated capacity~kW	Price
4710123	9020-0440	BINDER GmbH	1396	1	KBF PRO 260	197	-20 ... 100 °C	EU	±0,1 K (25 °C)	262	1.6	34567.65 EU
4710124	9020-0442	BINDER GmbH	1951	1	KBF PRO 720	312	-20 ... 100 °C	EU	±0,1 K (25 °C)	727	1.8	42833.82 EU
4710128	9020-0439	BINDER GmbH	1005	1	KBF PRO 130	142	-20 ... 100 °C	EU	±0,1 K (25 °C)	127	1.9	31561.76 EU
6523266	9020-0444	BINDER GmbH	1951	1	KBF PRO 1600	450	-20 ... 100 °C	EU	±0,1 K (25 °C)	1610	1.9	58614.71 EU
6523272	9020-0443	BINDER GmbH	1951	1	KBF PRO 1060	360	-20 ... 100 °C	EU	±0,1 K (25 °C)	1070	1.9	48845.59 EU
6523276	9020-0441	BINDER GmbH	1951	1	KBF PRO 470	249	-20 ... 100 °C	EU	±0,1 K (25 °C)	472	1.6	38325.00 EU

Constant climate chamber KBF, white

BINDER GmbH (852209)

Constant climate chamber KBF, white
The constant climate chambers of the KBF series are equipped with APT.line? preheating chamber technology and a large temperature and humidity range. The KBF fulfills all important ICH requirements and, with its high climate homogeneity, ensures reliab...

PN	Manuf. PN	Supplier	Ext. height~mm	PK	Type	Weight~kg	Temperature	Plug type	Temperature stability	Nominal capacity~l	Rated capacity~kW	Price
4710115	9020-0478	BINDER GmbH	1005	1	KBF 130	126	0 ... 70 °C	EU	±0,1 K (25 °C)	127	1.3	23747.06 EU
4710116	9020-0494	BINDER GmbH	1005	1	KBF 130UL	126	0 ... 70 °C	US	±0,1 K (25 °C)	127	1.3	23747.06 EU
4710117	9020-0479	BINDER GmbH	1396	1	KBF 260	188	0 ... 70 °C	EU	±0,1 K (25 °C)	262	1.4	26301.47 EU
4710118	9020-0495	BINDER GmbH	1396	1	KBF 260UL	188	0 ... 70 °C	US	±0,1 K (25 °C)	262	1.4	26301.47 EU
4710119	9020-0481	BINDER GmbH	1951	1	KBF 720	298	0 ... 70 °C	EU	±0,1 K (25 °C)	727	1.6	33816.18 EU
4710120	9020-0497	BINDER GmbH	1951	1	KBF 720UL	298	0 ... 70 °C	US	±0,1 K (25 °C)	727	1.6	33816.18 EU
4710121	9020-0482	BINDER GmbH	1951	1	KBF 1060	340	0 ... 70 °C	EU	±0,1 K (25 °C)	1070	1.6	39677.94 EU
4710122	9020-0498	BINDER GmbH	1951	1	KBF 1060UL	340	0 ... 70 °C	US	±0,1 K (25 °C)	1070	1.6	39677.94 EU
6523260	9020-0480	BINDER GmbH	1951	1	KBF 470	225	0 ... 70 °C	EU	±0,1 K (25 °C)	472	1.4	29607.35 EU
6523261	9020-0483	BINDER GmbH	1951	1	KBF 1600	438	0 ... 70 °C	EU	±0,1 K (25 °C)	1610	1.7	49297.06 EU

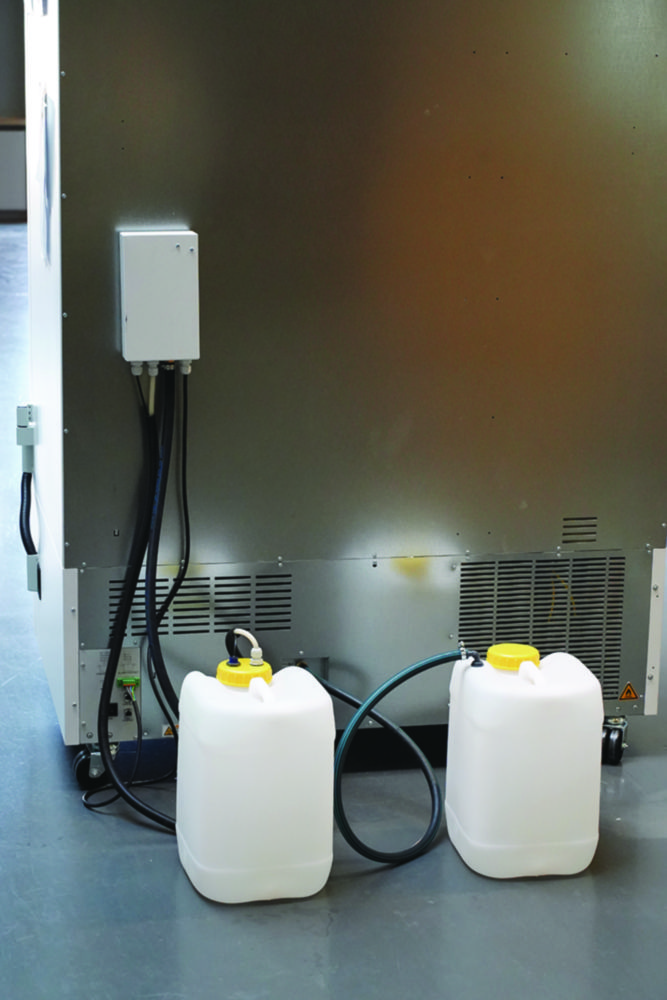

External water supply

BINDER GmbH (851627)

External water supply
Free-standing. Set consisting of fresh water canister (20 l) with pump, level sensor, and waste water canister (20 l).

PN	Manuf. PN	Supplier		Description	For	Material	PK	Type	Depth	Height	Width			General	Price	Quantity	Status	Add
6523271	8012-2592	BINDER GmbH		External water supply			1								1941.18 EU

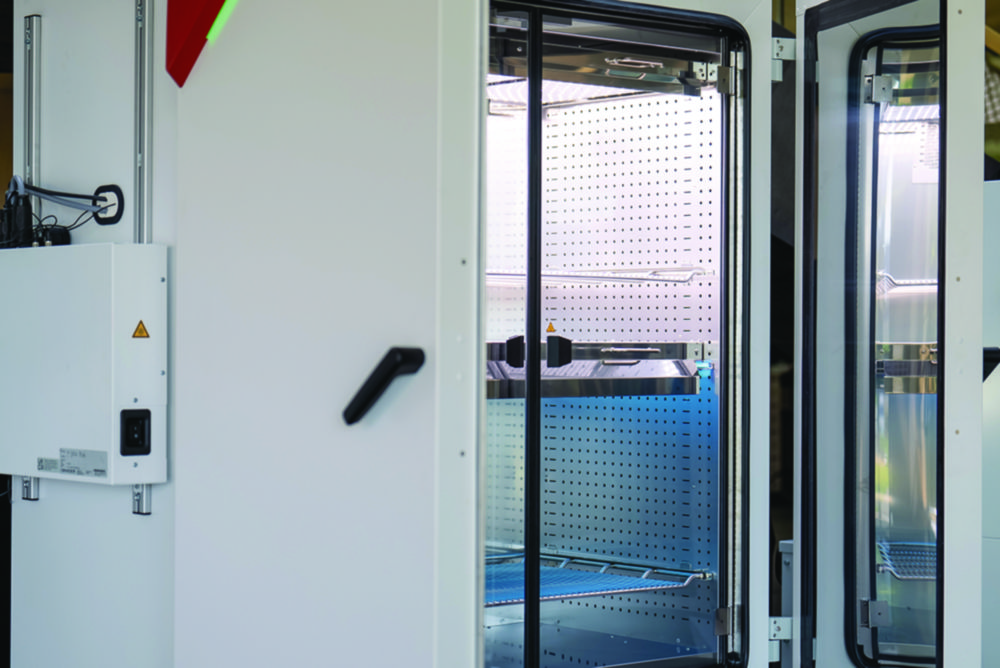

ICH light modules for cooling incubators KB PRO and constant climate chambers KBF/KBF PRO

BINDER GmbH (851982)

ICH light modules for cooling incubators KB PRO and constant climate chambers KBF/KBF PRO
ICH-Q1B light modules for ICH photostability tests.

PN	Manuf. PN	Supplier	Description	For	PK	Price
4710131	8012-2441	BINDER GmbH	ICH light module	KB PRO 260, 470/KBF 260, 470/KBF PRO 260, 470	1	6102.94 EU
4710132	8012-2442	BINDER GmbH	ICH light module	KB PRO 720/KBF 720/KBF PRO 720	1	6455.88 EU
4710133	8012-2443	BINDER GmbH	ICH light module with LQC	KB PRO 260, 470/KBF 260, 470/KBF PRO 260, 470	1	11970.59 EU
4710134	8012-2444	BINDER GmbH	ICH light module with LQC	KB PRO 720/KBF 720/KBF PRO 720	1	12323.53 EU

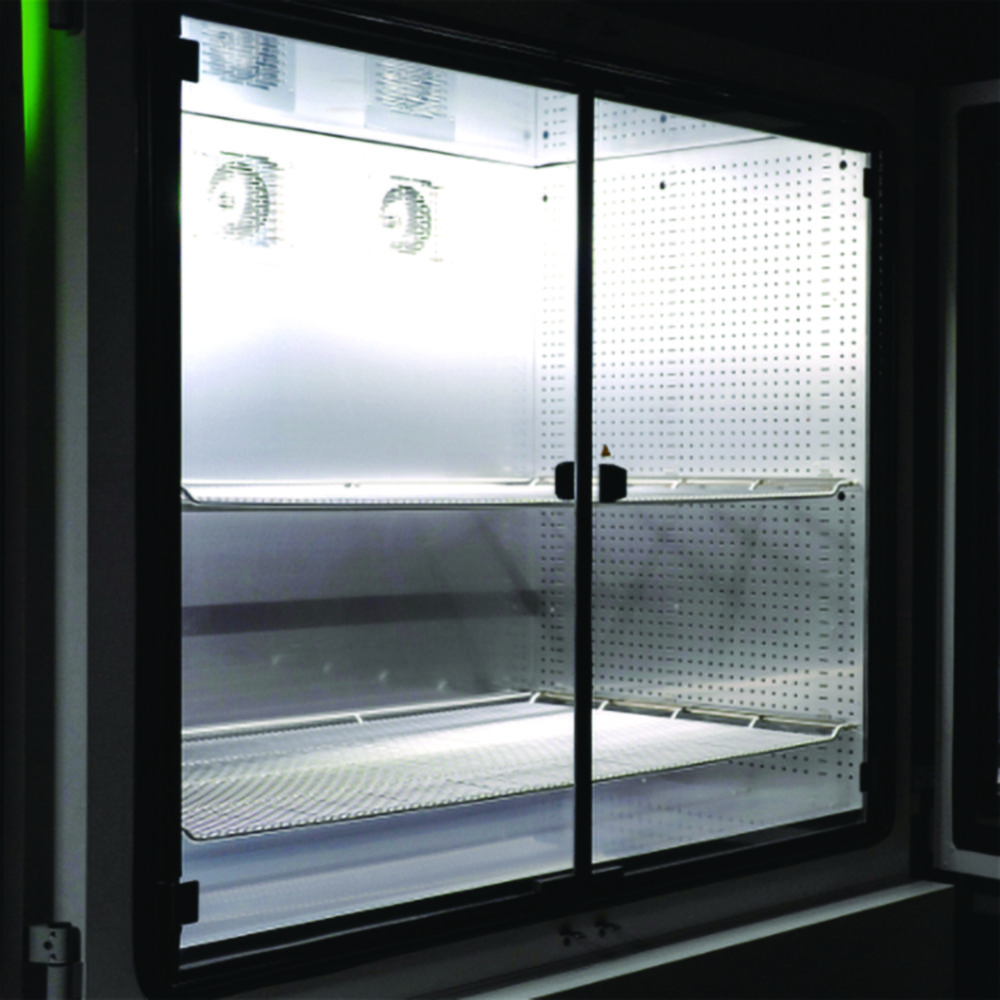

Interior lighting for constant climate chambers KBF PRO

BINDER GmbH (851638)

Interior lighting for constant climate chambers KBF PRO
Interior lighting with climate-resistant LEDs, switches when the unit door is opened.

PN	Manuf. PN	Supplier	For	PK	Price
6523267	8012-2570	BINDER GmbH	KBF PRO 1600	1	2364.71 EU
6523273	8012-2566	BINDER GmbH	KBF PRO 720, 1060	1	1847.06 EU
6523336	8012-2562	BINDER GmbH	KBF PRO 130, 260, 470	1	1407.35 EU

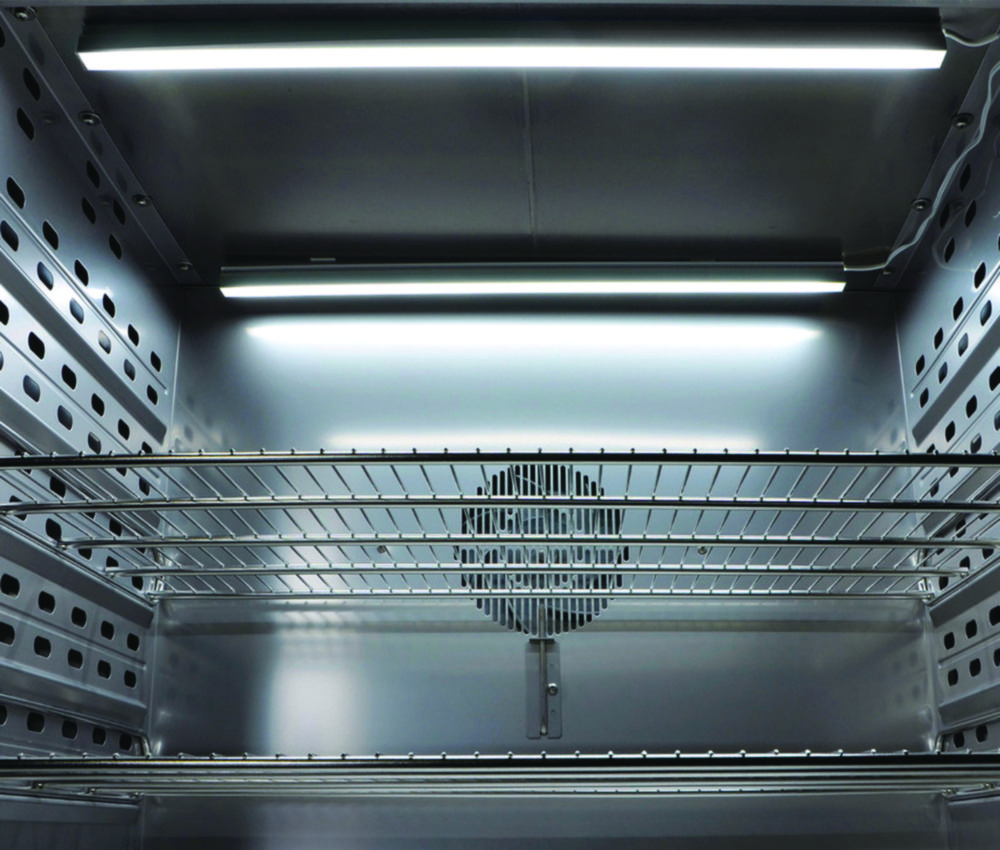

LED light bars Basic set

BINDER GmbH (851629)

LED light bars Basic set
Basic set consisting of 2 pieces, mounting material, control unit for max. 4 light strips, 100 to 240 V, 50/60 Hz.

PN	Manuf. PN	Supplier	Description	PK	Price
9883493	8012-1107	BINDER GmbH	Basic set 300, length 30 cm	1	1828.65 EU
9883494	8012-1108	BINDER GmbH	Basic set 500, length 50 cm	1	1895.59 EU
9883495	8012-1109	BINDER GmbH	Basic set 900, length 90 cm	1	2207.35 EU

LED light bars Expansion set

BINDER GmbH (851631)

LED light bars Expansion set
Expansion set consisting of 2 pieces, attachment material: clips. For expanding the basic set of light bars.

PN	Manuf. PN	Supplier	Description	PK	Price
9883496	8012-1716	BINDER GmbH	Expansion set 300, length 30 cm	1	426.47 EU
9883497	8012-1717	BINDER GmbH	Expansion set 500, length 50 cm	1	551.47 EU
9883498	8012-1718	BINDER GmbH	Expansion set 900, length 90 cm	1	902.94 EU

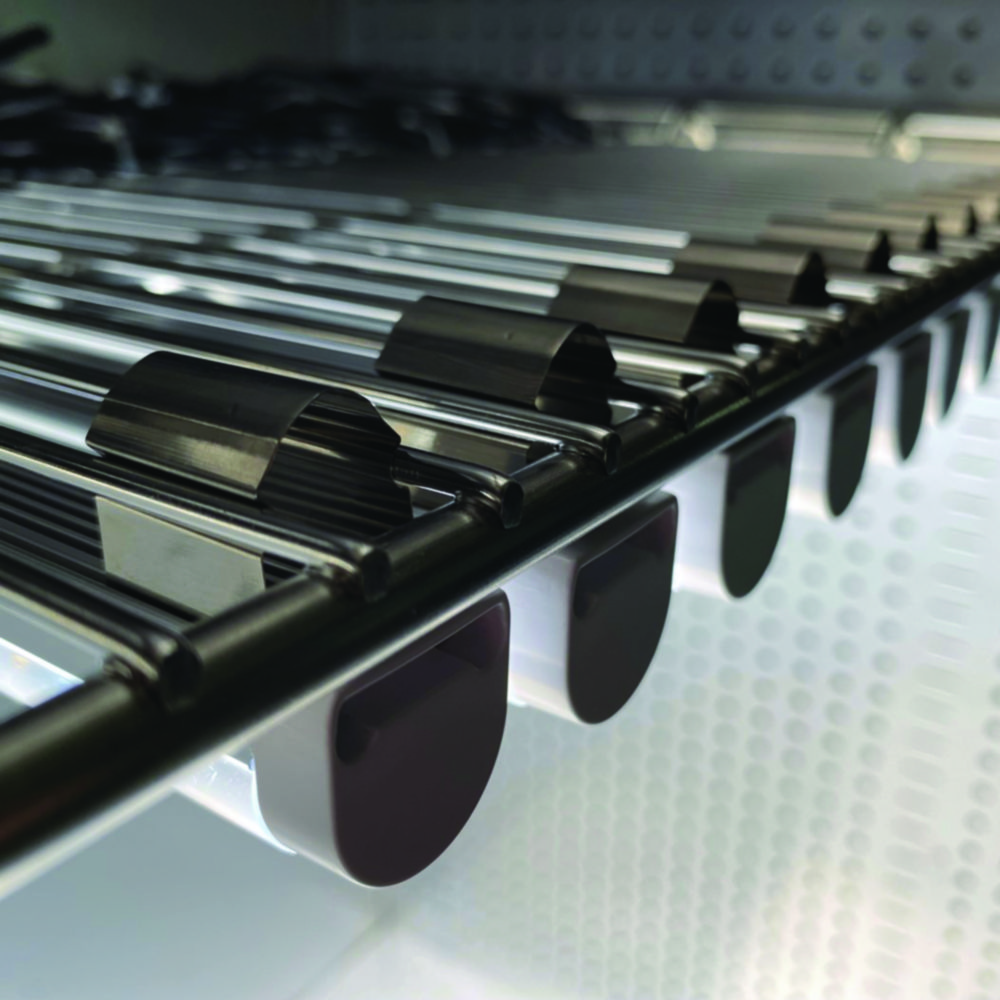

Light module for plants

BINDER GmbH (851635)

Light module for plants
LED plant light module consisting of 16 LED light strips, 3-channel controller and fresh air pump, as well as an independent power supply.

PN	Manuf. PN	Supplier		Description	For	Material	PK	Type	Depth	Height	Width			General	Price	Quantity	Status	Add
4710135	8012-2439	BINDER GmbH		Light module for plants			1								7691.18 EU
