Chillers, Minichiller

Peter Huber K?ltemaschinenbau (5980)

Chillers, Minichiller®
Small, robust and cost effective with its stainless steel casing. The Minichiller is the smallest Unichiller in the world. Minichillers are available with air or water-cooled refrigeration systems, illuminated level indicator, overflow and drain on the front. The filling port is on the top of the unit. All models use natural refrigerants as standard. Minichillers have suction and pressure pumps and therefore have the advantage of have a high flow at low pressure. This is particularly interesting for all pressure sensitive applications (e.g. glass condensors).

PN	Manuf. PN	Supplier		Cooling capacity kW at 15/0/-10°C	Dimensions (W x D x H)~mm	PK	Type	Working Temp. range~°C						General	Price	Quantity	Status	Add
6272346	3006.0089.98	Peter Huber Kältemaschinenbau		0.3 / 0.2 / 0.14	225 x 360 x 380	1	Minichiller® 300 OLÉ	-20…40 (80)*							5200.60 EU

Peter Huber Kältemaschinenbau (5980)

Chillers, Minichiller®
Small, robust and cost effective with its stainless steel casing. The Minichiller is the smallest Unichiller in the world. Minichillers are available with air or water-cooled refrigeration systems, illuminated level indicator, overflow and drain on the front. The filling port is on the top of the unit. All models use natural refrigerants as standard. Minichillers have suction and pressure pumps and therefore have the advantage of have a high flow at low pressure. This is particularly interesting for all pressure sensitive applications (e.g. glass condensors).

PN	Manuf. PN	Supplier	Cooling capacity kW at 15/0/-10°C	Dimensions (W x D x H)~mm	PK	Type	Working Temp. range~°C	Price
4675313	3066.0004.98	Peter Huber Kältemaschinenbau	0.6 / 0.5 / 0.35	280 x 490 x 424	1	Minichiller® 600w OLÉ	-20…40	6735.29 EU
6272347	3006.0090.98	Peter Huber Kältemaschinenbau	0.3 / 0.2 / 0.14	225 x 360 x 380	1	Minichiller® 300w OLÉ	-20…40 (80)*	5933.82 EU
6272348	3066.0002.98	Peter Huber Kältemaschinenbau	0.6 / 0.5 / 0.35	280 x 490 x 424	1	Minichiller® 600 OLÉ	-20…40	6294.12 EU
6272350	3065.0001.98	Peter Huber Kältemaschinenbau	0.28 / 0.2 / -	225 x 360 x 380	1	Minichiller® 280 OLÉ	-5…40	4447.13 EU

Chiller Piccolo 280 OLÉ

Peter Huber Kältemaschinenbau (235121)

Chiller Piccolo 280 OL?
Recirculating chiller operates/works with Peltier technology, i.e. free of refrigerants and therefore environmentally friendly and maintenance-free.

-Large, bright OLED display
-Simple operation with menu navigation
-Simultaneous display of set point, internal temperature, Tmin and Tmax
-USB and RS232 interfaces
-Autostart function for power failure

Scope of supply: Chiller Piccolo 280 OL?, connector with hose barb
Temperature range: 4 ... 70 °C
Temperature stability: ± 0.2 °C
Flow rate: 1.85 l/min
Pressure: 0.95 bar
Heating power: 0.7 kW
Cooling capacity (at 20 °C): 0.28 kW
Dimensions (W x D x H): 215 x 310 x 312 mm
Weight: 13 kg
Power supply: 100 ... 240 V, 50/60 Hz
IP code: IP 20

PN	Manuf. PN	Supplier		PK	Type									General	Price	Quantity	Status	Add
6317919	3044.0002.98	Peter Huber Kältemaschinenbau		1	Piccolo 280 OLÉ										4808.82 EU

Circulation Heat Exchanger HTS

Peter Huber Kältemaschinenbau (5721)

Circulation Heat Exchanger HTS
Heat exchanger systems with circulation pump for connection to cooling water on the primary side. The devices provide a cooling circuit with stable pressure/ ow and adjustable operating temperature. The cooling capacity is generated using a plate heat exchanger via the cooling water. Since there is no active cooling machine, the devices operate in a quiet and energy-saving manner and are a cost-effective alternative to conventional chillers e.g. for the temperature control of Peltier elements, bioreactors, etc.

The model HTS 1 contains the heat exchanger system, however it does not have any temperature control. The device is therefore suited for applications with low requirements for control accuracy.
-Effcient circulation pump
-Temperature stability ±0.1 K
-RS232 interface
-Pt100 external sensor connection
-Low cooling water usage
-Application protection with cooling stage separation

PN	Manuf. PN	Supplier	Dimensions (W x D x H)~mm	PK	Type	Working Temp. range~°C	Cooling capacity kW at 20 °C	Pump max.~l/min / bar	Price
4675341	3070.0001.01	Peter Huber Kältemaschinenbau	280 x 491 x 414	1	HTS 5	3 ... 95	5	25 / 2.5	10838.24 EU
4675342	3011.0002.01	Peter Huber Kältemaschinenbau	400 x 491 x 529	1	HTS 6	3 ... 95	6	25 / 2.5	12867.65 EU
6267871	3069.0001.01	Peter Huber Kältemaschinenbau	280 x 491 x 414	1	HTS 3	3 ... 95	3	33 / 0.7	9000.00 EU
6282498	3068.0001.00	Peter Huber Kältemaschinenbau	280 x 398 x 387	1	HTS 1	5 ... 80	0.65	8 / 0.2	2529.41 EU

Circulator baths RC 5 basic

IKA-Werke GmbH & Co.KG (10324)

Circulator baths RC 5 basic
Powerful recirculating chiller, designed for external cooling applications up to -30 °C. The energy-efficient chiller is operated with an eco-friendly refrigerant and reaches a high power density. This results in a comparatively small working space in the lab. Due to the excellent temperature stability they can handle even sophisticated applications. The isolated, high-quality bath has an integrated hopper and drain valve, ensuring safe and clean handling of the thermofluid.

-Speed-controlled refrigeration system (PEEK)
-Speed-controlled pump (PEEK)
-Natural thermofluid R290
-Extended operating temperature range until 80°C
-Digital level indicator
-Interfaces: RS 232 and USB

PN	Manuf. PN	Supplier		Ext. height~mm	PK	Programmable	Type	Weight~kg	Temperature	Plug type				General	Price	Quantity	Status	Add
4672724	0004181000	IKA-Werke GmbH & Co.KG		546	1		RC 5 basic	37.5	RT ... -30 °C						8844.12 EU

Circulator baths RC 5 control

IKA-Werke GmbH & Co.KG (857617)

Circulator baths RC 5 control
Powerful recirculating chiller, designed for external cooling applications up to -30 °C. The energy-efficient chiller is operated with an eco-friendly refrigerant and reaches a high power density. This results in a comparatively small working space in the lab. Due to the excellent temperature stability they can handle even sophisticated applications. The isolated, high-quality bath has an integrated hopper and drain valve, ensuring safe and clean handling of the thermofluid.

-Speed-controlled refrigeration system (PEEK)
-Speed-controlled pump (PEEK)
-Natural thermofluid R290
-Extended operating temperature range until 80°C
-Digital level indicator
-Interfaces: RS 232 and USB
-Remote control via Wireless Controller (WiCo)
-Simplified and automated processes through 10 freely programmable temperature ramps with 10 steps each
-Timer/Counter
-Degassing function
-Connection of magnetic valves possible (Mulit IO)
-Alarm contact (Multi IO)
-Connector for standby contact input (Multi IO)
-Connection for external PT100 temperature sensor (included in delivery)

PN	Manuf. PN	Supplier		Ext. height~mm	PK	Programmable	Type	Weight~kg	Temperature	Plug type				General	Price	Quantity	Status	Add
4672725	0004183000	IKA-Werke GmbH & Co.KG		546	1	Yes	RC 5 control	37.5	RT ... -30 °C						11097.06 EU

High-temperature circulators Forte HT

Julabo GmbH (5757)

High-temperature circulators Forte HT
High-temperature circulators have a compact, closed construction to prevent the formation of oil fumes even at high temperatures. A powerful heating capacity ensures short heat-up times. Automatic heat-up and cracking protection ensure a long service life of the bath fluid. The entire system can be filled bubble-free thanks to a filling system with automatic venting.

-Self-optimising ICC cascade temperature control
-Pump capacity from 14 to 18 l/min
-Illuminated LCD display
-Electronic level indicator
-Integrated programmer with memory for 6 profiles with 60 programme steps each
-ATC function for simple temperature correction
-Small filling volume
-RS232 and RS485 interface, standby-input
-Integratable e.g. in miniplant systems
-Classification III (FL) according to DIN 12876-1

PN	Manuf. PN	Supplier	Ext. height~mm	Heating capacity~kW	PK	Programmable	Type	Weight~kg	Temperature	Price
6289626	9800063	Julabo GmbH	580	6	1	Yes	Forte HT60-M3	29	70 ... 400 °C	21625.00 EU
6300656	9800062	Julabo GmbH	580	7	1	Yes	Forte HT60-M2	29	70 ... 400 °C	21625.00 EU
9858400	9800031	Julabo GmbH	580	3	1	Yes	Forte HT30-M1	27	70 ... 400 °C	19757.35 EU

Non-refrigerated cooler Model 3370

PolyScience (3061)

Non-refrigerated cooler Model 3370
-An economical cooling solution for applications where cooling fluid temperature is higher than ambient and temperature control is not required
-Quiet liquid-to-air cooling
-Positive displacement or turbine pump
-Built-in low liquid level indicator
Specifications
Working Temperature Range: +5 to 70 °C
Maximum Fluid Temperature: 70 °C
Cooling Capacity: 4 kW based on 11 °C DT (water)
Overall Dimensions (L x W x H): 520 x 381 x 546 mm

PN	Manuf. PN	Supplier		Flow rate (50/60Hz)~L / min.	PK	Pressure~bar	Type	Working Temp. range~°C						General	Price	Quantity	Status	Add
4658677	3370P9A12E	PolyScience		7.6	1	6.9	3370P9	5 ... 70							5390.29 EU
4658678	3370TBA12E	PolyScience		17.1	1	3.4	3370TB	5 ... 70							7264.86 EU

Refrigerated circulator bath RC 2 GREEN basic

IKA-Werke GmbH & Co.KG (11134)

Refrigerated circulator bath RC 2 GREEN basic
Powerful, compact and energy-efficient circulating chiller for cooling applications up to -30 °C. The on-demand and speed-controlled compressor, operated with natural refrigerant, achieves a cooling capacity of 800 W at a minimum energy consumption. The speed-controlled PEEK pump allows an indirect continuous adjustment of maximum pressure and flow rate.

-Highly efficient speed-controlled cooling unit
-Natural refrigerant R290
-Speed-controlled PEEK pump
-High quality insulated 4 l bath reservoir
-Integrated filling funnel and drain valve enable safe and clean handling of the thermofluid
-Use of up to 2.5 l of thermofluid without refilling
-Digital level indicator
-Easy-to-clean stainless steel mesh filter
-RS 232 and USB interfaces
-Calibratable internal temperature sensor (3 point)
Scope of supply: Refrigerated circulator bath RC 2 GREEN basic, 2 x olive for DN 8 hoses, 2 x olive for DN 12 hoses, USB cable

PN	Manuf. PN	Supplier		Ext. height~mm	PK	Programmable	Type	Weight~kg	Temperature	Plug type				General	Price	Quantity	Status	Add
4679600	0025004186	IKA-Werke GmbH & Co.KG		475	1		RC 2 GREEN basic	25.5	RT ... -30 °C						6982.35 EU

Refrigerated circulator bath RC 2 GREEN control

IKA-Werke GmbH & Co.KG (11147)

Refrigerated circulator bath RC 2 GREEN control
Powerful, compact and energy-efficient circulating chiller for cooling applications up to -30 °C. The on-demand and speed-controlled compressor, operated with natural refrigerant, achieves a cooling capacity of 800 W at a minimum energy consumption. The speed-controlled PEEK pump allows an indirect continuous adjustment of maximum pressure and flow rate.

-Highly efficient speed-controlled cooling unit
-Natural refrigerant R290
-Speed-controlled PEEK pump
-High quality insulated 4 l bath reservoir
-Integrated filling funnel and drain valve enable safe and clean handling of the thermofluid
-Use of up to 2.5 l of thermofluid without refilling
-Digital level indicator
-Easy-to-clean stainless steel mesh filter
-RS 232 and USB interfaces
-Calibratable internal temperature sensor (3 point)
-With wireless controller (WiCo) which shows all relevant process parameters
-LEMO socket for connecting an external PT 100 temperature sensor
-10 freely programmable temperature ramps with 10 steps each
-Timer/counter function
-Calibrateable internal and external temperature sensor (3 point)

Scope of supply: Circulator bath RC 2 GREEN control, 2 x olive for DN 8 hoses, 2 x olive for DN 12 hoses, USB cable, temperature sensor PT 100.30, WiCo holder WH10, charger for WiCo

PN	Manuf. PN	Supplier		Ext. height~mm	PK	Programmable	Type	Weight~kg	Temperature	Plug type				General	Price	Quantity	Status	Add
4679601	0025006638	IKA-Werke GmbH & Co.KG		475	1	Yes	RC 2 GREEN control	26.5	RT ... -30 °C						8932.35 EU

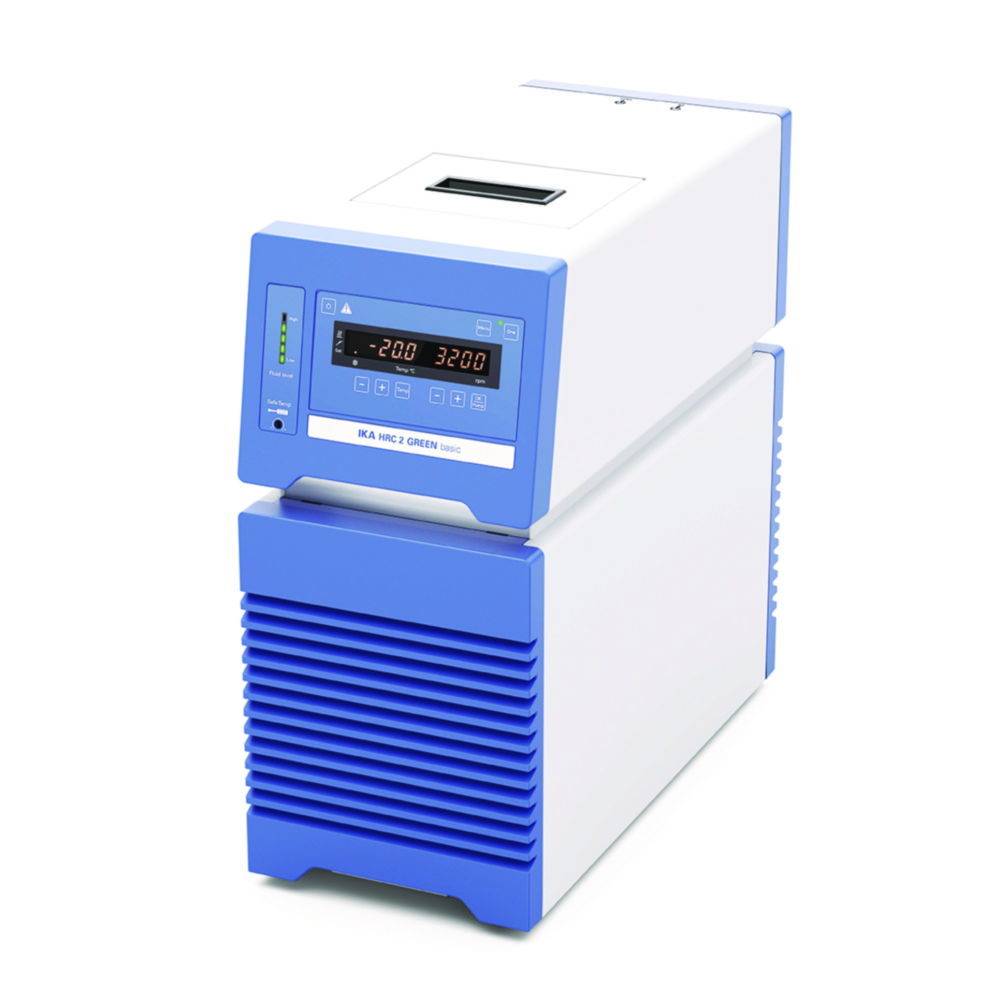

Refrigerated/heated circulator HRC 2 GREEN basic

IKA-Werke GmbH & Co.KG (899635)

Refrigerated/heated circulator HRC 2 GREEN basic
The compact refrigerated/heated circulator impresses with an operating temperature range of -30 to 100 °C and a powerful, continuously adjustable pressure and suction pump. The demand- and speed-controlled compressor, which is operated with natural refrigerant, achieves high energy efficiency. The insulation of the bath reservoir enables fast heat-up times and reduces heat input at low temperatures.

-Demand-controlled cooling unit
-Natural refrigerant R290
-Speed-controlled PEEK pump
-Digital level indicator
-Integrated filling funnel and drain valve enable safe and clean handling of the thermofluid
-Use of up to 2.5 l of thermofluid without refilling
-Easy-to-clean stainless steel mesh air filter
-Adjustable safety circuit
-RS 232 and USB interfaces
-Safety classification III (FL) in accordance with DIN 12876

PN	Manuf. PN	Supplier	Ext. height~mm	PK	Type	Weight~kg	Temperature	Heating capacity~W	Plug type	Price
4714302	0020128734	IKA-Werke GmbH & Co.KG	480	1	HRC 2 GREEN basic	26	-30 ... 100 °C	1500	EU	7177.94 EU
4714312	0020128735	IKA-Werke GmbH & Co.KG	480	1	HRC 2 GREEN basic	26	-30 ... 100 °C	1500	US	7177.94 EU
4714321	0020128736	IKA-Werke GmbH & Co.KG	480	1	HRC 2 GREEN basic	26	-30 ... 100 °C	1500	UK	7177.94 EU
4714330	0020128737	IKA-Werke GmbH & Co.KG	480	1	HRC 2 GREEN basic	26	-30 ... 100 °C	1500	CH	7177.94 EU

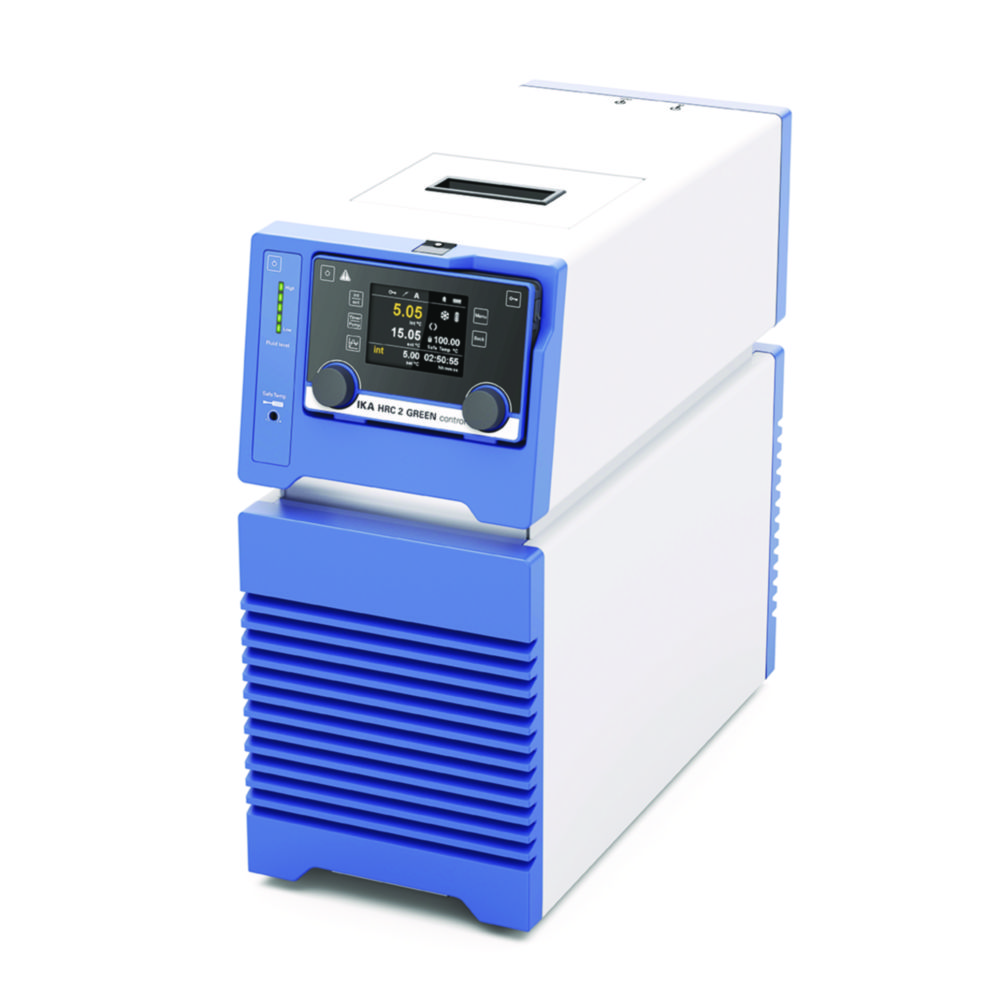

Refrigerated/heated circulator HRC 2 GREEN control

IKA-Werke GmbH & Co.KG (899638)

Refrigerated/heated circulator HRC 2 GREEN control
The compact refrigerated/heated circulator impresses with an operating temperature range of -30 to 100 °C and a powerful, continuously adjustable pressure and suction pump. The demand- and speed-controlled compressor, which is operated with natural refrigerant, achieves high energy efficiency. The insulation of the bath reservoir enables fast heat-up times and reduces heat input at low temperatures.

-Demand-controlled cooling unit
-Natural refrigerant R290
-Speed-controlled PEEK pump
-Digital level indicator
-Integrated filling funnel and drain valve enable safe and clean handling of the thermofluid
-Use of up to 2.5 l of thermofluid without refilling
-Easy-to-clean stainless steel mesh air filter
-Adjustable safety circuit
-RS 232 and USB interfaces
-Safety classification III (FL) in accordance with DIN 12876
-With wireless controller (WiCo)
-LEMO socket for connecting an external PT 100 temperature sensor
-10 freely programmable temperature ramps with 10 steps each
-Timer/counter function
-Degassing function
-Connection for solenoid valves (Multi IO)
-Alarm output (Multi IO)
-Standby contact input (Multi IO)

PN	Manuf. PN	Supplier	Ext. height~mm	PK	Programmable	Type	Weight~kg	Temperature	Heating capacity~W	Plug type	Temperature stability	Price
4714303	0020128746	IKA-Werke GmbH & Co.KG	480	1	Yes	HRC 2 GREEN control	26.5	-30 ... 100 °C	1500	EU	±0,1 K (-10 °C)	9555.88 EU
4714313	0020128747	IKA-Werke GmbH & Co.KG	480	1	Yes	HRC 2 GREEN control	26.5	-30 ... 100 °C	1500	US	±0,1 K (-10 °C)	9555.88 EU
4714322	0020128748	IKA-Werke GmbH & Co.KG	480	1	Yes	HRC 2 GREEN control	26.5	-30 ... 100 °C	1500	UK	±0,1 K (-10 °C)	9555.88 EU
4714331	0020128749	IKA-Werke GmbH & Co.KG	480	1	Yes	HRC 2 GREEN control	26.5	-30 ... 100 °C	1500	CH	±0,1 K (-10 °C)	9555.88 EU

Test tube racks for water baths Optima series

Grant Instruments Ltd. (4975)

Test tube racks for water baths Optima™ series
Manufactured in stainless steel, with lifting handles. Available for test tubes with an external diameter of 10 to 13 mm, 16 to 19 mm, 24 mm or 30 mm as well as for 0.5 ml or 1.5 ml microcentrifuge tubes.

QR racks can only be used with 5 litre baths.
VR racks can only be used with 12, 18, 26 and 38 litre baths.
Max. number of racks per bath:
5 litres: S5, ST5, P5 1 x QR
12 litres: S12, ST12, P12 2 x VR
18 litres: S18, ST18, P18 4 x VR
26 litres: S26, ST26 4 x VR
38 litres: S38, ST38 6 x VR

PN	Manuf. PN	Supplier	Array	For tubes	PK	Type	Price
9699134	QR-SE	Grant Instruments Ltd.	44	0.5 ml	1	QR-SE	198.53 EU
9699136	VR-13	Grant Instruments Ltd.	65	10 ... 13 mm	1	VR-13	211.76 EU
9699137	VR-19	Grant Instruments Ltd.	36	16 ... 19 mm	1	VR-19	211.76 EU
9699138	VR-24	Grant Instruments Ltd.	23	24 mm	1	VR-24	211.76 EU
9699139	VR-30	Grant Instruments Ltd.	14	30 mm	1	VR-30	211.76 EU
9699140	VR-SE	Grant Instruments Ltd.	102	0.5 ml	1	VR-SE	211.76 EU
9699141	VR-LE	Grant Instruments Ltd.	75	1.5 ml	1	VR-LE	252.94 EU
