Silgur unmodified standard silica layers with concentrating zone
Search Silgur unmodified standard silica layers with concentrating zone Macherey-Nagel GmbH & Co. KG (15105)

Macherey-Nagel GmbH & Co. KG (15105)

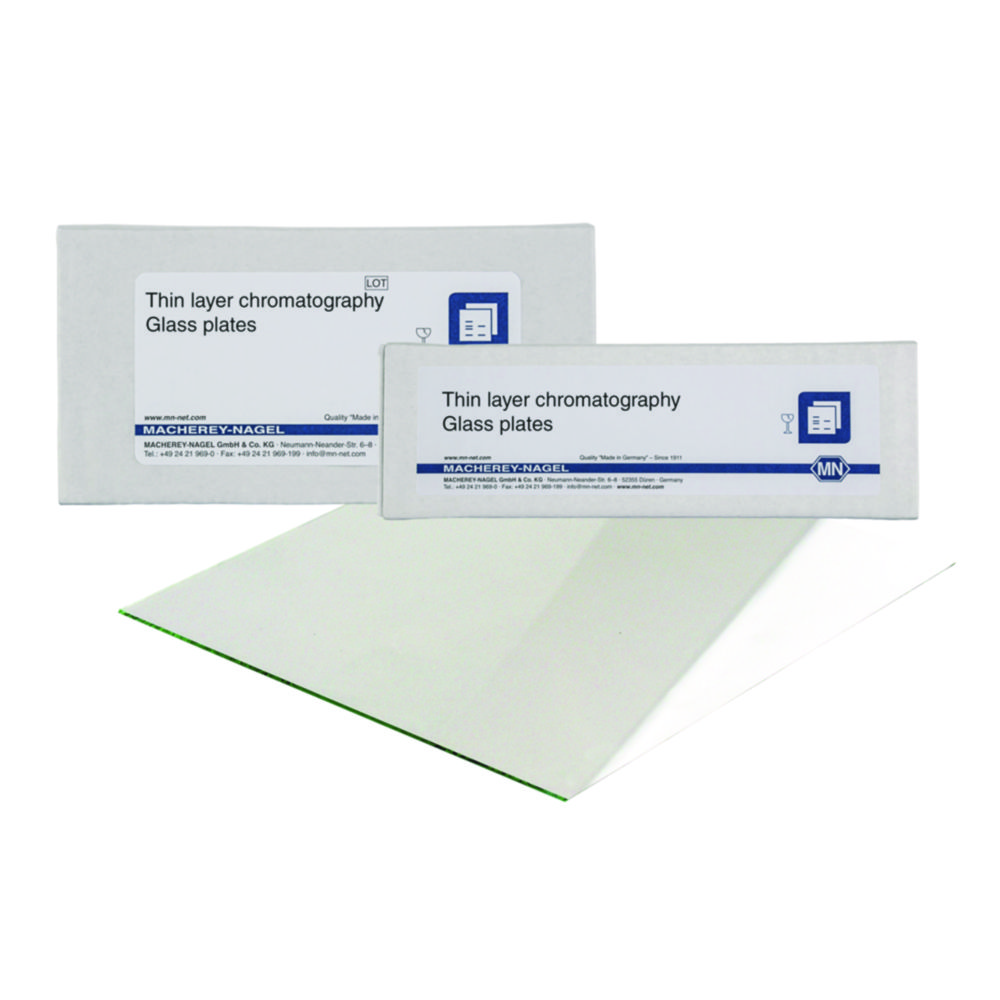

Silgur unmodified standard silica layers with concentrating zone
Support materials for TLC ready-to-use layers

Glass plates: glass, ~ 1.3 mm thick, high requirements for weight, packaging and storage, ideal torsional strength, high temperature stability, susceptible ... Silgur unmodified standard silica layers with concentrating zone
Support materials for TLC ready-to-use layers

Glass plates: glass, ~ 1.3 mm thick, high requirements for weight, packaging and storage, ideal torsional strength, high temperature stability, susceptible to breakage, can not be cut with scissors, high resistance against solvents, mineral acids and conc. ammonia, suitability for aqueous detection reagents depends on the phase

POLYGRAM®: polyester, ~ 0.2 mm thick, low requirements for weight, packaging and storage, low torsional strength, max. 185 °C temperature stability, not susceptible to breakage, can be cut with scissors, high resistance against solvents, mineral acids and conc. ammonia, very suitable for aqueous detection reagents

ALUGRAM®: aluminium, ~ 0.15 mm thick, low requirements for weight, packaging and storage, relatively high torsional strength, high temperature stability, not susceptible to breakage, can be cut with scissors, high resistance against solvents, low resistance against mineral acids and conc. ammonia, limited suitability for aqueous detection reagents
Glass plates. Silica 60, specific surface (BET) ~ 500 m2/g, mean pore size 60 ?, specific pore volume 0.75 ml/g.

Kieselguhr zone for rapid sample application: because kieselguhr is completely inert towards a large number of compounds, the samples always from a narrow band at the interface of the two adsorbents, irrespective of shape, size or position of the spots in the concentrating zone. Separation then takes place in
the silica layer.

Available as glass plates with or without fluorescent indicator (UV254).
PN Manuf. PN Supplier Film thickness~µm Length~mm Material PK Type Width~mm Dimensions (WxL) Pore size General Price Quantity Status Add
4004856 810012 Macherey-Nagel GmbH & Co. KG 250 200 Glass 50 SILGUR-25 100 100 x 200 mm 416.33 EU Search Please contact us
4004857 810022 Macherey-Nagel GmbH & Co. KG 250 200 Glass 50 SILGUR-25 UV254 100 100 x 200 mm 389.71 EU Search Please contact us
6093869 810013 Macherey-Nagel GmbH & Co. KG 250 200 Glass 25 SILGUR-25 200 200 x 200 mm 313.24 EU Search Please contact us
7400306 810023 Macherey-Nagel GmbH & Co. KG 250 200 Glass 25 SILGUR-25 UV254 200 200 x 200 mm 339.41 EU Search Please contact us
1 items found Page 1 of 1
