Condensation traps, borosilicate 3.3, two-piece

Gebr. Rettberg GmbH (2169)

Condensation traps, borosilicate 3.3, two-piece
Borosilicate 3.3 glass, comprising bottle with ground glass cone neck fitting a separate inlet / outlet head with choice of tubing or ground joint connections.

PN	Manuf. PN	Supplier	Connection	Material	PK	Price
9305351	134050036	Gebr. Rettberg GmbH	Glass olive	Boro 3.3	1	254.27 EU
9305350	134050024	Gebr. Rettberg GmbH	Glass olive	Boro 3.3	1	223.67 EU
9305352	134050124	Gebr. Rettberg GmbH	NS	Boro 3.3	1	266.32 EU
9305353	134050136	Gebr. Rettberg GmbH	NS	Boro 3.3	1	296.76 EU

CO wire baskets for cold traps with Dewar flask

KGW Schieder GmbH (488129)

CO2 wire baskets for cold traps with Dewar flask
When using CO2 as a coolant, the CO2 wire basket facilitates the replacement of the cold trap.

PN	Manuf. PN	Supplier		Colour	Description	For	Material	PK	Type	Length				General	Price	Quantity	Status	Add
9032081	17570	KGW Schieder GmbH				KF 29-K/KF 29-OK/KF 29-GL/KF 29-K-A/KF 29-OK-A/KF 29-GL-A/KF 29-NW 16/KF 29-NW 25/KF 29-OK-Z/KF 29-GL-Z		1							134.19 EU
9032082	17571	KGW Schieder GmbH				KFL 29-K/KFL 29-OK/KFL 29-GL/KFL 29-K-A/KFL 29-OK-A/KFL 29-GL-A/KFL 29-NW 16/KFL 29-K-Z/KFL 29-GL-Z		1							161.96 EU

Cold trap with Dewar flask type 18 C, stainless steel 1.4301, two-piece, for liquid nitrogen

KGW Schieder GmbH (488599)

Cold trap with Dewar flask type 18 C, stainless steel 1.4301, two-piece, for liquid nitrogen
Stainless steel cold trap with Dewar flask for vacuum applications. Ideal for condensing out moisture or solvents. Dewar flask made of borosilicate glass 3.3 is vacuum-insulated, silver-plated and have a blue-coated metal protective jacket with a support ring into which the cold trap is hung.

-Cold trap connection: KF NW small vacuum flange
-Spring steel clamp to secure the connecting part (KF NW 50)

Scope of supply: Cold trap, support ring, Dewar flask type 18 C, spring steel clamp

This assembly is designed for use with LN2 as coolant.

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
4667785	17110	KGW Schieder GmbH			Stainless steel 1.4301	1	KF 54V-K16-Z-18C								1520.89 EU

Cold trap with Dewar flask type DSS 2000, stainless steel 1.4301, two-piece, for dry ice

KGW Schieder GmbH (488870)

Cold trap with Dewar flask type DSS 2000, stainless steel 1.4301, two-piece, for dry ice
Stainless steel cold trap with Dewar flask for vacuum applications. Ideal for condensing out moisture or solvents. Dewar flask made of stainless steel with support ring into which the cold trap is hung.

-Cold trap connection: KF NW small vacuum flange
-Spring steel clamp to secure the connecting part (KF NW 50)
-CO2 wire basket facilitates replacement of the cold trap

Scope of supply: Cold trap, support ring, CO2 wire basket, Dewar flask type DSS 2000, spring steel clamp

This assembly is designed for use with CO2 as coolant.

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
6262187	17131	KGW Schieder GmbH			Stainless steel 1.4301	1	KF 54V-K16-Z-DSS2000-CO2								1859.86 EU

Cold trap with Dewar flask type DSS 2000, stainless steel 1.4301, two-piece, for liquid nitrogen

KGW Schieder GmbH (1939)

Cold trap with Dewar flask type DSS 2000, stainless steel 1.4301, two-piece, for liquid nitrogen
Stainless steel cold trap with Dewar flask for vacuum applications. Ideal for condensing out moisture or solvents. Dewar flask made of stainless steel with support ring into which the cold trap is hung.

-Cold trap connection: KF NW small vacuum flange
-Spring steel clamp to secure the connecting part (KF NW 50)

Scope of supply: Cold trap, support ring, Dewar flask type DSS 2000, spring steel clamp

This assembly is designed for use with LN2 as coolant.

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
6264963	17111	KGW Schieder GmbH			Stainless steel 1.4301	1	KF 54V-K16-Z-DSS2000								1716.96 EU

Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, long version

KGW Schieder GmbH (488120)

Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, long version
One-piece cold trap with matching Dewar flask made of borosilicate glass 3.3 for vacuum applications. Ideal for condensing out moisture or solvents. The Dewar flasks are vacuum-insulated, silver-plated and have a blue-coated metal protective jacket with a support ring into which the cold trap is hung.
The extended condensate area of the cold traps can hold a larger volume of condensate.

Versions of the cold trap connections:

-S 29 = spherical ground joint S 29
-O 29 = spherical ground joint S 29 with O-ring seal
-GL 18 = glass thread GL 18 with PTFE olive ? 10 mm

Scope of supply: Cold trap, support ring, Dewar flask type 18 C

The standard assembly is designed for use with LN2 as coolant. When using CO2 and acetone please order CO2 wire basket separately.

PN	Manuf. PN	Supplier	Material	PK	Type	Price
9032068	17360	KGW Schieder GmbH	Boro 3.3	1	KFL 29-K	865.81 EU
9032069	17361	KGW Schieder GmbH	Boro 3.3	1	KFL 29-OK	904.18 EU
9032070	17362	KGW Schieder GmbH	Boro 3.3	1	KFL 29-GL	851.81 EU

Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, long version with KF NW small vacc

KGW Schieder GmbH (488124)

Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, long version with KF NW small vaccum flange
One-piece cold trap with matching Dewar flask made of borosilicate glass 3.3 for vacuum applications. Ideal for condensing out moisture or solvents. The Dewar flasks are vacuum-insulated, silver-plated and have a blue-coated metal protective jacket with a support ring into which the cold trap is hung.
-Extended condensate area of the cold traps can hold a larger volume of condensate
-KF NW small vacuum flange made of glass for connecting pumping units with small metal vacuum flanges (ISO 2861) to the cold traps

Scope of supply: Cold trap, support ring, Dewar flask type 18 C

The standard assembly is designed for use with LN2 as coolant. When using CO2 and acetone please order CO2 wire basket separately.

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
6280008	17360-NW16	KGW Schieder GmbH			Boro 3.3	1	KFL 29-NW 16								1157.84 EU

Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, long version with spout

KGW Schieder GmbH (7123)

Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, long version with spout
One-piece cold trap with matching Dewar flask made of borosilicate glass 3.3 for vacuum applications. Ideal for condensing out moisture or solvents. The Dewar flasks are vacuum-insulated, silver-plated and have a blue-coated metal protective jacket with a support ring into which the cold trap is hung.
-Extended condensate area of the cold traps can hold a larger volume of condensate
-Cold trap with glass thread GL 32 and screw cap as a spout

Versions of the cold trap connections:

-S 29 = spherical ground joint S 29
-O 29 = spherical ground joint S 29 with O-ring seal
-GL 18 = glass thread GL 18 with PTFE olive ? 10 mm

Scope of supply: Cold trap, support ring, Dewar flask type 18 C

The standard assembly is designed for use with LN2 as coolant. When using CO2 and acetone please order CO2 wire basket separately.

PN	Manuf. PN	Supplier	Material	PK	Type	Price
9032074	17380	KGW Schieder GmbH	Boro 3.3	1	KFL 29-K-A	945.07 EU
9032075	17381	KGW Schieder GmbH	Boro 3.3	1	KFL 29-OK-A	962.07 EU
9032076	17382	KGW Schieder GmbH	Boro 3.3	1	KFL 29-GL-A	933.44 EU

Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version

KGW Schieder GmbH (488116)

Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version
One-piece cold trap with matching Dewar flask made of borosilicate glass 3.3 for vacuum applications. Ideal for condensing out moisture or solvents. The Dewar flasks are vacuum-insulated, silver-plated and have a blue-coated metal protective jacket with a support ring into which the cold trap is hung.
Versions of the cold trap connections:

-S 29 = spherical ground joint S 29
-O 29 = spherical ground joint S 29 with O-ring seal
-GL 18 = glass thread GL 18 with PTFE olive ? 10 mm

Scope of supply: Cold trap, support ring, Dewar flask type 12 C

The standard assembly is designed for use with LN2 as coolant. When using CO2 and acetone please order CO2 wire basket separately.

PN	Manuf. PN	Supplier	Material	PK	Type	Price
9032065	1731	KGW Schieder GmbH	Boro 3.3	1	KF 29-K	770.13 EU
9032066	1735	KGW Schieder GmbH	Boro 3.3	1	KF 29-OK	807.76 EU
9032067	1740	KGW Schieder GmbH	Boro 3.3	1	KF 29-GL	756.28 EU

Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version with KF NW small

KGW Schieder GmbH (488119)

Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version with KF NW small vacuum flange
One-piece cold trap with matching Dewar flask made of borosilicate glass 3.3 for vacuum applications. Ideal for condensing out moisture or solvents. The Dewar flasks are vacuum-insulated, silver-plated and have a blue-coated metal protective jacket with a support ring into which the cold trap is hung.
With the KF NW small vacuum flange made of glass, pumping units with small metal vacuum flanges (ISO 2861) can be connected to the cold traps.

Scope of supply: Cold trap, support ring, Dewar flask type 12 C

The standard assembly is designed for use with LN2 as coolant. When using CO2 and acetone please order CO2 wire basket separately.

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
4662076	1731-NW16	KGW Schieder GmbH			Boro 3.3	1	KF 29-NW 16								1063.60 EU
6232383	1731-NW25	KGW Schieder GmbH			Boro 3.3	1	KF 29-NW 25								1111.24 EU

Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version with spout

KGW Schieder GmbH (488117)

Cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version with spout
One-piece cold trap with matching Dewar flask made of borosilicate glass 3.3 for vacuum applications. Ideal for condensing out moisture or solvents. The Dewar flasks are vacuum-insulated, silver-plated and have a blue-coated metal protective jacket with a support ring into which the cold trap is hung.
Cold traps have an additional glass thread GL 32 with screw cap as a spout.

Versions of the cold trap connections:

-S 29 = spherical ground joint S 29
-O 29 = spherical ground joint S 29 with O-ring seal
-GL 18 = glass thread GL 18 with PTFE olive ? 10 mm

Scope of supply: Cold trap, support ring, Dewar flask type 12 C

The standard assembly is designed for use with LN2 as coolant. When using CO2 and acetone please order CO2 wire basket separately.

PN	Manuf. PN	Supplier	Material	PK	Type	Price
9032071	17370	KGW Schieder GmbH	Boro 3.3	1	KF 29-K-A	851.67 EU
9032072	17371	KGW Schieder GmbH	Boro 3.3	1	KF 29-OK-A	888.60 EU
9032073	17372	KGW Schieder GmbH	Boro 3.3	1	KF 29-GL-A	838.71 EU

Cold traps with Dewar flask, borosilicate glass 3.3, two-piece, long version

KGW Schieder GmbH (488210)

Cold traps with Dewar flask, borosilicate glass 3.3, two-piece, long version
Two-piece cold trap with matching Dewar flask made of borosilicate glass 3.3 for vacuum applications. The condensate area can be separated from the upper part of the cold trap. The Dewar flasks are vacuum-insulated, silver-plated and have a blue-coated metal protective jacket with a support ring into which the cold trap is hung. Including spring steel clamp to secure the connecting part (NS 45/40 conical ground joint).
The extended condensate area of the cold traps can hold a larger volume of condensate.

Versions of the cold trap connections:

-S 29 = spherical ground joint S 29
-GL 18 = glass thread GL 18 with PTFE olive ? 10 mm

Scope of supply: Cold trap, support ring, Dewar flask type 18 C, spring steel clamp

The standard assembly is designed for use with LN2 as coolant. When using CO2 and acetone please order CO2 wire basket separately.

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
7941140	17410	KGW Schieder GmbH			Boro 3.3	1	KFL 29-K-Z								1081.60 EU

Cold traps with Dewar flask, borosilicate glass 3.3, two-piece, standard version

KGW Schieder GmbH (488207)

Cold traps with Dewar flask, borosilicate glass 3.3, two-piece, standard version
Two-piece cold trap with matching Dewar flask made of borosilicate glass 3.3 for vacuum applications. The condensate area can be separated from the upper part of the cold trap. The Dewar flasks are vacuum-insulated, silver-plated and have a blue-coated metal protective jacket with a support ring into which the cold trap is hung. Including spring steel clamp to secure the connecting part (NS 45/40 conical ground joint).
Versions of the cold trap connections:

-O 29 = spherical ground joint S 29 with O-ring seal
-GL 18 = glass thread GL 18 with PTFE olive ? 10 mm

Scope of supply: Cold trap, support ring, Dewar flask type 12 C, spring steel clamp

The standard assembly is designed for use with LN2 as coolant. When using CO2 and acetone please order CO2 wire basket separately.

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
6255201	17401	KGW Schieder GmbH			Boro 3.3	1	KF 29-OK-Z								1009.96 EU

Cold traps, borosilicate 3.3, one-piece

Gebr. Rettberg GmbH (2164)

Cold traps, borosilicate 3.3, one-piece
Borosilicate 3.3 glass, one-piece, with GL 45 neck and cap closure, GL 14 threaded side connections with caps and plastic tubing adapters.

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
9305349	134051036	Gebr. Rettberg GmbH		PP olive	Boro 3.3	1									286.04 EU

Cold traps, DURAN tubing, with condensate drain

Lenz-Laborglas GmbH & Co. KG (882017)

Cold traps, DURAN® tubing, with condensate drain
Cold trap for direct filling of cooling agents, low cooling agent consumption due to double-walled design, apparatus connection: socket NS 29/32, vacuum pump connection: cone NS 29/32, made of DURAN® tubing.

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
6072665	05355558	Lenz-Laborglas GmbH & Co. KG			DURAN® tubing	1									958.31 EU
6201221	05355546	Lenz-Laborglas GmbH & Co. KG			DURAN® tubing	1									701.62 EU

Cold traps, DURAN tubing, without condensate drain

Lenz-Laborglas GmbH & Co. KG (6985)

Cold traps, DURAN® tubing, without condensate drain
Cold trap for direct filling of cooling agents, low cooling agent consumption due to double-walled design, apparatus connection: socket NS 29/32, vacuum pump connection: cone NS 29/32, made of DURAN® tubing.

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
6243060	05355046	Lenz-Laborglas GmbH & Co. KG			DURAN® tubing	1									560.59 EU
6300813	05355058	Lenz-Laborglas GmbH & Co. KG			DURAN® tubing	1									798.53 EU

Spare cold trap for cold traps with Dewar flask, stainless steel 1.4301, two-piece

KGW Schieder GmbH (1940)

Spare cold trap for cold traps with Dewar flask, stainless steel 1.4301, two-piece
Two-piece cold trap made of stainless steel with KF NW small vacuum flange.

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
6265693	17115	KGW Schieder GmbH			Stainless steel 1.4301	1	S 54V-K16-Z								979.35 EU

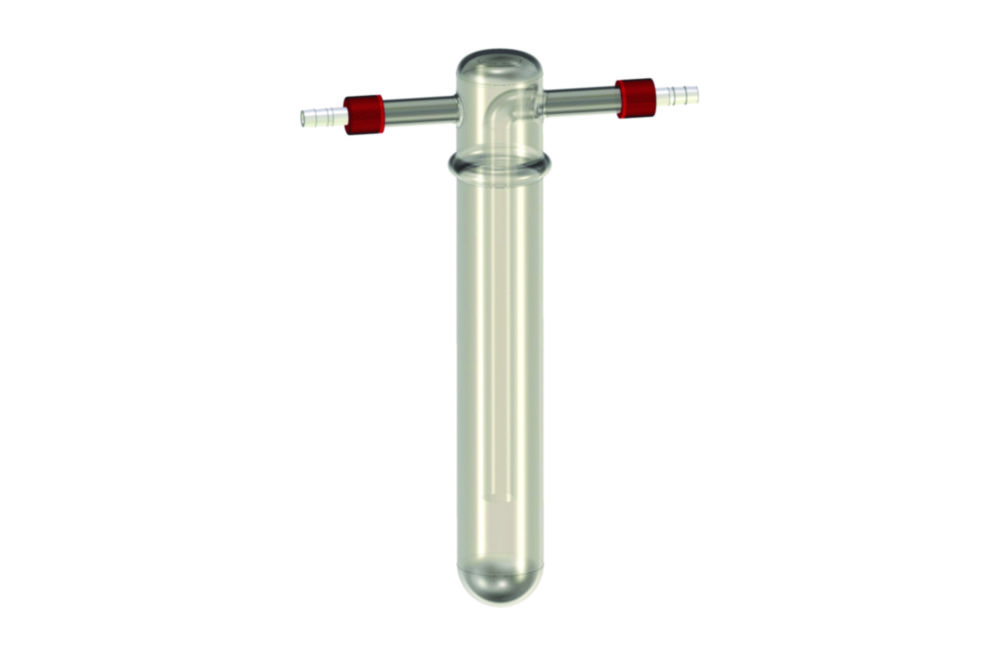

Spare cold traps for cold traps with Dewar flask, borosilicate glass 3.3, one-piece, long version

KGW Schieder GmbH (948610)

Spare cold traps for cold traps with Dewar flask, borosilicate glass 3.3, one-piece, long version
One-piece spare cold traps made of borosilicate glass 3.3.

Versions of the cold trap connections:

-GL 18 = glass thread GL 18 with PTFE olive ? 10 mm

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
6238420	17367	KGW Schieder GmbH			Boro 3.3	1	SL 29 GL								361.82 EU

KGW Schieder GmbH (948616)

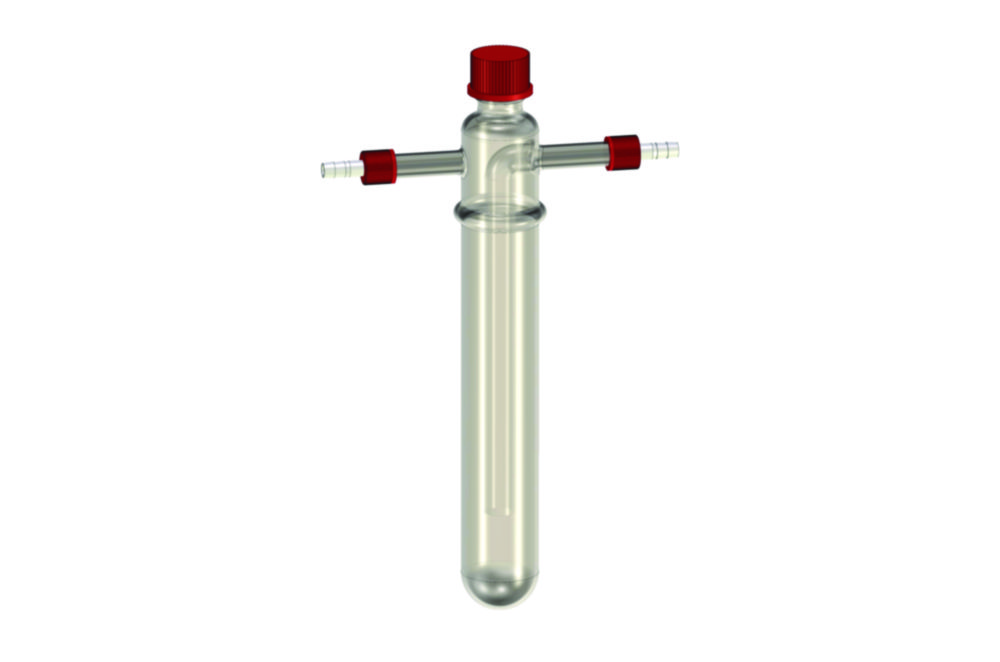

Spare cold traps for cold traps with Dewar flask, borosilicate glass 3.3, one-piece, long version with spout
One-piece spare cold traps made of borosilicate glass 3.3.

Versions of the cold trap connections:

-GL 18 = glass thread GL 18 with PTFE olive ? 10 mm

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
6238421	17387	KGW Schieder GmbH			Boro 3.3	1	SL 29 GL-A								442.72 EU

KGW Schieder GmbH (948623)

Spare cold traps for cold traps with Dewar flask, borosilicate glass 3.3, one-piece, long version with KF NW small vacuum flange
One-piece spare cold traps made of borosilicate glass 3.3.

Versions of the cold trap connections:

-KF NW 16 or 25 = small vacuum flange KF NW 16 or 25

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
6269844	17365-NW16	KGW Schieder GmbH			Boro 3.3	1	SL 29-NW 16								413.93 EU

Spare cold traps for cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard vers

KGW Schieder GmbH (4603)

Spare cold traps for cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version
One-piece spare cold traps made of borosilicate glass 3.3.

Versions of the cold trap connections:

-S 29 = spherical ground joint S 29
-GL 18 = glass thread GL 18 with PTFE olive ? 10 mm

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
6070512	1732	KGW Schieder GmbH			Boro 3.3	1	S 29								363.34 EU
6238418	1741	KGW Schieder GmbH			Boro 3.3	1	S 29 GL								350.59 EU

KGW Schieder GmbH (948599)

Spare cold traps for cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version with spout
One-piece spare cold traps made of borosilicate glass 3.3.

Versions of the cold trap connections:

-O 29 = spherical ground joint S 29 with O-ring seal
-GL 18 = glass thread GL 18 with PTFE olive ? 10 mm

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
6238419	17377	KGW Schieder GmbH			Boro 3.3	1	S 29 GL-A								431.48 EU
7625275	17376	KGW Schieder GmbH			Boro 3.3	1	S 29 O-A								481.81 EU

KGW Schieder GmbH (948602)

Spare cold traps for cold traps with Dewar flask, borosilicate glass 3.3, one-piece, standard version with KF NW small vacuum flange
One-piece spare cold traps made of borosilicate glass 3.3.

Versions of the cold trap connections:

-KF NW 16 or 25 = small vacuum flange KF NW 16 or 25

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
4662077	1732-NW16	KGW Schieder GmbH			Boro 3.3	1	S 29-NW 16								418.69 EU
6291632	1732-NW25	KGW Schieder GmbH			Boro 3.3	1	S 29-NW 25								429.52 EU

Spare cold traps for cold traps with Dewar flask, borosilicate glass 3.3, two-piece, long version

KGW Schieder GmbH (488109)

Spare cold traps for cold traps with Dewar flask, borosilicate glass 3.3, two-piece, long version
Two-piece spare cold traps made of borosilicate glass 3.3.

Versions of the cold trap connections:

-S 29 = spherical ground joint S 29
-GL 18 = glass thread GL 18 with PTFE olive ? 10 mm

PN	Manuf. PN	Supplier		Connection	Material	PK	Type	Depth	Height	Ø	Weight	Width	Rated capacity	General	Price	Quantity	Status	Add
6261467	17415	KGW Schieder GmbH			Boro 3.3	1	SL 29-Z								591.99 EU
