BDL

Accessories for SCHOTT Cold light sources and EasyLED Spotlight

Schott AG (3549)

Accessories for SCHOTT Cold light sources and EasyLED Spotlight

PN	Manuf. PN	Supplier	Description	For	PK	Price
9705196	153.000	Schott AG	Halogen bulb, 15 V / 150 W	KL 1500 HAL	1	48.53 EU
4666073	158.323	Schott AG	Adapter for light guide from Volpi and Photonic	KL 1600 LED, KL 1500 LED	1	94.12 EU
6227123	158.320	Schott AG	Adapter for light guide from SCHOTT North America, Volpi and Photonic	KL 1500 HAL	1	235.29 EU
6270979	400.020	Schott AG	Foot switch	KL 2500 LED	1	122.06 EU
6301655	258.306	Schott AG	Day light filter, diam. 28 mm	KL 1500 HAL	1	60.29 EU
7940192	258.307	Schott AG	Halogen inlet filter	KL 1600 KL 2500 LED	1	60.29 EU

Accessories for SCHOTT Ringlights

Schott AG (8818)

Accessories for SCHOTT Ringlights

PN	Manuf. PN	Supplier	Description	For	PK	Price
6254613	157.454	Schott AG	Lens adapter, int. diam. 66 on thread M48x0.75		1	86.76 EU
6270980	157.452	Schott AG	Lens adapter, 60 mm to 66 mm		1	54.41 EU
9705272	157.450	Schott AG	Lens adapter, 58 mm to 66 mm		1	70.59 EU
4666075	400.575	Schott AG	Polarisation filter set	VisiLED	1	776.47 EU
4666474	400.580	Schott AG	Diffusor	VisiLED	1	457.35 EU
6270981	400.570	Schott AG	Diffusor	EasyLED/Plus/VisiLED	1	426.47 EU
6270982	400.550	Schott AG	Polarisation filter set	EasyLED/Plus/VisiLED	1	776.47 EU
9705185	158.430	Schott AG	Polarisation filter set for annular ringlight 66		1	692.65 EU

Cold Light Source KL 1600 LED Packages

Schott AG (8468)

Cold Light Source KL 1600 LED Packages
The KL 1600 LED is an innovative fiber optic light source which uses cold light to illuminate all types of objects in industrial and life science applications.

-Powerful illumination system with a brightness of 680 lm
-Ergonomically placed dimming control
-Ripple free illumination for digital imaging applications
-Colour temperature of 5,600 K does not change when the light source is dimmed
-Maintenance free due to long lifetime LEDs of 50,000 hours

Scope of supply: LED Cold light source KL 1600 LED incl. 2-armed gooseneck light guide, 2 focus lenses, according power cord

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Plug type	Colour temperature~K	Light flux~lm	Price
4666289	4666289 EU PLUG	Schott AG	231	137	1	KL 1600 LED	3.9	114	EU	5600	680	1784.19 EU
4666290	4666290 CH PLUG	Schott AG	231	137	1	KL 1600 LED	3.9	114	CH	5600	680	1789.56 EU
4666291	4666291 UK PLUG	Schott AG	231	137	1	KL 1600 LED	3.9	114	UK	5600	680	1789.71 EU

Gooseneck light guide for SCHOTT Cold light sources

Schott AG (8813)

Gooseneck light guide for SCHOTT Cold light sources
Flexible light guides which will remain in place after positioning. Gooseneck branches positioned in opposite directions create near shadow-free illumination.

PN	Manuf. PN	Supplier	Description	For	PK	Price
9705152	154.202	Schott AG	2-branch, diam. 4.5 mm, L 600 mm	KL 1500 HAL, KL 1600 LED, KL 2500 LED	1	441.18 EU
9705151	154.101	Schott AG	1-branch, diam. 4.5 mm, L 600 mm	KL 1500 HAL, KL 1600 LED, KL 2500 LED	1	273.53 EU
9705153	154.302	Schott AG	3-branch, diam. 4.5 mm, L 600 mm	KL 1500 HAL, KL 1600 LED, KL 2500 LED	1	685.29 EU
9705220	170.202	Schott AG	2-branch, diam. 3.5 mm, L 500 mm	KL 300 LED	1	364.71 EU
9705221	170.101	Schott AG	1-branch, diam. 3.5 mm, L 500 mm	KL 300 LED	1	220.59 EU

LED Illumination, direct

Schott AG (2861)

LED Illumination, direct
EasyLED Ringlight / EasyLED Ringlight Plus: Powerful and robust LED ring light with continuous dimming. Ringlight Plus version with basic segment features and segment rotation. Easy and intuitive operation via integrated jog dial wheel. Including wide input range power supply with world wide plug (clip system). External / internal diameter 114/66 mm. If necessary, please order the necessary lens adapter separately.
EasyLED Spotlight Plus (Single/ Double): Advanced high power LED gooseneck system with integrated controller and continuous dimming. With the Spotlight Plus Double, the two spots can also be activated individually. Including wide input range power supply with world wide plug (clip system). Please order mounting bracket or column adapter separately (same adapter as for KL 300 LED).

PN	Manuf. PN	Supplier	Description	PK	Type	Colour temperature~K	Light flux~lm	Working Distance~mm	Price
6238244	600.300	Schott AG	8 segments	1	Ringlight Plus	5600	250	65	882.35 EU
6258176	600.200	Schott AG	no segments	1	Ringlight	5600	190	75	808.82 EU
6266980	600.101	Schott AG	single arm	1	Spotlight Plus Single	5600	130	10-90	619.27 EU
6266981	600.121	Schott AG	double arm, separately switchable	1	Spotlight Plus Double	5600	2 x 130	10-90	892.65 EU

Power cable for SCHOTT Cold light sources and Illumination systems

Schott AG (8824)

Power cable for SCHOTT Cold light sources and Illumination systems

PN	Manuf. PN	Supplier	Description	PK	Price
6231176	400.051	Schott AG	Power cord EU, 1.8 m	1	14.71 EU
6261529	400.054	Schott AG	Power cord CH, 1.8 m	1	20.59 EU
6266145	400.053	Schott AG	Power cord UK, 1.8 m	1	20.59 EU

Ring illumination for microscopes

Kern & Sohn GmbH (709548)

Ring illumination for microscopes
These dimmable illumination units provide good quality light with constant intensity on the object.

PN	Manuf. PN	Supplier	PK	Type	Plug type	Colour temperature~K	Rated capacity~W	Price
4657644	OBB-A6102	Kern & Sohn GmbH	1	OBB-A6102	EU	7600	4.5	220.59 EU
4657796	OZB-A4571	Kern & Sohn GmbH	1	OZB-A4571	EU	11000	4	147.06 EU
4657797	OZB-A4572	Kern & Sohn GmbH	1	OZB-A4572	EU	7000	4	227.94 EU
4691067	OBB-A6102UK	Kern & Sohn GmbH	1	OBB-A6102	UK	7600	4.5	220.59 EU
4691113	OZB-A4571UK	Kern & Sohn GmbH	1	OZB-A4571	UK	11000	4	147.06 EU
4691114	OZB-A4572UK	Kern & Sohn GmbH	1	OZB-A4572	UK	7000	4	227.94 EU

Accessories for flexible and gooseneck light guides

Schott AG (8828)

Accessories for flexible and gooseneck light guides

PN	Manuf. PN	Supplier	Description	For	PK	Price
9705170	158.200	Schott AG	Focussing lens, with filter set	Flexible / swan-neck light guide	1	357.35 EU
9705175	158.210	Schott AG	Focussing lens, without filter	Flexible / swan-neck light guide	1	74.41 EU
9705176	158.205	Schott AG	Polarisation filter	Focussing attachment (Cat. No. 9.705 175)	1	133.82 EU
9705177	158.211	Schott AG	Conversion filter	Focussing attachment (Cat. No. 9.705 175)	1	67.65 EU

Accessories for LED lamps / cold light sources

Starlight Opto-Electronics (8975)

Accessories for LED lamps / cold light sources

PN	Manuf. PN	Supplier	Description	PK	Price
4668069	100-006343	Starlight Opto-Electronics	Adaptor for Schott light guides 10 + 12 mm	1	63.24 EU
4668070	100-010264	Starlight Opto-Electronics	Power supply for LED3 (15 V, 2400 mA)	1	72.06 EU
4668071	100-002917	Starlight Opto-Electronics	Focusing optics for Ø 4.5 mm, f 30 mm	1	67.65 EU
4668115	100-004585	Starlight Opto-Electronics	Protective glass set for IL1, IL12, IL100 and TL1 (incl. O-rings)	1	14.71 EU
4668118	100-011893	Starlight Opto-Electronics	X-Base with fixing rod, 100 mm	1	155.88 EU
4668119	100-011341	Starlight Opto-Electronics	Stand plate with fixing rod, 100 mm	1	157.35 EU
4668120	100-004760	Starlight Opto-Electronics	Stand plate with fixing rod, 200 mm	1	160.29 EU
4668121	100-004761	Starlight Opto-Electronics	Stand plate with fixing rod, 400 mm	1	170.59 EU
4668125	100-006336	Starlight Opto-Electronics	Magnet Ø 31 mm, 75 N	1	29.41 EU
4668126	100-005086	Starlight Opto-Electronics	Magnet Ø 66 mm, 180 N	1	42.65 EU
4668127	100-011738	Starlight Opto-Electronics	Magnet Ø 88 mm, 550 N	1	100.00 EU
4668128	100-007341	Starlight Opto-Electronics	Magnet with fixing rod, 100 mm, 180 N	1	80.88 EU
4668129	100-005102	Starlight Opto-Electronics	Magnet with fixing rod, 200 mm, 180 N	1	83.82 EU
4668130	100-007346	Starlight Opto-Electronics	Fixing rod, 100 mm	1	48.53 EU
4668131	100-004919	Starlight Opto-Electronics	Fixing rod, 200 mm	1	52.94 EU
4668132	100-004920	Starlight Opto-Electronics	Fixing rod, 400 mm	1	58.82 EU
4668133	100-004778	Starlight Opto-Electronics	Mounting fixing for microscope stack, Ø 25 mm	1	120.59 EU
4668134	100-005120	Starlight Opto-Electronics	Mounting fixing for microscope stack, Ø 32 mm	1	120.59 EU
4668135	100-004980	Starlight Opto-Electronics	Wall bracket for incident lamps	1	58.82 EU
4668136	100-011656	Starlight Opto-Electronics	IL stand adapter for Nikon C-PSC	1	54.41 EU
4668137	100-007544	Starlight Opto-Electronics	Power supply with coaxial connector (24 V, 1.000 mA) for IL1 und IL12	1	30.88 EU
6310909	100-005115	Starlight Opto-Electronics	Reducing Ring for Ring Lights 66 mm / 50 mm	1	45.59 EU
6310910	100-005116	Starlight Opto-Electronics	Reducing Ring for Ring Lights 66 mm / 52 mm	1	45.59 EU
6310911	100-003976	Starlight Opto-Electronics	Reducing Ring for Ring Lights 66 mm / 54 mm	1	45.59 EU
6310912	100-003977	Starlight Opto-Electronics	Reducing Ring for Ring Lights 66 mm / 56 mm	1	45.59 EU
6310913	100-003978	Starlight Opto-Electronics	Reducing Ring for Ring Lights 66 mm / 58 mm	1	45.59 EU
6310914	100-003979	Starlight Opto-Electronics	Reducing Ring for Ring Lights 66 mm / 60 mm	1	45.59 EU
6310915	100-003980	Starlight Opto-Electronics	Reducing Ring for Ring Lights 66 mm / 62 mm	1	45.59 EU
6310916	100-003981	Starlight Opto-Electronics	Reducing Ring for Ring Lights 66 mm / 64 mm	1	45.59 EU
6310917	100-011513	Starlight Opto-Electronics	Carrying handle for LED.70	1	89.71 EU

Clamps for Cold light source KL 300 LED and EasyLED Spotlight

Schott AG (8823)

Clamps for Cold light source KL 300 LED and EasyLED Spotlight

PN	Manuf. PN	Supplier	For	PK	Price
4666071	120.229	Schott AG	Ø 30 mm column	1	50.00 EU
4666072	120.235	Schott AG	Ø 35 mm column	1	50.00 EU
4666076	120.240	Schott AG	ZEISS stand K and stand M	1	50.00 EU
6237972	120.232	Schott AG	Ø 32 mm column	1	50.00 EU
6274401	120.220	Schott AG	Ø 20 mm column	1	50.00 EU

Controllers VisiLED

Schott AG (7635)

Controllers VisiLED
The control units can be dimmed continuously and have overheating protection for the connected LED light heads.

Controller MC 1100: With adjustable parameters, such as light intensity, 5 different segmentation modes and changes in the direction of illumination.
Controller MC 1500: All functions are available simultaneously for two light heads. Additionally with stroboscopic and flash function and 4 memory settings.

Please order power adapter and country specific power cable separately.

PN	Manuf. PN	Supplier		Description	PK									General	Price	Quantity	Status	Add
6231032	400.000	Schott AG		MC 1500	1										1012.58 EU
6276102	400.080	Schott AG		MC 1100	1										660.29 EU

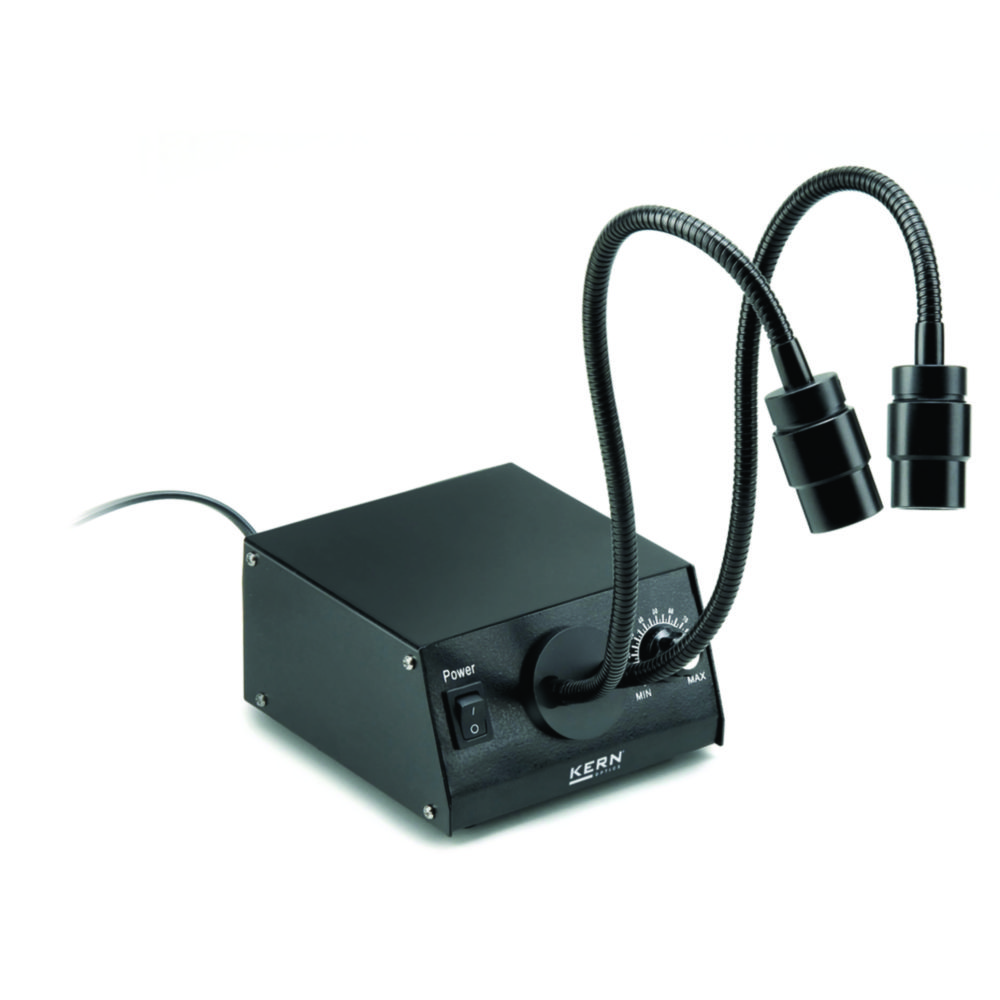

Dual fiber illuminations

Kern & Sohn GmbH (709660)

Dual fiber illuminations
These dimmable illumination units provide good quality light with constant intensity on the object.

-Illumination 6 W LED
-Colourtemperature 5600 - 6300 K

PN	Manuf. PN	Supplier		PK	Type	Depth	Height	Weight	Width	Plug type	Rated capacity	Light flux	Colour temperature~K	General	Price	Quantity	Status	Add
4657792	OZB-A4515	Kern & Sohn GmbH		1	OZB-A4515					EU			6300		256.69 EU
4691112	OZB-A4515UK	Kern & Sohn GmbH		1	OZB-A4515					UK			6300		242.65 EU

Fiber optical ring lights SRL3/SRL6

Starlight Opto-Electronics (8965)

Fiber optical ring lights SRL3/SRL6
The fiber optical ring lights offer high flexibility and luminous efficiency.

-Very good transmission
-Low heat generation
-For halogen and LED cold light sources
-Adaptable to cold light sources from all manufacturers
-Light guide connection: 15 mm
-Material: anodised aluminium
-Hose material: steel spiral, PVC

PN	Manuf. PN	Supplier		Colour	Length~m	Material	PK	Type			Ext. Ø~mm	Int. Ø~mm	No. of arms	General	Price	Quantity	Status	Add
4668045	100-010602	Starlight Opto-Electronics			1		1	SRL3			58	30.5	1		792.65 EU
4668046	100-008508	Starlight Opto-Electronics			1		1	SRL6			92	66	1		875.00 EU

Flexible light guide for SCHOTT Cold light sources

Schott AG (8816)

Flexible light guide for SCHOTT Cold light sources

PN	Manuf. PN	Supplier	Description	For	PK	Price
6228108	155.100	Schott AG	1-branch, M-PVC coated, diam. 5.0 mm, L 1000 mm	KL 1500 HAL, KL 1600 LED, KL 2500 LED	1	273.53 EU
7642628	155.104	Schott AG	1-branch, M-PVC coated, diam. 9.0 mm, L 1000 mm	KL 1500 HAL, KL 1600 LED, KL 2500 LED	1	486.76 EU
9705164	155.102	Schott AG	1-branch, M-PVC coated, diam. 5.0 mm, L 1600 mm	KL 1500 HAL, KL 1600 LED, KL 2500 LED	1	335.29 EU
9705165	155.204	Schott AG	2-branch, M-PVC coated, diam. 4.5 mm, L 1000 mm	KL 1500 HAL, KL 1600 LED, KL 2500 LED	1	464.71 EU
9705166	155.206	Schott AG	3-branch, M-PVC coated, diam. 4.5 mm, L 1000 mm	KL 1500 HAL, KL 1600 LED, KL 2500 LED	1	670.59 EU
9705168	155.103	Schott AG	1-branch, M-PVC coated, diam. 8.0 mm, L 1000 mm	KL 1500 HAL, KL 1600 LED, KL 2500 LED	1	441.18 EU
9705169	155.205	Schott AG	2-branch, M-PVC coated, diam. 4.5 mm, L 1600 mm	KL 1500 HAL, KL 1600 LED, KL 2500 LED	1	577.94 EU
9705225	121.101	Schott AG	1-branch, PVC coated, diam. 4.5 mm, L 600 mm	KL 300 LED	1	144.12 EU
9705226	171.202	Schott AG	2-branch, PVC coated, diam. 4.0 mm, L 1000 mm	KL 300 LED	1	258.82 EU

Schott AG (8817)

Flexible light guide for SCHOTT Cold light sources
For intensive, uniform and shadow-free illumination of samples.

PN	Manuf. PN	Supplier	Description	For	PK	Price
6254612	157.066	Schott AG	Annular, "slim", int. diam. 66 mm	KL 1500 HAL, KL 1600 LED, KL 2500 LED	1	958.82 EU
9705194	157.410	Schott AG	Annular, int. diam. 58 mm	KL 1500 HAL, KL 1600 LED, KL 2500 LED	1	1004.41 EU
9705195	157.420	Schott AG	Annular, int. diam. 66 mm	KL 1500 HAL, KL 1600 LED, KL 2500 LED	1	1004.41 EU
9705230	172.601	Schott AG	6 point, int. diam. 66 mm	KL 300 LED	1	730.88 EU

Gooseneck Lights for Cold light sources

LLG (6723)

Gooseneck Lights for Cold light sources

PN	Manuf. PN		Description	Length~mm	Ø~mm	PK								General	Price	Quantity	Status	Add
6257942	595-20-167		2-armed goosneck	550	4.5	1									392.49 EU

LED cold light sources LED.70

Starlight Opto-Electronics (8954)

LED cold light sources LED.70
Black. These fanless high-power LED cold light sources are even suitable for high speed recordings. The passive cooling system enables a noiseless and vibration-free operation. Data for the lumen refer to the measurement at the end of a flexible, 1-arm fiber optic light guide with active diameter ? 9 mm and length 1000 mm.

-Analogue brightness control (flicker-free)
-Homogenous illumination of the light guide
-Blinding protection by light guide detection
-Triple thermal fuse
-Compact and stable aluminium housing
-Operation time 50000 h
-Light guide access 15 mm

Scope of supply: LED cold light source LED.70, power cord, user manual

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Weight~kg	Width~mm	Plug type	Colour temperature~K	Light flux~lm	Rated capacity~W	Price
4668037	100-011724	Starlight Opto-Electronics	283	116	1	5.2	230	EU	6900	1500	100	2044.12 EU
4668038	100-011842	Starlight Opto-Electronics	283	116	1	5.2	230	US	6900	1500	100	2044.12 EU
4668039	100-011843	Starlight Opto-Electronics	283	116	1	5.2	230	UK	6900	1500	100	2044.12 EU
4668040	100-011844	Starlight Opto-Electronics	283	116	1	5.2	230	CH	6900	1500	100	2044.12 EU

LED cold light sources LED3

Starlight Opto-Electronics (8961)

LED cold light sources LED3
Titanium-grey. The fan-less Led light sources are an energy saving replacement for conventional 150 W halogen cold light sources. The passive cooling system enables a noiseless and vibration-free operation. Data for the lumen refer to the measurement at the end of a flexible, 1-arm fiber optic light guide with active diameter ? 9 mm and length 1000 mm.

-Adaptable to various light guides
-Flicker-free lighting
-Solid aluminium housing
-Stackable and horizontal positionable
-Operation time 50000 h
-Light guide access 15 mm

Scope of supply: LED cold light source LED3, multi adapter power supply (EU, UK, US), user manual

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Plug type	Colour temperature~K	Light flux~lm	Rated capacity~W	Price
4668033	100-010055	Starlight Opto-Electronics	259	81	1	LED3-P, CRI 70	3.7	174	EU/UK/US	5700	730	36	1099.41 EU
4668034	100-010056	Starlight Opto-Electronics	259	81	1	LED3-PC, CRI 90	3.7	174	EU/UK/US	5700	590	36	1110.29 EU
4668035	100-010057	Starlight Opto-Electronics	259	81	1	LED3-NW, CRI 80	3.7	174	EU/UK/US	4000	630	36	1066.18 EU
4668036	100-010058	Starlight Opto-Electronics	259	81	1	LED3-WW, CRI 80	3.7	174	EU/UK/US	3000	630	36	1066.18 EU

LED cold light sources LED8

Starlight Opto-Electronics (8955)

LED cold light sources LED8
Black. These high-power LED cold light sources are even suitable for high-speed recordings. Temperature fan control, for minimal noise disruption. Data for the lumen refer to the measurement at the end of a flexible, 1-arm fiber optic light guide with active diameter ? 9 mm and length 1000 mm.

-Analogue brightness control (flicker-free)
-Homogenous illumination of the light guide
-Blinding protection by light guide detection
-Triple thermal fuse
-Compact and stable aluminium housing
-Stackable
-Operation time 50000 h
-Light guide access 15 mm

Scope of supply: LED cold light source LED8, power cord, user manual

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Weight~kg	Width~mm	Plug type	Colour temperature~K	Light flux~lm	Rated capacity~W	Price
4668041	100-011832	Starlight Opto-Electronics	273	116	1	2.3	200	EU	6900	1600	110	1698.53 EU
4668042	100-011853	Starlight Opto-Electronics	273	116	1	2.3	200	US	6900	1600	110	1698.53 EU
4668043	100-011854	Starlight Opto-Electronics	273	116	1	2.3	200	UK	6900	1600	110	1698.53 EU
4668044	100-011855	Starlight Opto-Electronics	273	116	1	2.3	200	CH	6900	1600	110	1698.53 EU

LED incident lamp IL12, 2-arms

Starlight Opto-Electronics (607987)

PN	Manuf. PN	Supplier		Colour	Material	PK	Type	Weight~g	Depth	Height	Width	Plug type	Light flux	General	Price	Quantity	Status	Add
4668083	100-010764	Starlight Opto-Electronics		Black	Aluminium	1		800				EU/UK/US			583.82 EU
4668084	100-010765	Starlight Opto-Electronics		Black	Aluminium	1		800				EU/UK/US			614.71 EU

LED incident lamp IL12-Lab, 2-arms

Starlight Opto-Electronics (8967)

LED incident lamp IL12-Lab, 2-arms
Black. The modul-LED® concept allows a quick change of the light source. For use in industry and science. The modules must be ordered separately.

-Brightness control with memory function
-Flexible illumination thanks to semi-rigid arms
-Flicker-free lighting for photographics and video
-Solid aluminium housing

Scope of supply: LED incident lamp IL12, multi adapter power supply (EU, UK, US), user manual

PN	Manuf. PN	Supplier		Colour	Material	PK	Type	Weight~g	Depth	Height	Width	Plug type	Light flux	General	Price	Quantity	Status	Add
4668081	100-006569	Starlight Opto-Electronics		Black	Aluminium	1		700				EU/UK/US			360.29 EU
4668082	100-010740	Starlight Opto-Electronics		Black	Aluminium	1		700				EU/UK/US			427.58 EU
