Real-time PCR-system QPCR-500

Cole-Parmer Instrument (422057)

Real-time PCR-system QPCR-500
High specification, economically priced real-time thermocycler. The QPCR-500 system has a unique high thermal block uniformity (±0.1 °C). This uniformity as well as validated sample volumes of down to 5 µl enable an optimized reaction run time for 40 cycles down to only 15 minutes. The uniform temperature across the plate is achieved with a unique heating and cooling system that quickly enables a uniform temperature of ±0.1 °C in every well of the block within a fraction of a second of reaching each well temperature. This high uniformity eliminates the need for triplicates which reduces reagent running costs. QPCR-500 accommodates a unique and economical 48-well PCR plate, the size of which is only 1/8 the size of a standard 96-well plate. The well format mirrors a 384-well plate therefore allowing the use of a 16-channel micropipette. The small plate cuts reagent costs in half whilst still producing a strong fluorescent signal. Applications include e.g. absolute and relative quantification, Allelic Discrimination and High Resolution Melt.

Features:

-Validated volume per well: 5 to 20 µl
-High temperature uniformity of ±0.1 °C across the whole block instantly after every temperature change
-40 cycles in 40 minutes before optimization, and down to only 15 minutes when optimized
-Genotype in 4 minutes with over 99 % accuracy
-Patented "Adaptive LED Control" minimizes optical artifacts and prevents premature detector saturation
-Dual LED excitation (452 nm to 486 nm and 542 nm to 582 nm)
-4 emission filters (505 nm to 545 nm, 562 nm to 596 nm, 604 nm to 644 nm, 665 nm to 705 nm)
-Data is always collected in all four filters for all wells
-Distinguishes 5000 and 10000 template copies with 99 percent confidence

Additional features:

-48-well block
-MIQE compliant
-400 analyte specific qPCR reagent kits available
-No calibration required
-Calibrated dyes: SYBR®, FAMTM, HEXTM, ROXTM, Cy®5.
-Additional dyes within the filter wavelength range are supported with no additional calibration required
-Unlimited software licence
-2 years warranty

Scope of supply: Real-time PCR-system QPCR-500, EcoControl and EcoStudy software, USB stick, 50 plates, 50 plate seals, power and Ethernet cable

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	max. cooling rate	General	Price	Quantity	Status	Add
6320624	93947-00	Cole-Parmer Instrument		310	320	1	QPCR-500	13.6	345	30 ... 100 °C					28774.12 EU

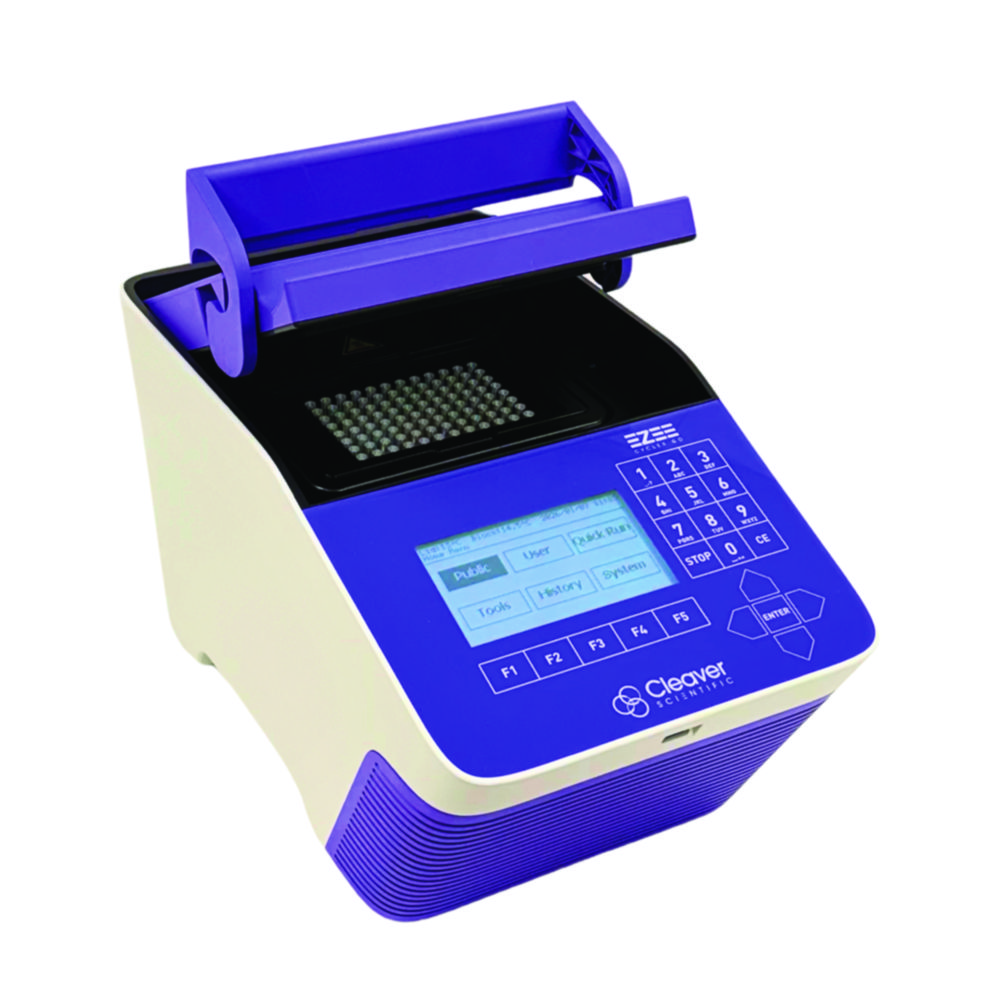

Thermal cycler EZEECYCLER GO

Thistle Scientific Ltd. (965043)

Thermal cycler EZEECYCLER GO
The thermal cycler offers flexible functions and is suitable for everyday PCR applications.

-Intuitive, graphical interface and responsive touch keypad simplify operation
-Precise control of ramp rates down to 0.1 °C/sec
-Adjustable lid temperature
-Easy cleaning and disinfection
-Gradient optimisation: thermal gradient function enables rapid PCR optimisation for new experimental conditions
-Auto restart function: built-in power failure recovery ensures experiment continuity and data integrity
-200 pre-installed programmes
-50 user folders (password-protected)
-Compatible with 96-well PCR plate and 0.2 ml PCR tubes/strips

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity~W	General	Price	Quantity	Status	Add
4716136	EZEEcycler-GO	Thistle Scientific Ltd.		415	225	1	EZEECYCLER GO	9	245	4 ... 99,9 °C		EU/UK	500		6965.00 EU

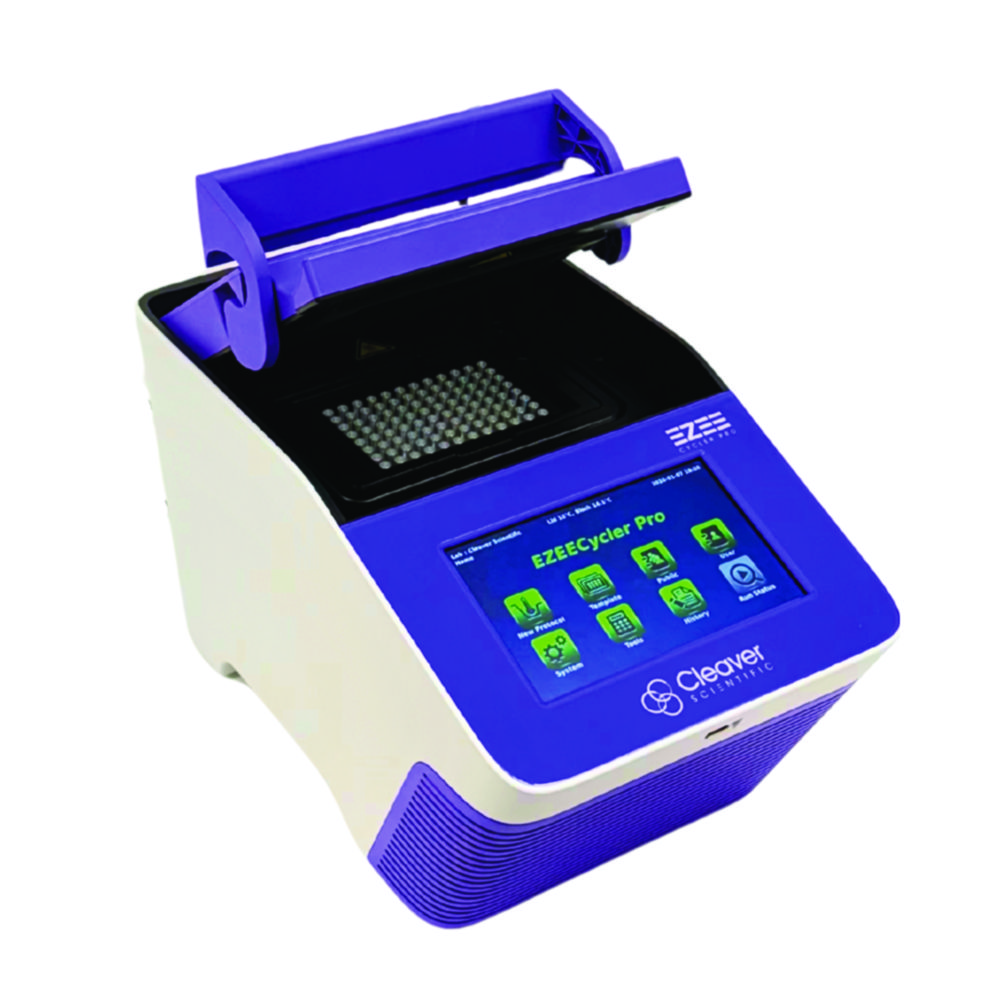

Thermal cycler EZEECYCLER PRO

Thistle Scientific Ltd. (965057)

Thermal cycler EZEECYCLER PRO
The thermal cycler offers flexibility for precise PCR optimisation.

-Intuitive interface and 7" colour LCD touchscreen
-Flexible ramp rate control from 0.1 to 5.5 °C/sec
-Adjustable lid temperature
-Gradient optimisation: enables precise optimisation of experimental conditions in a single PCR run
-Auto restart function: built-in power failure recovery ensures experiment continuity and data integrity
-USB port
-4000 pre-installed programmes
-100 user folders (password-protected)
-Compatible with 96-well PCR plate and 0.2 ml PCR tubes/strips

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity~W	General	Price	Quantity	Status	Add
4716137	EZEEcycler-PRO	Thistle Scientific Ltd.		415	225	1	EZEECYCLER PRO	9.5	245	4 ... 100 °C		EU/UK	750		8771.04 EU

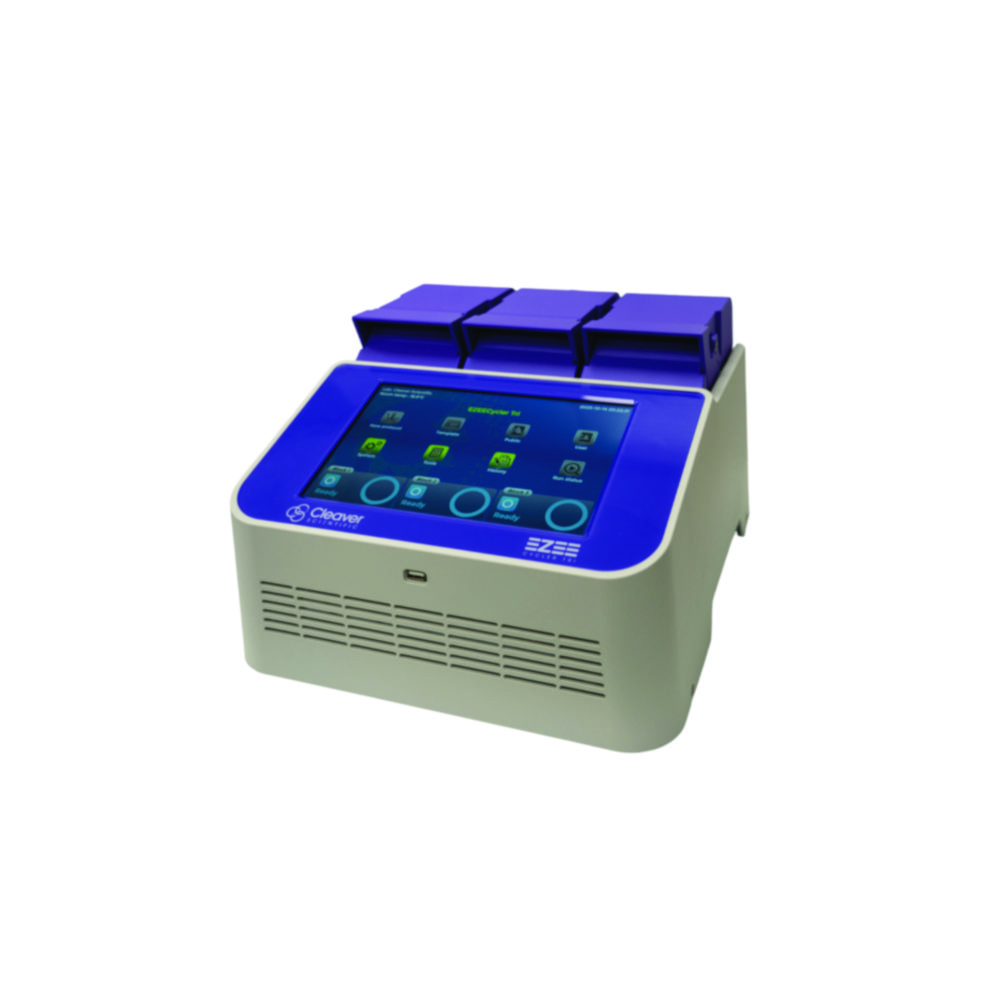

Thermal cycler EZEECYCLER TRI

Thistle Scientific Ltd. (965064)

Thermal cycler EZEECYCLER TRI
This powerful high-throughput thermal cycler can run three independent programmes (3 x 48 samples) simultaneously. Intelligent gradient optimisation and advanced ramp rate control ensure perfectly tuned PCR conditions. Each block module can be calibrated individually.

-Intuitive interface and 10.1" colour LCD touchscreen
-Flexible ramp rate control from 0.1 to 5.0 °C/sec
-Adjustable lid temperature
-Auto restart function: built-in power failure recovery ensures experiment continuity and data integrity
-USB port
-4000 pre-installed programmes
-100 user folders (password-protected)
-Compatible with 48-well PCR plate and 0.1 ml or 0.2 ml PCR tubes/strips

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity~W	General	Price	Quantity	Status	Add
4716138	EZEEcycler-TRI	Thistle Scientific Ltd.		362	236	1	EZEECYCLER TRI	13	356	4 ... 100 °C		EU/UK	1000		18305.00 EU

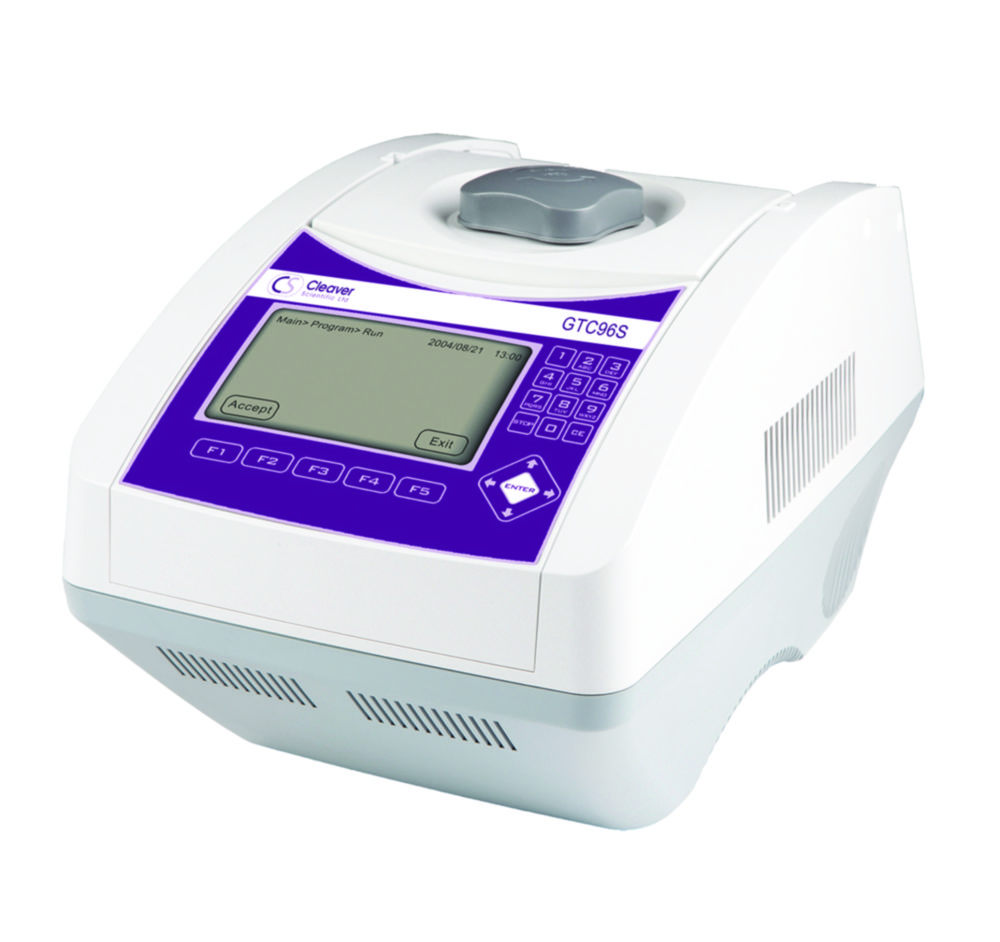

Thermal cycler GTC96S

Thistle Scientific Ltd. (965073)

Thermal cycler GTC96S
Thermal cycler with advanced features and exceptional performance. The protocol optimisation process utilises 'Flexible Temperature' technology to divide the 96-well plate into six separate temperature zones (4 x 4 wells each), which are easily distinguished by blue and black squares. A separate temperature can be selected for each zone (maximum temperature difference between zones 24 °C).

-Precise temperature control minimises temperature fluctuations between the individual stages within a PCR cycle
-Lid with 'slide-in slide-out' design
-Adjustable lid temperature
-Memory for 200 programmes
-Compatible with 96-well PCR plate and 0.2 ml PCR tubes/strips

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity	General	Price	Quantity	Status	Add
6310233	GTC96S	Thistle Scientific Ltd.		250	420	1	GTC96S	9	240	4 ... 99,9 °C					8337.65 EU

Thermal cycler GTC96S Complete package

Thistle Scientific Ltd. (965078)

Thermal cycler GTC96S Complete package
Thermal cycler with advanced features and exceptional performance. The protocol optimisation process utilises 'Flexible Temperature' technology to divide the 96-well plate into six separate temperature zones (4 x 4 wells each), which are easily distinguished by blue and black squares. A separate temperature can be selected for each zone (maximum temperature difference between zones 24 °C).

-Precise temperature control minimises temperature fluctuations between the individual stages within a PCR cycle
-Lid with 'slide-in slide-out' design
-Adjustable lid temperature
-Memory for 200 programmes
-Compatible with 96-well PCR plate and 0.2 ml PCR tubes/strips
Scope of supply: Thermocycler, UV sterilization chamber, single-channel microlitre pipette omniPETTE 0.2 to 2 µl, single-channel microlitre pipette omniPETTE 2 to 20 µl, single-channel microlitre pipette omniPETTE 20 to 200 µl, single-channel microlitre pipette omniPETTE 100 to 1000 µl, 8-channel microlitre pipette omniPETTE 20 to 200 µl, electrophoresis unit multiSUB Midi-96, power supply nanoPAC 500

PN	Manuf. PN	Supplier		PK	Type	Depth	Height	Temperature	Weight	Width	For Vessels	Plug type	Temperature accuracy	General	Price	Quantity	Status	Add
4716141	CSL-CLEANCAB	Thistle Scientific Ltd.		1	GTC96S Complete package										15537.65 EU

Thermal cycler GTC96S PCR Kit

Thistle Scientific Ltd. (965077)

Thermal cycler GTC96S PCR Kit
Thermal cycler with advanced features and exceptional performance. The protocol optimisation process utilises 'Flexible Temperature' technology to divide the 96-well plate into six separate temperature zones (4 x 4 wells each), which are easily distinguished by blue and black squares. A separate temperature can be selected for each zone (maximum temperature difference between zones 24 °C).

-Precise temperature control minimises temperature fluctuations between the individual stages within a PCR cycle
-Lid with 'slide-in slide-out' design
-Adjustable lid temperature
-Memory for 200 programmes
-Compatible with 96-well PCR plate and 0.2 ml PCR tubes/strips
Scope of supply: Thermocycler, electrophoresis unit multiSUB Midi-96, power supply nanoPAC 500

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	Rated capacity	General	Price	Quantity	Status	Add
4716139	CSL-PCRKIT	Thistle Scientific Ltd.		250	420	1	GTC96S PCR Kit	9	240	4 ... 99,9 °C					9969.41 EU
4716140	CSL-PCRKIT$	Thistle Scientific Ltd.		250	420	1	GTC96S PCR Kit	9	240	4 ... 99,9 °C					9969.41 EU

Thermocycler Alpha Cycler

Cole-Parmer Instrument (3022)

Thermocycler Alpha Cycler
The Alpha Cycler family form PCRmax provides a range of features which are specifically designed to meet the needs of modern researchers when amplifying DNA. Given the flexibility in format and block options (96 or 384 well) scaleability is core in the Alpha Cycler range. Alpha Cycler software has features such as recently used programmes, allowing users to quickly access their most commonly used protocols without the need to navigate through folders to find it, individual user logins, with protected protocols. The Alpha Cycler systems also contain a novel programme wizard which allows users to define a protocol based specifically on their primer sequence and template source. Primer sequences or TM's are entered, amplicon length and source defined and the on board algorithm generates an optimised protocol for your assay. The Alpha Cyclers range of block options allow for use of the most commonly used consumables from different manufacturers and includes 96 well plates (0.2 ml), tubes (0.2 ml), strip tubes (0.2 ml) and 384 well plates.
-Single, dual or four block options available with either 96 or 384 well gradient blocks
-Multi-block units have totally independent blocks for maximum flexibility
-HD Android driven touchscreen interface for simplified programming
-Generate and send instrument reports to diagnose the health of your system and identify any issues before they impact users work
-Lock programs with user defined password
-Alpha Track mobile app allows remote monitoring of run progress

Alpha Track App (free of charge): Track the progress of runs and health of your system remotely via the mobile app
The Alpha Track Application is used in conjunction with your Alpha Cycler and allows users to:
-Remotely track the progress of runs
-Send a health report for diagnosis by the technical support team
-Be notified of any issues and prevent system failures before occurring

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Temperature accuracy	Price
4658855	93945-02	Cole-Parmer Instrument	260	200	1	AC196	12	430	10 ... 100 °C	1 x 96 well block	±0,25 °C (55 °C)	7609.56 EU
4658856	93945-00	Cole-Parmer Instrument	260	200	1	AC1384	12	430	10 ... 100 °C	1 x 384 well block	±0,25 °C (55 °C)	7609.85 EU
4658857	93945-22	Cole-Parmer Instrument	535	330	1	AC296	30	470	10 ... 100 °C	2 x 96 well blocks	±0,25 °C (55 °C)	16228.53 EU
4658858	93945-28	Cole-Parmer Instrument	535	330	1	AC2384	30	470	10 ... 100 °C	2 x 384 well blocks	±0,25 °C (55 °C)	16288.39 EU
4658859	93945-20	Cole-Parmer Instrument	535	330	1	AC2196	30	470	10 ... 100 °C	1 x 96 + 1 x 384 well blocks	±0,25 °C (55 °C)	16001.62 EU
4658860	93945-12	Cole-Parmer Instrument	535	330	1	AC496	45	700	10 ... 100 °C	4 x 96 well blocks	±0,25 °C (55 °C)	31350.14 EU
4658861	93945-08	Cole-Parmer Instrument	535	330	1	AC4384	45	700	10 ... 100 °C	4 x 384 well blocks	±0,25 °C (55 °C)	31357.49 EU
4658862	93945-04	Cole-Parmer Instrument	535	330	1	AC4196	45	700	10 ... 100 °C	1 x 96 + 3 x 384 well blocks	±0,25 °C (55 °C)	30747.80 EU
4658863	93945-06	Cole-Parmer Instrument	535	330	1	AC4296	45	700	10 ... 100 °C	2 x 96 + 2 x 384 well blocks	±0,25 °C (55 °C)	30747.80 EU
4658864	93945-10	Cole-Parmer Instrument	535	330	1	AC4396	45	700	10 ... 100 °C	3 x 96 + 1 x 384 well blocks	±0,25 °C (55 °C)	31386.91 EU

Thermocycler MultiGene OptiMax

Corning BV (8862)

Thermocycler MultiGene™ OptiMax
This simple to program PCR thermocycler unit is compact in design, programming is intuitive with the large display and multiple pre-programmed templates supplied with the unit. The OptiMax comes with standard built in 2-step, temperature optimization, touchdown and time increment protocols that are easy to adjust to meet cycling needs. Select lid temperature or turn it off.
-Flexible Programming with FlexTemp? technology
-Fast ramp rates 5 °C heating / 3.5 °C cooling
-No condensation after overnight cooling at 4 °C
-Individual temperature setting for each block
-Password protected programs
-Simple user interface
-With USB and RS232 interface

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Temperature	For Vessels	Plug type	max. cooling rate	General	Price	Quantity	Status	Add
9595319	TC9610-230	Corning BV		420	250	1	MultiGene™ OptiMax	9	240	4 ... 99,9 °C	1 x 96 well plate, 12 x strip tubes (8 x 0.2 ml), 96 x 0.2 ml tubes				8172.35 EU
