BDL

Heating bath liquid, BUDDE

Buddeberg GmbH (74)

Heating bath liquid, BUDDE
Use:
BUDDE heating bath liquid can be used continuously as a heating medium up to approx. 170 °C. Higher temperatures (below flash point) are possible, but will result in rapid darkening. The low pour point allows the bath liquid also to be used as a cooling medium. Mixtures with 10 % to 30 % water achieve best results.

The crucial advantages of BUDDE heating bath liquid compared to
the oils or other organic liquid mainly used are:
-accidental spillage of water into the bath does not lead to dangerous spitting at temperatures over 100 °C, as the water dissolves in the heating bath liquid and subsequently evaporates safely
-BUDDE heating bath liquid can easily be rinsed away with water which eases cleaning of laboratory equipment, e.g. distillation flasks, and also bench or floor if the bath liquid is accidentally spilled.
-BUDDE heating bath liquid does not foam when mixed with water.

Viscosity on addition of water:
BUDDE heating bath liquid is quite viscous at ambient or low temperatures, and therefore sometimes difficult to dispense. The addition of 10-20 % water reduces the viscosity and enables easier handling. If the mixture is then heated to 100 °C, the water evaporates without boiling. Further heating is only shortly delayed by this. Before next heating, water can be added again.

Water solubility: BUDDE heating bath liquid can be mixed with water in any ratio. The hardness of the water has no effect on the bath liquid.

PN	Manuf. PN	Supplier	Capacity~L		PK	Type	Temperature	Viscosity	Nominal capacity					General	Price	Quantity	Status	Add
9906200	40 26446 00385 2	Buddeberg GmbH	5		1										348.08 EU

Sand bath SD with performance control and connection cable

Harry Gestigkeit GmbH (4267)

Sand bath SD with performance control and connection cable
For continuous operation. Electrical sand bath with stepless power control. Anodised aluminium alloy hotplate. Excellent uniform temperature distribution over the entire heating surface. The sand bath frame is tightly screwed onto the hotplate so that the sand is in direct contact with the hotplate. Useful depth 50 mm. Stainless steel controller housing, with painted central section. Height-adjustable feet. Connection cable approximately 1.7 m with earthed plug.

PN	Manuf. PN	Supplier		Ext. height~mm	PK	Type	Weight~kg	Display	Speed	Temperature	Heating capacity~W	Plug type	Nominal capacity	General	Price	Quantity	Status	Add
9645801	SD7	Harry Gestigkeit GmbH		220	1	SD 7	13.0	analogue		RT+5 ... 370 °C	2200	EU			1841.47 EU
9645803	SD8	Harry Gestigkeit GmbH		220	1	SD 8	21.0	analogue		RT+5 ... 370 °C	2850	EU			2257.49 EU

Sand bath ST with performance control, thermostatic controller and connection cable

Harry Gestigkeit GmbH (2141)

Sand bath ST with performance control, thermostatic controller and connection cable
For continuous operation. Electrical sand bath with thermostatic temperature control and separate power controller. Anodised aluminium alloy hotplate. Excellent uniform temperature distribution over the entire heating surface. The sand bath frame is tightly screwed onto the hotplate so that the sand is in direct contact with the hotplate. Useful depth 50 mm. Stainless steel controller housing, with painted central section. Height-adjustable feet. Connection cable approximately 1.7 m. With earthed plug.

PN	Manuf. PN	Supplier	Ext. height~mm	PK	Type	Weight~kg	Display	Temperature	Heating capacity~W	Plug type	Price
9645818	ST83	Harry Gestigkeit GmbH	220	1	ST 83	21.0	analogue	100 ... 370 °C	2850	EU	2669.12 EU
9645811	ST71	Harry Gestigkeit GmbH	220	1	ST 71	14.0	analogue	30 ... 110 °C	1150	EU	2138.98 EU
9645812	ST81	Harry Gestigkeit GmbH	220	1	ST 81	21.0	analogue	30 ... 110 °C	1800	EU	2553.68 EU
9645813	ST91	Harry Gestigkeit GmbH	220	1	ST 91	28.0	analogue	30 ... 110 °C	200	EU	2617.65 EU
9645814	ST72	Harry Gestigkeit GmbH	220	1	ST 72	14.0	analogue	50 ... 300 °C	2200	EU	2139.41 EU
9645815	ST82	Harry Gestigkeit GmbH	220	1	ST 82	21.0	analogue	50 ... 300 °C	2850	EU	2563.98 EU
9645817	ST73	Harry Gestigkeit GmbH	220	1	ST 73	14.0	analogue	100 ... 370 °C	2200	EU	2257.49 EU

Accessories for Heating bath HBR 4 control

IKA-Werke GmbH & Co.KG (9112)

Accessories for Heating bath HBR 4 control
Set of rings H 240: To cover the heating bath.

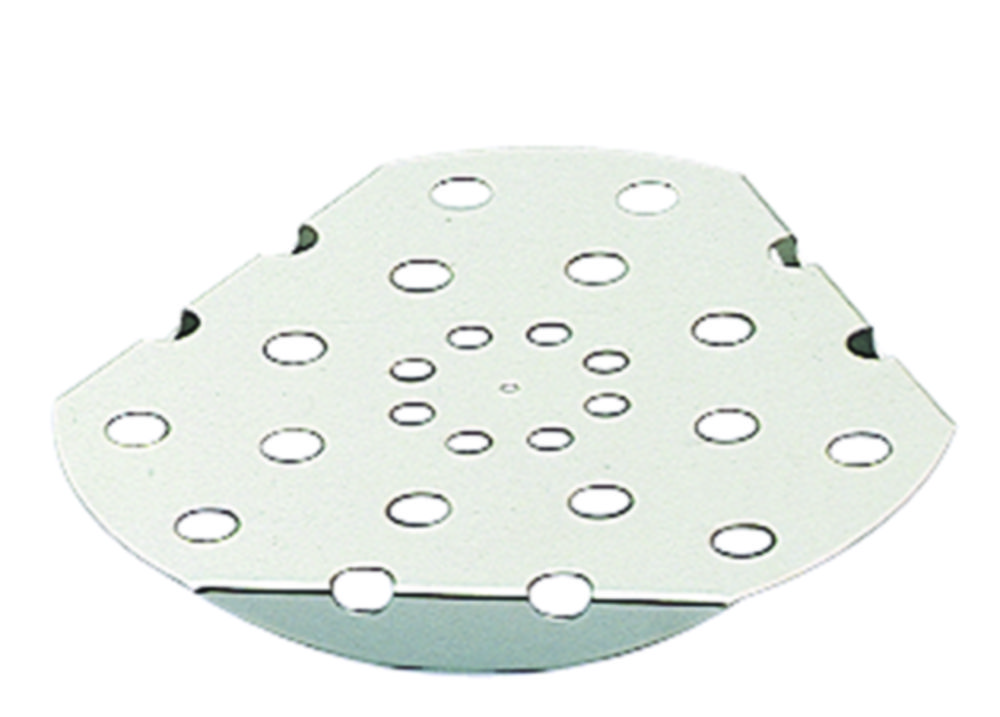

Intermediate base H 159: Allows insertion of vessels into the bath, without affecting the stirrer motion.

PN	Manuf. PN	Supplier		Description	For	Material	PK	Type	Depth	Height	Ø	Weight	Width	General	Price	Quantity	Status	Add
9906121	0002858700	IKA-Werke GmbH & Co.KG		Set of rings			1	H 240							992.65 EU
9906125	0001809700	IKA-Werke GmbH & Co.KG		Intermediate base			1	H 159							454.41 EU

Heating bath HB 1500

Juchheim GmbH & Co.KG (8697)

Heating bath HB 1500
The heating bath HB 1500 is developed for varied tasks. The bath can be filled with water, oil or sand. Modern microprocessors control the temperature. With measuring circuit monitoring for over- and under-temperature, sensor and line short-circuit, as well as sensor and line breakage.

-Microprocessor controller with 4-digits 7-segment display, 10 mm high, green
-Freely configurable
-Self-optimising temperature control
-Measuring and control range up to 260 °C
-Setting of heating power from 1 to 99 %
-Overtemperature switch-off >10 K + setpoint
-Wear-free internal temperature sensor at the bottom of the pot
-On-Off switch 2-pole, green, illuminated
-Switchable to external sensor
-Material bath/housing stainless steel, front and rear anodised aluminium

PN	Manuf. PN	Supplier	Ext. height~mm	PK	Type	Weight~kg	Display	Temperature	Heating capacity~W	Plug type	Price
9234510	43204011	Juchheim GmbH & Co.KG	280	1	HB 1500	8.6	digital	20 ... 260 °C	2000	EU	1831.02 EU
9234511	43204012	Juchheim GmbH & Co.KG	255	1	HB 1500	5.8	digital	20 ... 260 °C	1500	EU	1776.11 EU
9234512	43204013	Juchheim GmbH & Co.KG	230	1	HB 1500	5.4	digital	20 ... 260 °C	1500	EU	1751.76 EU

Heating bath HB 1500-S

Juchheim GmbH & Co.KG (780748)

Heating bath HB 1500-S
The heating bath HB 1500-S is developed for varied tasks. The bath can be filled with water, oil or sand. The appliance is equipped with 2 temperature controllers with microprocessor. The upper temperature controller serves as a safety temperature limiter. If the safety temperature is exceeded, the heating is switched off at all poles. The temperature is measured via an internal temperature sensor at the bottom of the pot.

-Microprocessor controller with 4-digit 7-segment display, 10 mm high, green
-Freely configurable
-Self-optimising temperature control
-Measuring and control range up to 260 °C
-Setting of heating power from 2 to 99 %
-Switchable to external sensor
-Material bath/housing stainless steel, front and rear anodised aluminium

PN	Manuf. PN	Supplier	Ext. height~mm	PK	Type	Weight~kg	Display	Temperature	Heating capacity~W	Plug type	Price
9234513	43204015	Juchheim GmbH & Co.KG	280	1	HB 1500-S	8.6	digital	20 ... 260 °C	2000	EU	2066.47 EU
9234514	43204016	Juchheim GmbH & Co.KG	255	1	HB 1500-S	5.8	digital	20 ... 260 °C	1500	EU	2013.24 EU
9234515	43204017	Juchheim GmbH & Co.KG	230	1	HB 1500-S	5.4	digital	20 ... 260 °C	1500	EU	1937.20 EU

Heating Bath HB Digital

IKA-Werke GmbH & Co.KG (5601)

PN	Manuf. PN	Supplier		Ext. height~mm	PK	Type	Weight~kg	Display	Speed	Temperature	Heating capacity~W	Plug type	Max. speed	General	Price	Quantity	Status	Add
9729918	0020016334	IKA-Werke GmbH & Co.KG		190	1	HB digital	3.9	digital		RT ... 180 °C	1350	EU			2673.09 EU

Heating Bath HB eco

IKA-Werke GmbH & Co.KG (10356)

Heating Bath HB eco
Compact and ergonomic heating safety bath.
-Ergonomic handles
-Clear, black-and-white display
-Alternating set-point/actual temperature display
-USB interface

PN	Manuf. PN	Supplier		Ext. height~mm	PK	Type	Weight~kg	Display	Speed	Temperature	Heating capacity~W	Plug type	Max. speed	General	Price	Quantity	Status	Add
6311083	0020016337	IKA-Werke GmbH & Co.KG		190	1	HB eco	3.9	digital		RT ... 99 °C	1400	EU			2151.47 EU

Heating bath HBR 4 control

IKA-Werke GmbH & Co.KG (3442)

Heating bath HBR 4 control
The heating bath is noted for:
-Cylindrical bath shape
-Heating elements integrated into the bath base
-Heat transfer media can be low-viscous oil (50 mPas) or water
-Two carry handles
-Infinitely variable safety temperature limiter according to DIN 12877
-Double-jacketed mantle protection against burns
-Digital display for target, actual and safety temperatures as well as speed
-Integrated magnetic stirrer drive to circulate the tempering fluid, allowing for better heat distribution in the bath
-RS 232 interface

PN	Manuf. PN	Supplier		Ext. height~mm	PK	Type	Weight~kg	Display	Speed	Temperature	Heating capacity~W	Plug type	Nominal capacity~l	General	Price	Quantity	Status	Add
6282329	0020003549	IKA-Werke GmbH & Co.KG		250	1	HBR 4 control	4.4	digital	150 ... 800 1/min	RT ... 200 °C	1000	EU	4		7111.69 EU

Heating bath liquid

Heidolph Scientific (5028)

Heating bath liquid

PN	Manuf. PN	Supplier	Capacity~L		PK	Type	Temperature	Viscosity	Nominal capacity					General	Price	Quantity	Status	Add
4652675	569-00600-00	Heidolph Scientific	5		1		+20 ... +220 °C								2032.21 EU

Oil bath for rotary evaporators

Cole-Parmer Instrument (4091)

Oil bath for rotary evaporators
This precise digital bath is specifically designed to be used with the Stuart rotary evaporators to give maximum efficiency for the smallest footprint. The clear LED digital display shows the actual bath temperature or the set temperature. Outer case is made from chemically resistant polypropylene.

-Digital temperature display, display resolution 1 °C, temperature control ±1.5 °C (water), ±3 °C (oil)
-Corrosion resistant bowl
-Easy to clean
-Cool touch outer case

Please note plastic coated glassware is limited to 80°C and therefore unsuitable for use with the oil bath.

PN	Manuf. PN	Supplier		Ext. height~mm	PK	Type	Weight~kg	Display	Speed	Temperature	Heating capacity~W	Plug type	Max. speed	General	Price	Quantity	Status	Add
6288751	16340-65	Cole-Parmer Instrument		244	1		4.5	digital		RT ... 180 °C	1400	EU			1697.58 EU

Oil baths, ONE

Memmert (7254)

Oil baths, ONE
Interior - Heating Concept:
-easy-to-clean, grade 1.4301 (ASTM 304), laser-welded, stainless steel interior, reinforced by deep drawn ribbing
-corrosion-proof, large-area heating surface on 3 sides of the tank
Control:
-fuzzy-supported PID microprocessor controller with integral autodiagnostic system and fault indication
-solid state switch unit
-2 x class A, 4-wire, Pt100 sensors, mutually monitoring and controlling performance at the same temperature
-digital timer from 1 min to 999 hours for:
On (continuous operation)
Delayed On
Hold, or set temperature-dependent Hold with fixed dwell time
-digital display (LED) of all set parameters, such as temperature, time and alarm values
-Calibration facility on controller
-audible and visual alarms at programme end, as keypress input acknowledgement and in the case of low liquid level (heating is switched off automatically)
Triple Overtemperature Protection:
-in the case of overtemperature due to fault the heating is switched off at approx. 10°C above the set temperature (fixed value)
-independent, class 2, TWB electronic overtemperature limiter
-class 1, TB mechanical temperature limiter switching the heating off at approx. 30°C above max. bath temperature
-set value display resolution: 0.1°C below 99.9°C, 1°C above 100°C

Textured, grade 1.4301 (ASTM 304), corrosion resistant, stainless steel housing.
Without covers - please order separately.
Specifications:
Temperature range: at least 5°C above ambient up to +200°C
Setting temperature range: +20°C up to +200°C
Power supply: 230V, 50/60Hz; 115 V, 50/60 Hz no extra cost

PN	Manuf. PN	Supplier	PK	Type	Housing (W x D x H)	LC	Weight	Internal dimensions (W x D x H)	Capacity of the bath	Max. operating temperature °C	Min. operating temperature	Price
9906601	ONE 7	Memmert	1	ONE7, with EU-plug	468 x 356 x 238*	1	11	240 x 210 x 140	7	200	20	Inquire
9906602	ONE 10	Memmert	1	ONE10, with EU-plug	578 x 356 x 238*	1	13	350 x 210 x 140	10	200	20	Inquire
9906603	ONE 14	Memmert	1	ONE14, with EU-plug	578 x 436 x 238*	1	15	350 x 290 x 140	14	200	20	Inquire
9906604	ONE 22	Memmert	1	ONE22, with EU-plug	578 x 436 x 296*	1	17	350 x 290 x 220	22	200	20	Inquire
9906605	ONE 29	Memmert	1	ONE29, with EU-plug	818 x 516 x 238*	1	24	590 x 350 x 140	29	200	20	Inquire
9906606	ONE 45	Memmert	1	ONE45, with EU-plug	818 x 516 x 296*	1	26	590 x 350 x 220	45	200	20	Inquire

Quartz Sand

LLG (6069)

Quartz Sand
Annealed quality, 0.1 to 0.5 mm grain size.

PN	Manuf. PN		PK	Weight~kg										General	Price	Quantity	Status	Add
6261653	5462		1	5											81.62 EU
7971323	5460		1	1											23.24 EU

Sand bath SD with performance control and permanent connection

Harry Gestigkeit GmbH (848340)

Sand bath SD with performance control and permanent connection
For continuous operation. Electrical sand bath with stepless power control. Anodised aluminium alloy hotplate. Excellent uniform temperature distribution over the entire heating surface. The sand bath frame is tightly screwed onto the hotplate so that the sand is in direct contact with the hotplate. Useful depth 50 mm. Stainless steel controller housing, with painted central section. Height-adjustable feet.

PN	Manuf. PN	Supplier		Ext. height~mm	PK	Type	Weight~kg	Display	Speed	Temperature	Heating capacity~W	Plug type	Nominal capacity	General	Price	Quantity	Status	Add
6230863	SD9-400	Harry Gestigkeit GmbH		220	1	SD 9-400	27.0	analogue		RT+5 ... 370 °C	4000				2576.47 EU
9645805	SD9-230	Harry Gestigkeit GmbH		220	1	SD 9-230	27.0	analogue		RT+5 ... 370 °C	4000				2576.47 EU

Sand bath ST with performance control, thermostatic controller and permanent connection

Harry Gestigkeit GmbH (848353)

Sand bath ST with performance control, thermostatic controller and permanent connection
For continuous operation. Electrical sand bath with thermostatic temperature control and separate power controller. Anodised aluminium alloy hotplate. Excellent uniform temperature distribution over the entire heating surface. The sand bath frame is tightly screwed onto the hotplate so that the sand is in direct contact with the hotplate. Useful depth 50 mm. Stainless steel controller housing, with painted central section. Height-adjustable feet.

PN	Manuf. PN	Supplier	Ext. height~mm	PK	Type	Weight~kg	Display	Temperature	Heating capacity~W	Price
6251772	ST93-400	Harry Gestigkeit GmbH	220	1	ST 93-400	28.0	analogue	100 ... 370 °C	4000	2955.88 EU
9645816	ST92-230	Harry Gestigkeit GmbH	220	1	ST 92-230	28.0	analogue	50 ... 300 °C	4000	2838.24 EU
9645819	ST93-230	Harry Gestigkeit GmbH	220	1	ST 93-230	28.0	analogue	100 ... 370 °C	4000	2963.24 EU
9645820	ST92-400	Harry Gestigkeit GmbH	220	1	ST 92-400	28.0	analogue	50 ... 300 °C	4000	2838.24 EU
