BOD meters Type KF 12, accessory funnel bottle

Behr Labor-Technik GmbH (1679)

BOD meters Type KF 12, accessory funnel bottle
Karlsruher BOD bottle with NS19 conical ground joint.

PN	Manuf. PN	Supplier		Material	PK	Ground size	Nominal capacity~ml						Length stopper handle	General	Price	Quantity	Status	Add
9304170	B00217774	Behr Labor-Technik GmbH			1	NS19	250								51.04 EU

BOD-Measurement-System BD 600

Tintometer GmbH (2486)

BOD-Measurement-System BD 600
BOD measurement is an important measurement of the effects of domestic and industrial waste water on sewage plants and outflow points. The sensor system BD 600 is a 6 sample system that allows precise measurements of BOD based on the manometric principle. Manometric respirometers relate oxygen uptake to the change in pressure caused by oxygen consumption while maintaining a constant volume. Due to the modern integral pressure sensors, it is not necessary to use mercury for the measurements. The BOD values are stored automatically in the sensor memory at regular intervals and can be called up on the large-format display at any time without the need for time-consuming conversion using factors. This means that test series that end on a Sunday can be evaluated during the following week without any problem. Measurement series can be stored on USB stick/ SD card or transferred via USB cable to evaluate the data on a computer. The measurement period is user-selectable between 1 and 28 days to suit the application. While short measurement periods are useful for scientific applications, standard BOD measurements typically extend over a period of 5 days - and manometric determination of OECD, for example, generally takes place over a period of 28 days.

Scope of supply:
-BD 600, complete unit with 6 or 12* sensor heads and control unit with batteries
-Power supply unit incl. Y-cable for common power supply of BD 600 and stirring unit
-Inductive stirring unit
-6 or 12* sample bottles
-6 or 12* rubber gaskets
-6 or 12* magnetic stirring rods
-1 overflow flask, 157 ml
-1 overflow flask, 428 ml
-1 bottle, 50 ml potassium hydroxide solution
-1 bottle, 50 ml nitrification inhibitor solution
-1 instruction manual
-remote control
Specifications
Measuring principle: respirometric, electronic pressure sensor
Ranges: 0 - 40, 0 - 80, 0 - 200, 0 - 400, 0 - 800, 0 - 2000, 0 - 4000 mg/l O2
Measurement period: User-selectable, between 1 and 28 days
Power supply: 100-240 V, battery buffered or via power supply using Y-cable
Protection class: IP 54 (sensor head)
Interface: USB host port (USB stick), USB device port (computer), SD card
Clock: Real time
Application: BOD5 / BODF / OECD301F

PN	Manuf. PN	Supplier	Description	PK	Type	General	Price
9303438	2418634	Tintometer GmbH	50 ml, 45 %	1	Kaliumhydroxid-Lösung	Dangerous substance	Inquire
6268048	2444460	Tintometer GmbH	with 6 bottles	1	BD 600	Dangerous substance	Inquire
6280155	2444465	Tintometer GmbH	with 12 bottles	1	BD 606	Dangerous substance	Inquire

Chemicals for BOD measurement system BD 600/606

Tintometer GmbH (919859)

Chemicals for BOD measurement system BD 600/606

PN	Manuf. PN	Supplier		Description	PK									General	Price	Quantity	Status	Add
9303433	2418642	Tintometer GmbH		Nitrification inhibitor (N-ATH) liquid, bottle of 50 ml	1										40.88 EU
6203214	2418328	Tintometer GmbH		Sensor calibration set for BSB/BOD sensor	1										105.88 EU

Dissolved oxygen bottles, Winkler pattern

H. & K. Starke GmbH (1673)

Dissolved oxygen bottles, Winkler pattern
Winkler pattern. Soda-lime glass.
For determination of dissolved oxygen in water. The measured capacity is specified to ± 0,01ml. With white labelling area. Solid, bevelled glass stopper, secured with an accessory spring clip. Each bottle is adjusted to the relevant stopper. Stoppers and bottles are therefore not interchangeable. Each bottle and its stopper is marked with a unique, matching identification number.

PN	Manuf. PN	Supplier		Colour	Material	PK	Height	Ø	Ground size	autoclavable	Nominal capacity~ml			General	Price	Quantity	Status	Add
9304038	604 0100	H. & K. Starke GmbH			Soda-lime glass	1			NS14/23		100				52.94 EU
9304048	604 0250	H. & K. Starke GmbH			Soda-lime glass	1			NS19/26		250				65.14 EU

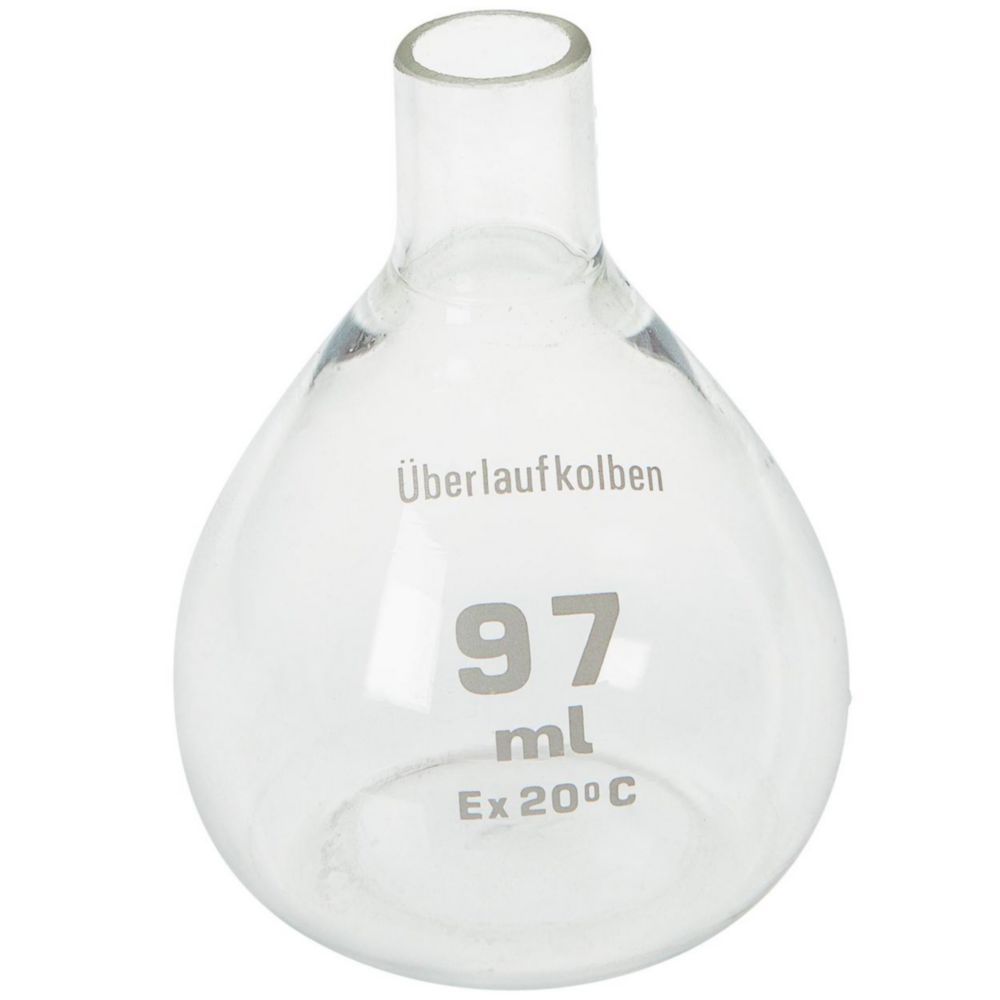

Overflow Measuring Flask for OxiTop

Xylem Analytics Germany (WTW) (5080)

Overflow Measuring Flask for OxiTop®
Glass measuring flask with fixed volume doses for the easy and accurate measurement of the required sample volume for respirometric BSB measurements.

PN	Manuf. PN	Supplier	PK	Nominal capacity~ml	Price
6201921	209040	Xylem Analytics Germany (WTW)	1	43.5	71.91 EU
6201992	209030	Xylem Analytics Germany (WTW)	1	22.7	71.91 EU
6201993	209070	Xylem Analytics Germany (WTW)	1	250	89.71 EU
6802191	209050	Xylem Analytics Germany (WTW)	1	97	71.91 EU

Oxygen flasks Winkler pattern, soda-lime glass

BRAND GMBH + CO.KG (895071)

Oxygen flasks Winkler pattern, soda-lime glass
For the determination of oxygen dissolved in water. The measured volume is specified to two decimal places. White withe inscription field. Solid, obliquely cut NS glass stopper can be secured with a fastening clip. Each flask is calibrated with its own stopper. Stoppers and flasks are therefore not interchangeable. The bottle and stopper each have the same device number.

PN	Manuf. PN	Supplier		Colour	Material	PK	Height	Ø	Ground size	autoclavable	Nominal capacity~ml			General	Price	Quantity	Status	Add
4689055	386038	BRAND GMBH + CO.KG			Soda-lime glass	2			NS14/23		150				84.12 EU
4689056	386048	BRAND GMBH + CO.KG			Soda-lime glass	2			NS19/26		300				95.29 EU

Replacement sample bottle for BOD measurement system OxiTop, brown

Xylem Analytics Germany (WTW) (873482)

Replacement sample bottle for BOD measurement system OxiTop®, brown

PN	Manuf. PN	Supplier		Colour	Description	Material	Package	PK	Type	Depth	Height	Ø	Width	General	Price	Quantity	Status	Add
9303401	209100	Xylem Analytics Germany (WTW)		Brown				1	PF 600						15.88 EU

RESPIROMETRIC Sensor System 6 BOD, with Databox

Velp Scientifica SRL (418120)

RESPIROMETRIC Sensor System 6 BOD, with Databox™
Measuring systems for the reliable determination of 90 to 4000 ppm BOD, BOD5 and BOD7 for the control of water and wastewater quality. Complete with sensor heads and multi-position magnetic stirring station for performing aerobic and anaerobic respiration tests.

-4-digit LED display
-2-button user interface
-Results available in BOD (mg/l) and pressure (mbar)
-Automatic conversion of pressure results into BOD
-Wireless transmission of data to the PC (Wlan)

Measurement data is transmitted wirelessly from the RESPIROMETRIC sensor head to a PC via the Databox?. The Databox? can store results from up to 400 RESPIROMETRIC sensors. With the RESPIROSoft? software, these measurement data can be evaluated and monitored on the PC. Alternatively, the Databox? can be connected to the Velp Ermes cloud platform. After registration, measurement data can also be monitored and analysed from mobile devices.

Scope of supply: 6-position magnetic stirring station, 6 x sensor heads incl. batteries, 6 x 500 ml amber bottles, 6 x KOH containers, 6 x magnetic stirring bars, Databox? with RESPIROSoft? software

PN	Manuf. PN	Supplier		PK	Type	Depth	Height	Pressure	Weight	Width	Plug type			General	Price	Quantity	Status	Add
4684068	SA10200146	Velp Scientifica SRL		1				500 ... 2,000 mbar							3895.22 EU

Spring clips for oxygen bottles according to Winkler

LLG (7841)

Spring clips for oxygen bottles according to Winkler

PN	Manuf. PN		Description	For	Material	PK	Type	autoclavable					Max. temp. resistance	General	Price	Quantity	Status	Add
9304050	386138			100 ... 150 ml		1									5.88 EU

Thermostatic cabinets TC, with steel door

Tintometer GmbH (802666)

Thermostatic cabinets TC, with steel door
The incubators from Lovibond® are designed for continuous tempering for different applications, mainly for the determination of BOD, the storage of wastewater samples, and the determination of enzymatic activity. The temperature range is +2°C up to +40°C and can be regulated in steps of 0,1°C. Temperature tolerance is defined with +/- 1°C respectively +/- 0,5°C (at 20°C). Low engergy consumption due to reinforced isolation. The interior of the cabinets is equipped with sockets for connecting stirrers. Illuminated LED display with actual / setpoint display.

-Temperature range 2 °C to 40 °C, continuously adjustable in steps of 0.1 °C
-Low power consumption
-Illuminated LED display of preset and current temperatures
-With natural refrigerant R600a
-Ideal for BOD determination at 20 °C
-Power sockets inside the incubator

PN	Manuf. PN	Supplier	Ext. height~mm	PK	Type	Weight~kg	Temperature	Plug type	Nominal capacity~l	Price
9699142	2438200	Tintometer GmbH	850	1	TC 135 S	39.0	2 ... 40 °C	EU	135	3526.76 EU
6492794	2438250	Tintometer GmbH	1684	1	TC 710 S	62.0	2 ... 40 °C	EU	288	5100.00 EU
6492795	2438270	Tintometer GmbH	1684	1	TC 720 S	74.0	2 ... 40 °C	EU	488	6373.98 EU

BOD measurement system OxiTop-i IS 6 / 12

Xylem Analytics Germany (WTW) (8877)

BOD measurement system OxiTop®-i IS 6 / 12
Easy-to-use, respirometric measuring system for determining the biological oxygen demand (BOD). The method is based on changes of pressure in a closed system using measuring heads attached to the sample bottles. The BOD can be determined simultaneously in up to 6 or 12 samples.

-No dilution of the sample required
-Direct reading of the BOD, the time course and the intermediate values on the graphical display of the measuring heads
-Input of the used sample volume directly at the measuring head
-Monitoring time between 1 and 7 days
-Permanent display of the current status at each measuring head
-Coloured measuring heads with adjustable, numerical sample identification

Scope of supply: OxiTop®-i IS 6: 6 x measuring heads (3 x blue, 3 x grey), 6 x sample bottles PF600, 6 x rubber quivers, CO2 absorber, nitrification inhibitor, overflow measurement flasks, 6 x stirring rods, stirring rod remover, stirring platform SI 6
OxiTop®-i IS 12: 12 x measuring heads (6 x blue, 6 x grey), 12 x sample bottles PF600, 12 x rubber quivers, CO2 absorber, nitrification inhibitor, overflow measurement flasks, 12 x stirring rods, stirring rod remover, stirring platform SI 12

An incubator is required to operate the OxiTop®-i IS. Please order separately.
Specifications
Pressure range: 500 ... 1250 hPa
BOD range: 0 ... 4000 mg/l
Display: Graphical LCD, background-illuminated
Power supply of measuring heads:
Power supply of stirring platform: 1 x CR 2450
100 ... 240 V, 50/60 Hz

PN	Manuf. PN	Supplier		PK	Type	Plug type								General	Price	Quantity	Status	Add
4667879	208262	Xylem Analytics Germany (WTW)		1	OxiTop®-i IS 12	EU								Dangerous substance	Inquire
7940936	208260	Xylem Analytics Germany (WTW)		1	OxiTop®-i IS 6	EU								Dangerous substance	Inquire

BOD measuring system OxiTop-IDS for determination of aerobic degradation

Xylem Analytics Germany (WTW) (9292)

BOD measuring system OxiTop®-IDS for determination of aerobic degradation
BOD measurement system for all types of respirometric measurements, e.g. soil respiration, microbiological activity measurement, biogas determination as well as extended BOD measurement for the industrial waste water plants and further degradation tests in 3 selectable measuring types, BOD standard, BOD special and pressure.
With the proven Bluetooth® connectivity and the convenient operation via MultiLine® multi parameter instrument Multi 3620 IDS or Multi 3630 IDS. Using a Multi 3620 IDS or Multi 3630 IDS in BOD special mode the BOD measuring range extends to 400000 mg/l. For an already existing Multi 3620 or 3630 IDS, a firmware update is sufficient. Herewith beneath the OxiTop® applications also measurement of pH, conductivity, solved oxygen and turbidity are available. All heads can be used independently for routine BOD measurements from 1 to 7 days.
-Bluetooth®connectivity
-Direct calculation of all results in the meter
-Representation of curves for monitoring
-Parallel measurement of different examinations and methods
-Export to data acquisition programs
These tests quantify the biological degradability of chemicals. The OxiTop®-IDS A12 is also suited for high dilutions.
-Respirometric degradability tests according to OECD 301F/DIN EN ISO 9408
-Versatile measurement by using the BOD special mode

Scope of supply:
OxiTop®-IDS Set 6: 6 x OxiTop®-IDS measuring heads, 6 x bottles PF600 (510 ml), 6 x rubber sleeves, nitrification inhibitor, overflow measuring flask , 6 x magnetic stirring bars, stirring bar retriever, stirring platform IS 6
OxiTop®-IDS Set 12: 12 x OxiTop®-IDS measuring heads, 12 x bottles PF600 (510 ml), 12 x rubber sleeves, nitrification inhibitor, overflow measuring flask, 12 x magnetic stirring bars, stirring bar retriever, stirring platform IS 12
Erweiterungssatz f?r OxiTop®-IDS 6/12: 6 resp.12 OxiTop®-IDS measuring heads, 6 resp.12 bottles, universal power adapter, 6 resp.12 rubber sleeves, 6 resp.12 magnetic stirring bars, stirring platform IS 6 resp. IS 12
OxiTop®-IDS A6: 6 x OxiTop®-IDS measuring heads, 6 x bottles PF45/1000 (1000 ml), 6 x adapter OxiTop® AD/SK, nitrification inhibitor, 6 x magnetic stirring bars, stirring bar retriever, stirring platform IS 6-Var
OxiTop®-IDS A12: 12 x OxiTop®-IDS measuring heads, 12 x bottles PF45/250 (250 ml), 12 x adapter OxiTop® AD/SK, nitrification inhibitor, 12 x magnetic stirring bars, stirring bar retriever, stirring platform IS 12

Please order CO2 absorber NHP 600 (9.303 403) separately.
The IDS multi parameter measuring instruments Multi 3620 IDS Set WL or Multi 3630 IDS Set WL are required. Please order separately.

PN	Manuf. PN	Supplier		Description	PK	Type								General	Price	Quantity	Status	Add
6314040	209711	Xylem Analytics Germany (WTW)		6 measuring places, stirring platform IS 6	1	OxiTop®-IDS Set 6								Dangerous substance	Inquire

Measuring Head

WTW(Mesuring head)

accessories for BOD self check measurement OxiTop ® IS

PN	Manuf. PN	Supplier	Colour											General	Price	Quantity	Status	Add
7008302	208800	WTW	Green											OxiTop® GN	Inquire
7008303	208810	WTW	yellow												Inquire

Accessories for B.O.D. Auto-Check Measurement Systems OxiTop

Xylem Analytics Germany (WTW) (4333)

Accessories for B.O.D. Auto-Check Measurement Systems OxiTop®

PN	Manuf. PN	Supplier		Description	For	PK	Type							General	Price	Quantity	Status	Add
9303405	209172	Xylem Analytics Germany (WTW)		Rubber sleeve for CO2absorber		1	GK 600 L								19.86 EU

Accessories for BSB/BSB EVO sensor systems

Velp Scientifica SRL (9855)

Accessories for BSB/BSB EVO sensor systems

PN	Manuf. PN	Supplier	Description	PK	Price
4666932	10000904	Velp Scientifica SRL	KOH reservoir	1	12.35 EU
4666961	10001107	Velp Scientifica SRL	Brown glass bottles 500 ml	1	17.06 EU
6317210	F10200270	Velp Scientifica SRL	Stirring station 6 positions (230 V, 50 ... 60 Hz)	1	733.31 EU
6317211	F10200280	Velp Scientifica SRL	Stirring station 10 positions (230 V, 50 ... 60 Hz)	1	1178.31 EU

Accessories for Karlsruher Bottle KF 12

Xylem Analytics Germany (WTW) (894146)

Accessories for Karlsruher Bottle KF 12

PN	Manuf. PN	Supplier		Colour	Description	For	Material	PK	Type	Depth	Height	Length	Ø	General	Price	Quantity	Status	Add
7008289	205711	Xylem Analytics Germany (WTW)			Fixing cover			1	FD 19/KA						204.41 EU
9822607	205712	Xylem Analytics Germany (WTW)			Fixing ring			1	FR 19						177.94 EU

Adapter AD/SK for BOD measuring system OxiTop

Xylem Analytics Germany (WTW) (9323)

Adapter AD/SK for BOD measuring system OxiTop®
For OxiTop® measuring heads, for all sample and measuring bottles series PF45/.. and MF45/.., autoclavable (121 °C). Incl. OxiTop® AD adapter, OxiTop® SK screwable adapter, DI45 gasket for adapter VS45.

PN	Manuf. PN	Supplier		Description	For	PK	Type							General	Price	Quantity	Status	Add
6204780	209016	Xylem Analytics Germany (WTW)				1	OxiTop® AD/SK								201.47 EU

BOD bottles with stoppers

Behr Labor-Technik GmbH (6186)

BOD bottles with stoppers
With NS 19 cone glass stopper.

PN	Manuf. PN	Supplier		Colour	Description	Material	Package	PK	Type	Depth	Height	Ø	Width	General	Price	Quantity	Status	Add
9920500	B00217785	Behr Labor-Technik GmbH						1							36.76 EU

BOD measurement system BD 600 GLP

Tintometer GmbH (919870)

BOD measurement system BD 600 GLP
BOD measurement is an important measurement of the effects of domestic and industrial waste water on sewage plants and outflow points. The sensor system BD 600 is a system that allows precise measurements of BOD based on the manometric principle. Manometric respirometers relate oxygen uptake to the change in pressure caused by oxygen consumption while maintaining a constant volume. Due to the modern integral pressure sensors, it is not necessary to use mercury for the measurements. The BOD values are stored automatically in the sensor memory at regular intervals and can be called up on the large-format display at any time without the need for time-consuming conversion using factors. This means that test series that end on a Sunday can be evaluated during the following week without any problem. Measurement series can be stored on USB stick/ SD card or transferred via USB cable to evaluate the data on a computer. The measurement period is user-selectable between 1 and 28 days to suit the application. While short measurement periods are useful for scientific applications, standard BOD measurements typically extend over a period of 5 days - and manometric determination of OECD, for example, generally takes place over a period of 28 days.

-Measuring principle: respirometric, electronic pressure sensor
-Measuring ranges: 0 - 40, 0 - 80, 0 - 200, 0 - 400, 0 - 800, 0 - 2000, 0 - 4000 mg/l O2
-Application: BOD5/BODF/OECD301F
-GLP conformity

Scope of supply:

-BD 600, complete unit with 6 sensor heads and control unit with batteries
-Power supply unit incl. Y-cable for common power supply of BD 600 and stirring unit
-Inductive stirring unit
-6 sample bottles
-6 rubber gaskets
-6 magnetic stirring rods
-1 overflow flask, 157 ml
-1 overflow flask, 428 ml
-1 bottle, 50 ml potassium hydroxide solution
-1 bottle, 50 ml nitrification inhibitor solution
-1 instruction manual
-Remote control

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Width~mm	Pressure	Weight	Plug type			General	Price	Quantity	Status	Add
4678126	2444461	Tintometer GmbH		230	375	1	BD 600 GLP	181							5335.88 EU

BOD Measuring system OxiTop-IDS B6 for determination of soil respiration

Xylem Analytics Germany (WTW) (9303)

BOD Measuring system OxiTop®-IDS B6 for determination of soil respiration
Respirometric measuring system for 6 measuring heads for determination of aerobic soil respiration, OxiTop®-IDS B6M-2.5 acc. to AT4 guideline. These sets are suitable for forecast, survey and monitoring of clean-up operations as well as measurement of bio-degradation of pesticides, fungicides, insecticides and fertilizers for example.
With the proven Bluetooth® connectivity and the convenient operation via MultiLine® multi parameter instrument Multi 3620 IDS or Multi 3630 IDS. Using a Multi 3620 IDS or Multi 3630 IDS in BOD special mode the BOD measuring range extends to 400000 mg/l. For an already existing Multi 3620 or 3630 IDS, a firmware update is sufficient. Herewith beneath the OxiTop® applications also measurement of pH, conductivity, solved oxygen and turbidity are available. All heads can be used independently for routine BOD measurements from 1 to 7 days.

-Bluetooth® connectivity
-Direct calculation of all results in the meter
-Representation of curves for monitoring
-Parallel measurement of different examinations and methods
-Export to data acquisition programs
-Measurement duration selectable (0.5 hours to 180 days)

Please order CO2 absorber NHP 600 (9.303 403) separately.
The IDS multi parameter measuring instruments Multi 3620 IDS Set WL or Multi 3630 IDS Set WL are required. Please order separately.
Scope of supply: 6 measuring heads, 6 sample bottles PF45/500 (500 ml), 6 adapters OxiTop® AD/SK

PN	Manuf. PN	Supplier		PK	Type	Depth	Height	Pressure	Weight	Width	Plug type			General	Price	Quantity	Status	Add
6314046	209729	Xylem Analytics Germany (WTW)		1	OxiTop®-IDS B6			500 ... 1,250 hPa							6413.24 EU

BOD meters Type KF 12, accessory funnel bottle

Behr Labor-Technik GmbH (1679)

BOD-Measurement-System BD 600

Tintometer GmbH (2486)

Chemicals for BOD measurement system BD 600/606

Tintometer GmbH (919859)

Dissolved oxygen bottles, Winkler pattern

H. & K. Starke GmbH (1673)

Overflow Measuring Flask for OxiTop

Xylem Analytics Germany (WTW) (5080)

Oxygen flasks Winkler pattern, soda-lime glass

BRAND GMBH + CO.KG (895071)

Replacement sample bottle for BOD measurement system OxiTop, brown

Xylem Analytics Germany (WTW) (873482)

RESPIROMETRIC Sensor System 6 BOD, with Databox

Velp Scientifica SRL (418120)

Spring clips for oxygen bottles according to Winkler

LLG (7841)

Thermostatic cabinets TC, with steel door

Tintometer GmbH (802666)

BOD measurement system OxiTop-i IS 6 / 12

Xylem Analytics Germany (WTW) (8877)

BOD measuring system OxiTop-IDS for determination of aerobic degradation

Xylem Analytics Germany (WTW) (9292)

Measuring Head

WTW(Mesuring head)

Accessories for B.O.D. Auto-Check Measurement Systems OxiTop

Xylem Analytics Germany (WTW) (4333)

Accessories for BSB/BSB EVO sensor systems

Velp Scientifica SRL (9855)

Accessories for Karlsruher Bottle KF 12

Xylem Analytics Germany (WTW) (894146)

Adapter AD/SK for BOD measuring system OxiTop

Xylem Analytics Germany (WTW) (9323)

BOD bottles with stoppers

Behr Labor-Technik GmbH (6186)

BOD measurement system BD 600 GLP

Tintometer GmbH (919870)

BOD Measuring system OxiTop-IDS B6 for determination of soil respiration

Xylem Analytics Germany (WTW) (9303)

RESPIROMETRIC Sensor System 6 BOD, with Databox
