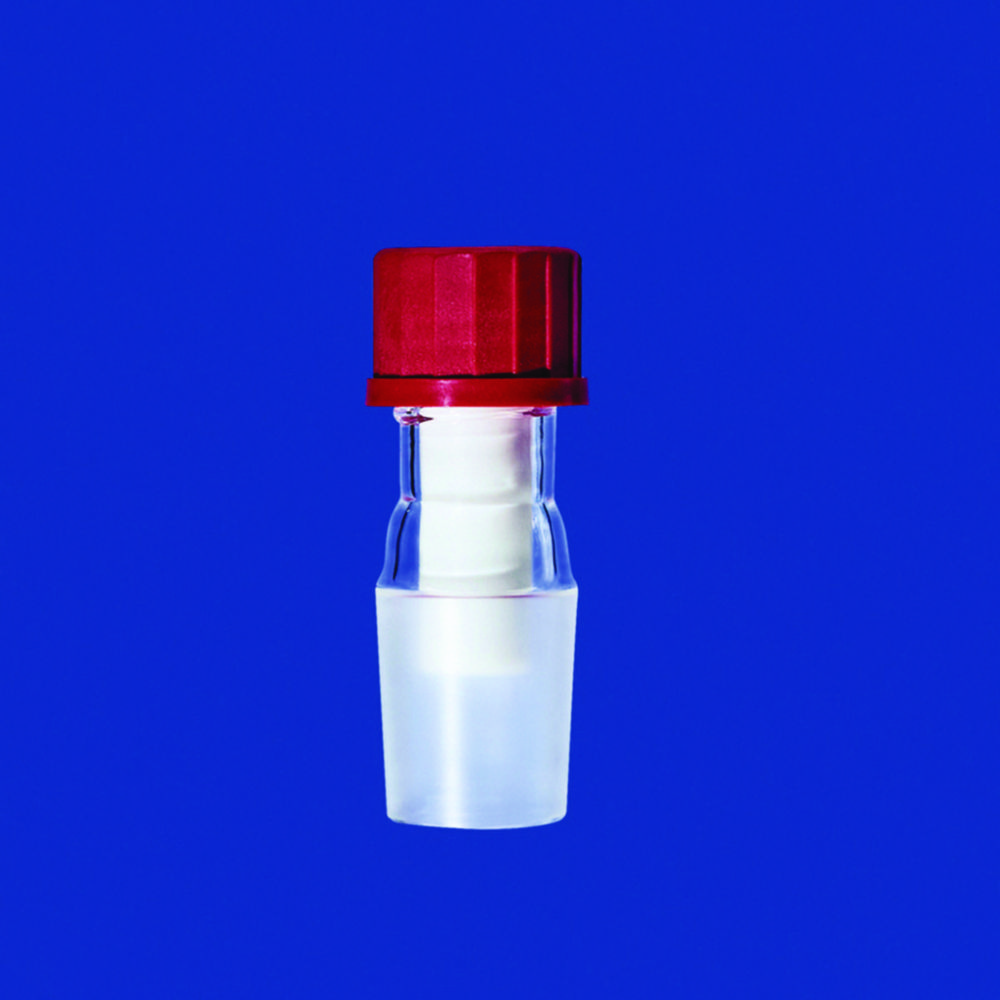

Stirrer bearings with GL male thread, DURAN tubing

Lenz-Laborglas GmbH & Co. KG (994)

Stirrer bearings with GL male thread, DURAN® tubing
Made of DURAN® tubing. Other materials used: PTFE (bearing), silicone (gasket) and stirrer guides, GL male thread. Cone size 29/32. Guide bore 10mm i.d.

PN	Manuf. PN	Supplier	Length~mm	Material	PK	Thread	Stirring rotor Ø~mm	Cone[s]	Price
6223283	06303045	Lenz-Laborglas GmbH & Co. KG	85	DURAN® tubing	1	GL25	10	NS45/40	110.29 EU
9197355	06303029	Lenz-Laborglas GmbH & Co. KG	70	DURAN® tubing	1	GL25	10	NS29/32	89.71 EU
9197356	06303645	Lenz-Laborglas GmbH & Co. KG	85	DURAN® tubing	1	GL32	16	NS45/40	251.61 EU

Stirrer Bearings, PTFE

Bohlender GmbH (8170)

Stirrer Bearings, PTFE
The sealing rings on these bearings ensure a perfect sealing. The ground joint no longer sticks, the danger of breaking is reduced and the cone can be removed easily from the socket. A special gasket made of PTFE and an FPM o-ring which is compressed by a GL screw ...

PN	Manuf. PN	Supplier	Cone~NS	For diam. stirring rod~mm	PK	Thread~GL	Overall length~mm	Price
6076532	C 424-13	Bohlender GmbH	29/32	8	1	25	74	67.06 EU
6087538	C 424-12	Bohlender GmbH	29/32	6	1	18	72	68.68 EU
6088058	C 424-14	Bohlender GmbH	29/32	10	1	25	72	63.67 EU
6232941	C 424-18	Bohlender GmbH	45/40	16	1	32	86	95.45 EU
6233200	C 424-05	Bohlender GmbH	19/26	8	1	25	65	59.41 EU
6253704	C 424-09	Bohlender GmbH	24/29	10	1	25	70	82.79 EU
6800985	C 424-16	Bohlender GmbH	45/40	10	1	25	80	85.29 EU
6900411	C 424-04	Bohlender GmbH	19/26	6	1	18	63	63.08 EU

Stirrer with stirrer bearings, DURAN tubing

Lenz-Laborglas GmbH & Co. KG (1013)

Stirrer with stirrer bearings, DURAN® tubing
Made of DURAN® tubing. For round bottom flasks 250 to 2000ml. Stirrer shaft, with PTFE stirrer blade and fixing screw. Seals vacuum stirring apparatus gas-tight to 10-3 mbar up to a permanent load of 800rpm.

PN	Manuf. PN	Supplier		Material	PK	Type	Length				For ground joint	Paddle diam.	Set consisting of	General	Price	Quantity	Status	Add
9198050	06310000	Lenz-Laborglas GmbH & Co. KG		DURAN® tubing	1						NS29/32				389.41 EU

Accessories for stirrer with stirrer bearings, DURAN tubing

Lenz-Laborglas GmbH & Co. KG (881625)

Accessories for stirrer with stirrer bearings, DURAN® tubing

PN	Manuf. PN	Supplier	Description	PK	Price
6204794	06310502	Lenz-Laborglas GmbH & Co. KG	Blade, PTFE, 70x24x3mm	1	24.55 EU
6204795	06310503	Lenz-Laborglas GmbH & Co. KG	Screw, PTFE	1	21.76 EU
6258683	06310504	Lenz-Laborglas GmbH & Co. KG	Closure, thread GL 25, cone NS 29/32	1	97.94 EU
6258684	06310506	Lenz-Laborglas GmbH & Co. KG	Pressure spring, stainless steel	1	16.47 EU
6258685	06310507	Lenz-Laborglas GmbH & Co. KG	Screw cap GL 25, PP	1	27.21 EU
6802957	06310501	Lenz-Laborglas GmbH & Co. KG	Shaft, Dia. 10 x L 400mm	1	69.55 EU
7616277	06310505	Lenz-Laborglas GmbH & Co. KG	Sealing, PTFE	1	168.39 EU

Glass Stirrer Bearings, PTFE

Bohlender GmbH (8174)

Glass Stirrer Bearings, PTFE
Combination of a borosilicate glass piece with ground joint, an interior PTFE shaft guide with integrated special gasket and a GL screw cap made of PPS. The special gasket made of PTFE and an FPM o-ring which is compressed by a GL screw cap provide a good sea...

PN	Manuf. PN	Supplier	Cone~NS	For diam. stirring rod~mm	PK	Thread~GL	Overall length~mm	Price
6088059	C 425-09	Bohlender GmbH	29/32	10	1	25	90	135.00 EU
6510032	C 425-08	Bohlender GmbH	29/32	8	1	25	90	135.88 EU
6901433	C 425-12	Bohlender GmbH	45/40	10	1	25	110	97.49 EU

KPG stirrer bearings, DURAN

DWK Life Sciences GmbH (Duran) (992)

KPG stirrer bearings, DURAN®
Interchangeable. Bearing surface ground, polished.

PN	Manuf. PN	Supplier	Length~mm	Material	PK	Type	Stirring rotor Ø~mm	Price
9197251	245004209	DWK Life Sciences GmbH (Duran)	80	Boro 3.3	1	HA 10	10	56.04 EU
9197252	245055107	DWK Life Sciences GmbH (Duran)	120	Boro 3.3	1	HB 10	10	61.33 EU
9197257	245065708	DWK Life Sciences GmbH (Duran)	150	Boro 3.3	1	HB 16	16	87.94 EU

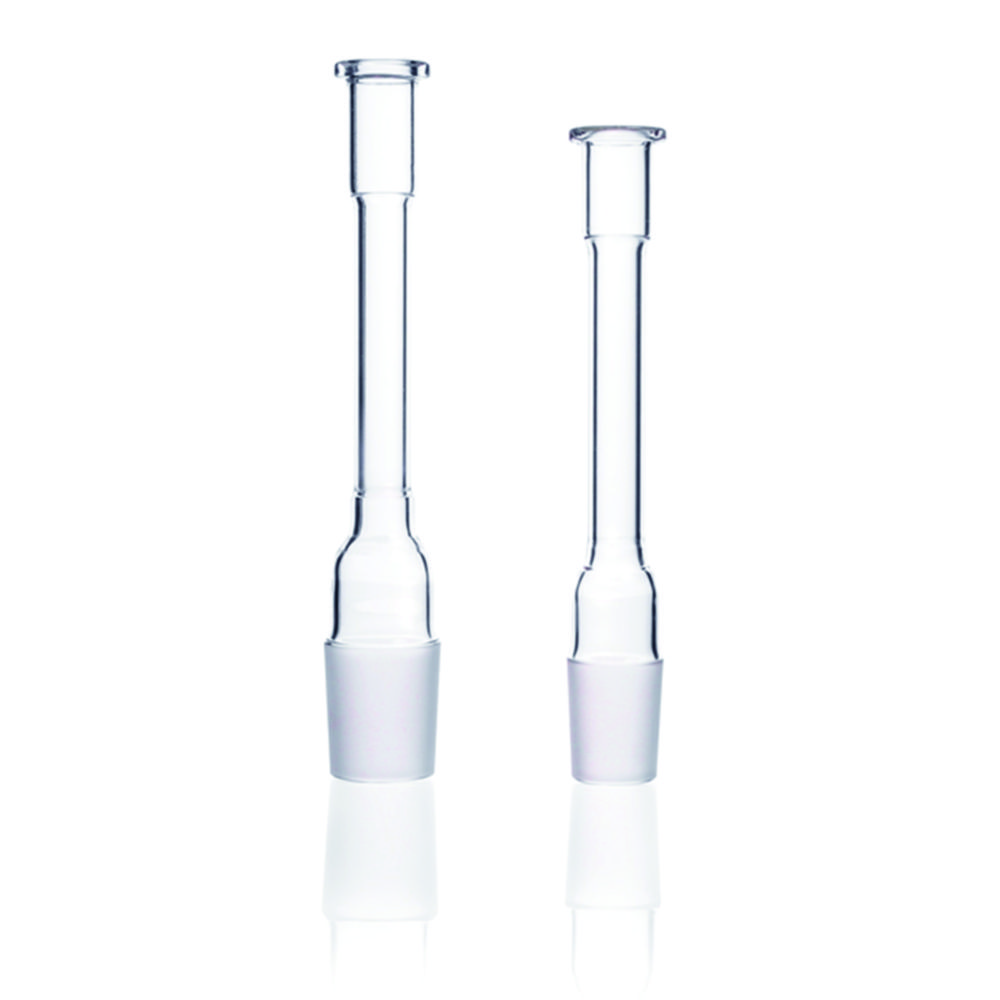

KPG stirrer bearings, DURAN, with NS cone

DWK Life Sciences GmbH (Duran) (846863)

KPG stirrer bearings, DURAN®, with NS cone
Interchangeable. Bearing surface ground, polished.

PN	Manuf. PN	Supplier	Length~mm	Material	PK	Type	Stirring rotor Ø~mm	Cone[s]	Price
9197253	245285603	DWK Life Sciences GmbH (Duran)	180	Boro 3.3	1	HQ 10	10	NS29/32	119.86 EU
9197254	245235504	DWK Life Sciences GmbH (Duran)	167	Boro 3.3	1	HP 10	10	NS24/29	114.85 EU
9197256	245405103	DWK Life Sciences GmbH (Duran)	131	Boro 3.3	1	HT 10	10	NS29/32	184.86 EU
9197258	245415404	DWK Life Sciences GmbH (Duran)	158	Boro 3.3	1	HT 16	16	NS29/32	207.80 EU

KPG stirrer shafts, DURAN, WG 10

DWK Life Sciences GmbH (Duran) (846880)

KPG stirrer shafts, DURAN®, WG 10
DURAN®. Interchangeable. Bearing surface ground and polished. Suitable to be used with flasks with an internal neck diameter of 60 mm or greater.

PN	Manuf. PN	Supplier		Length~mm	Material	PK	Type			For ground joint	Paddle diam.	Set consisting of	Shape stirring blades	General	Price	Quantity	Status	Add
9197321	245737401	DWK Life Sciences GmbH (Duran)		320	Boro 3.3	1									135.88 EU
9197322	245737701	DWK Life Sciences GmbH (Duran)		370	Boro 3.3	1									135.88 EU

KPG stirrer shafts, DURAN, WS 10

DWK Life Sciences GmbH (Duran) (967)

KPG stirrer shafts, DURAN®, WS 10
DURAN®. Interchangeable. Bearing surface ground and polished. Suitable to be used with flasks with an internal neck diameter of 25 mm or greater.

PN	Manuf. PN	Supplier	Length~mm	Material	PK	Price
9197311	245837408	DWK Life Sciences GmbH (Duran)	320	Boro 3.3	1	137.94 EU
9197312	245837708	DWK Life Sciences GmbH (Duran)	370	Boro 3.3	1	137.94 EU
9197313	245838404	DWK Life Sciences GmbH (Duran)	410	Boro 3.3	1	146.92 EU
9197314	245838601	DWK Life Sciences GmbH (Duran)	440	Boro 3.3	1	146.92 EU

Stirrer bearings with cooling jacket, DURAN tubing

Lenz-Laborglas GmbH & Co. KG (10021)

Stirrer bearings with cooling jacket, DURAN® tubing
Made of DURAN® tubing. Stirrer bearings with NS cone and cooling water connections (thread GL14), bearing surface ground and polished.

PN	Manuf. PN	Supplier		Material	PK	Thread	Type	Length			Stirring rotor Ø~mm	Cone[s]		General	Price	Quantity	Status	Add
6234956	06302529	Lenz-Laborglas GmbH & Co. KG		DURAN® tubing	1						10	NS29/32			267.51 EU
6234957	06302545	Lenz-Laborglas GmbH & Co. KG		DURAN® tubing	1						16	NS45/40			278.68 EU

Stirrer bearings with dynamic double seal

Lenz-Laborglas GmbH & Co. KG (10022)

Stirrer bearings with dynamic double seal
Stirrer bearings for applications under vacuum or under slight overpressure. With extended guidance for reduced vibrations and a longer lifetime. Material: borosilicate glass 3.3 (closure), PTFE (sealings)

PN	Manuf. PN	Supplier	Material	PK	Stirring rotor Ø~mm	Cone[s]	Price
7629417	06306004	Lenz-Laborglas GmbH & Co. KG	Boro 3.3	1	10	NS29/32	428.53 EU
9197359	06306006	Lenz-Laborglas GmbH & Co. KG	Boro 3.3	1	10	NS45/40	530.44 EU
9197363	06306204	Lenz-Laborglas GmbH & Co. KG	Boro 3.3	1	16	NS29/32	508.98 EU
9197364	06306206	Lenz-Laborglas GmbH & Co. KG	Boro 3.3	1	16	NS45/40	530.44 EU
