Accessories for autoclave Type AH/AHS

RT Espinal S.L. (Raypa) (496807)

Accessories for autoclave Type AH/AHS

PN	Manuf. PN	Supplier		Description	PK									General	Price	Quantity	Status	Add
6275516	PT-2-AH	RT Espinal S.L. (Raypa)		Temperature sensor PT-100 for AH-L /AHS-DRY/N (must be installed at the factory)	1										963.24 EU

Accessories for autoclaves, CertoClav

CertoClav Sterilizer GmbH (2688)

Accessories for autoclaves, CertoClav

PN	Manuf. PN	Supplier	Depth~mm	Description	For	Height~mm	Material	PK	Width~mm	Price
4668551	8582016	CertoClav Sterilizer GmbH		Exhaust hose	EL, Classic, MultiControl, MultiControl 2			1		70.59 EU
6266073	8582010	CertoClav Sterilizer GmbH		Exhaust air filter incl. exhaust container and exhaust hose	MultiControl, MultiControl 2			1		1042.65 EU
6272936	8500495	CertoClav Sterilizer GmbH		Service set 3 (Door seal, a safety valve and a bacteria filter)	VacPro 12-22			1		360.29 EU
6272938	8500482	CertoClav Sterilizer GmbH		Water distiller	EL, Classic, MultiControl, MultiControl 2, Connect, Cibus, Cibus Pro, Vac Pro			1		520.52 EU
6273378	8500503	CertoClav Sterilizer GmbH		Barcode scanner	VacPro 12-22, STE-45-T			1		183.82 EU
6288989	8500496	CertoClav Sterilizer GmbH		Thermal paper for log printer				1		36.92 EU
6311842	1300767	CertoClav Sterilizer GmbH	378	drip tray	VacPro 22L	16	stainless steel	1	167	429.41 EU
6311844	1300705	CertoClav Sterilizer GmbH		Bacteria filter	Vac Pro 12L, Vac Pro 22L			1		114.71 EU
6313654	8582020	CertoClav Sterilizer GmbH		Exhaust steam container with hose	EL, Classic, MultiControl, MultiControl 2			1		576.47 EU
6313655	8582011	CertoClav Sterilizer GmbH		Filter cartridge for exhaust air filter				1		550.00 EU
6313657	8500408	CertoClav Sterilizer GmbH		Wire basket with drip tray	Vac Pro 12			1		629.34 EU
6313658	8500410	CertoClav Sterilizer GmbH		Wire basket with drip tray	Vac Pro 22, Cibus Pro			1		832.06 EU
6313659	8500411	CertoClav Sterilizer GmbH		Wire basket with drip tray	Vac Pro 45			1		1301.47 EU
6313660	8500502	CertoClav Sterilizer GmbH		Label Printer	VacPro 12-22, STE-45-T			1		695.59 EU
6313994	8500507	CertoClav Sterilizer GmbH		Thermal direct labels for label printer				1		41.18 EU
6315174	1300768	CertoClav Sterilizer GmbH	511	drip tray	STE-45-T	16	stainless steel	1	222	474.19 EU
6323441	1300765	CertoClav Sterilizer GmbH	298	drip tray	VacPro 12L	16	stainless steel	1	142	373.53 EU
7910770	8500212	CertoClav Sterilizer GmbH		CertoCloud premium licence	Connect, VacPro 12-22, STE-45-T			1		547.06 EU
9842020	1310186	CertoClav Sterilizer GmbH		Service set 2 (Set gaskets)	Classic, MultiControl 2, Connect, VacPro 12-22, STE-45-T			1		144.12 EU
9842025	8583010	CertoClav Sterilizer GmbH		Wire basket with handle, Ø 23 x 17 cm	EL, MultiControl			1		363.24 EU
9842033	1300187	CertoClav Sterilizer GmbH		Log printer	MultiControl 2, Vac Pro 12-22, STE-45_T			1		729.56 EU
9842035	1300149	CertoClav Sterilizer GmbH		Wire basket with handle, Ø 25 x 22,5 cm	EL, MultiControl			1		363.24 EU
9842036	1250499	CertoClav Sterilizer GmbH		Service set 1 (Gasket silicon 24cm for lid, gasket vor sterilization valve, 2x gasket for manometer and steam release cock, steam release valve)	EL, MultiControl			1		107.35 EU
9842037	1300185	CertoClav Sterilizer GmbH		Media sensor, PT100	Connect			1		793.39 EU
9842038	8500210	CertoClav Sterilizer GmbH		PC software professional version	Connect, VacPro 12-22, STE-45-T			1		588.24 EU

Accessories for autoclaves, TLV series

RT Espinal S.L. (Raypa) (10391)

Accessories for autoclaves, TLV series

PN	Manuf. PN	Supplier		Description	PK									General	Price	Quantity	Status	Add
4675460	ECOPUR-500	RT Espinal S.L. (Raypa)		Water Purifier	1										3258.82 EU

Accessories for Steam steriliser Laboklav 25

SHP Steriltechnik AG (7271)

Accessories for Steam steriliser Laboklav 25

PN	Manuf. PN	Supplier	Description	PK	Price
9842453	30.4220.004.025	SHP Steriltechnik AG	Insert with 4 trays	1	1230.88 EU
9842454	30.4220.001.025	SHP Steriltechnik AG	Tray for insert	1	164.71 EU
9842455	30.0000.200.100	SHP Steriltechnik AG	Tray, closed, 425 x 178 x 30mm	1	550.00 EU

Accessories for vertical autoclaves, AES

RT Espinal S.L. (Raypa) (496847)

Accessories for vertical autoclaves, AES

PN	Manuf. PN	Supplier		Description	PK									General	Price	Quantity	Status	Add
6270011	PT-2	RT Espinal S.L. (Raypa)		Temperature sensor PT-100 for AES/AE-DRY (must be installed at the factory)	1										936.76 EU

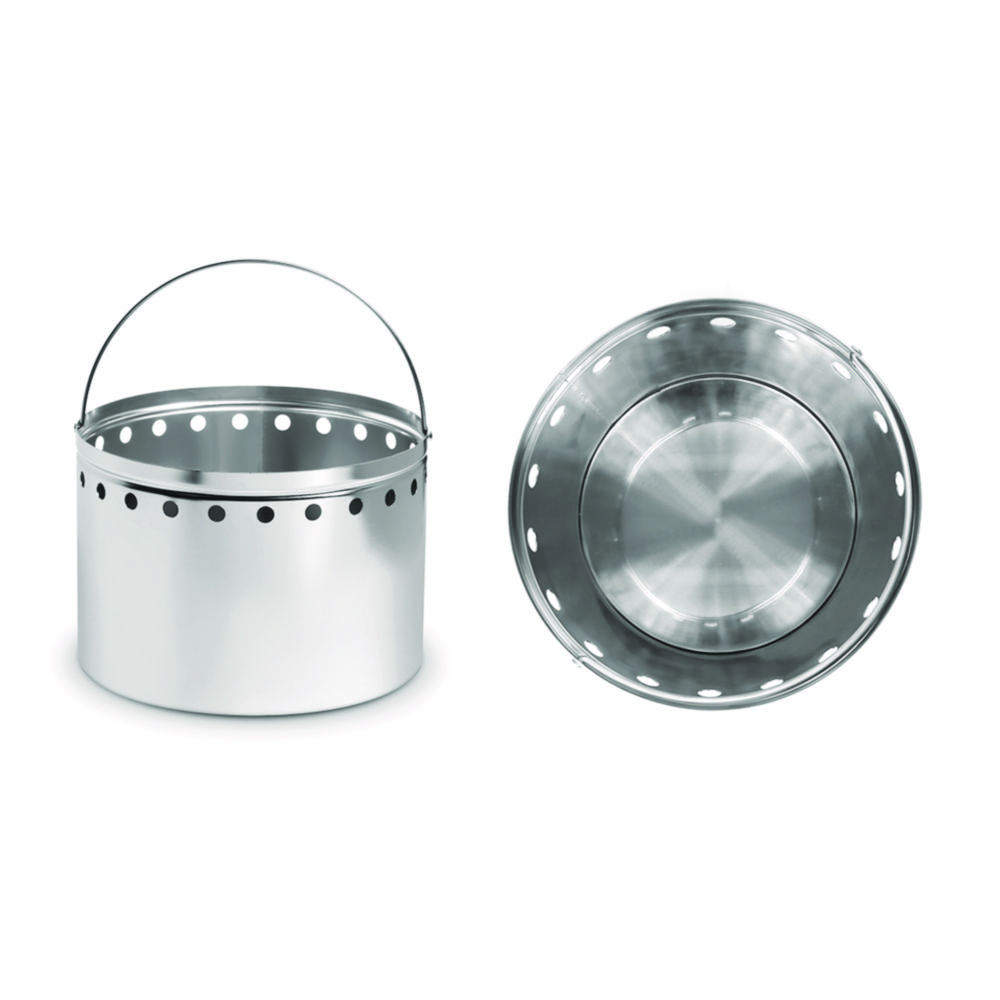

Accessory baskets for Digital vertical autoclaves, AES series

RT Espinal S.L. (Raypa) (3225)

Accessory baskets for Digital vertical autoclaves, AES series

PN	Manuf. PN	Supplier	Baskets per~autoclave	For	Height~mm	Ø~mm	PK	Type	Price
6261937	CV-75	RT Espinal S.L. (Raypa)	2 / 3	AES 75 - 110	280	370	1	Mesh basket	454.26 EU
6268955	CV-12	RT Espinal S.L. (Raypa)	1	AES 12	200	220	1	Mesh basket	270.59 EU
6270951	CV-28	RT Espinal S.L. (Raypa)	2 / 3	AES 28 - 50	200	270	1	Mesh basket	342.65 EU
9851876	CCI-28	RT Espinal S.L. (Raypa)	2 / 3	AES 28 - 50	200	280	1	Solid basket	411.04 EU
9851877	CCI-75	RT Espinal S.L. (Raypa)	2 / 3	AES 75 - 110	260	380	1	Solid basket	494.71 EU

Autoclave thermometer

Bel-Art Products (3419)

Autoclave thermometer
Durable bi-metal thermometer with a maximum registering pointer (red), moved up by the temperature measuring pointer, (black), to indicate the highest temperature achieved, and remains there until it is manually reset.
-Traceable to NIST Standard
-Threaded connection (1/4" NPT), screws directly into in-line processes, can be used to mount thermometer on included stand
-Waterproof and pressurised, withstands autoclave cycles and has a removable protective silicone sleeve to prevent moisture from making contact with the dial
-Constructed from 304 stainless steel with a glass lens; withstands pressure, high temperatures and rust
-Tested and inspected in the USA
-Includes a multi-language (English, French, German, Italian, Portuguese, and Spanish) Statement of Accuracy and instructions
-Available as an option with an individual Thermometer Calibration Report

PN	Manuf. PN	Supplier	Accuracy		Colour	Description	Material	PK	Type	Depth	Height	Length	Temperature	General	Price	Quantity	Status	Add
6287577	B61315-0000	Bel-Art Products	±2 °C				stainless steel	1					-20 ... 150 °C		157.94 EU

Biological Indicators Attest for Control of Steam Autoclaves

3M Deutschland GmbH (637)

Biological Indicators Attest™ for Control of Steam Autoclaves
Biological control involves the use of indicators, which check whether all microorganisms were killed during the sterilisation process. The bio-indicators are unique, as they directly indicate how many microbial spores have actually been killed. Thanks to the reliability and quality of the information, the regular use of a bio-indicator can lead to an improvement in the performance of the sterilisation process and thus to better results.

Features:
-No external laboratory is required for performance evaluation
-Easy handling
-Reasonable to use after repairs or maintenance of autoclaves

Application:
-Program 3.5 minutes, holding time at 121 °C or 134 °C
-After sterilisation, break the vial in order to bring the nutrient solution into contact with the spore strip
-Results in 48 hours
-Meets EN ISO 11138 standard

PN	Manuf. PN	Supplier		PK	Type									General	Price	Quantity	Status	Add
6089578	7000002535	3M Deutschland GmbH		100	Biological Indicators Attest™ for steam autoclaves, brown cap										578.53 EU
6280367	7000053442	3M Deutschland GmbH		100	Biological Indicators Attest™ for steam autoclaves, blue cap										656.47 EU

Digital horizontal autoclave Type AH

RT Espinal S.L. (Raypa) (10009)

Digital horizontal autoclave Type AH
This autoclave is microprocessor controlled and monitored with 10 sterilisation programmes of which 4 are fixed and 6 are freely selectable and has bacteriological filters included by default.
-Operating temperature range 100 °C to 134 °C
-On request, also available with B Class
-RS 232 interface
-Fully automatic functions
-With water reservoir, pre-vacuum and drying
-Case and lid shrouding are AISI 304 stainless steel
-Sterilisation chamber, lid and sealing system are AISI 316 stainless steel
-Electrical heating with protected heating elements
-Safety pressure valve
-Safety thermostat
-Automatic steam controlled by Touch Screen microprocessor
-Manual valves for emptying the sterilisation chamber and for draining steam
-Equipped with mesh stand on the chamber base and trays
-Supply requirements: 230 V 16 A single phase

PN	Manuf. PN	Supplier	Capacity~L	Chamber diam. x depth~mm	Height~mm	Length~mm	PK	Power~W	Type	Width~mm	Price
6267579	AHS-50-DRY	RT Espinal S.L. (Raypa)	50	400 x 400	630	780	1	2000	AHS-50 DRY	760	14669.86 EU
9851888	AHS-75-DRY	RT Espinal S.L. (Raypa)	75	400 x 600	630	980	1	3200	AHS-75 DRY	760	16227.21 EU
9851898	AH-21-L	RT Espinal S.L. (Raypa)	21	250 x 430	425	590	1	2000	AH-21 L	680	9404.41 EU

Digital vertical autoclaves, AES series

RT Espinal S.L. (Raypa) (10008)

Digital vertical autoclaves, AES series
These autoclaves are microprocessor controlled and monitored with 10 sterilisation programmes of which 4 are fixed and 6 are freely programmable.
-Operating temperature range 100 °C to 134 °C
-On request also available with with vacuum pump and steam generator
-Agar modus (40 °C to 80 °C)
-RS 232 interface
-Timer
-Programmable auto-start (24 h)
-Fully automatic functions
-Case and lid shrouding are AISI 304 stainless steel
-Sterilisation chamber, lid and sealing system are AISI 316 stainless steel
-Electrical heating with protected heating elements in the interior of the chamber
-Safety pressure valve
-Safety thermostat
-Automatic steam controlled by microprocessor
-Manual valves for emptying the sterilisation chamber and for draining steam
-Supply requirements:
AES-12 and AES-75: 230 V 16 A single phase
AES-110 and AES-150: 400 V + Neutral (3-phase)

PN	Manuf. PN	Supplier	Capacity~L	Chamber diam. x depth~mm	Height~mm	Length~mm	PK	Power~W	Type	Width~mm	Price
6267578	AES-50	RT Espinal S.L. (Raypa)	50	300 x 700	1300	560	1	3200	AES-50	510	10757.35 EU
9851893	AES-12	RT Espinal S.L. (Raypa)	12	250 x 270	650	500	1	1000	AES-12	490	7075.74 EU
9851894	AES-28	RT Espinal S.L. (Raypa)	28	300 x 400	1120	560	1	2000	AES-28	510	9289.71 EU
9851895	AES-75	RT Espinal S.L. (Raypa)	75	400 x 600	1190	730	1	3200	AES-75	620	12007.35 EU
9851896	AES-110	RT Espinal S.L. (Raypa)	110	400 x 850	1440	730	1	4500	AES-110	620	16739.71 EU
9851897	AES-150	RT Espinal S.L. (Raypa)	150	500 x 750	1400	850	1	6000	AES-150	760	23960.29 EU

Laboratory autoclaves CertoClav Connect

CertoClav Sterilizer GmbH (2766)

Laboratory autoclaves CertoClav Connect
Its versatility and compact construction make autoclaves especially interesting for small labs or they can be used as an optimal addition to a large autoclave.

All models: Low-maintenance. No water connection required. Compliant with 2014/35/EU Low Voltage Directive, 2014/30/EU EMV Directive, 2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Vertical models: Class N steam sterilisers. Venting procedure: free steam flow process or fractional flow procedure. A heater is integrated in the bottom of the chamber, but it is not exposed. Therefore, it cannot calcify. The autoclaves are easy to transport and location independent. All you need is a power supply and a mixture of tap water and demineralised water. Safeguarded by a multiple safety system. In aluminum models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and the overpressure safety cavity. In stainless steel models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and a two-bimetal safeguard to prevent overheating of the device.
The fully automated, vertical laboratory autoclave is suitable for extended/ long- term cycles, material tests, HAST Test, Pressure Cooker Test, ICP-TM 650, culture media preparation, sterilisation of waste, unpackaged solids without hollow bodies, liquids, bottles, instruments, synthetic materials and rubber. It is operated with a 7-inch, robust, high-resolution touch screen. All operating steps are explained with videos directly on the CertoTouch. Individual sterilisation programs, which include several time and temperature steps can also be created directly on the CertoTouch. Once the autoclave is connected to the Internet via WLAN, it can be connected to the CertoCloud, an automatic process documentation. With this automatic documentation, the autoclave meets all GLP requirements.

-Automatic venting in fractional flow process
-Electric exhaust vapour valve
-Electronic safety lock
-Time and temperature individually editable
-Ethernet, LAN, WiFi
-Heating integrated in the floor

Scope of supply: Autoclave, CertoTouch screen, instrument tray, PT100 media sensor, power cable, CertoCloud basic license

PN	Manuf. PN	Supplier		Ext. height~mm	PK	Type	Weight~kg	Temperature	Heating capacity~W	Plug type	Nominal capacity~l			General	Price	Quantity	Status	Add
9842031	8510176	CertoClav Sterilizer GmbH		540	1		16	20 ... 140 °C	1300		18				7444.48 EU

Laboratory autoclaves CertoClav MultiControl 2

CertoClav Sterilizer GmbH (2764)

Laboratory autoclaves CertoClav MultiControl 2
Its versatility and compact construction make autoclaves especially interesting for small labs or they can be used as an optimal addition to a large autoclave.

All models: Low-maintenance. No water connection required. Compliant with 2014/35/EU Low Voltage Directive, 2014/30/EU EMV Directive, 2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Vertical models: Class N steam sterilisers. Venting procedure: free steam flow process or fractional flow procedure. A heater is integrated in the bottom of the chamber, but it is not exposed. Therefore, it cannot calcify. The autoclaves are easy to transport and location independent. All you need is a power supply and a mixture of tap water and demineralised water. Safeguarded by a multiple safety system. In aluminum models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and the overpressure safety cavity. In stainless steel models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and a two-bimetal safeguard to prevent overheating of the device.
The PT100 sensor-controlled, vertical laboratory autoclave is suitable for extended/ long- term cycles, material tests, HAST test, Pressure Cooker Test, ICP-TM 650, culture media preparation, sterilisation of waste and biological hazardous substances (S2), unpackaged solids without hollow bodies, liquids, bottles, instruments, synthetic materials and rubber.
With the control unit only programs that include just one time and one temperature step can be set. For programs that include several time and temperature steps, the PC software professional version is required.

-Microprocessor-controlled
-Automatic venting in fractional flow process
-Electronic process control
-Automated error detection
-Programmable from 1 minute to 30 days and from room temperature to 140 °C
-Control unit with LCD display
-USB port
-Printer port (RS232) for printing sterilisation protocols
-Heating integrated in the base

Scope of supply: Autoclave, MC2 control unit including instrument tray, power cable, PC software basic version

PN	Manuf. PN	Supplier		Ext. height~mm	Max. pressure~bar	PK	Type	Weight~kg	Temperature	Heating capacity~W	Plug type	Nominal capacity~l		General	Price	Quantity	Status	Add
9842030	8510175	CertoClav Sterilizer GmbH		535	2.7	1		9.5	20 ... 140 °C	1300		18			5363.31 EU

Laboratory autoclaves D-line

biomedis Vertriebsges. mbH (9618)

PN	Manuf. PN	Supplier	Capacity~litres	Chamber diam. x depth~mm	Dimensions (W x D x H)~mm	PK	Type	Price
6285588	A305011	biomedis Vertriebsges. mbH	28	280 x 400	530 x 630 x 440	1	2840 EL-D	16852.94 EU
6285590	A305041	biomedis Vertriebsges. mbH	65	380 x 500	720 x 765 x 540	1	3850 EL-D	30853.68 EU
6285591	A305051	biomedis Vertriebsges. mbH	85	380 x 690	720 x 940 x 540	1	3870 EL-D	28352.94 EU
6285593	A305071	biomedis Vertriebsges. mbH	160	500 x 750	860 x 1120 x 740	1	5075 EL-D	37852.94 EU
9842810	A305075	biomedis Vertriebsges. mbH	160	500 x 750	870 x 1175 x 1578	1	5075 EL-CGD	66510.29 EU

Smart vertical autoclaves, TLV series

RT Espinal S.L. (Raypa) (10351)

Smart vertical autoclaves, TLV series
These autoclaves are microprocessor controlled and monitored with 50 sterilisation programmes and comes with bacteriological filters included by default.

-Operating temperature range 100 °C to 140 °C
-With with vacuum pump and steam generator
-Maximum working pressure 2.6 bar (37psi)
-RS 232 interface, USB and WiFi
-Timer
-Fully automatic functions
-PT 100 temperature sensor
-Case and lid shrouding, stainless steel
-Sterilisation chamber, lid and sealing system, stainless steel
-Electrical heating with protected heating elements in the interior of the chamber
-Safety pressure valve
-Safety thermostat
-Automatic steam controlled by microprocessor
-Pressure gauge
-4 casters (with brakes in two of them
-7" capacitive colour touch screen
-Power Supply: 230V 50/60 Hz
-Remote maintenance and diagnosis via cloud
-Remote operation monitoring via cloud

TLV: Basic
TLV-FA: with Air Ballast and Fast Cooling
TLV-PD: with Super Drying

PN	Manuf. PN	Supplier	Capacity~L	Chamber diam. x depth~mm	Dimensions (W x D x H)~mm	PK	Power~W	Type	Weight~kg	Price
4672185	TLV-50FA	RT Espinal S.L. (Raypa)	58	400 x 450	610 x 870 x 1000	1	3600	TLV-50FA	140	31586.76 EU
4672186	TLV-75FA	RT Espinal S.L. (Raypa)	83	400 x 650	610 x 870 x 1080	1	3600	TLV-75FA	150	34804.41 EU
4672188	TLV-75PD	RT Espinal S.L. (Raypa)	83	400 x 650	610 x 870 x 1080	1	3600	TLV-75PD	150	39289.71 EU

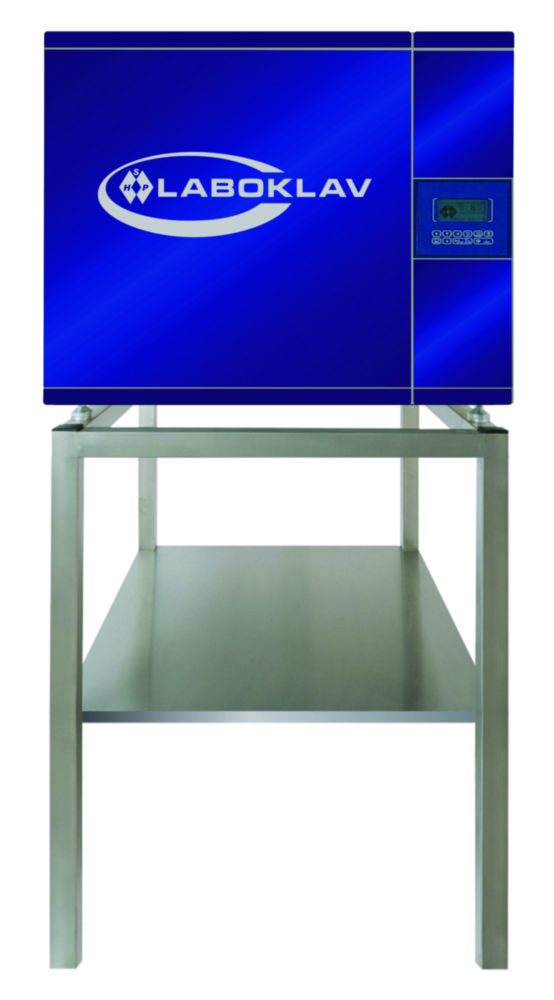

Steam steriliser Laboklav 25

SHP Steriltechnik AG (4570)

Steam steriliser Laboklav 25
The compact and space saving table top units of the Laboklav 25 series provides you most applications of bigger table top units:
-sterilisation of liquids in open and lightly closed vessels, also with air re-cooling system
-sterilisation of instruments, also with pre-vacuum and drying vacuum
-waste sterilisation at 134 °C
-optional exhaust air filtration system
-volume of chamber: 25 l
-max. permissible pressure: 2.8 bar
-sterilising temperature: 98 to 138 °C

A unique design meets innovative technical solutions:
-optimal use of chamber volume - sufficient for 5 x 1 l standard bottle incl. cap
-lid made of temperature resistant safety glass and lid cover made of safety glass
-LED front lightning to visualise cycle progress
-motor driven and self-checking closing mechanism
-flexible temperature reference sensor PT100 as serial function
-Thermolocking device according to IEC 61010-2-40
Chamber volume/Chamber size 25L useable , ? 265mm x 465mm
Chamber illumination by white LED light
Load: e.g. 5 x 1L bottle
up to 5kg instruments
Dimensions (W x D x H):
Space requirement on the table:
Weight: 440mm x 540mm x 660mm
440mm x 550mm + 110 for door overhang
approx. 65kg
Max permissible pressure (PS):
Max. permissible temperature (TS): 2.8 bar
138°C
Chamber material: Stainless steel, chamber lid made from temperature proof safety glass
Housing: Powder coated, red; Front cover from transparent safety glass; Process illumination (LED) in Blue, Red and Green
Steam generation: Integrated steam generator with dry heating elements
Heating power:
Electrical connection: 2kW
230V ~ 50 Hz, 16A
Lid closing system: Motorized closing system
Sterilisation temperature:
Feed water supply: 98 to 135 °C, adjustable
Integrated feed water tank with manual filling
Exhaust steam condensing: Included, discharge into integrated condensate tank
Thermo locking acc. to IEC 61010-2-43 (TRB 402): Integrated with flexible reference temperature sensor opening, temperature adjustable
Control: Micro processor with LCD Display; Code protected access to programming levels; Serial interface RS 485; Internal storage chip to store cycle data of approx. 150 cycles, visualisation and print out at a later stage is possible
Programms: Up to 10 programms, depending on the integrated option, all programmes can be individualized
Norms and regulations: Manufactured in Germany in full compliance with the relevant norms and regulations. Serial approval by German TUV, CE marking according Pressure Device Directive (Commissioned by factory service at an additional cost)

PN	Manuf. PN	Supplier	Description	PK	Type	Price
9842440	21.0025.001.000	SHP Steriltechnik AG	Basic unit	1	Laboklav 25 B	12286.76 EU
9842441	21.0025.001.001	SHP Steriltechnik AG	with standard integrated rapid cooling system (air-cooling)	1	Laboklav 25 M	14411.76 EU
9842442	21.0025.001.004	SHP Steriltechnik AG	with integrated vacuum system	1	Laboklav 25 V	17051.47 EU
9842443	21.0025.001.005	SHP Steriltechnik AG	with standard integrated rapid cooling system as well as integrated vacuum system	1	Laboklav 25 MV	18834.56 EU

Steam steriliser LABOKLAV 55 - 195

SHP Steriltechnik AG (4612)

Steam steriliser LABOKLAV 55 - 195
Steam sterilisers are availible in wide range of chamber sizes between 55 l and 195 l, universal installation options as a free-standing or tabletop unit and numerous configurations provide individual solutions meeting your specific requirements. Typical areas of application for our units include all microbiological laboratories in research institutions, universities, quality controls in the pharmaceutical and food industries as well as waste sterilization, for example in the field of medical diagnosis. Laboklav series autoclaves are characterized by their reliability and quality. We manufacture our products exclusively in Germany to high and continuously monitored quality standards. Our units are T?V-certified and approved for series production. They comply with the following standards:
-Pressure Equipment Directive 97/23/EU
-DIN 58950: Sterilization - Steam sterilizers for pharmaceutical products
-DIN 58951: Sterilization - Steam sterilizers for laboratory use

No accessories included, please inform us in your order if a horizontal or vertical device is required.
Specifications 55 | 100 | 135 | 160 | 195
Chamber volume: 55 l | 100 l | 135 l | 160 l | 195 l
Chamber dimensions (Diam. x D): 410 x 460 mm | 410 x 760 mm | 500 x 660 mm | 500 x 760 mm | 500 x 990 mm
Outer dimensions of free-standing unit (W x H x D): 740 x 765 x 600 mm | 740 x 1065 x 600 mm | 840 x 965 x 700 mm | 840 x 1065 x 700 mm | 840 x 1215 x 700 mm
Outer dimensions of tabletop unit (W x H x D): 740 x 600 x 765 mm | 740 x 600 x 1065 mm | 840 x 700 x 965 mm | 840 x 700 x 1065 mm | 840 x 700 x 1215 mm
Weight: 115 kg | 185 kg | 195 kg | 210 kg | 245 kg
Max. allowable pressure (PS): 2,8 bar
Max. allowable temperature (TS): 143 °C
Heating power of steam generator: 3-6 kW, selectable | 6 kW, selectable | 6-10 kW, selectable | 6-10 kW, selectable | 10 kW
Electrical connection: 3N 400 V ~, 50 Hz, 16 A
Sterilization temperature: 98 ... 135 °C, adjustable

PN	Manuf. PN	Supplier	Description	PK	Type	Price
6229215	21.0100.001.005	SHP Steriltechnik AG	with integrated rapid recooling and vacuum system	1	LABOKLAV 100 MV	35955.88 EU
6231002	21.0135.001.002	SHP Steriltechnik AG	with integrated rapid recooling and counter pressure	1	LABOKLAV 135 MS	35514.71 EU
6231003	21.0160.001.002	SHP Steriltechnik AG	with integrated rapid recooling and counter pressure	1	LABOKLAV 160 MS	38455.88 EU
6236364	21.0195.001.005	SHP Steriltechnik AG	with integrated rapid recooling and vacuum system	1	LABOKLAV 195 MV	46250.00 EU
6239039	21.0100.001.001	SHP Steriltechnik AG	with integrated rapid recooling	1	LABOKLAV 100 M	30367.65 EU
6241027	21.0055.001.005	SHP Steriltechnik AG	with integrated rapid recooling and vacuum system	1	LABOKLAV 55 MV	30073.53 EU
6241767	21.0100.001.000	SHP Steriltechnik AG	Basic unit	1	LABOKLAV 100 B	29117.65 EU
6242930	21.0135.001.001	SHP Steriltechnik AG	with integrated rapid recooling	1	LABOKLAV 135 M	34779.41 EU
6285584	21.0160.001.005	SHP Steriltechnik AG	with integrated rapid recooling and vacuum system	1	LABOKLAV 160 MV	43308.82 EU
7617827	21.0135.001.007	SHP Steriltechnik AG	with integrated rapid recooling, counter pressure, fan and vacuum system	1	LABOKLAV 135 MSLV	42279.41 EU
7623723	21.0100.001.006	SHP Steriltechnik AG	with integrated rapid recooling, counter pressure and vacuum system	1	LABOKLAV 100 MSV	36691.18 EU
7624099	21.0055.001.004	SHP Steriltechnik AG	with vacuum system	1	LABOKLAV 55 V	27352.94 EU
7638722	21.0100.001.004	SHP Steriltechnik AG	with vacuum system	1	LABOKLAV 100 V	33235.29 EU
7653520	21.0135.001.005	SHP Steriltechnik AG	with integrated rapid recooling and vacuum system	1	LABOKLAV 135 MV	40367.65 EU
7930145	21.0055.001.001	SHP Steriltechnik AG	with integrated rapid recooling	1	LABOKLAV 55 M	24485.29 EU
7930304	21.0195.001.004	SHP Steriltechnik AG	with vacuum system	1	LABOKLAV 195 V	43529.41 EU

Steam sterilizers Laboklav 80

SHP Steriltechnik AG (7303)

Steam sterilizers Laboklav 80
Laboklav 80 series provides an extensive and diversified range of equipment variants - customized for you laboratory application. The focus is on safe and reproducible processes, safety for the user and the environment as well as a comfortable operation of the autoclave. All steam steriliser are:
-suitable for the liquid sterilisation in open and lightly closed vessels, solid sterilisation and waste sterilisation at 134°C
-upgradable for high demanding laboratory applications
-volume of chamber: 80l
-max. permissible pressure: 2.8bar
-sterilising temperature: 98°C to 138°C
-motor driven and self-checking closing mechanism
-flexible temperature reference sensor PT100 as serial function
-Thermolocking device according to IEC 61010-2-40

A unique installation concept for varied installation possibilities:
-The autoclave can be installed as vertical or as horizontal unit - without additional costs!
-The lid can optionally be opened to the right, to the left or backwards.
-All units can be delivered in three colours: red, green or blue.

Numerous equipment variants:
-vacuum system for difficult to de-aerate solids incl. fractionated pre-vacuum and drying vacuum
-fast re-cooling system for liquid sterilisation using a double jacket, without rejection of demineralised water
-upgrade of the re-cooling system with counter pressure and fan possible - for further reduction of batch times
-optional exhaust air filtration system

PN	Manuf. PN	Supplier	Description	PK	Type	Price
9842460	21.0080.001.000	SHP Steriltechnik AG	Basic unit	1	Laboklav 80 B	24705.88 EU
9842461	21.0080.001.001	SHP Steriltechnik AG	with integrated rapid cooling system	1	Laboklav 80 M	27426.47 EU
9842462	21.0080.001.002	SHP Steriltechnik AG	with integrated rapid cooling system and ballasting pressure	1	Laboklav 80 MS	28161.76 EU
9842463	21.0080.001.003	SHP Steriltechnik AG	with integrated rapid cooling system and fan assistance	1	Laboklav 80 MSL	29338.24 EU
9842464	21.0080.001.004	SHP Steriltechnik AG	with integrated vapour vacuum pump for fractionated pre-vacuum and drying function	1	Laboklav 80 V	30367.65 EU
9842465	21.0080.001.005	SHP Steriltechnik AG	with option M and V	1	Laboklav 80 MV	33014.71 EU
9842466	21.0080.001.006	SHP Steriltechnik AG	with option MS and V	1	Laboklav 80 MSV	33750.00 EU
9842467	21.0080.001.007	SHP Steriltechnik AG	with option MSL and VM	1	Laboklav 80 MSLV	34926.47 EU

Tabletop autoclaves CertoClav Classic

CertoClav Sterilizer GmbH (2763)

Tabletop autoclaves CertoClav Classic
Its versatility and compact construction make autoclaves especially interesting for small labs or they can be used as an optimal addition to a large autoclave.

All models: Low-maintenance. No water connection required. Compliant with 2014/35/EU Low Voltage Directive, 2014/30/EU EMV Directive, 2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Vertical models: Class N steam sterilisers. Venting procedure: free steam flow process or fractional flow procedure. A heater is integrated in the bottom of the chamber, but it is not exposed. Therefore, it cannot calcify. The autoclaves are easy to transport and location independent. All you need is a power supply and a mixture of tap water and demineralised water. Safeguarded by a multiple safety system. In aluminum models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and the overpressure safety cavity. In stainless steel models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and a two-bimetal safeguard to prevent overheating of the device.
CertoClav Classic is the result of further development of the EL, but made of corrosion-resistant, electropolished stainless steel. Suitable for sterilisation of unpackaged solids without hollow bodies, liquids, bottles, instruments, synthetic materials, food preservation, culture media preparation and waste. A timer is integrated.

Scope of suppy: Autoclav, stable instrument panel with 3 feeds, minimum water level indicator, power cable
Specifications
Chamber diameter: 260 mm
Chamber depth: 350 mm
Air evacuation: Free steam flow process
Chamber material: Stainless steel
Operating pressure: 2.7 bar
Heating capacity: 1300 W
Power supply: 230 V ±10 % / 50 - 60 Hz

PN	Manuf. PN	Supplier	Capacity~L	Ext. height~mm	PK	Type	Weight~kg	Working Temp. range~°C	Temperature	Heating capacity~W	Plug type	Nominal capacity~l		General	Price	Quantity	Status	Add
9842028	8510174	CertoClav Sterilizer GmbH		605	2.7	1	Classic	8.8		1300		18			4390.59 EU
9842029	8510184	CertoClav Sterilizer GmbH	18		1	Classic	8.8	115 / 121							4981.20 EU

Tabletop autoclaves CertoClav EL

CertoClav Sterilizer GmbH (2687)

Tabletop autoclaves CertoClav EL
Its versatility and compact construction make autoclaves especially interesting for small labs or they can be used as an optimal addition to a large autoclave.

All models: Low-maintenance. No water connection required. Compliant with 2014/35/EU Low Voltage Directive, 2014/30/EU EMV Directive, 2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Vertical models: Class N steam sterilisers. Venting procedure: free steam flow process or fractional flow procedure. A heater is integrated in the bottom of the chamber, but it is not exposed. Therefore, it cannot calcify. The autoclaves are easy to transport and location independent. All you need is a power supply and a mixture of tap water and demineralised water. Safeguarded by a multiple safety system. In aluminum models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and the overpressure safety cavity. In stainless steel models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and a two-bimetal safeguard to prevent overheating of the device.
The vertical laboratory autoclave is suitable for sterilisation of unpackaged solids without hollow bodies, liquids, bottles, instruments, synthetic materials, food preservation, culture media preparation and waste. A precision thermometer, a control valve, and a precision manometer with drag indicator provide precise processes and accurate results for all applications. The autoclave is available in two versions, each with two temperature levels. These temperature settings are controlled via the control valve on the lid. These valves are not interchangeable, because the thermostat of the device is harmonized with and calibrated to the respective valve.

-Robust construction
-Thermostat controlled
-High heating power
-Venting by flow procedure
-Heating integrated in the base

Scope of supply: Autoclave, instrument tray, power cable

PN	Manuf. PN	Supplier	Ext. height~mm	Max. pressure~bar	PK	Type	Weight~kg	Heating capacity~W	Nominal capacity~l	Price
6232206	8501318A	CertoClav Sterilizer GmbH	665	2.7	1	EL 18	7.6	1900	18	4688.38 EU
6314151	8501312A	CertoClav Sterilizer GmbH	505	2.7	1	EL 12	6.2	1900	12	3873.46 EU
9842013	8501312	CertoClav Sterilizer GmbH	505	2.7	1	EL 12	6.2	1900	12	3875.52 EU
9842014	8501318	CertoClav Sterilizer GmbH	665	2.7	1	EL 18	7.6	1900	18	4686.76 EU

Tabletop autoclaves CertoClav MultiControl

CertoClav Sterilizer GmbH (4385)

Tabletop autoclaves CertoClav MultiControl
Its versatility and compact construction make autoclaves especially interesting for small labs or they can be used as an optimal addition to a large autoclave.

All models: Low-maintenance. No water connection required. Compliant with 2014/35/EU Low Voltage Directive, 2014/30/EU EMV Directive, 2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Vertical models: Class N steam sterilisers. Venting procedure: free steam flow process or fractional flow procedure. A heater is integrated in the bottom of the chamber, but it is not exposed. Therefore, it cannot calcify. The autoclaves are easy to transport and location independent. All you need is a power supply and a mixture of tap water and demineralised water. Safeguarded by a multiple safety system. In aluminum models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and the overpressure safety cavity. In stainless steel models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and a two-bimetal safeguard to prevent overheating of the device.
The PT100 sensor-controlled, vertical laboratory autoclave is suitable for extended/ long- term cycles, material tests, HAST test, Pressure Cooker Test, ICP-TM 650, culture media preparation, sterilisation of waste, hazardous biological substances (S2), unpackaged solids without hollow bodies, liquids, bottles, instruments, synthetic materials and rubber.
Without connecting a PC, the control unit can only be used to set programs that include just one time and one temperature step. For programs that include several time and temperature steps, the PC software professional version is required.

-Microprocessor-controlled
-Venting by fractional flow procedure
-Electronic process control
-Programmable from 1 minute to 30 days and from room temperature to 140 °C
-Control unit with LCD display
-USB port
-Printer port (RS232) for printing sterilisation protocols
-Heating integrated in the base

Scope of supply: Autoclave, MC2 control unit, instrument tray, power cable, PC software basic version

PN	Manuf. PN	Supplier		Ext. height~mm	Max. pressure~bar	PK	Type	Weight~kg	Temperature	Heating capacity~W	Plug type	Nominal capacity~l		General	Price	Quantity	Status	Add
9842018	8502312A	CertoClav Sterilizer GmbH		480	2.7	1	MultiControl	6.6	20 ... 140 °C	1900		12			6433.60 EU

Accessories for autoclave Type AH/AHS

RT Espinal S.L. (Raypa) (496807)

Accessories for autoclaves, CertoClav

CertoClav Sterilizer GmbH (2688)

Accessories for autoclaves, TLV series

RT Espinal S.L. (Raypa) (10391)

Accessories for Steam steriliser Laboklav 25

SHP Steriltechnik AG (7271)

Accessories for vertical autoclaves, AES

RT Espinal S.L. (Raypa) (496847)

Accessory baskets for Digital vertical autoclaves, AES series

RT Espinal S.L. (Raypa) (3225)

Autoclave thermometer

Bel-Art Products (3419)

Biological Indicators Attest for Control of Steam Autoclaves

3M Deutschland GmbH (637)

Digital horizontal autoclave Type AH

RT Espinal S.L. (Raypa) (10009)

Digital vertical autoclaves, AES series

RT Espinal S.L. (Raypa) (10008)

Laboratory autoclaves CertoClav Connect

CertoClav Sterilizer GmbH (2766)

Laboratory autoclaves CertoClav MultiControl 2

CertoClav Sterilizer GmbH (2764)

Laboratory autoclaves D-line

biomedis Vertriebsges. mbH (9618)

Smart vertical autoclaves, TLV series

RT Espinal S.L. (Raypa) (10351)

Steam steriliser Laboklav 25

SHP Steriltechnik AG (4570)

Steam steriliser LABOKLAV 55 - 195

SHP Steriltechnik AG (4612)

Steam sterilizers Laboklav 80

SHP Steriltechnik AG (7303)

Tabletop autoclaves CertoClav Classic

CertoClav Sterilizer GmbH (2763)

Tabletop autoclaves CertoClav EL

CertoClav Sterilizer GmbH (2687)

Tabletop autoclaves CertoClav MultiControl

CertoClav Sterilizer GmbH (4385)

Biological Indicators Attest for Control of Steam Autoclaves
