BDL

Data transfer software AFH FAST for Digital force gauge

Kern & Sohn GmbH (2903)

Data transfer software AFH FAST for Digital force gauge
High speed data transfer software for force-time-measurements.
Force measurements can be conducted over a very short period, i.e. seconds. A high speed data transfer to a PC is possible (with a transfer of up to 20 data sets per second) when combining the AFH FAST with force gauge. AFH FAST shows the results in a Force-Time-Graph and can export the data to MS Excel. Compatible with Microsoft Windows 7/8.1/10 operating systems. Incl. interface cable

PN	Manuf. PN	Supplier		Description	For	Material	PK	Type						General	Price	Quantity	Status	Add
6270967	AFH FAST	Kern & Sohn GmbH			FH, FC, FL		1	AFH FAST							169.12 EU

Digital force gauge FC

Kern & Sohn GmbH (704226)

Digital force gauge FC
The compact force gauge for tensile and compressive force measurements can be mounted on all SAUTER test stands.

-Turnable display with backlight
-Peak Hold function
-Metal housing
-Capacity display: A bar lights up to show how much of the measuring range is still available
-Measuring with tolerance range (limit-setting function)
-Acoustic and optical signal when the measuring range is exceeded
-Internal memory for up to 1000 measurements
-Data interface: USB, RS-232
-Rechargeable battery pack integrated

Scope of supply:
Force gauge, hard carrying case, standard attachments, extension rod 90 mm

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Readability	Weight~g	Width~mm	Price
4691149	FC 10	Kern & Sohn GmbH	73	34	1	0,01 N	950	145	620.07 EU
4691150	FC 100	Kern & Sohn GmbH	73	34	1	0,1 N	950	145	618.89 EU
4691151	FC 1K	Kern & Sohn GmbH	73	34	1	1 N	950	145	610.29 EU
4691152	FC 50	Kern & Sohn GmbH	73	34	1	0,01 N	950	145	619.12 EU
4691153	FC 500	Kern & Sohn GmbH	73	34	1	0,1 N	950	145	619.12 EU

Digital force gauge FE

Kern & Sohn GmbH (1010263)

Digital force gauge FE
Digital force gauge with pass-fail function for tensile and compressive force measurements.

-Reversible display with backlighting
-Peak-hold function
-Can be mounted on all SAUTER test stands up to 1 kN
-Measuring with tolerance range (limit-setting function)
-The process is supported by an audible and visual signal
-Selectable measuring units: N, kN, kgf, ozf, lbf
-Rechargeable battery

Scope of supply: Force gauge, carrying case, standard attachments, power supply

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Weight~g	Width~mm	Display	Plug type	Price
4729715	FE 1K	Kern & Sohn GmbH	31	180	1	FE 1K	350	71	digital	EU	404.41 EU
4729716	FE 5	Kern & Sohn GmbH	31	180	1	FE 5	350	71	digital	EU	404.41 EU
4729717	FE 10	Kern & Sohn GmbH	31	180	1	FE 10	350	71	digital	EU	404.41 EU
4729718	FE 20	Kern & Sohn GmbH	31	180	1	FE 20	350	71	digital	EU	404.41 EU
4729719	FE 50	Kern & Sohn GmbH	31	180	1	FE 50	350	71	digital	EU	404.41 EU
4729720	FE 100	Kern & Sohn GmbH	31	180	1	FE 100	350	71	digital	EU	404.41 EU
4729721	FE 200	Kern & Sohn GmbH	31	180	1	FE 200	350	71	digital	EU	404.41 EU
4729722	FE 500	Kern & Sohn GmbH	31	180	1	FE 500	350	71	digital	EU	404.41 EU

Digital force gauge FH-EXT

Kern & Sohn GmbH (707207)

Digital force gauge FH-EXT
Force-measurement device with external, high-resolution measuring cell for very slight forces or loads in machines and plants.

-High-resolution display
-Peak Hold Mode
-Function to set limits: Input of an upper/lower limit value
-Visual and acoustic signal
-Data interface RS-232
-Rechargeable battery pack
-Suitable for almost all SAUTER test stands

Scope of supply:
Force gauge, mains adapter

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Readability	Type	Width~mm	Display	Length	Ø	Tolerance	General	Price	Quantity	Status	Add
4691162	FH 200 EXT	Kern & Sohn GmbH		66	36	1	0,1 N		230	digital					1487.72 EU
6317549	FH 100 EXT	Kern & Sohn GmbH		66	36	1	0,05 N		230	digital					1487.58 EU

Digital force gauge FH-M

Kern & Sohn GmbH (704264)

Digital force gauge FH-M
Universal digital force-measuring devices for tensile and compressive force measurement with external measuring cell.

-Turnable display with backlight
-Peak Hold function
-Measuring with tolerance range (limit-setting function)
-Acoustic and optical signal
-Auto-Power-Off
-Internal memory
-Data interface RS-232
-Rechargeable battery pack integrated

Scope of supply:
Force gauge, hard carrying case, tension loops, pressure plates, 3 m cable

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Readability	Width~mm	Price
4691160	FH 1K	Kern & Sohn GmbH	66	36	1	0,5 N	230	1470.59 EU
4691164	FH 20K	Kern & Sohn GmbH	66	36	1	10 N	230	2014.71 EU
4691167	FH 2K	Kern & Sohn GmbH	66	36	1	1 N	230	1470.59 EU
4691174	FH 50K	Kern & Sohn GmbH	66	36	1	10 N	230	2352.94 EU
4691177	FH 5K	Kern & Sohn GmbH	66	36	1	1 N	230	1867.65 EU

Digital force gauge FH-S

Kern & Sohn GmbH (2901)

Digital force gauge FH-S
Universal digital force gauges for tension and compression tests with integrated measuring cell.

-Turnable display with backlight
-Digital force gauge with internal sensor
-Data interface RS-232
-Selectable measuring units: N, lb, kg
-Peak-Hold function to capture peaks (measurement result will be "frozen" for a short time) or Track function mode for a continuous measurement indication (period of time approx. 10 s)
-Function to set limits, programming of Max./ Min., in pull and push direction, with output of acoustic and optical signal. Ideal mode for efficient and accurate testing of standard parts
-Auto-Power-Off
-Internal memory for up to 10 measurements
-Mini Statistics Kit: calculates the average result from up to ten stored single results, min., max., n
-Can be mounted on all SAUTER test stands

Scope of supply: Force gauge, carrying case

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Weight~kg	Width~mm	Display	Price
6251322	FH 5	Kern & Sohn GmbH	36	230	1	0.64	66	digital	877.65 EU
6270961	FH 20	Kern & Sohn GmbH	36	230	1	0.64	66	digital	878.38 EU
6270962	FH 50	Kern & Sohn GmbH	36	230	1	0.64	66	digital	878.46 EU
6270963	FH 100	Kern & Sohn GmbH	36	230	1	0.64	66	digital	878.09 EU
6270964	FH 200	Kern & Sohn GmbH	36	230	1	0.64	66	digital	877.13 EU
6270965	FH 500	Kern & Sohn GmbH	36	230	1	0.64	66	digital	878.24 EU

Digital force gauge FH-S with screw-in tension clamp

Kern & Sohn GmbH (707214)

Digital force gauge FH-S with screw-in tension clamp
Universal digital force gauges for tension and compression tests with integrated measuring cell.

-Turnable display with backlight
-Digital force gauge with internal sensor
-Data interface RS-232
-Selectable measuring units: N, lb, kg
-Peak-Hold function to capture peaks (measurement result will be "frozen" for a short time) or Track function mode for a continuous measurement indication (period of time approx. 10 s)
-Function to set limits, programming of Max./ Min., in pull and push direction, with output of acoustic and optical signal. Ideal mode for efficient and accurate testing of standard parts
-Auto-Power-Off
-Internal memory for up to 10 measurements
-Mini Statistics Kit: calculates the average result from up to ten stored single results, min., max., n
-Can be mounted on all SAUTER test stands

Scope of supply:
Force gauge, carrying case, screw-in tension clamp AE 500

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Readability	Type	Weight~kg	Width~mm	Display	Length	Ø	General	Price	Quantity	Status	Add
4691172	FH 500S71	Kern & Sohn GmbH		66	36	1	0,1 N		0.64	230	digital				1044.12 EU

Digital force gauge FK

Kern & Sohn GmbH (2900)

Digital force gauge FK
Robust Push/Pull force gauge for simple measurement.
-Turnable display: automatic direction identification
-Secure operability due to ergonomic design
-Peak-hold function to capture peaks (value is "frozen" for approx. 10 seconds) or Track function mode for a continuous measurement indication
-Selectable measuring units: N, lb, kg, oz
-Auto-Power-Off
-Can be mounted on all SAUTER test stands

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Weight~kg	Width~mm	Display	Price
6255717	FK 500	Kern & Sohn GmbH	82	35	1	FK 500	0.72	195	digital	427.42 EU
6270023	FK 250	Kern & Sohn GmbH	82	35	1	FK 250	0.72	195	digital	419.12 EU
6270956	FK 25	Kern & Sohn GmbH	82	35	1	FK 25	0.72	195	digital	419.12 EU
6270957	FK 50	Kern & Sohn GmbH	82	35	1	FK 50	0.72	195	digital	419.12 EU
6270958	FK 100	Kern & Sohn GmbH	82	35	1	FK 100	0.72	195	digital	419.12 EU
6270959	FK 1K	Kern & Sohn GmbH	82	35	1	FK 1K	0.72	195	digital	419.12 EU

Digital force gauge FL-S

Kern & Sohn GmbH (10415)

Digital force gauge FL-S
Universal digital force gauges with integrated measuring cell.

-Turnable display with backlight
-Can be mounted on all SAUTER test stands
-Metal housing
-Selectable measuring units: N, kN, kg, oz, lb
-Real time or Peak Hold Mode to observe transcients or capture peaks
-Capacity display: A bar lights up to show how much of the measuring range is still available
-Measuring with tolerance range (limit-setting function):Upper and lower limiting can be programmed, in pull and push direction. The process is supported by an acoustic and visual signal
-Internal memory for up to 500 measurements
-Continuous analogue output: Linear voltage signal in relation to the load (-2 up to +2 V)

Scope of supply: Digital force gauge, hard carrying case, 3 standard attachments (FL 2K: with external measuring cell, tension loops and pressure plates, without standard attachments)

PN	Manuf. PN	Supplier		PK	Type	Depth	Display	Height	Length	Ø	Tolerance	Weight	Width	General	Price	Quantity	Status	Add
4676248	FL 200	Kern & Sohn GmbH		1	FL 200		digital								847.13 EU

Digital force gauge FM 500G

Kern & Sohn GmbH (1010516)

Digital force gauge FM 500G
Electronic tombstone tester for testing the stability of tombstones in accordance with VSG 4.7.

-Turnable display with backlight
-Peak hold mode
-Metal housing
-Stainless steel handle with rubber covering
-Wide pressure plate with foam rubber surface, so that the tombstone does not get scratched when force is applied
-Function to set limits with visual signal
-Internal memory for up to 500 measurements
-Rechargeable battery

Scope of supply: Force gauge, mains adapter

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Type	Weight~g	Width~mm	Display	Length	Ø	Tolerance	General	Price	Quantity	Status	Add
4729741	FM 500G	Kern & Sohn GmbH		31	180	1	FM 500G	350	71	digital					1191.18 EU

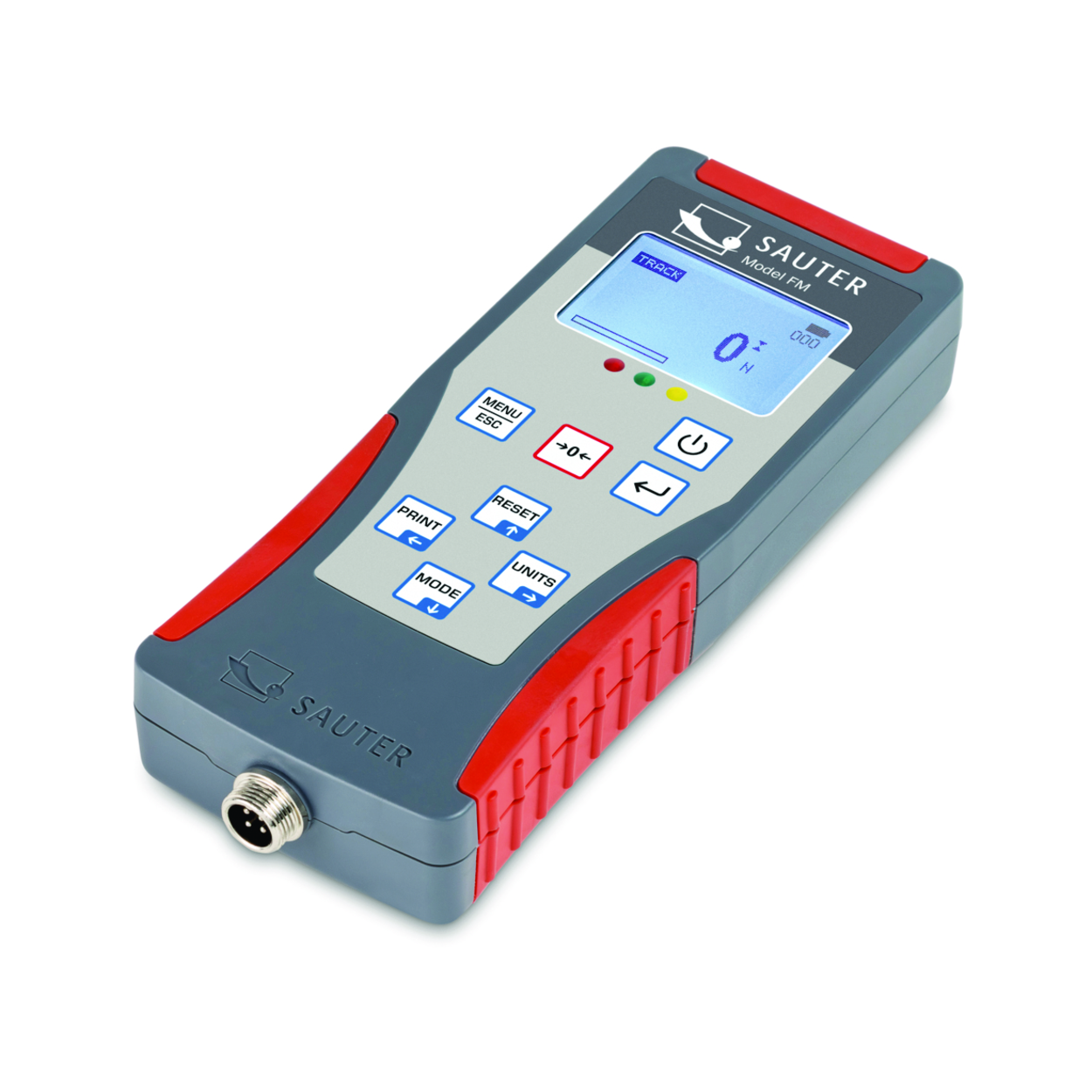

Digital force gauge FM, with external measuring cell

Kern & Sohn GmbH (1010486)

Digital force gauge FM, with external measuring cell
Universal digital force gauge for tensile and compressive force measurements with external load cell.

-Turnable display with backlight
-Peak-hold function
-Capacity display: A bar lights up to show how much of the measuring range is still available
-Measuring with tolerance range (limit-setting function)
-The process is supported by a visual signal
-Internal memory for up to 500 measurement values
-USB-C and PS/2 data interfaces
-Selectable measuring units: N, kN, kgf, lbf
-Rechargeable battery

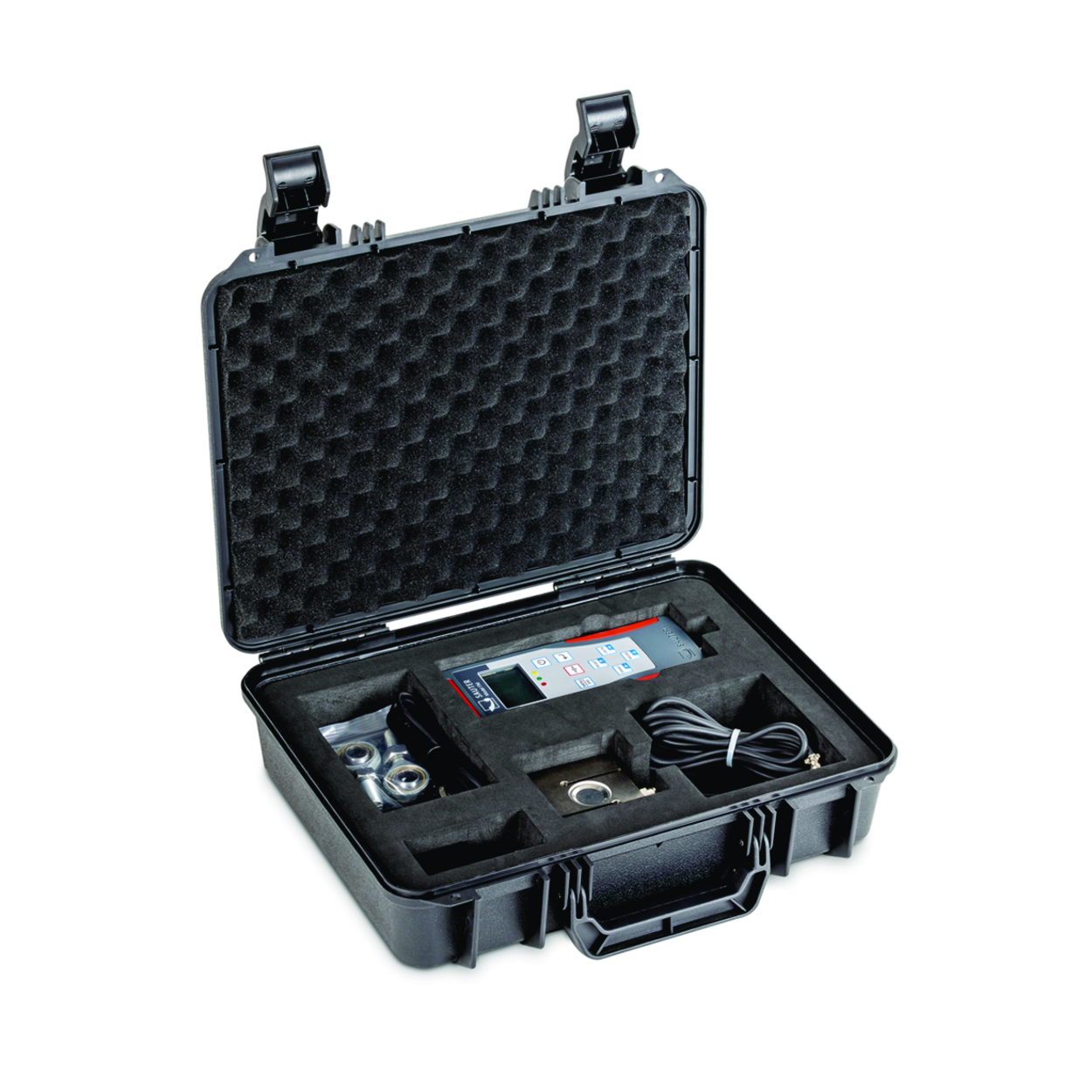

Scope of supply: Force gauge, carrying case, mains adapter

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Weight~g	Width~mm	Display	Price
4729729	FM 1K EXT	Kern & Sohn GmbH	31	180	1	FM 1K EXT	300	71	digital	1205.88 EU
4729730	FM 3K	Kern & Sohn GmbH	31	180	1	FM 3K	300	71	digital	1205.88 EU
4729732	FM 5K	Kern & Sohn GmbH	31	180	1	FM 5K	300	71	digital	1308.82 EU
4729734	FM 10K	Kern & Sohn GmbH	31	180	1	FM 10K	300	71	digital	1455.88 EU
4729736	FM 20K	Kern & Sohn GmbH	31	180	1	FM 20K	300	71	digital	1455.88 EU

Digital force gauge FM, with internal measuring cell

Kern & Sohn GmbH (1010279)

Digital force gauge FM, with internal measuring cell
Universal digital force gauge with graphic-assisted display and integrated load cell.

-Turnable display with backlight
-Peak-hold function
-Can be mounted on all SAUTER test stands up to 5 kN
-Capacity display: A bar lights up to show how much of the measuring range is still available
-Measuring with tolerance range (limit-setting function)
-The process is supported by a visual signal
-Internal memory for up to 500 measurement values

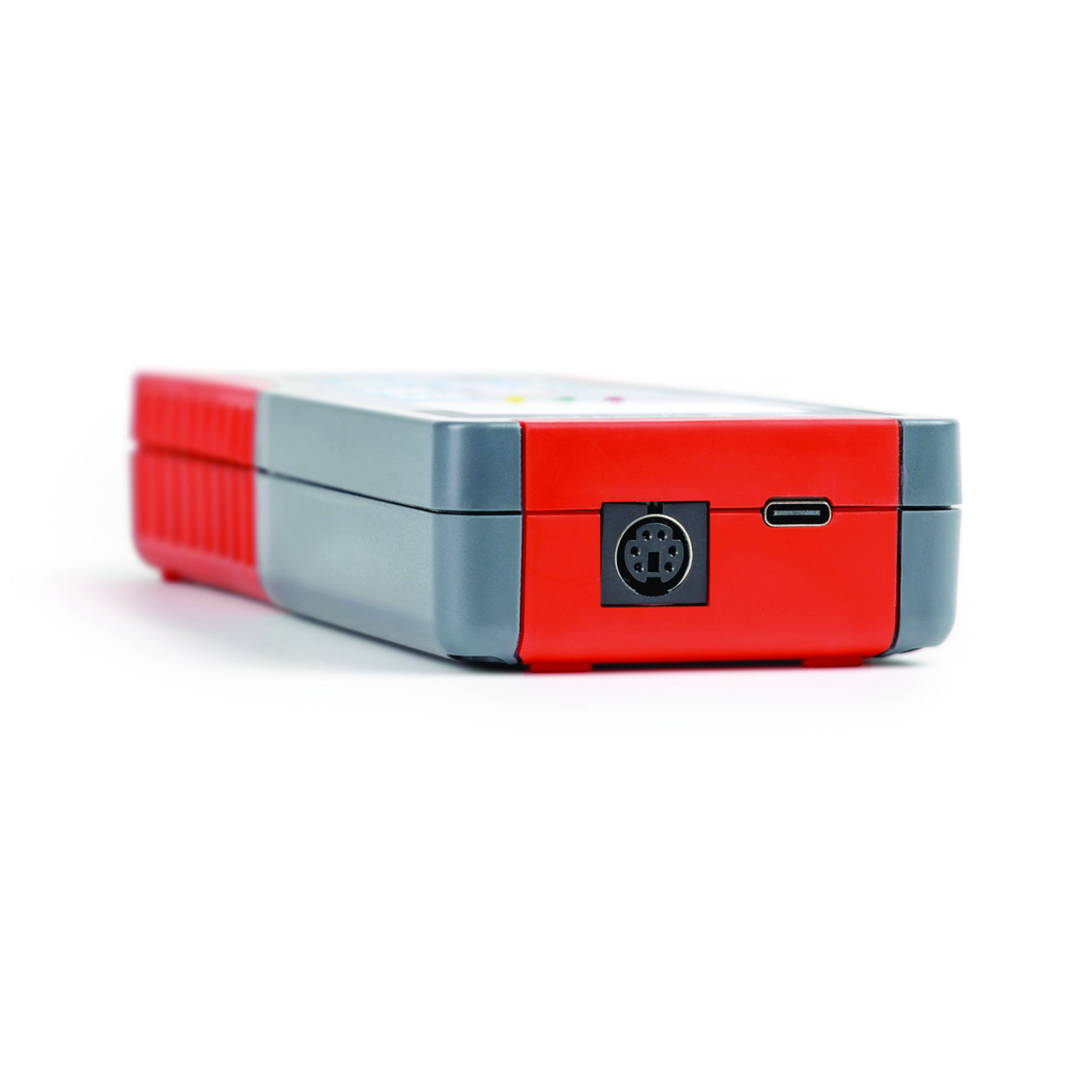

-USB-C and PS/2 data interfaces
-Selectable measuring units: N, kN, kgf, lbf
-Rechargeable battery

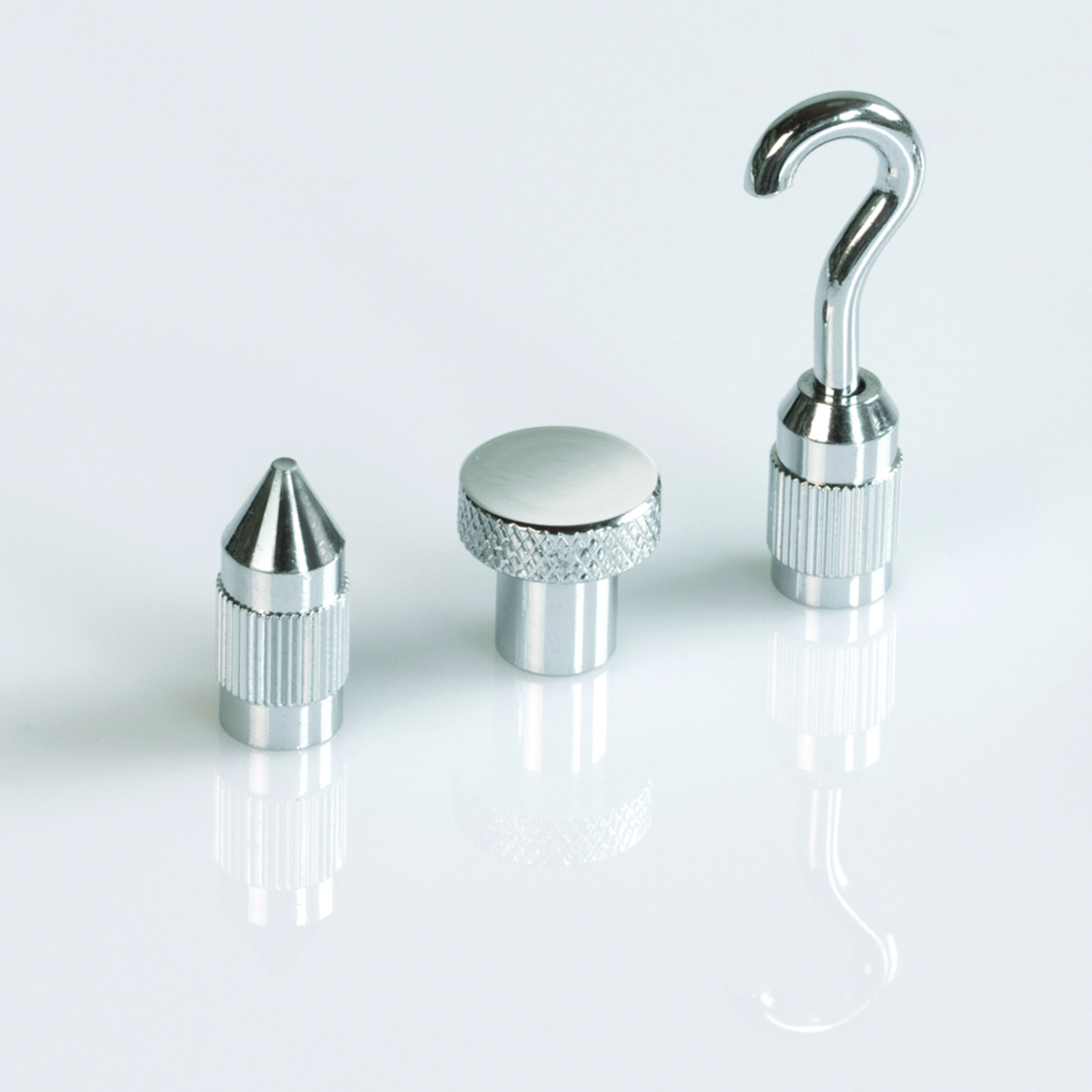

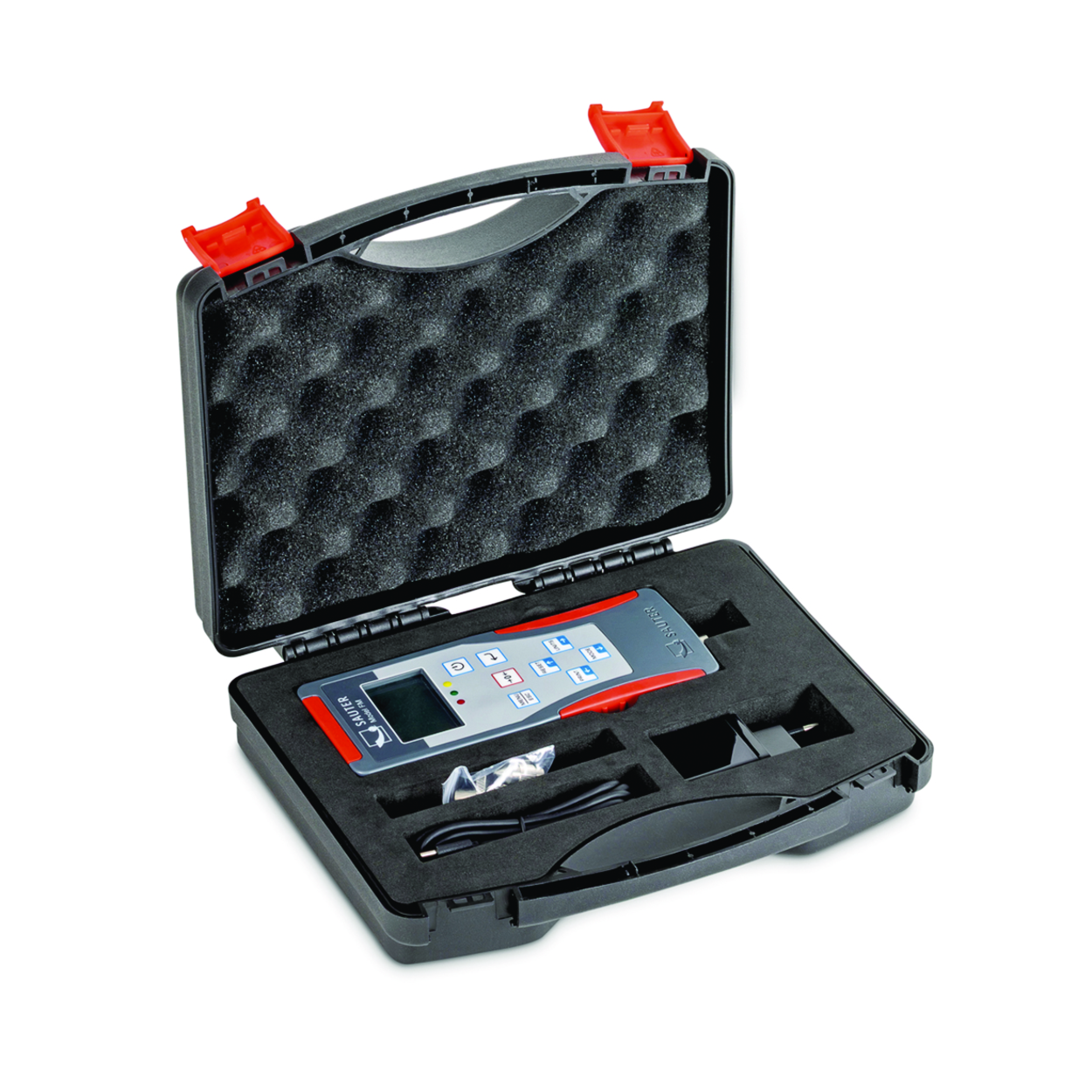

Scope of supply: Force gauge, carrying case, standard attachments, mains adapter

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Type	Weight~g	Width~mm	Display	Price
4729728	FM 1K	Kern & Sohn GmbH	31	180	1	FM 1K	350	71	digital	867.65 EU
4729731	FM 5	Kern & Sohn GmbH	31	180	1	FM 5	350	71	digital	808.82 EU
4729733	FM 10	Kern & Sohn GmbH	31	180	1	FM 10	350	71	digital	808.82 EU
4729735	FM 20	Kern & Sohn GmbH	31	180	1	FM 20	350	71	digital	808.82 EU
4729737	FM 50	Kern & Sohn GmbH	31	180	1	FM 50	350	71	digital	808.82 EU
4729738	FM 100	Kern & Sohn GmbH	31	180	1	FM 100	350	71	digital	808.82 EU
4729739	FM 200	Kern & Sohn GmbH	31	180	1	FM 200	350	71	digital	808.82 EU
4729740	FM 500	Kern & Sohn GmbH	31	180	1	FM 500	350	71	digital	808.82 EU

Digital force gauge FS

Kern & Sohn GmbH (707194)

Digital force gauge FS
Force gauge with integrated measuring cell for tensile and compressive force measurement. If an external measuring channel is used, the internal load cell is deactivated as long as an external load cell is connected. Suitable for 4-wire and 6-wire sensors with strain gauges.

-3,5" touchscreen
-Simultaneous measurement on up to four channels
-Two-point adjustment with weights or numerical adjustment possible
-External sensor data is stored directly in the connector
-USB interface for programming, data transfer and power supply
-Integrated SD card memory
-Tolerance function
-TRACK function for continuous display of the measurement
-Peak value measurement
-Rechargeable battery operation
-Can be mounted on all SAUTER test stands

Scope of supply:
Force gauge, system case (systainer® T-LOC), plug-in power supply, USB cable type C

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Readability	Width~mm	Display	Price
4691185	FS 2-100	Kern & Sohn GmbH	31	180	1	0,02 N	71	digital	1573.53 EU
4691186	FS 2-20	Kern & Sohn GmbH	31	180	1	0,005 N	71	digital	1573.53 EU
4691187	FS 2-200	Kern & Sohn GmbH	31	180	1	0,05 N	71	digital	1573.53 EU
4691188	FS 2-50	Kern & Sohn GmbH	31	180	1	0,01 N	71	digital	1573.53 EU
4691189	FS 2-500	Kern & Sohn GmbH	31	180	1	0,1 N	71	digital	1582.35 EU
4691190	FS 4-100	Kern & Sohn GmbH	31	180	1	0,02 N	71	digital	1744.12 EU
4691191	FS 4-20	Kern & Sohn GmbH	31	180	1	0,005 N	71	digital	1735.29 EU
4691192	FS 4-200	Kern & Sohn GmbH	31	180	1	0,05 N	71	digital	1735.29 EU
4691193	FS 4-50	Kern & Sohn GmbH	31	180	1	0,01 N	71	digital	1735.29 EU
4691194	FS 4-500	Kern & Sohn GmbH	31	180	1	0,1 N	71	digital	1735.29 EU

Mechanical force gauge FA

Kern & Sohn GmbH (703871)

Mechanical force gauge FA
For measuring push and pull forces with peak hold function.

-Dual scale: shows Newton and kg
-Rotatable display unit for an easy calibration of the instrument
-Peak hold function by drag pointer
-Can be mounted on all manual test stands
-Zeroing by a short push of the switch

Scope of supply:
Mechanical force gauge, carrying case, standard attachments, extension rod 90 mm

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	PK	Readability	Weight~g	Width~mm	Price
4664371	FA 20	Kern & Sohn GmbH	60	51	1	0,1 N	550	232	360.88 EU
4691146	FA 10	Kern & Sohn GmbH	60	51	1	0,05 N	550	232	352.94 EU
4691148	FA 500	Kern & Sohn GmbH	60	51	1	2,5 N	550	232	361.40 EU
6254474	FA 50	Kern & Sohn GmbH	60	51	1	0,25 N	550	232	352.94 EU
6291752	FA 200	Kern & Sohn GmbH	60	51	1	1 N	550	232	352.94 EU
7910660	FA 100	Kern & Sohn GmbH	60	51	1	0,5 N	550	232	361.69 EU

Test stand set TVL

Kern & Sohn GmbH (703787)

Test stand set TVL
For tensile and compressive force measurement. The set consists of test stand TVL, digital force gauge FH 500, 2 x screw clamp AE 500, threaded pin AFM 20.

PN	Manuf. PN	Supplier		PK	Type	Weight~kg	Depth	Display	Height	Length	Ø	Tolerance	Width	General	Price	Quantity	Status	Add
6325202	TVL 500FHS71	Kern & Sohn GmbH		1	TVL 500FHS71	10		digital							2050.00 EU

Test stand TVL, manual

Kern & Sohn GmbH (2902)

Test stand TVL, manual
Manual test stand for highly accurate tensile and compressive force measurement, with length measurement.
-For vertical and horizontal use
-Precise measurement results
-High level of security with repeated measurements
-Large base plate with various holes for fixture mountings
-Can be used for force gauges up to 500 N (not included)
-Digital length meter: Zero setting possible, pre-length can be set manually

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Readability	Type	Weight~kg	Width~mm	Display	Length	Ø	General	Price	Quantity	Status	Add
6270966	TVL	Kern & Sohn GmbH		234	465	1		TVL	8.3	151					734.71 EU

Test stand TVL-XLS, manual

Kern & Sohn GmbH (703848)

Test stand TVL-XLS, manual
Manual test stand for highly accurate tensile and compressive force measurement, with length measurement.

-For vertical and horizontal use
-Precise measurement results
-High level of security with repeated measurements
-Large base plate with various holes for fixture mountings
-Can be used for force gauges up to 500 N (not included)
-Digital length meter: Zero setting possible, pre-length can be set manually

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Readability	Type	Weight~kg	Width~mm	Display	Length	Ø	General	Price	Quantity	Status	Add
4691212	TVL-XLS	Kern & Sohn GmbH		234	465	1		TVL-XLS	8.3	151					1117.65 EU

Test stand TVP

Kern & Sohn GmbH (703833)

Test stand TVP
Manual test stand for compressive force measurement.

-Quick and consistent testing
-High level of security with repeated measurements
-Precise measuring results
-Slide construction for distance measurement
-Large base plate with various holes for fixture mountings

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Readability	Type	Width~mm	Display	Length	Ø	Tolerance	General	Price	Quantity	Status	Add
6275872	TVP	Kern & Sohn GmbH		233	420	1		TVP	150						531.84 EU

Upgrade set test stand TVL-XL

Kern & Sohn GmbH (707232)

Upgrade set test stand TVL-XL
With the extension kit for SAUTER TVL, the work zone is extended by 250 mm, which means that even larger test items can be measured. The travel path (spindle height from the base plate) remains the same when doing this: 230 mm. Casing material: metal, lacquered.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	PK	Readability	Type	Weight~g	Width~mm	Display	Length	Ø	General	Price	Quantity	Status	Add
4691211	TVL-XL	Kern & Sohn GmbH		110	344	1			2700	35					485.29 EU
