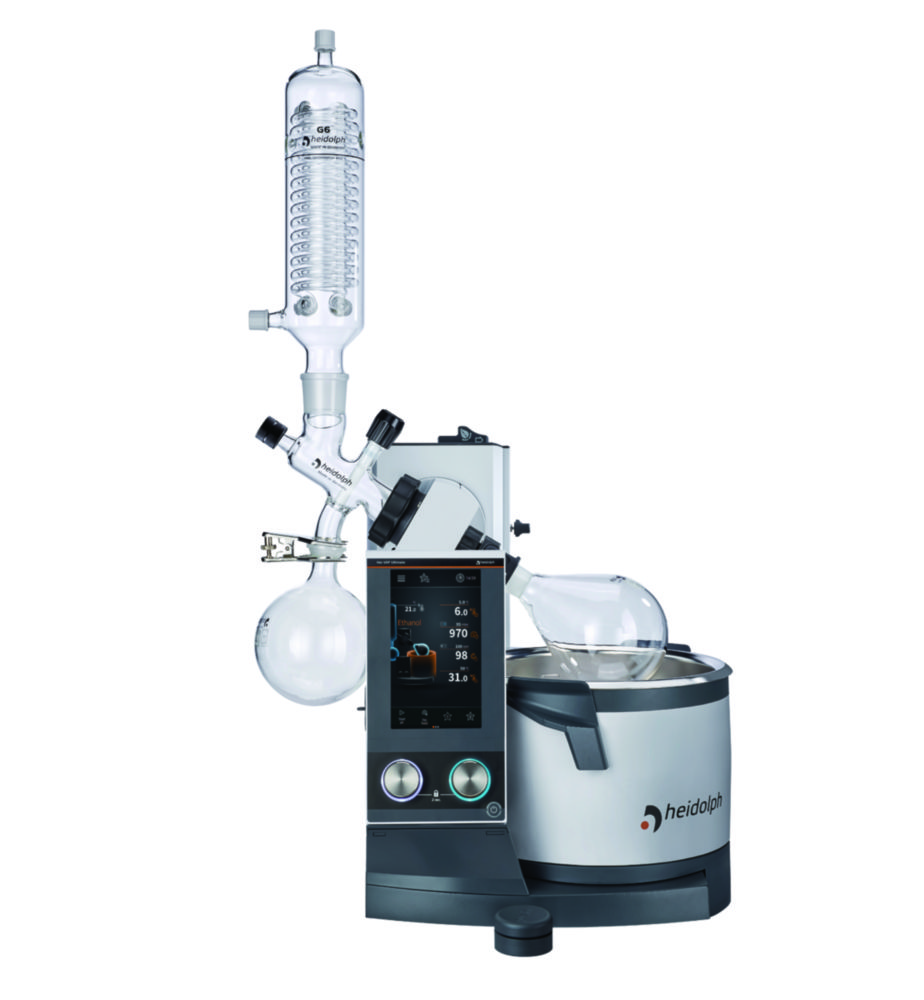

Rotary Evaporators Hei-VAP Ultimate Control, with hand lift, reflux condenser

Heidolph Scientific (886160)

Rotary Evaporators Hei-VAP Ultimate Control, with hand lift, reflux condenser
This devices are central control units for regulation of all process parameter: vacuum, cooling temperature, rotation and heating bath temperature.

-Available as hand or motor lift
-7'' touch display for controlling the entire system including the vacuum and the cooling temperature
-For precise monitoring, the pictogram on the-display also symbolizes active functions
-Separate knobs for quick access: the right one for direct vacuum control, the left one for the rotation
-Setting of values either via the touch display or the separate quick access knobs
-Direct access to two favorites on the start screen
-Expandable solvent library: user defined favorites can be transfered to other devices using a USB stick
-User defined evaporation processes (ramps) can be defined and saved
-Automatic evaporation with the Dynamic AUTOaccurate Program (DAA)
-USB, Micro SD and LAN-/RS 232 interfaces (Lab 4.0-ready)

Scope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask, Control-Box. Supplied condensor as indicated.

PN	Manuf. PN	Supplier		Flow rate	PK	Type	Lift	Condenser	Depth	Height	Speed	Temperature	Weight	General	Price	Quantity	Status	Add
4669036	575-02600-00	Heidolph Scientific			1	G6	Manual	Vertical			10 ... 280 1/min	RT ... 210 °C			10608.82 EU
4669041	575-02610-00	Heidolph Scientific			1	G6B	Manual	Vertical			10 ... 280 1/min	RT ... 210 °C			11061.76 EU
