Humidity Chamber Model HCP

Memmert (4188)

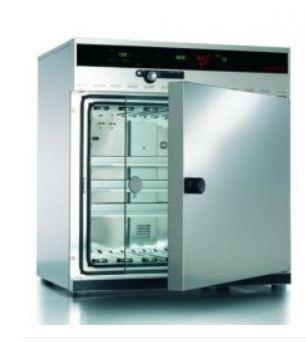

Humidity Chamber Model HCP
Ramp programming for temperature and humidity, active humidity control as well as exact temperature control ensure a controlled, physiologically ideal environment.
The applications range from construction physics to corrosion testing and down to biological research.

Standard equipment:
Ventilation and Control:
-uniform atmosphere and temperature distribution owing to enclosed non-turbulent ventilation system in working chamber
-adaptive, fuzzy-supported multifunctional digital microprocessor PID-controller
-autodiagnostic system with fault indication on temperature and humidity control
-2 x Class A , 4-wire-circuit, Pt100 sensors mutually monitoring and maintaining the performance at the same temperature value
-digital 7-day-programme-timer with real time clock, precise minute setting
-integrated timer for tempering profiles of up to 40 ramps, each segment adjustable from 1 min.up to 999 hours
-digital display (LED) of all set parameters, such as temperature, weekdays, time, humidity and set-up values - language to be chosen in setup
-digital display of set values (resolution: 0.1°C below 99.9°C, 0.5°C above 100°C) and actual values (resolution: 0.1°C) of temperature (LED)
-active control for humidifying and dehumidifying (20 to 95% rh) with digital display of relative humidity - resolution of display: 0.5%,setting accuracy 1%
-humidity supplied by distilled water from external tank using self-priming pump
-long-term documentation (ring store) of all relevant data, GLP-compliant data logger - 1024 kB
-non-volatile memory
-parallel printer interface (incl. real-time clock with date function) for all PCL3-compatible ink-jet printers for GLP-conforming documentation
-USB interface including Memmert "Celsius" software for programming and documentation
-chip card control incl. one MEMoryCard XL with 32 kB (up to 40 ramps)
-2nd chip card (STERICard) for sterilization of working chamber with fixed cycle (4 hours/160°C) without removal of sensors
Heating Concept:
-large-area multi-function heating system on four sides incl. additional door and back heating to avoid condensation
-incl. works calibration certificate for +60°C
Multiple Overtemperature Protection
-with audible and visual alarm in case of over-/undertemperature and over-/under-humidity, open door and empty water tank
-independently working, digitally adjustable electronic overtemperature controller TWW protection class 3.1
-additional adjustable Auto-Safety-Function "ASF" for over- and undertemperature automatically following the set value at a preset tolerance range
-mechanical temperature limiter TB class 1 switching the heating off at approx. 10°C above max. oven temperature
Textured stainless Steel housing:
-W x H x D: 630 x 938 x 650mm
-fully insulated stainless steel door with double locking and 4-point adjustment
-inner glass door
-zinc-plated steel rear panel
Interior:
-easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing,material no. 1.4301, electropolished and hermetically welded
-2 perforated stainless steel shelves
Temperature Range:
-with humidity: from +20°C (however at least 8°C above ambient temperature) up to + 90°C
-without humidity: from +20°C (however at least 8°C above ambient temperature) up to + 160°C
-temperature variation in chamber at 50°C: < ±0.3K
Power supply / Power Rating:
-230V, 50/60Hz 115 V, 50/60 Hz at no extra cost

PN	Manuf. PN	Supplier	Capacity	PK	Type	Housing (W x D x H)	LC	Power consumption	Shelf support ribs/shelves	Weight	Internal dimensions (W x D x H)	Price
6229955	HCP 108	Memmert	108	1	HCP108	710 x 550** x 778	1	1000	5/2	70	560 x 400* x 480	Inquire
6230984	HCP 246	Memmert	246	1	HCP246	790 x 750** x 938	1	2000	7/2	110	640 x 600* x 640	Inquire
9868006	HCP 153	Memmert	153	1	HCP153	630 x 650** x 938	1	1500	7/2	80	480 x 500* x 640	Inquire
