Magnetic stirrer with heating, 3-Position, SB162-3

Cole-Parmer Ltd. (Stuart) (5015)

Magnetic stirrer with heating, 3-Position, SB162-3
With 3 independently adjustable aluminium hotplates, Overheat protection mechanism and warning light which switches on when the plate temperature exceeds 50°C. With facility for mounting a 12.5mm retort rod at the rear of each plate and 3mm x 25mm PTFE coated followers.
With BioCote, silver-based, antimicrobial protection.
Specifications
Max. stirring quantity (H2O): 15l
Speed range: 100 - 1500rpm
Heat output: 3 x 700W
Max. plate temperature: 325 °C
Set-up plate (W x D): 3 x 160 x 160 mm
Dimensions (W x D x H): 600 x 270 x 110mm
Weight: 11kg
Power supply: 230V, 50Hz
IP code: IP 32

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	Material	Max. speed~rpm	PK	Rating~W	Stirring capacity~l	Stirring~positions	Type	Weight~kg	General	Price	Quantity	Status	Add
9950424	SB162-3	Cole-Parmer Ltd. (Stuart)		270	110		1500	1	2250	15	3	SB162-3	11		2409.85 EU

Hotplates, analogue, US150/UC150

Cole-Parmer Ltd. (Stuart) (5212)

Hotplates, analogue, US150/UC150
-Flashing "Hot" warning light for temperature above 50 °C, mains independent

-Accurate temperature control with LED setting scale

-Compact, space saving design

-Integral fitting for a retort rod

-Can be used with SCT2 digital temperature controller

Model UC150 has a glass ceramic top plate. The surface is easy to clean and allows high plate temperatures for faster heating. Heating area: 120 x 120 mm

Model US150 has a robust aluminium-silicon alloy top plate. The top plate has a thin ceramic coating for added chemical resistance.

With BioCote®, silver-based, antimicrobial protection. Protection class: IP 32. For 230 V, 50 Hz.

PN	Manuf. PN	Supplier	Dimensions (W x D x H)~mm	Hotplate~mm	Max. temp.~°C	PK	Power~W	Type	Weight~kg	Price
6252739	04805-08	Cole-Parmer Ltd. (Stuart)	172 x 248 x 122	150 x 150	450	1	500	UC 150	2.2	708.39 EU
7656840	04805-14	Cole-Parmer Ltd. (Stuart)	172 x 248 x 120	150 x 150	325	1	700	US 150	2.2	698.09 EU
4682338	04807-50	Cole-Parmer Ltd. (Stuart)	180 x 255 x 122	150 x 150	450	1	500	UC 150	2.5	568.96 EU
4682339	04807-52	Cole-Parmer Ltd. (Stuart)	180 x 255 x 122	150 x 150	325	1	700	US 150	2.5	561.18 EU

Magnetic stirrer AREX-6 Connect PRO

Velp Scientifica SRL (8733)

Magnetic stirrer AREX-6 Connect PRO
Magnetic stirrer with ceramic-coated aluminium heating plate, stirring speeds up to 1700 min-1, timer and PT100 temperature sensor. With WiFi connection to the VELP Ermes Cloud Platform for uploading, managing, monitoring and exchanging results and parameters. Access to the device is possible via PC, Smartphone and Tablet.

Equipped with extensive safety functions: independent safety circuits protect the device in case of overtemperature, adjustable temperature limitation, warning in case of hot surface, protection against unattended heating as well as alarm and switch-off function if the temperature sensor is not immersed in the medium.

-Suitable for stirring volumes up to 20 l
-Powerful, brushless motor
-Torque compensation to keep the speed constant even on viscosity changes
-Reverse of stirring direction
-Resistant housing made of die-cast
-Chemical- and scratch-resistant heating plate
-Gentle start of the stirrer
-Temperature control via software up to 370 °C
-All settings configurable on menu
-Clear display of all parameters
-Software updates by WiFi

Scope of delivery AREX-6 Connect PRO: Magnetic stirrer AREX-6 Connect PRO, PT100 temperature sensor
Scope of delivery AREX-6 Connect PRO Set: Magnetic stirrer AREX-6 Connect PRO, PT100 temperature sensor, support rod, clamp for the temperature sensor
Specifications
Volume (H2O): 20 l
Motor rating: 630 W
Speed range:
Speed accuracy:
Number of stirring positions: 30 ... 1700 rpm
5 rpm
1
Display: Digital
Temperature range:
Temperature accuracy: RT ... 370 °C
±1 °C
Stirring position material: Aluminium, ceramic coated
Stirring position: ? 135 mm
Permissible ambient temperature: 5 ... 40 °C
Dimensions (W x D x H): 160 x 280 x 105 mm
Weight: 2.6 kg
IP code: IP 42
Power supply: 230 V, 50/60 Hz
Warranty: 3 years

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	Material	Max. speed~rpm	PK	Rating~W	Stirring capacity~l	Stirring~positions	Type	Weight~kg	General	Price	Quantity	Status	Add
4666720	SA20500465	Velp Scientifica SRL		280	105	Die-cast	1700	1	630	20	1	AREX-6 Connect PRO	2.6		981.11 EU
4666733	SB20500465	Velp Scientifica SRL		280	105	Die-cast	1700	1	630	20	1	AREX-6 Connect PRO Set	2.6		1034.86 EU

Magnetic stirrer C-MAG HS 4 / C-MAG HS 7 / C-MAG HS 10

IKA-Werke GmbH & Co.KG (6196)

Magnetic stirrer C-MAG HS 4 / C-MAG HS 7 / C-MAG HS 10
With heating. Ceramic hotplate which offers excellent chemical resistance.
-powerful motor for stirring quantities of up to 5L, 10L or 15L (H2O).

-fixed safety circuit of 550°C
-Hot Top indicator - hot surface warning to prevent burns
-exact temperature setting via digital display (LED)
-digital error code display
-elevated control panel for protection against spilled liquids

C-MAG HS 7 and C-MAG HS 10:
Connection acc. to DIN 12878 for attaching a contact thermometer, e.g. ETS-D5; enables precise temperature control.
Specifications
Magnetic stirrer HS4 // HS7 // HS10
Stirring quantity (H2O): 5 l // 10 l // 15 l
Motor rating input / output: 15 / 1.5W
Speed range: 100 ... 1500rpm
Speed display: scale
Heating function
Temperature display:
digital
Heat output: 250W // 1000W // 1500W
Heating rate (1 l H2O): 2.5 K/min // 5 K/min // 5 K/min
Heating temperature range: 50 ... 500°C
Heat control accuracy: ± 10K
Fixed safety circuit: 550°C
Control accuracy with sensor
C-MAG HS 4:
C-MAG HS 7 / HS 10:
-
ETS-D5 / ± 0.5K
Top plate
Material:
glass ceramic
Dimensions: 100 x 100mm // 180 x 180mm // 260 x 260mm
Protection class according to DIN EN 60529: IP21

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	Max. speed~rpm	PK	Stirring capacity~l	Stirring~positions	Type	Weight~kg	Width~mm	Price
9720491	0003581200	IKA-Werke GmbH & Co.KG	330	105	1500	1	10	1	C-MAG HS 7	5	220	894.71 EU
9720492	0003581400	IKA-Werke GmbH & Co.KG	415	105	1500	1	15	1	C-MAG HS 10	6	300	1229.71 EU
4008088	0003581003	IKA-Werke GmbH & Co.KG	260	105	1500	1	5	1	C-MAG HS 4	3	150	777.94 EU
4008091	0003581203	IKA-Werke GmbH & Co.KG	330	105	1500	1	10	1	C-MAG HS 7	5	220	855.88 EU
6238622	0003581403	IKA-Werke GmbH & Co.KG	415	105	1500	1	15	1	C-MAG HS 10	6	300	1231.62 EU
9720490	0003581000	IKA-Werke GmbH & Co.KG	260	105	1500	1	5	1	C-MAG HS 4	3	150	801.32 EU

Magnetic stirrer C-MAG HS 7 Package

IKA-Werke GmbH & Co.KG (7571)

Magnetic stirrer C-MAG HS 7 Package
C-MAG HS 7 Package includes: Magnetic stirrer/hotplate C-MAG HS 7, ETS-D5 Electronic contact thermometer, H 38 Holding rod, H 16 V Support rod and H 44 Bosshead.
Specifications
Max. volume stirred (H2O): 10 l
Motor rating input: 15 W
Motor rating output: 2 W
Stirring positions: 1
Speed range: 100…1500 min-1
Permissible ambient temperature: 5…40 °C
Permissible humidity: 80 %
Display: digital
Plate (W x D): 180 x 180 mm
Dimensions (W x D x H): 220 x 330 x 105 mm
Weight: 5 kg
IP code: IP 21
Power supply: 230/120/100 V, 50/60 Hz

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	Material	Max. speed~rpm	PK	Stirring capacity~l	Stirring~positions	Type	Weight~kg	Width~mm	General	Price	Quantity	Status	Add
6235183	0009015900	IKA-Werke GmbH & Co.KG		330	105		1500	1	10	1	C-MAG HS 7 Package	5	220		1375.81 EU

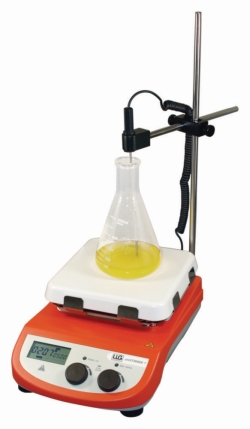

Magnetic stirrer with heating LLG-uni 7, complete package

LLG Labware (145)

Magnetic stirrer with heating LLG-uniSTIRRER 7, complete package
Universal magnetic stirrer with an outstanding price-performance ratio. Safety features include a "hot" warning display and a stirring function that continues to run until the plate temperature is below 50 °C, even when the device is switched off. An integrated control function offers precise control of the heated fluid temperature via a remote PT1000 temperature probe. The device is equipped with a stainless steel plate with glass ceramic (184 x 184 mm).

-Maintenance-free, brushless DC motor
-Digital control and backlit display
-Stirrer and display can be controlled remotely via an RS232 interface
-Hot surface indicator
-Stainless steel plate with glass ceramic
-Sturdy metal housing
-Powerful stirring
-Connection for PT1000, integrated control function
-Mountable rod on the left and on the right side of the stirrer

Scope of delivery: Magnetic stirrer with PT1000 probe, rod, holder
Specifications
Max. stirring quantity (H2O): 20 l
Speed range:
Accuracy:
Magnetic bar: 100 ... 1500 min-1
±1 min-1
80 mm
Display: LCD
Heating plate: 184 x 184 mm
Permissible ambient temperature:
Temperature range: 5 ... 40 °C
ambient ... 550 °C
Setting accuracy:
Control accuracy:
Heat output: ±0.1 °C
±0.2 °C
1000 W
Safety temperature:
Length PT1000 sensor: 580 °C
198 mm
Dimensions (W x D x H): 215 x 360 x 112 mm
Weight: 5.3 kg
Power supply: 200 ... 240 V, 50/60 Hz
IP code: IP 21
Warranty: 3 years

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	Material	Max. speed~rpm	PK	Stirring capacity~l	Stirring~positions	Type	Weight~kg	Width~mm	General	Price	Quantity	Status	Add
6263450	6263450	LLG Labware		360	112		1500	1	20	1	LLG-uniSTIRRER 7	5.3	215		771.91 EU

Magnetic stirrer with heating, US152 / UC152 and US152D / UC152D

Cole-Parmer Ltd. (Stuart) (8680)

Magnetic stirrer with heating, US152 / UC152 and US152D / UC152D
The magnetic stirrer has an innovative LED temperature indicator scale and can also be used in conjunction with the SCT2 digital temperature controller to accurately control sample temperature. The "Hot" warning light will flash whenever the plate temperature is above 50 °C even when the hotplate is turned off and unplugged from the mains. Powerful magnets and motor give stirring speeds up to 2000 rpm and is capable of mixing large volumes (up to 15 l).

-Top plate made of coated aluminium or ceramic

-Flashing "Hot" warning light, mains independent

-Accurate temperature control with LED indicator scale

-Compact, space saving design

Model US152 has a aluminium-silicon alloy top plate for good heat transmission. The top plate has a thin ceramic coating for added chemical resistance.
The US152 and US152D Sets are supplied with the temperature coltroller SCT2.

Model UC152 has a glass ceramic top. The surface is easy to clean and the thermal properties allow very high plate temperatures. The white surface ensures good visibility of colour changes.
The UC152 and UC152D Sets are supplied with the temperature coltroller SCT2.

All models have an integral fitting for a retort rod and are supplied with 2 x 25 mm PTFE coated stirring bars.
Specification US152(D) // UC152(D)
Plate Material: Coated Aluminium-silicon // Glass ceramic
Plate Dimensions: 150 mm x 150 mm
Heated Area: 150 mm x 150 mm // 120 mm x 120 mm
Heater Power: 700 W // 500 W
Max plate temp: 325 °C // 450 °C
Stirrer Speed: 100-2000 rpm
Maximum Stirring Capacity: 15 l
Dimensions (W x D x H): 180 x 255 x 122 mm
Weight: 3.1 kg
Power supply: 230 V, 50 Hz, 750 W // 230 V, 50 Hz, 550 W
IP code: IP 32

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	Max. speed~rpm	PK	Stirring capacity~l	Stirring~positions	Type	Weight~kg	Width~mm	Price
9645295	04805-66	Cole-Parmer Ltd. (Stuart)	248	120	2000	1	15	1	US152	2.9	172	810.14 EU
9645296	04805-58	Cole-Parmer Ltd. (Stuart)	248	122	2000	1	15	1	UC152	2.9	172	867.87 EU
4682255	UC152/KIT	Cole-Parmer Ltd. (Stuart)	255	122	2000	1	15	1	UC152 Set	3.1	180	1037.20 EU
4682256	US152/KIT	Cole-Parmer Ltd. (Stuart)	255	122	2000	1	15	1	US152 Set	3.1	180	1017.94 EU
4682257	UC152D/KIT	Cole-Parmer Ltd. (Stuart)	255	122	2000	1	15	1	UC152D Set	3.1	180	1069.41 EU
4682258	US152D/KIT	Cole-Parmer Ltd. (Stuart)	255	122	2000	1	15	1	US152D Set	3.1	180	1069.41 EU
4682342	04807-58	Cole-Parmer Ltd. (Stuart)	255	122	2000	1	15	1	UC152	3.1	180	729.55 EU
4682343	04807-60	Cole-Parmer Ltd. (Stuart)	255	122	2000	1	15	1	US152	3.1	180	680.81 EU
4682344	04807-62	Cole-Parmer Ltd. (Stuart)	255	122	2000	1	15	1	UC152D	3.1	180	765.88 EU
4682345	04807-64	Cole-Parmer Ltd. (Stuart)	255	122	2000	1	15	1	US152D	3.1	180	745.59 EU

Magnetic stirrer/hotplate RH basic 2

IKA-Werke GmbH & Co.KG (5999)

Magnetic stirrer/hotplate RH basic 2
Low-priced, magnetic stirrer/hotplate, with heating, with stainless steel top plate.
Specifications
Stirring volume:
10L
Motor rating input / output: 15 / 2W
Speed indication: Scale (0 to 6)
Speed range 100 to 2000rpm
Heating power: 400W
Heating rate (1 litre water): 3K/min
Temperature range: Amb. to +320°C
Hotplate surface: Stainless steel (AISI 304), 125mm dia.
Dimensions W x D x H: 168 x 220 x 105mm
Weight: 2.4kg
Protection class acc. to DIN EN 60529: IP21
Supply requirement: 230V 50/60 Hz
Tested to DIN EN IEC 61010-1.

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	Max. speed~rpm	PK	Stirring capacity~l	Stirring~positions	Type	Weight~kg	Width~mm	Price
9720402	0003339000	IKA-Werke GmbH & Co.KG	220	105	2000	1	10	1	RH basic 2	2.4	168	562.51 EU
4008057	0003339002	IKA-Werke GmbH & Co.KG	220	105	2000	1	10	1	RH basic 2	2.4	168	563.82 EU
6239510	0003339003	IKA-Werke GmbH & Co.KG	220	105	2000	1	10	1	RH basic 2	2.4	168	542.65 EU

Magnetic stirrer/hotplates, RET basic

IKA-Werke GmbH & Co.KG (5425)

Magnetic stirrer/hotplates, RET basic
Wide speed range from 0/50 to 1700 rpm. Integrated temperature control. Incl. PT 1000 temperature sensor (PT 1000.60). Exact temperature and speed setting via digital display, even when switched off. Set safety temperature limit displayed digitally. Hot Top indicator: hot surface warning to prevent burns. Digital error code display.

-With adjustable safety circuit of heating plate temperature (50 to 380 °C)

-Safety magnetic stirrer with heating, suitable for unsupervised operation

-Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control

-High level of safety thanks to improved heat control technology

-Enclosed assembly (IP 42) guarantees long service life

-Very broad temperature range (RT to 340 °C)

-Extremely fast heating times

-Electronic speed control

-High magnetic adhesion

-Incl. protection cover H 100

Scope of supply: Magnetic stirrer RET basic, PT 1000 temperature sensor, magnetic stirring bar IKAFLON® 20, magnetic stirring bar IKAFLON® 30, magnetic stirring bar IKAFLON® 40, screw driver, protection cover
Specifications
Magnetic stirring:
Volume stirred (water):

20L
Motor rating input / output: 16 / 9W
Speed adjustment:
Speed range: Dial
50 to 1700 rpm
Maximum magnetic stirrer bar (L x dia.): 80 x 10 mm
Heating
Heat output:
Heating rate (1 l H2O in H15):
600W
7 K/min
Temperature range:
Accuracy: Amb. to 340 °C
±1 K
Speed control: stepless
Adjustable safety circuit: min 50 °C
max 360 °C
Connection for ext. temperature sensor: DIN 12 878
Control accuracy with temp. probe: PT 1000 / ±1 K
ETS-D 5 / ±0.5 K
Hotplate material: Stainless steel
Dimensions:
Dimensions (W x D x H): dia. 135 mm
160 x 270 x 95 mm
Weight: 2.5 kg
Protection system to DIN EN 60529:
Tested to DIN EN IEC 61010-1. IP 42
Supply requirements: 230 V 50/60 Hz

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	Material	Max. speed~rpm	PK	Stirring capacity~l	Stirring~positions	Type	Weight~kg	Width~mm	General	Price	Quantity	Status	Add
9720248	0003622000	IKA-Werke GmbH & Co.KG		270	95		1700	1	20	1	RET® basic	2.5	160		1736.91 EU
4008113	0003622002	IKA-Werke GmbH & Co.KG		270	95		1700	1	20	1	RET® basic	2.5	160		1737.51 EU

Magnetic stirrers C-MAG HS 4 digital / C-MAG HS 7 digital / C-MAG HS 10 digital

IKA-Werke GmbH & Co.KG (9411)

Magnetic stirrers C-MAG HS 4 digital / C-MAG HS 7 digital / C-MAG HS 10 digital
Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.

-Powerful motor for stirring quantities of up to 5l, 10l or 15l (H2O)
-Simultaneous digital display of target and actual temperatures via LCD display
-Direct connection for a PT 1000 temperature sensor enable a precise temperature control (included in delivery)
-Control accuracy in medium ±0.5K (in combination with PT 1000)
-Display of actual temperature value in medium with 0.1K resolution when using PT 1000 temperature sensor
-3 operating modes to choose (standard, safe, adjustment protection)
-Fixed safety circuit of 550°C
-Hot Top indicator: hot surface warning to prevent burns!
-Digital error code display
-Elevated control panel for protection against leaking liquids
Specifications
Magnetic drive HS4 // HS7 // HS10
Max. stirring quantity (H2O): 5 l // 10 l // 15 l
Motor rating input / output: 15 / 1.5 W
Speed range: 100 ... 1500 rpm
Speed display: Scale
Heating function
Heat output:
250 W // 1000 W // 1500 W
Heating rate (1l H2O): 2.5 K/min // 5 K/min // 5 K/min
Temperature range min. / max.
Setting accuracy: 50 ... 500 °C
±1 K
Temperature display:
Safety circuit fixed: LCD
550 °C
Connection for ext. temp. sensor:
Control accuracy with sensor: DIN 12878
±0.5 K
Set-up plate
Material: ceramic
Dimensions: 100 x 100 mm // 180 x 180 mm // 260 x 260 mm
Protection class acc. to DIN EN 60529: IP 21
Power supply: 230 V, 50/60 Hz

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	Max. speed~rpm	PK	Stirring capacity~l	Stirring~positions	Type	Weight~kg	Width~mm	Price
9720445	0004240400	IKA-Werke GmbH & Co.KG	415	105	1500	1	15	1	C-MAG HS 10 digital	6	300	1462.06 EU
9720441	0004240200	IKA-Werke GmbH & Co.KG	260	105	1500	1	5	1	C-MAG HS 4 digital	3	150	996.54 EU
9720443	0003487000	IKA-Werke GmbH & Co.KG	330	105	1500	1	10	1	C-MAG HS 7 digital	5	215	1173.16 EU

Magnetic stirrers RH basic / digital

IKA-Werke GmbH & Co.KG (9409)

Magnetic stirrers RH basic / digital
Economic magnetic stirrer with heating. High heat output of 600 watts and the steel-copper compound hot plate ensures rapid heating. Adjustable safety temperature from 50 to 370 °C. Soft-start stirring motor. Includes M 10 thread for a support rod. Strong magnetic field and wide speed range for volumes up to 15 litres. RH basic white / RH digital white with chemically resistant hot plate.
RH digital only: Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with the sensor placed directly in the medium.
-Digital display of temperature and speed
-Error code display
-Easy operation with touch keypad
Specifications
Max. stirring quantity (H2O): 15l
Motor rating input / output: 15 / 2 W
Speed range: 50…2000 min-1
Speed display RH basic / RH digital: scale / LED
Heat output: 600 W
Heating rate (1l H2O): 6K/min
Temperature range min. / max.
Setting accuracy RH digital: 50 to 320 °C
± 5K
Adjustable safety circuit min. / max.: 50 to 370 °C
Connection for ext. temp. sensor:
Control accuracy with sensor: DIN 12878
± 1K
ETS-D5 / ETS-D6: ± 0.5K / ± 0.2 K
Set-up plate: Stainless steel 1.4301, diam. 135 mm
Dimensions (W x D x H): 160 x 246 x 90 mm
Weight: 2.8 kg
Protection class acc. to DIN EN 60529:
Power supply: IP 21
220-240 V, 50/60 Hz

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	Max. speed~rpm	PK	Stirring capacity~l	Stirring~positions	Type	Weight~kg	Width~mm	Price
9720411	0005019700	IKA-Werke GmbH & Co.KG	246	90	2000	1	15	1	RH basic	2.8	160	805.00 EU
9720412	0005019702	IKA-Werke GmbH & Co.KG	246	90	2000	1	15	1	RH basic	2.8	160	808.75 EU
9720414	0005019800	IKA-Werke GmbH & Co.KG	246	90	2000	1	15	1	RH digital	2.8	160	961.11 EU
9720417	0005029700	IKA-Werke GmbH & Co.KG	246	90	2000	1	15	1	RH basic white	2.8	160	962.06 EU
9720418	0004678000	IKA-Werke GmbH & Co.KG	246	90	2000	1	15	1	RH digital white	2.8	160	1117.06 EU

Magnetic stirring hotplates MR Hei-Standard

Heidolph Instruments (8189)

Magnetic stirring hotplates MR Hei-Standard
The Hei-PLATE series with heating consists of models Hei-Standard, Hei-Tec and Hei-Connect.
-The chemically resistant KeraDisk® hot plate allows for immediate heat transfer resulting in quick heat-up times
-In case the heating function fails, stirring will not be discontinued to prevent bumping
-A separate on/off button for heating prevents unintentional heat-up
-With fire-resistant aluminum die-cast housing, which prevents the stirrer from damage, even if exposed to highest temperatures
-In case of a short-circuit, damage to the temperature sensor or disorder of the process, the unit powers off completely
-The temperature sensor consists of two independent safety circuits which switches off heating in case of any overtemperature situation
-Hermetically-sealed housing protects all mechanical and electronic components from aggressive environments
-With connection for optional temperature sensor Pt 1000

Hei-Tec and Hei-Connect additionally with:
-Digital display enables full process monitoring and precise setting of all parameters.
-This unit features a digital display and allows for easy setting and monitoring of values in the illuminated readout
-An illuminated button indicates clearly if the stirring mode is activated
-Precise adjustment of the desired hotplate temperature by turn-push-button
-Overheating protection by a safety circuit that switches off heating if the temperature sensor is not immersed in the media vessel
Model for standard applications without temperature sensor.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	Material	Max. speed~rpm	PK	Stirring capacity~l	Stirring~positions	Type	Weight~kg	Width~mm	General	Price	Quantity	Status	Add
9720201	505-20000-00	Heidolph Instruments		277	94		1400	1	20	1	MR Hei-Standard	2.9	173		1027.05 EU
6263289	505-20000-02	Heidolph Instruments		277	94		1400	1	20	1	MR Hei-Standard	2.9	173		1027.75 EU

Magnetic stirring hotplates MR Hei-Tec

Heidolph Instruments (8172)

Magnetic stirring hotplates MR Hei-Tec
The Hei-PLATE series with heating consists of models Hei-Standard, Hei-Tec and Hei-Connect.
-The chemically resistant KeraDisk® hot plate allows for immediate heat transfer resulting in quick heat-up times
-In case the heating function fails, stirring will not be discontinued to prevent bumping
-A separate on/off button for heating prevents unintentional heat-up
-With fire-resistant aluminum die-cast housing, which prevents the stirrer from damage, even if exposed to highest temperatures
-In case of a short-circuit, damage to the temperature sensor or disorder of the process, the unit powers off completely
-The temperature sensor consists of two independent safety circuits which switches off heating in case of any overtemperature situation
-Hermetically-sealed housing protects all mechanical and electronic components from aggressive environments
-With connection for optional temperature sensor Pt 1000

Hei-Tec and Hei-Connect additionally with:
-Digital display enables full process monitoring and precise setting of all parameters.
-This unit features a digital display and allows for easy setting and monitoring of values in the illuminated readout
-An illuminated button indicates clearly if the stirring mode is activated
-Precise adjustment of the desired hotplate temperature by turn-push-button
-Overheating protection by a safety circuit that switches off heating if the temperature sensor is not immersed in the media vessel
Precise adjustment and monitoring of device parameters via digital display.

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	Material	Max. speed~rpm	PK	Stirring capacity~l	Stirring~positions	Type	Weight~kg	Width~mm	General	Price	Quantity	Status	Add
9720145	505-30000-00	Heidolph Instruments		277	94		1400	1	20	1	MR Hei-Tec, stirrer only	2.9	173		1181.72 EU
6240766	505-30000-02	Heidolph Instruments		277	94		1400	1	20	1	MR Hei-Tec, stirrer only	2.9	173		1188.72 EU

Heated magnetic stirrer hotMIX 1 with internal control

2mag AG (7894)

Heated magnetic stirrer hotMIX 1 with internal control
Price-optimized magnetic stirrer, 100 % maintenance-free and wear-free by inductive 2mag magnetic drive concept for mixing of solutions, speed range from 100rpm up to 1600 rpm, jerk-free stirring even at low speeds. SoftStart for reliable catching/centering and safe accelerating of the stirring bar, resistant stainless steel housing for fast and easy cleaning, spill-over protection, extremely robust construction. Hot plate made from resistant aluminium alloy, max. heating temperature +200 °C, socket for contact thermometer (accessory), warning-LED in case of hot plate, 3 integrated over temperature protection loops against overheating.
Specifications
Max. volume stirred (H2O): 2 l
Motor rating input: 10 W
Stirring positions: 1
Speed range: 100…1600 min-1
Permissible ambient temperature: -10…40 °C
Permissible humidity: 80 %
Display: analogue
Dimensions (W x D x H): 120 x 140 x 80 mm
Weight: 2 kg
IP code: IP 20
Power supply: 115/230 V, 50/60 Hz

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	Material	Max. speed~rpm	PK	Stirring capacity~l	Stirring~positions	Type	Weight~kg	Width~mm	General	Price	Quantity	Status	Add
6238077	61001	2mag AG		140	80	stainless steel	1600	1	2	1	hotMIX 1	2	120		932.20 EU

Magnetic stirrer ARE

Velp Scientifica SRL (8994)

Magnetic stirrer ARE
Magnetic stirrer with aluminium heating plate for stirring speeds up to 1500 min-1.

-Suitable for stirring volumes of up to 20 l
-Operating temperature up to 370 °C
-Chemical- and scratch-resistant heating plate
-Electronic speed control for stable stirring speeds
-Torque compensation to keep the speed constant even on viscosity changes
Specifications
Volume (H2O): 20 l
Power rating: 630 W
Speed (max.):
Number of stirring positions: 1500 min-1
1
Display:
Temperature range: Analog
RT ... 370 °C
Stirring position material: Aluminium
Stirring position: ? 155 mm
Dimensions (W x D x H): 165 x 280 x 115 mm
Weight: 2,6 kg
IP code: IP 42
Power supply: 230 V, 50/60 Hz
Warranty: 3 years

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	Material	Max. speed~rpm	PK	Rating~W	Stirring capacity~l	Stirring~positions	Type	Weight~kg	General	Price	Quantity	Status	Add
4661100	F20500162	Velp Scientifica SRL		280	115	plastic	1500	1	630	20	1	ARE	2.6		411.25 EU

Magnetic stirrer ARE-6

Velp Scientifica SRL (8957)

Magnetic stirrer ARE-6
Magnetic stirrer with heating and aluminium heating plate, analogue operation and stirring speeds up to 1700 min-1. Illuminated heating switch to prevent unintentional heating. With residual heat indicator.

-Suitable for stirring volumes up to 20 l
-Powerful, brushless motor
-Torque compensation to keep the speed constant in case of viscosity changes
-Resistant die-cast housing
-Chemical- and scratch-resistant heating plate
-Gentle start-up
-Software-controlled thermoregulation up to 370 °C
Specifications
Volume (H2O): 20 l
Power rating: 630 W
Speed range:
Number of stirring positions: 30 ... 1700 min-1
1
Display:
Temperature range: Analog
RT ... 370 °C
Stirring position material: Aluminium
Stirring position: ? 135 mm
Permissible ambient temperature: 5 ... 40 °C
Dimensions (W x D x H): 160 x 280 x 105 mm
Weight: 2.6 kg
IP code: IP 42
Power supply: 230 V, 50/60 Hz
Warranty: 3 years

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	Material	Max. speed~rpm	PK	Rating~W	Stirring capacity~l	Stirring~positions	Type	Weight~kg	General	Price	Quantity	Status	Add
4664811	F20500462	Velp Scientifica SRL		280	105	plastic	1700	1	630	20	1	ARE-6	2.6		574.48 EU

Magnetic stirrer AREC / AREC.X

Velp Scientifica SRL (8907)

Magnetic stirrer AREC / AREC.X
Digital magnetic stirrer with heating and ceramic heating plate. Working temperature up to 550 °C and stirring speed up to 1500 rpm.

-Electronic speed control

-Suitable for volumes up to 15 l

-White ceramic top plate

-Housing and top plate resistant to acids, bases, solvents and scratches

-Torque compensation to keep the speed constant in case of viscosity changes

-Ergonomic control panel separated from the heating plate

-Flat design

-LED display for temperature and speed

AREC: Magnetic stirrer with heating
AREC.X: Magnetic stirrer with heating and connection for temperature controllers VTF
AREC.X sets: Magnetic stirrer with PT100 temperature probe or digital temperature controller VTF
Volume (H2O): 15 l
Motor rating: 800 W
Speed (max.):
Number of stirring positions: 1500 rpm
1
Display: Digital
Temperature range: RT ... 550 °C
Stirring position material: Ceramic
Stirring position (W x D): 180 x 180 mm
Dimensions (W x D x H): 203 x 344 x 94 mm
Weight: 3.5 kg
Power supply: 230 V, 50/60 Hz

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	Material	Max. speed~rpm	PK	Rating~W	Stirring capacity~l	Stirring~positions	Type	Weight~kg	Price
4681928	F20500551	Velp Scientifica SRL	344	94	Technopolymer	1500	1	800	15	1	AREC	3.5	597.87 EU
4681930	F20500554	Velp Scientifica SRL	344	94	Technopolymer	1500	1	800	15	1	AREC.X	3.5	658.82 EU
4681932	SA20500554	Velp Scientifica SRL	344	94	Technopolymer	1500	1	800	15	1	AREC.X set with PT100 temperature probe	3.5	766.33 EU
4681934	SB20500554	Velp Scientifica SRL	344	94	Technopolymer	1500	1	800	15	1	AREC.X set with PT100 temperature probe, rod and clamp	3.5	785.29 EU
4681936	SC20500554	Velp Scientifica SRL	344	94	Technopolymer	1500	1	800	15	1	AREC.X set with thermoregulator VTF	3.5	959.93 EU

Magnetic stirrer AREC Connect

Velp Scientifica SRL (224029)

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	Material	Max. speed~rpm	PK	Rating~W	Stirring capacity~l	Stirring~positions	Type	Weight~kg	General	Price	Quantity	Status	Add
4681938	SA20500550	Velp Scientifica SRL		344	94	Technopolymer	1700	1	800	20	1	AREC Connect with PT100 probe	3.3		988.24 EU
4681940	SB20500550	Velp Scientifica SRL		344	94	Technopolymer	1700	1	800	20	1	AREC Connect with PT100 probe, rod and clamp	3.3		1039.71 EU

Magnetic stirrer AREX

Velp Scientifica SRL (8949)

Magnetic stirrer AREX
Magnetic stirrer with ceramic-coated aluminium heating plate for stirring speeds up to 1500 min-1.

-Suitable for stirring volumes of up to 20 l.
-Operating temperature up to 370 °C
-Chemical- and scratch-resistant heating plate
-Electronic speed control for stable stirring speeds
-Torque compensation to keep the speed constant even on viscosity changes
-Option for connecting digital temperature controllers VTF or VTF EVO

Also available as set with temperature controller VTF.
Specifications
Volume (H2O): 20 l
Power rating: 630 W
Speed (max.):
Number of stirring positions: 1500 min-1
1
Display:
Temperature range: Analog
RT ... 370 °C
Stirring position material: Aluminium, ceramic-coated
Stirring position: ? 155 mm
Dimensions (W x D x H): 165 x 280 x 115 mm
Weight: 2.6 kg
IP code: IP 42
Power supply: 230 V, 50-60 Hz
Warranty: 3 years

PN	Manuf. PN	Supplier		Depth~mm	Dimensions (W x D x H)~mm	Height~mm	Max. speed~rpm	PK	Rating~W	Stirring capacity~l	Stirring~positions	Type	Weight~kg	General	Price	Quantity	Status	Add
4666388	F20500413	Velp Scientifica SRL		280	165 x 280 x 115 mm	115	1500	1	630	20	1	AREX	2.6		484.64 EU
4666717	SA20500413	Velp Scientifica SRL		280	165 x 280 x 115 mm	115	1500	1	630	20	1	AREX with temperature controller VTF	2.6		787.72 EU

Magnetic stirrer AREX-6

Velp Scientifica SRL (8908)

Magnetic stirrer AREX-6
Magnetic stirrer with heating and ceramic-coated aluminium heating plate, analogue operation and stirring speeds up to 1700 min-1. Illuminated heating switch to prevent unintentional heating. With residual heat indicator. Connection for digital temperature controllers VTF and VTF EVO.

-Suitable for stirring volumes up to 20 l
-Powerful, brushless motor
-Torque compensation to keep the speed constant in case of viscosity changes
-Resistant die-cast housing
-Chemical- and scratch-resistant heating plate
-Gentle start-up
-Software-controlled thermoregulation up to 370 °C

Also available as set with temperature controller VTF or VTF EVO.
Specifications
Volume (H2O): 20 l
Motor rating: 630 W
Speed range:
Number of stirring positions: 30 ... 1700 min-1
1
Display: Analog
Temperature range: RT ... 370 °C
Permissible ambient temperature: 5 ... 40 °C
Stirring position material: Aluminium, ceramic coated
Stirring position: ? 135 mm
Dimensions (W x D x H): 160 x 280 x 105 mm
Weight: 2.6 kg
IP code: IP 42
Power supply: 230 V, 50/60 Hz
Warranty: 3 years

PN	Manuf. PN	Supplier		Depth~mm	Height~mm	Material	Max. speed~rpm	PK	Rating~W	Stirring capacity~l	Stirring~positions	Type	Weight~kg	General	Price	Quantity	Status	Add
4666692	F20500463	Velp Scientifica SRL		280	105	plastic	1700	1	630	20	1	AREX-6	2.6		662.80 EU
4666719	SA20500463	Velp Scientifica SRL		280	105	plastic	1700	1	630	20	1	AREX-6 set with temperature controller VTF	2.6		983.09 EU
