Flat ground flange reaction vessels, jacketed

LLG (2329)

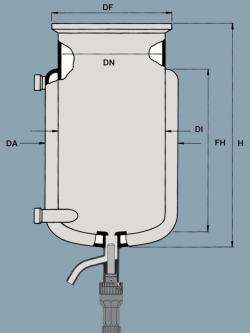

Flat ground flange reaction vessels, jacketed
Flange with groove in accordance with DIN 12214.
Flask with thermostatic jacket and type "T" 10mm bore PTFE drain valve.
Form
A = cylindrical form
B = short form

PN	Manuf. PN	Capacity~ml	DN~mm	Fill height~mm	Flange diam.~mm	Form	Height~mm	PK	Widest A.-Ø~mm	Price
9142037	3 151 003S	250	100	50	138	A	140	1	140	1042.21 EU
9142038	3 151 005S	500	100	75	138	A	165	1	140	1073.01 EU
9142039	3 151 010S	1000	100	140	138	A	230	1	140	1134.26 EU
9142040	3 151 210S	1000	120	110	158	A	210	1	160	1260.95 EU
9142041	3 151 220S	2000	120	200	158	A	300	1	160	1388.39 EU
9142042	3 151 230S	3000	120	290	158	A	390	1	160	1511.04 EU
9142043	3 151 520S	2000	150	130	184	A	230	1	200	1735.29 EU
9142045	3 151 530S	3000	150	190	184	A	295	1	200	1945.73 EU
9142046	3 151 540S	4000	150	250	184	A	355	1	200	2243.24 EU
9142047	3 151 550S	5000	150	300	184	A	400	1	200	2370.81 EU
9142048	3 151 560S	6000	150	350	184	A	450	1	200	2769.12 EU
9142050	3 151 591S	10000	150	575	184	A	675	1	200	3617.65 EU
9142052	3 161 592S	15000	150	380	184	B	510	1	300	3960.79 EU
9142053	3 161 593S	20000	150	400	184	B	605	1	300	4473.20 EU
9142055	3 152 060S	6000	200	210	242	A	320	1	250	1937.26 EU
9142056	3 152 091S	10000	200	340	242	A	445	1	250	3039.87 EU
9142057	3 162 091S	10000	200	290	242	B	415	1	300	3891.11 EU
9142058	3 162 092S	15000	200	380	242	B	510	1	300	4207.85 EU
9142059	3 162 093S	20000	200	400	242	B	605	1	300	4603.27 EU

1 items found Page 1 of 1
