Grinding heads for Microfine grinder drive MF 10 basic

IKA-Werke GmbH & Co.KG (6850)

Grinding heads for Microfine grinder drive MF 10 basic

PN	Manuf. PN	Supplier		Depth~mm	Description	Height~mm	No. of grinding stations	PK	Type	Width~mm	Weight kg	Feed size~mm	Max. fineness~mm	General	Price	Quantity	Status	Add
9737781	0002870900	IKA-Werke GmbH & Co.KG		300	Cutting grinding head	560		1	MF 10.1	320	2.2	15	0.25		6243.82 EU
9737782	0002871000	IKA-Werke GmbH & Co.KG		300	Impact grinding head	450		1	MF 10.2	320	2.7	10	0.25		5575.29 EU

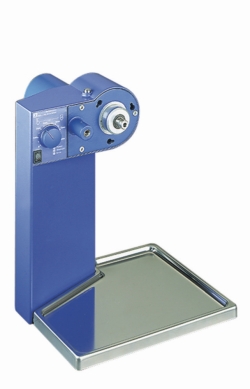

Microfine grinder drive MF 10 basic

IKA-Werke GmbH & Co.KG (3870)

Microfine grinder drive MF 10 basic
Universal laboratory grinder, comprising powerful drive unit for use with a choice of accessory grinding heads. The user can choose between the impact grinding head for milling hard, brittle materials (see fig.) and the cutting head for processing fibrous material. The maximum granule size output can be set by using various insert sieves (with apertures between 0.25 mm and 4 mm) placed above the outlet. There is an NS29 standard ground joint at the outlet for attachment of receiving flasks.

Grinding/cutting heads not included.
Specifications
Motor rating input / output: 1000 / 500W
Speed range: 3000 to 6500rpm.
Tangential speed with impact grinding head: 31.4 m/sec.
Tangential speed with cutting head: 22.5 m/sec.
Material in contact with product: Stainless steel AISI 316 L
Power-on time ON/OFF: 120/130mins.
Auto power off: yes
Dimensions with grinding head (W x D x H): 320 x 300 x 380mm
Weight with grinding head: 9.7kg
IP code: IP 22
Supply requirements: 230V 50/60Hz.
Tested to DIN EN IEC 61010-1.

PN	Manuf. PN	Supplier	Depth~mm	Height~mm	Max. speed~rpm	PK	Type	Width~mm	Weight kg	Plug type	Protection class	Min. speed~rpm	Price
4007989	0002836002	IKA-Werke GmbH & Co.KG	300	380	6500	1	MF 10 basic	320	9.7	UK	IP 22	3000	7851.47 EU
6238623	0002836003	IKA-Werke GmbH & Co.KG	300	380	6500	1	MF 10 basic	320	9.7	CH	IP 22	3000	7851.47 EU
9737780	0002836000	IKA-Werke GmbH & Co.KG	300	380	6500	1	MF 10 basic	320	9.7	EU	IP 22	3000	8024.65 EU

Sieves for Microfine grinder MF10 basic

IKA-Werke GmbH & Co.KG (8938)

Sieves for Microfine grinder MF10 basic

PN	Manuf. PN	Supplier	PK	Type	Aperture size~mm	Price
9737783	0002938900	IKA-Werke GmbH & Co.KG	1	MF 0.25	0.25	761.76 EU
9737784	0002939000	IKA-Werke GmbH & Co.KG	1	MF 0.5	0.5	572.06 EU
9737785	0002939200	IKA-Werke GmbH & Co.KG	1	MF 1.0	1.0	552.94 EU
9737787	0002939400	IKA-Werke GmbH & Co.KG	1	MF 2.0	2.0	536.76 EU
9737788	0002939500	IKA-Werke GmbH & Co.KG	1	MF 3.0	3.0	516.18 EU
9737789	0002939600	IKA-Werke GmbH & Co.KG	1	MF 4.0	4.0	497.06 EU
