Dry Ice Machines SnowPack

Bürkle GmbH (6352)

Dry Ice Machines SnowPack®
The dry ice machine SnowPack® produces dry ice tablets of -79 ° C with 50 or 250 g weight within a short time. Suitable for all European siphon carbon dioxide cylinders with valve (W 21.80 x 1¼" acc. to DIN 477-1, no. 6) without pressure regulator.
-Operates without electricity
-Taint and odour free

Applications: Hospitals, universities, schools, laboratories, chemical industry, materials testing.
Examples of use: Lowering the temperature in cooling baths or cold traps, pre-cooling tissue samples, ensuring safe transport or embedding biological substances, freezing blood and tissue samples, studies in chemistry, physics and materials technology, etc.
Gassing period (per tablet): approx. 1min
Tablets per 22kg bottle (dependent on ambient temperature and pressure): either 90 or 16 pieces approx.

PN	Manuf. PN	Supplier		Height~mm	Ø~mm	PK	Tablet weight~g	Type						General	Price	Quantity	Status	Add
9253006	9805-0030	Bürkle GmbH		30	50	1	50	SnowPack® 50							314.56 EU
9253008	9805-0200	Bürkle GmbH		60	80	1	250	SnowPack® 250							386.47 EU

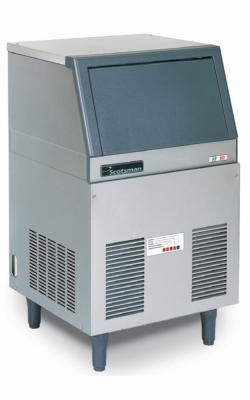

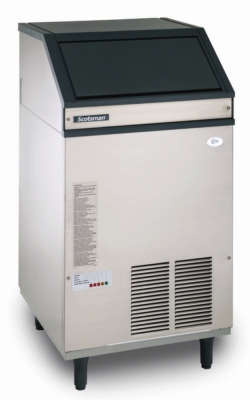

Flake ice makers with / without reservoir, air-cooled

HIBU Eismaschinen (4309)

Flake ice makers with / without reservoir, air-cooled
Manufactured according to DIN ISO 9001. For preparing solid and saturated ice flakes of hygienic, 0.5°C cold ice. With eletronic control of the ice temperature. The units have a stainless steel housing and an antimicrobial coated interior. Air-cooled versions, with cleaning indication.

-MF models without reservoir (please order separately).

-AF models without drain pump. Equipped with a UV lamp to reduce the infestation of bacteria and viruses in the machine and in the water circuit.

-EF models standard with drain pump. The drain pump allows an installation or set-up without any drainage height or distance problems. Place your ice maker just where it is needed even lower than the actual drain outlet (can be up to 1.70m higher). Distance to drain outlet up to 15 meters. Drain can be placed up to 1.70 higher.

-2 year warranty.

Scope of supply: Flake ice maker, 1 x scoop

Also available with water-cooled compressor. Alternative models availlable on request. A specially built model for laboratory-grade water is available on request.

PN	Manuf. PN	Supplier	Capacity~kg	Depth~mm	Height~mm	Output kg/24 hrs.~up to kg	PK	Power~W	Type	Width~mm	Price
9580045	EF103AS	HIBU Eismaschinen	30	622	1078	120	1	550	Ice flake maker EF 103	592	6407.35 EU
9580006	AF80AS	HIBU Eismaschinen	25	620	890	73	1	340	Ice flake maker AF 80 XSafe	535	5419.12 EU
9580009	MF26AS	HIBU Eismaschinen		536	531	140	1	500	Ice flake maker MF 26*	564	5408.82 EU
9580010	SB193	HIBU Eismaschinen	129	845	1048		1		Reservoir SB 193 for MF 26/MF 36	569	2479.41 EU
9580016	MF36AS	HIBU Eismaschinen		536	531	200	1	900	Ice flake maker MF 36*	564	6138.24 EU
9580040	AF103AS	HIBU Eismaschinen	30	622	1078	120	1	550	Ice flake maker AF 103 XSafe	592	6357.35 EU
9580041	AF124AS	HIBU Eismaschinen	40	605	872	122	1	510	Ice flake maker AF 124 XSafe	950	6916.25 EU
9580042	AF156AS	HIBU Eismaschinen	60	605	1083	160	1	590	Ice flake maker AF156 XSafe	950	6804.41 EU
9580043	AF206AS	HIBU Eismaschinen	60	605	1083	200	1	950	Ice flake maker AF 206 XSafe	950	8142.65 EU
9580046	EF124AS	HIBU Eismaschinen	40	605	872	122	1	510	Ice flake maker EF 124	950	6180.88 EU
9580047	EF156AS	HIBU Eismaschinen	60	605	1083	160	1	590	Ice flake maker EF 156	950	6804.41 EU
9580048	EF206AS	HIBU Eismaschinen	60	605	1083	200	1	950	Ice flake maker EF 206	950	8142.65 EU
9580049	SB393+405623	HIBU Eismaschinen	181	850	1048		1		Reservoir SB 393 for MF 26/MF 36 incl. cover adapter	769	2872.06 EU

Dry ice maker

LLG (4022)

Dry ice maker
For dry ice blocks 92 x 104 mm dia., 454 g.
Solid instrument with PE ice chamber, pressure measuring device and ventilation valve. Complete with connection for CO2 cylinders.
Overall dimensions 370 x 140 x 150 mm.

PN	Manuf. PN		PK	Type										General	Price	Quantity	Status	Add
9253000	H38876-0002		1	Dry ice maker											2421.18 EU

Flake ice maker with reservoir, UFP series, air cooled

Welbilt Deutschland GmbH (9941)

Flake ice maker with reservoir, UFP series, air cooled
For fast, HACCP-compliant production of various quantities of compact, granular ice flakes for laboratories, the chemical industry and food production. The ice is produced by a vertical stainless steel evaporator and transported by a worm gear to the head of the cylinder, pressed and broken into the desired size. For the production of up to 153 kg of ice per day. The new refrigerant R290 meets the requirements of the latest EU regulations, reduces energy consumption by up to 30%, has no ozone depletion potential and only a very low global warming potential.
-Robust stainless steel evaporator
-Easy ice removal
-Suitable for demineralised water
-Closed system for optimum hygiene
-Environmentally friendly refrigerant
-Air-cooled
-Depending on model, has storage capacities from 20 to 55 kg
-Stainless steel housing
-Easy to clean
-Height-adjustable feet from 110 to 150 mm
-Comfortable and safe operation
-Low energy consumption

Scope of supply: Flake ice maker with height-adjustable stainless steel feet, ice shovel, water inlet and outlet set
Specifications
Refrigerant: R290
Permissible ambient temperature: 10 ... 43 °C
Power supply: 230 V, 50 Hz

PN	Manuf. PN	Supplier	Capacity~kg		Dimensions (W x D x H)~mm	Output kg/24 hrs.~up to kg	PK	Power~W	Type	Weight~kg				General	Price	Quantity	Status	Add
4667963	MB-UFP0399AF-251	Welbilt Deutschland GmbH	55		738 x 690 x 1173	153	1	700	UFP 0399 A	105					5595.59 EU

Flake ice maker without reservoir, RFP series, air cooled

Welbilt Deutschland GmbH (9942)

Flake ice maker without reservoir, RFP series, air cooled
For fast, HACCP-compliant production of various quantities of compact, granular ice flakes for laboratories, the chemical industry and food production. The ice is produced by a vertical stainless steel evaporator and transported by a worm gear to the head of the cylinder, pressed and broken into the desired size. For the production of up to 400 kg of ice per day. The new refrigerant R290 meets the requirements of the latest EU regulations, reduces energy consumption by up to 30%, has no ozone depletion potential and only a very low global warming potential.

-Robust stainless steel evaporator
-Suitable for demineralised water
-Environmentally friendly refrigerant
-Air-cooled
-Stainless steel housing
-Easy to clean
-Comfortable and safe operation
-Low energy consumption

Scope of supply: Flake ice maker, water inlet and outlet set
Specifications
Refrigerant: R290
Permissible ambient temperature: 10 ... 43 °C
Power supply: 230 V, 50 Hz

PN	Manuf. PN	Supplier	Dimensions (W x D x H)~mm	Output kg/24 hrs.~up to kg	PK	Power~W	Type	Weight~kg	Price
4667964	MB-RFP0320AF-251	Welbilt Deutschland GmbH	559 x 599 x 660	157	1	830	RFP 0320 A	74	4933.82 EU
4667965	MB-RFP0620AF-251	Welbilt Deutschland GmbH	559 x 599 x 660	280	1	1100	RFP 0620 A	104	6676.47 EU
4667966	MB-RFP1300AF-251	Welbilt Deutschland GmbH	762 x 599 x 700	400	1	1400	RFP 1300 A	119	8044.12 EU

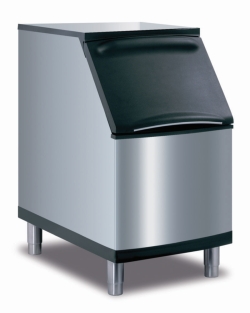

Reservoir and adapters for RFP series

Welbilt Deutschland GmbH (9614)

Reservoir and adapters for RFP series

PN	Manuf. PN	Supplier	Description	For model	PK	Type	Price
9580221	D 320	Welbilt Deutschland GmbH	Reservoir 95 kg	RFP 0320 / RFP 0620	1	D320	2110.29 EU
9580222	D 420	Welbilt Deutschland GmbH	Reservoir 141 kg	RFP 0320 / RFP 0620	1	D420	2257.35 EU
9580223	D 570	Welbilt Deutschland GmbH	Reservoir 195 kg	RFP 1300	1	D570	2183.82 EU
9580224	D 970+K-00470	Welbilt Deutschland GmbH	Reservoir 322 kg incl. adapter	RFP 1300	1	D970 + K-00470	3566.18 EU
