Disposable data logger TempLOG TS60/TS365

DOSTMANN electronic GmbH (416259)

Disposable data logger TempLOG TS60/TS365
Ideal for low-cost temperature monitoring of transports. For evaluation, the data logger is connected to the USB interface and a PDF report is generated automatically. No hardware or software necessary.

-Auto generating PDF format data report
-10000 measurements every 10 minutes (TS60)
-68000 measurements every 10 minutes (TS365)
-Change of configuration (alarm, interval ...) on request
-Integrated USB connector
-Start by button
-LED Alarm display
-Serial number sticker
-Inclusive certificate
-Food-safe according to HACCP
-Compliant to EN12830 S,T,C,D,1 and GDP

PN	Manuf. PN	Supplier		Colour	Depth~mm	Height~mm	PK	Type	Weight~g	Width~mm	Ø	Temperature		General	Price	Quantity	Status	Add
4684342	5005-0072	DOSTMANN electronic GmbH			69	5	1	TempLOG TS60	10	33		-30 ... 60 °C			16.04 EU
6328884	5005-0073	DOSTMANN electronic GmbH			69	5	1	TempLOG TS365	16.5	33		-30 ... 70 °C			18.33 EU

Data logger EBI 16

Xylem Analytics Germany (EBRO) (980345)

Data logger EBI 16
High-precision electronic device for measuring and recording temperature and pressure. When used with the SI 2150 interface set (please order separately), it enables comprehensive routine control of steam sterilizers using the alternative Bowie & Dick test according to EN 285/DIN EN ISO 17665. In addition to checking steam penetration, relevant sterilization parameters are also monitored. A vacuum test can also be carried out. The EBI 16 is designed to ensure 1000 cycles or 3 years of operation without calibration or service.

-Clear, reproducible measurement results
-High-resolution graphical cycle display
-Digital data recording and storage
-Easy operation and evaluation
-2 temperature channels (Pt1000 sensor) and 1 pressure channel (piezoresistive sensor)
-Data memory for 6960 measured values per channel

PN	Manuf. PN	Supplier		Height~mm	Ø~mm	PK	Type	Weight~g	Depth	Temperature	Width			General	Price	Quantity	Status	Add
4721742	1340-6697	Xylem Analytics Germany (EBRO)		150	90	1	EBI 16	500		0 ... 150 °C					3230.88 EU

Data logger EBI 16, Set SL 1521

Xylem Analytics Germany (EBRO) (980350)

Data logger EBI 16, Set SL 1521
High-precision electronic device for measuring and recording temperature and pressure. When used with the SI 2150 interface set (please order separately), it enables comprehensive routine control of steam sterilizers using the alternative Bowie & Dick test according to EN 285/DIN EN ISO 17665. In addition to checking steam penetration, relevant sterilization parameters are also monitored. A vacuum test can also be carried out. The EBI 16 is designed to ensure 1000 cycles or 3 years of operation without calibration or service.

-Clear, reproducible measurement results
-High-resolution graphical cycle display
-Digital data recording and storage
-Easy operation and evaluation
-2 temperature channels (Pt1000 sensor) and 1 pressure channel (piezoresistive sensor)
-Data memory for 6960 measured values per channel
Scope of supply: Data logger EBI 16, interface IF 150, software Winlog.med, carrying case SYSTAINER

PN	Manuf. PN	Supplier		Height~mm	Ø~mm	PK	Type	Weight~g	Depth	Temperature	Width			General	Price	Quantity	Status	Add
6275865	1250-1521	Xylem Analytics Germany (EBRO)		150	90	1	EBI 16 Set SL 1521	500		0 ... 150 °C					5748.53 EU

Disposable USB data logger EBI 330-T30

Xylem Analytics Germany (EBRO) (979910)

Disposable USB data logger EBI 330-T30
Disposable USB data logger for continuous temperature monitoring during the transport of temperature-sensitive goods. The logger can be easily connected to a PC via the USB interface. Upon arrival at the destination, the EBI 330-T30 automatically generates a PDF report containing all key data on the temperature history, without the need for additional software.

-It is not possible to manipulate the measured temperature values, which enhances data security
-Alarm: lower and upper limit values adjustable
-Alarm status indicated by a flashing LED
-Programmable via the free online configurator at www.ebi300.com
-Measurement modes: Start with key press, Start immediately until end of memory

PN	Manuf. PN	Supplier		Colour	Depth~mm	Height~mm	PK	Type	Weight~g	Width~mm	Ø	Temperature		General	Price	Quantity	Status	Add
9908019	1340-6332	Xylem Analytics Germany (EBRO)			80	12	10	EBI 330-T30	50	28		-30 ... 60 °C			547.06 EU

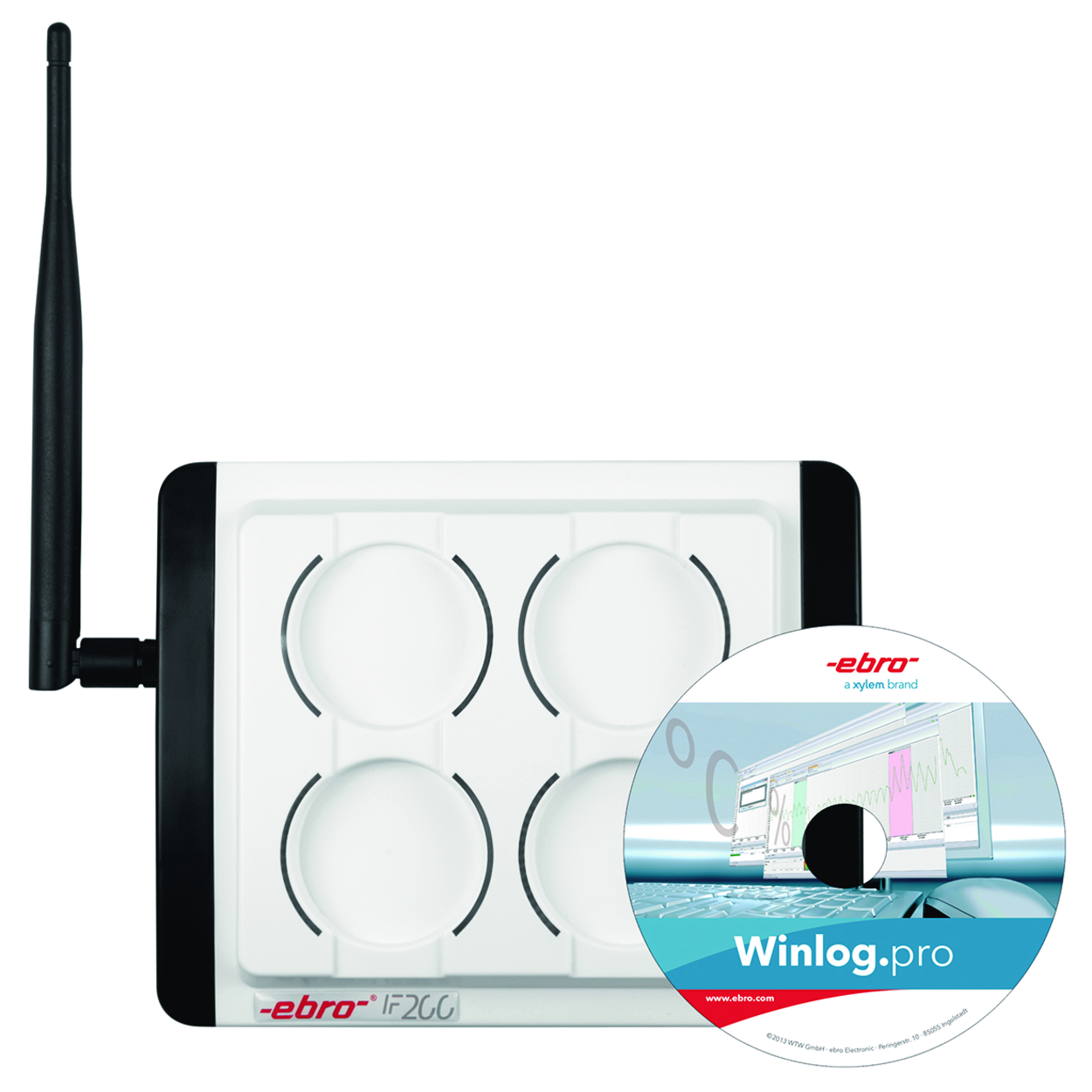

Interface Set SI 1200

Xylem Analytics Germany (EBRO) (981832)

Interface Set SI 1200
With the interface and the software, four data loggers can be programmed and the recorded data can be read out.

Scope of supply: Interface IF 200, software Winlog.pro, antenna

PN	Manuf. PN	Supplier		Description	For	PK	Type							General	Price	Quantity	Status	Add
7930075	1340-6062	Xylem Analytics Germany (EBRO)				1	SI 1200								3793.24 EU

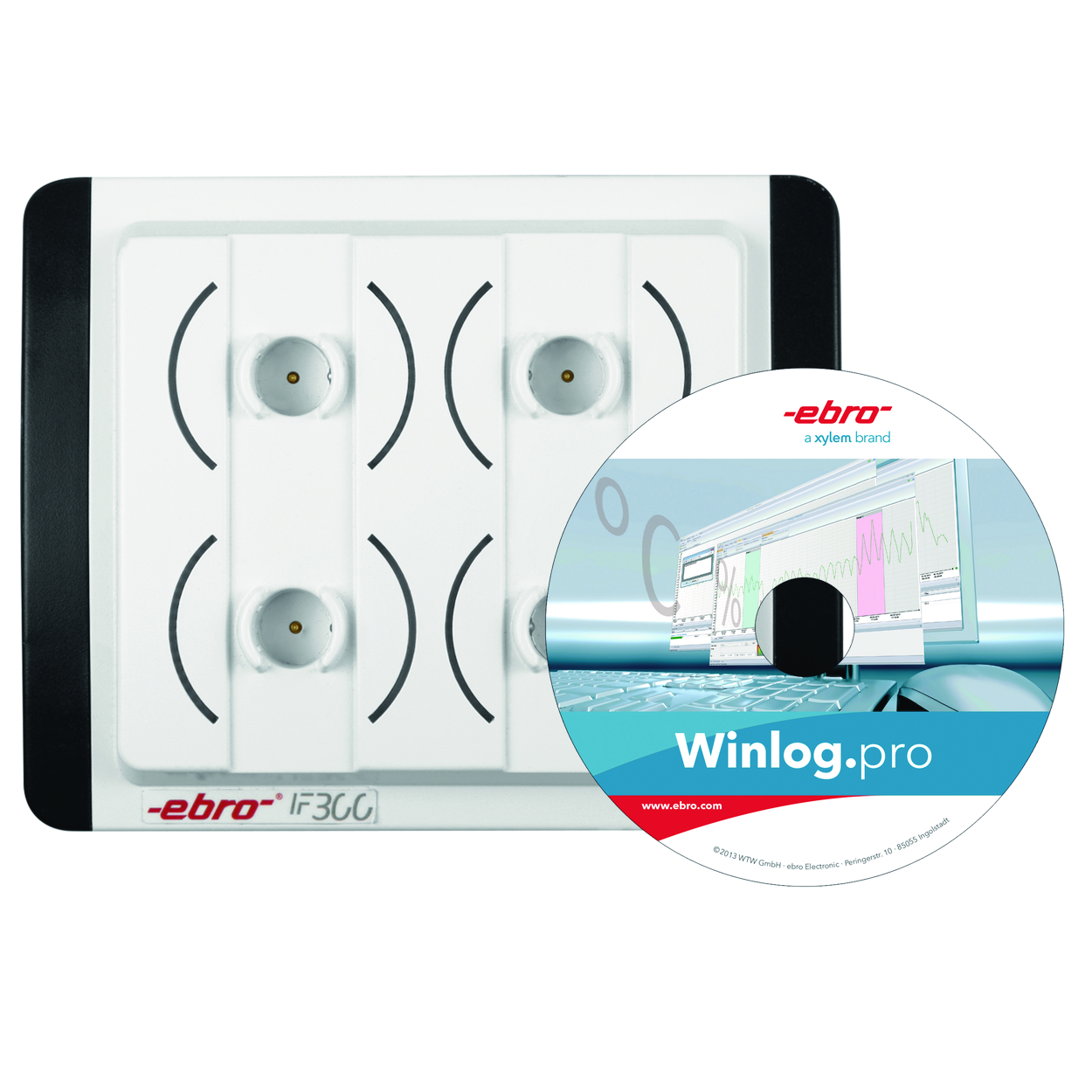

Interface Set SI 1300

Xylem Analytics Germany (EBRO) (980738)

Interface Set SI 1300
With the interface and the software, four data loggers can be programmed and the recorded data can be read out.

Scope of supply: Interface IF 300, software Winlog.pro

PN	Manuf. PN	Supplier		Description	For	PK	Type							General	Price	Quantity	Status	Add
4721698	1340-6063	Xylem Analytics Germany (EBRO)				1	SI 1300								3785.29 EU

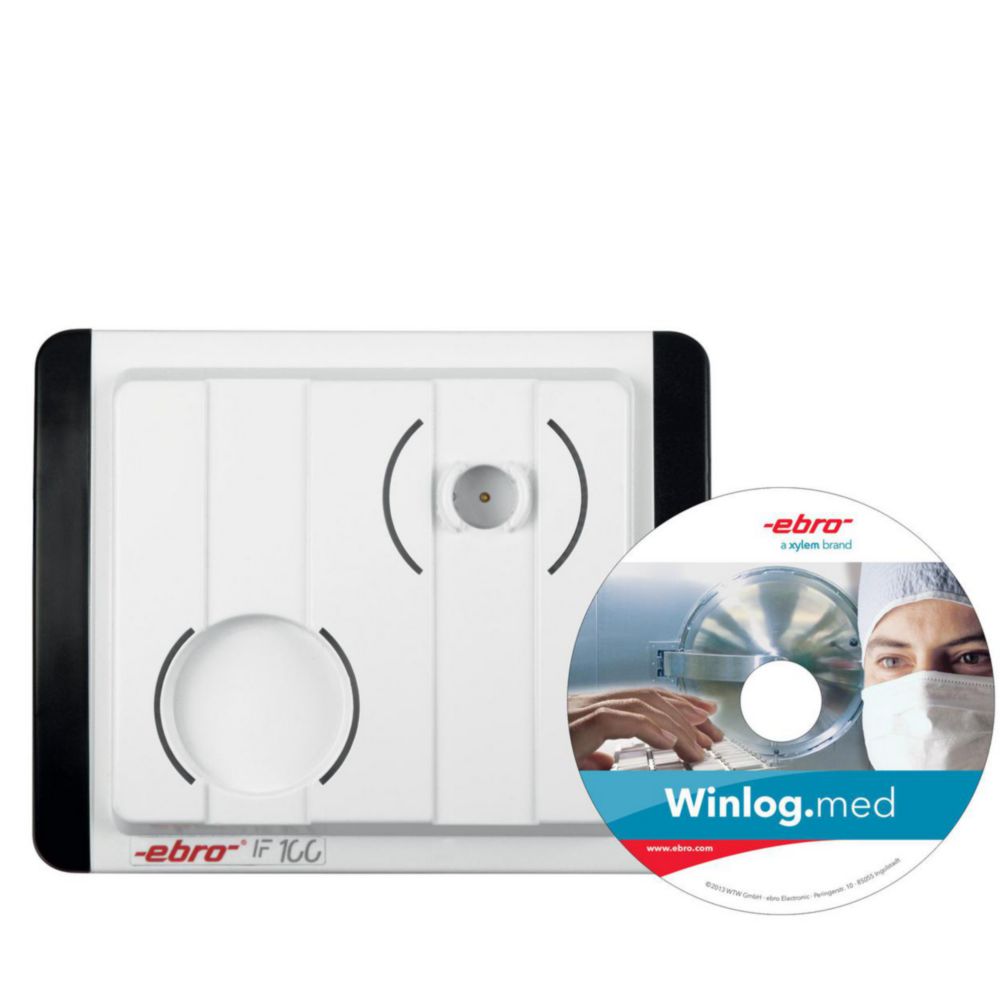

Interface Set SI 2100

Xylem Analytics Germany (EBRO) (980736)

Interface Set SI 2100
With the interface and the software, two data loggers can be programmed and the recorded data can be read out.

Scope of supply: Interface IF 100, software Winlog.med

PN	Manuf. PN	Supplier		Description	For	PK	Type							General	Price	Quantity	Status	Add
4664497	1340-6064	Xylem Analytics Germany (EBRO)				1	SI 2100								3419.12 EU

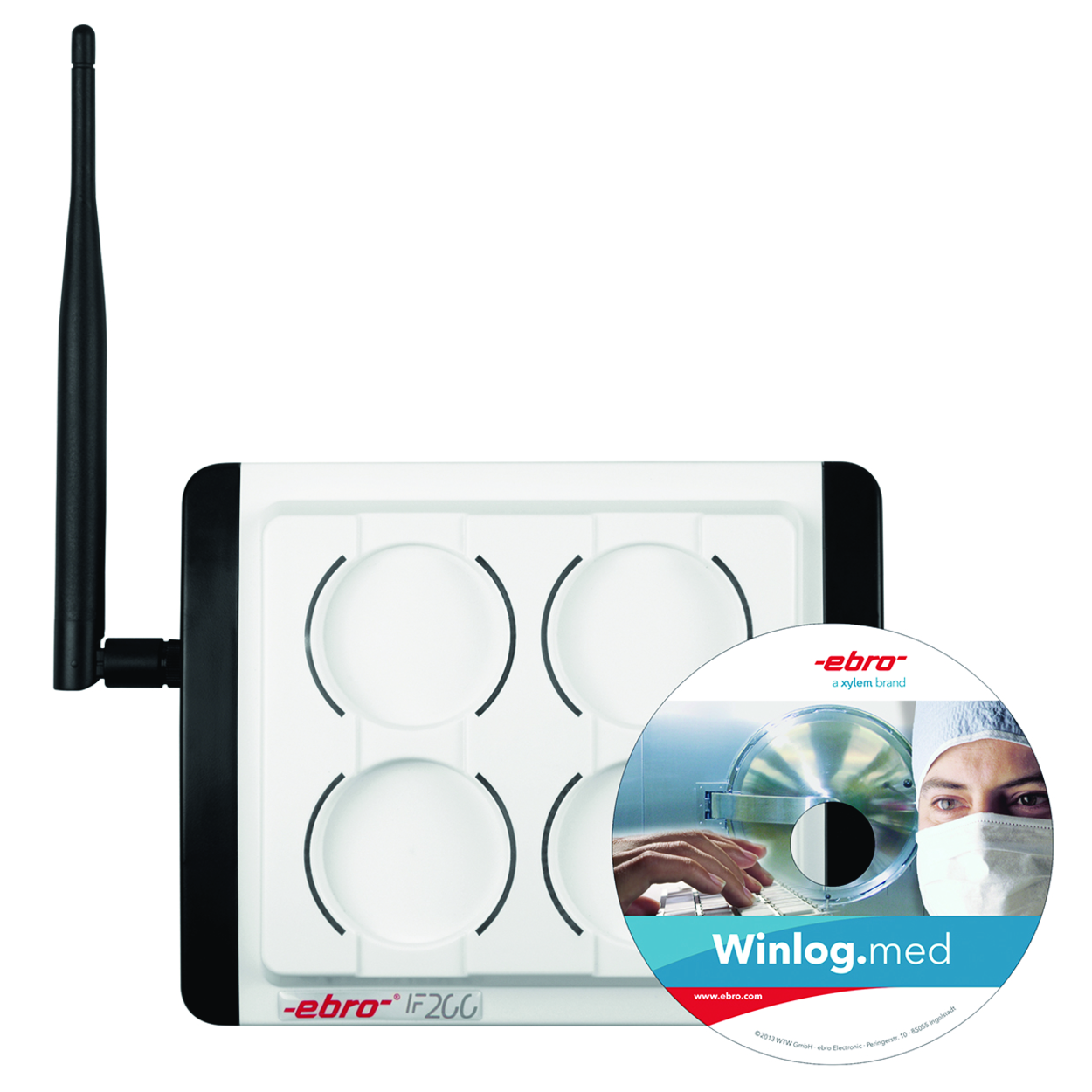

Interface Set SI 2110

Xylem Analytics Germany (EBRO) (981839)

Interface Set SI 2110
With the interface and the software, four data loggers can be programmed and the recorded data can be read out.

Scope of supply: Interface IF 200, software Winlog.med, antenna

PN	Manuf. PN	Supplier		Description	For	PK	Type							General	Price	Quantity	Status	Add
4721740	1340-6095	Xylem Analytics Germany (EBRO)				1	SI 2110								4310.29 EU

Interface Set SI 2150

Xylem Analytics Germany (EBRO) (980356)

Interface Set SI 2150
Interface for programming and reading out one data logger.

Scope of supply: Interface IF 150, software Winlog.med

PN	Manuf. PN	Supplier		Description	For	PK	Type							General	Price	Quantity	Status	Add
4721741	1340-6193	Xylem Analytics Germany (EBRO)				1	SI 2150								3482.35 EU

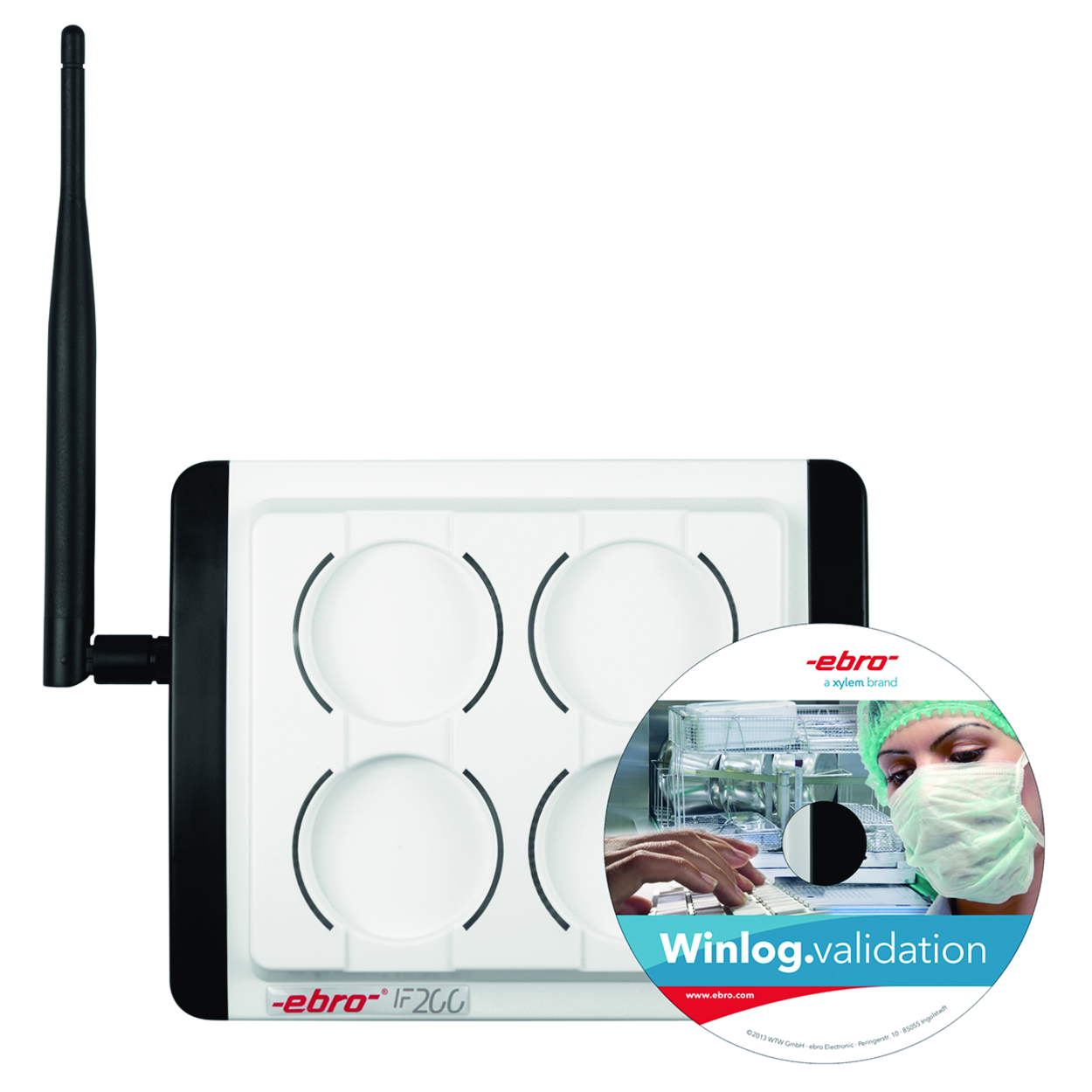

Interface Set SI 3200

Xylem Analytics Germany (EBRO) (981847)

Interface Set SI 3200
With the interface and the software, four data loggers can be programmed and the recorded data can be read out.

Scope of supply: Interface IF 200, software Winlog.validation, antenna

PN	Manuf. PN	Supplier		Description	For	PK	Type							General	Price	Quantity	Status	Add
7656740	1340-6068	Xylem Analytics Germany (EBRO)				1	SI 3200								8448.98 EU

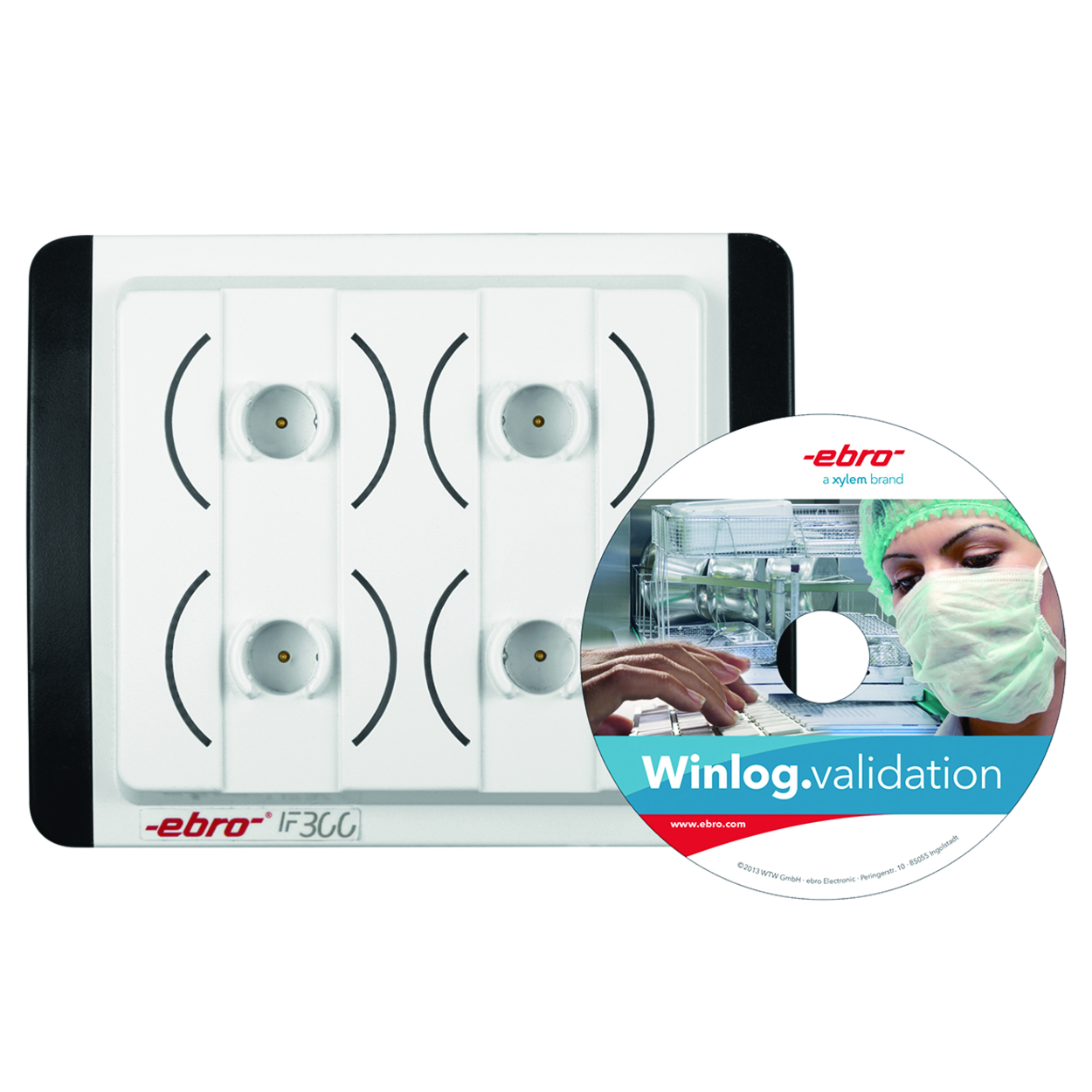

Interface Set SI 3300

Xylem Analytics Germany (EBRO) (980740)

Interface Set SI 3300
With the interface and the software, four data loggers can be programmed and the recorded data can be read out.

Scope of supply: Interface IF 300, software Winlog.validation

PN	Manuf. PN	Supplier		Description	For	PK	Type							General	Price	Quantity	Status	Add
4721699	1340-6069	Xylem Analytics Germany (EBRO)				1	SI 3300								8104.41 EU
