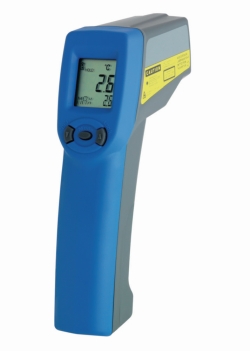

Infra-red thermometer ScanTemp 385

LLG (7715)

Infra-red thermometer ScanTemp 385
With IR thermometers you can measure surface temperature. A short response time and non-contact measurement are key advantages. ideal for monitoring applications such as:

-Moving parts (running paper webs…)
-Registering the surface temperature of gears and motors
-Checking live electrical parts (components, transformers…)
-Newly coated or painted parts
-Food and corrosive substances
Specifications
Temperature range: -35°C ... 365°C
Precision: ± 2% or 2 °C, the higher value counts
Response time: < 1 sec
Spectral sensitivity: 6 ... 14µm
Operating temperature: 0 ... 50 °C
Optical resolution: 12:1
Laser: Spot laser
Dimensions (L x W x H): 147.9 x 112.6 x 41.4mm
Weight: 150 g (incl. packaging)
Power supply: 2 x 1.5V AAA Batteries

PN	Manuf. PN		PK	Type										General	Price	Quantity	Status	Add
9851996	5020-0385		1	ScanTemp 385											70.59 EU

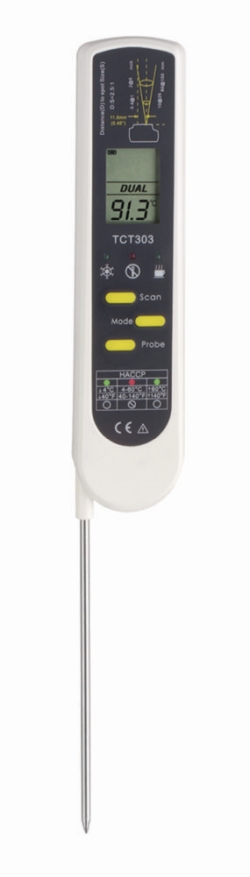

Infrared thermometer, DualTemp Pro, with penetration probe

LLG (6862)

Infrared thermometer, DualTemp Pro, with penetration probe
For simple, rapid, non-contact, temperature measurement.
-Dual display
-Wide measurement ranges:
-Infra-red: -33 to 250°C
-Conventional penetration probe: -55 to 250°C
-Measuring spot:distance ratio 2.5:1
-Max./ Min., Hold functions
-Auto-off after 15 secs.
-Belt-clip included
-Accessories: certificate of calibration & pilot drill for taking measurements from frozen items
Resolution: 0.2°C
Accuracy (IR): -33°C to 0°C ±1.0°C ±0.1/1°C
0°C to +65°C ±1.0°C
+65°C to +200°C ±1.5%
Accuracy (penetration probe): below -5°C ±1.0°C
-5°C to +65°C ±0.5°C
above +65°C ±1%
Spectral sensitivity: 6 to 14µm
Adjustable emissivity: 0.10 to 1.00
Operating temperature: 0 to 50°C
Power supply: Lithium cell CR2032
Dimensions (W x D x H): 24.2 x 39.8 x 156mm
Weight: 380g (incl. packaging)

PN	Manuf. PN		PK	Type										General	Price	Quantity	Status	Add
9851023	5020-0413		1	DualTemp Pro											130.88 EU

Infrared Thermometers TFI 260 / TFI 54

Xylem Analytics Germany (EBRO) (9238)

Infrared Thermometers TFI 260 / TFI 54
Non-contact measurement of the surface temperature with infrared. Ideal for fast and secure measurements of moving or energized parts and food. With batteries and factory calibration certificate.
Specifications:
Measurement range: -60 °C to +550 °C
Accuracy: ±2 °C or 2 % (at 0 °C to +550 °C), whichever is larger
Resolution: 0.1 °C
Distance : spot ratio: 12:1
Operating temperature: 0 °C to +50 °C
Response time: 1 sec.
Emissivity factor: 0.95 fixed (0.1 to 1.0 possible)
Dimensions (L x W x H): 153 x 115 x 48 mm (TFI 260)
144 x 117 x 43 mm (TFI 54)
Weight (with batteries): 177 g (TFI 260), 180 g (TFI 54)
Power supply: 2 x 1.5 V AAA, replaceable
IP code: IP 20 (TFI 260), IP 54 (TFI 54)

PN	Manuf. PN	Supplier		Description	PK	Type								General	Price	Quantity	Status	Add
6272762	1340-1755	Xylem Analytics Germany (EBRO)		Infrared thermometer	1	TFI 260									79.41 EU
9908032	1340-1754	Xylem Analytics Germany (EBRO)		Splash water proof infrared thermometer	1	TFI 54									129.41 EU

Infrared-Thermometer Slim Flash

TFA Dostmann GmbH & Co.KG (9243)

Infrared-Thermometer Slim Flash
Non-contact temperature measurement via infrared. Response time 1 second. Measuring range -33 to +199°C, Accuracy ±2°C or 2%, incl. CR2032 button cell.

PN	Manuf. PN	Supplier		PK	Type									General	Price	Quantity	Status	Add
9851998	31.1128	TFA Dostmann GmbH & Co.KG		1	Infrared-Thermometer Slim Flash										35.29 EU

Combination Infrared and Penetration Thermometer TLC 750i

Xylem Analytics Germany (EBRO) (4428)

Combination Infrared and Penetration Thermometer TLC 750i
Handy, waterproof infrared thermometer with large measurement range for non-contact measurement of the surface temperature and secure core temperature measurement with the folding penetration probe. For time-saving, precise temperature measurements at incoming goods, production and storage of diverse goods and food. Conform to HACCP and DIN EN 13485. With battery and factory calibration certificate.
-Display with backlight for reading in dark environments
-Display can be upside down for reading from both sides
-Double laser pointer
Specifications
Measurement range: -50 to +250 °C
Accuracy infrared: ±4 °C (-50 to -30.1 °C)
±2.5 °C (-30 to -18.1 °C)
±1.5 °C (-18 to -0.1 °C)
±1.0 °C (0 to +65 °C)
±2.0 °C or 2 % (+65 to +250 °C)
Accuracy penetration probe: ±0.5 °C (-30 to +99 °C)
otherwise ±1 °C (1 %), larger value applies
Resolution:
Distance : spot ratio: 0.1 °C
8 : 1
Sensor: Type T
Operating temperature: -25 to +50 °C
Dimensions (L x W x H): 169.5 x 44 x 23 mm
Weight: approx. 140 g
Power supply: 2 x AAA (Micro), replaceable
Deactivation: automatically after 15 sec., deactivatable
IP code: IP 65

PN	Manuf. PN	Supplier		PK	Type									General	Price	Quantity	Status	Add
6289927	1340-5736	Xylem Analytics Germany (EBRO)		1	TLC 750i										160.29 EU

Infra-red thermometers, testo 830-T1

Testo SE & CO KGaA (10125)

Infra-red thermometers, testo 830-T1
Infrared thermometer for non-contact measurement of surface temperatures. Laser measurement point marker and large optics for exact measurement even at medium distances.
-Fast recording of measurement values at 2 measurements per second
-Adjustable emissivity
-2 adjustable alarm limit values
-Hold function and display of min./max. values

Scope of supply: Thermometer, batteries, works calibration certificate
Specifications
Measuring range: -30 ... +400 °C
Accuracy: ±1.5 °C or 1.5 % of measured value (+0.1 ... +400 °C)
±2 °C or ±2 % of measured value (-30 ... 0 °C)
larger value counts
Resolution: 0,1 °C
Measuring spot marking: 1-point-laser
Distance to measured spot: 10:1
Dimensions (W x D x H): 38 x 75 x 190 mm
Weight: 200 g
Power supply: 9 V block batterie

PN	Manuf. PN	Supplier		PK	Type									General	Price	Quantity	Status	Add
9718418	05608311	Testo SE & CO KGaA		1	testo 830-T1										89.71 EU
