BDL | Search Infra-red thermometers

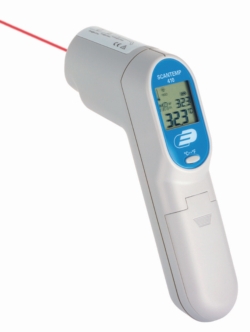

Infra-red thermometer ScanTemp 410

LLG (6868)

Infra-red thermometer ScanTemp 410
Infra-red thermometer with laser aiming. For quick, easy and safe measurement of surface temperatures. Easy to use: just point, press the button and read the measurement from the large, illuminated display.
Specifications
Temperature range: -60 to 500 °C
Precision: -33 to 500 °C, ± 2 % of measurement or 2°C
Response time: 0.5 secs.
Spectral sensitivity: 7 to 18µm
Operating temperature: 0 to 50°C
Optical resolution: 11:1
Laser: Spot laser
Dimensions (L x W x H): 175 x 39 x 79mm
Weight: 300g (incl. packaging)
Power supply: 2 x 1.5V AAA Batteries

PN	Manuf. PN		PK	Type										General	Price	Quantity	Status	Add
9851919	31.1115		1	ScanTemp 410											118.39 EU

Dual Infrared Thermometer TFI 550 with NiCr-Ni Connection

Xylem Analytics Germany (EBRO) (9476)

Dual Infrared Thermometer TFI 550 with NiCr-Ni Connection
Addtional connection for NiCr-Ni temperature probes with SMP-connection.

-Optics D:S = 30:1
-Dual laser
-NiCr-Ni connection for core temperature measurement with penetration probe
-Alarm when Min/Max exceeded
-Factory calibration certificate

Please order probes separately.
Specifications
Measurement range: -60 °C to +550 °C (-76 °F to 1022 °F)
Accuracy: ±2 °C at -18 °C to +23 °C
(±3.6 °F at 0 °F to 73 °F)
±1 % of measurement
±1 °C (whichever is larger) at +23 °C to +510 C
±1.8 °F (whichever is larger) at 73 °F to 950 °F
Resolution: 0.1 °C at -9.9 °C to +199 °C, otherwise 1 °C
(0.2 °F at 14 °F to 391 °F, otherwise 1.8 °F)
Response time (t99): Approximately 1 s
Emissivity factor: 0.1 to 1.0
Distance : spot ratio: 30:1
NiCr-Ni probe measurement:
Measurement range: -64 °C to +1400 °C (-83 °F to 2552 °F)
Connection: SMP
Accuracy: ±1 % of measurement value / ±1 °C (±1.8 °F),
whichever is larger
Power supply:
Battery lifetime: 2 x AAA (Micro)
Typically 180 hours
Operating temperature:
Storage temperature: 0 °C to +50 °C (32 °F to 122 °F)
-20° C to +65 °C (-4 °F to 149 °F)
IP code: IP 20
Weight: approx. 180g

PN	Manuf. PN	Supplier		Description	PK	Type								General	Price	Quantity	Status	Add
6238001	1340-1786	Xylem Analytics Germany (EBRO)		Dual Infrared Thermometer (without probe)	1	TFI 550									260.29 EU

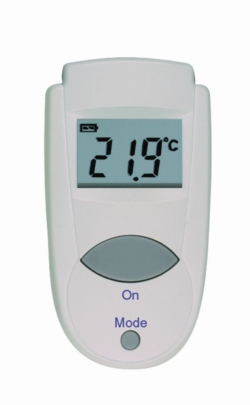

Infrared thermometer Mini-Flash

LLG (2890)

Infrared thermometer Mini-Flash
Compact and easy to use. Surface temperatures of hazardous samples or hard-to-reach objects can safely be measured within 0.5 seconds.
Features
-switchable °C/°F ranges
-memory for maximum/minimum values
-hold function maintains reading automatically for 15 seconds
-lock function for long-term monitoring
-supplied with key ring
Measuring range: -33°C to +220°C
Accuracy: ±1.5°C
Resolution: 0.1°C
Response time: 500 ms
Emissivity 0,95
Battery: 1 x cell CR2032
Dimensions: 68 x 37 x 18 mm
Weight: 25 g

PN	Manuf. PN		PK	Type										General	Price	Quantity	Status	Add
9851025	5020-0414		1												49.41 EU

Infra-red thermometer ScanTemp 450

TFA Dostmann GmbH & Co.KG (4417)

Infra-red thermometer ScanTemp 450
Infra-red thermometer with laser aiming. For quick, easy and safe measurement of surface temperatures.
Specifications
Temperature range: -60 °C ... 500 °C
Precision: ± 2 % of measurement or 2 °C
Dimensions (L x W x H): 42 x 82 x 182 mm
Weight: 164 g
Power supply: 2 x 1.5 V AAA Batteries

PN	Manuf. PN	Supplier		PK	Type									General	Price	Quantity	Status	Add
6282032	31.1137.10	TFA Dostmann GmbH & Co.KG		1	ScanTemp 450										144.12 EU

Infrared Thermometer TFI 650

Xylem Analytics Germany (EBRO) (4354)

Infrared Thermometer TFI 650
Non-contact measurement of the surface temperature with infrared. Ideal for fast and secure measurements of moving or energized parts and food. With batteries and factory calibration certificate.
Specifications
Measurement range: -60 °C to +1500 °C
Accuracy: ±2 °C or 2% of measured value, whichever is larger
Resolution: 0.1 °C
Optical resolution: 50:1
Operating temperature: 0 °C to +50 °C
Emissivity factor: 0.1 to 1.0
Dimensions (L x W x H): 197 x 47 x 203.3 mm
Weight: approx. 385 g
Power supply: Type AAA, 1.5 V
IP code: IP 20

PN	Manuf. PN	Supplier		Description	PK	Type								General	Price	Quantity	Status	Add
6282087	1340-1783	Xylem Analytics Germany (EBRO)		with NiCr-Ni connection for thermocouple Type K	1	TFI 650									572.06 EU

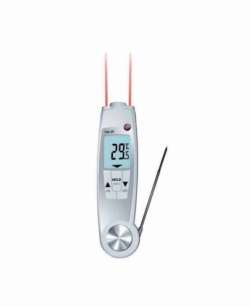

Infrared thermometer with penetration probe testo 104-IR

Testo SE & CO KGaA (4504)

Infrared thermometer with penetration probe testo 104-IR
-Waterproof
-Non-contact measurement and core temperature measurement in one thermometer
-High-quality, robust folding joint
-Precise 2-point laser with 10:1 optics
-Emissivity freely selectable
-HACCP-compliant, acc. to EN 13485
Specifications
Sensor type: NTC
Measuring range: -50 ... +250 °C
Accuracy: ±1 Digit
±1 °C (-50.0 ... -30.1 °C)
±0.5 °C (-30.0 ... +99.9 °C)
±1% of value (+100 ... +250 °C)
Resolution:
Response time: 0.1 °C
10 s
Sensor type: Infrared
Measuring range: -30 ... +250 °C
Accuracy: ±1 digit
±2.5 °C (-30.0 ... -20.1 °C )
±2.0 °C (-20.0 ... -0.1 °C )
±1.5 °C or ±1.5 % of value (remaining range)
Resolution:
Measurement rate: 0,1 °C
0,5 s
Optics: 10:1
Spectral range:
Emissivity: 8 ... 14 µm
0.10 … 1.00 (0.01 steps)
Dimensions (W x D x H): 178 x 48 x 21 mm
Dimensions sensor (diam. x l): 3 x 106 mm
Weight:
IP code: 197 g
IP65
Power supply: 2 Micro cells AAA

PN	Manuf. PN	Supplier		PK	Type									General	Price	Quantity	Status	Add
6259214	05601040	Testo SE & CO KGaA		1	testo 104-IR										169.12 EU

Infrared Thermometers DURAC

Bel-Art Products (10317)

Infrared Thermometers DURAC®
Non-contact temperature measurement (°F oder °C) of any liquid, solid, or semi-solid. Operation is simple - turn it on, point at sample, and take reading.

-Includes certificate of calibration and individual serial number
-ISO/IEC 17025:2017
-RoHS compliant
-Incl. batteries

B61200-1200:
Basic, compact, pen style unit with a 1:1 distance to spot ratio (DTS), incl. built-in pocket clip
B61200-1400:
Measures both non-contact and contact temperatures with adjustable emissivity and has an 12:1 DTS. It includes a built-in thermocouple port that can accommodate any type K thermocouple with a mini-connector (thermocouple optional)

PN	Manuf. PN	Supplier		Dimensions~mm	PK	Temp. range~°C	Type							General	Price	Quantity	Status	Add
4674980	B61200-1200	Bel-Art Products		Ø 18 x 68	1	-33 ... 220	B61200-1200								119.41 EU
4674981	B61200-1400	Bel-Art Products		39 x 72 x 175	1	-60 ... 500	B61200-1400								635.74 EU

Infrared thermometers, ProScan 520

LLG (6869)

Infrared thermometers, ProScan 520
-Highest precision due to special glass lens (spot size up to a distance of 14 cm: 1.3 cm constant), measuring time: 0.3 seconds
-Relation measuring distance/spot size 40:1
-Display of current, highest and lowest temperature, hold function, alarm at freely adjustable temperature values (upper/ lower limit)
-With laser sighting, for contact-free measuring of surface temperature
-Adjustable visual and acoustic alarm
-Incl. thermocouple sensor type K, USB interface and Windows software
Accuracy (IR): ±1°C or 1% from +20 ... +530°C
±1.5°C from 0 ... +20°C
±2.5°C from -0,1 ... -20°C
±3.0°C from -20 ... -32°C
Reproducibility: ±0.7°C or 0.5%
Time: 300ms
Spectral sensitivity: 8 to 14µm
Display resolution: 0.1°C (4-digit LCD)
Working temperature range: 0 to 50°C
Power supply: 9 V PP3 battery
Dimensions (L x W x H): 190 x 38 x 45mm
Weight: 500g (incl. packaging)
Dot laser

PN	Manuf. PN		Emissivity	Optical~resolution	PK	Temp. range~max. °C	Type							General	Price	Quantity	Status	Add
9851929	5020-0520		0.100 ... 1.500	40 : 1	1	-32 ... 760	ProScan 520								366.18 EU

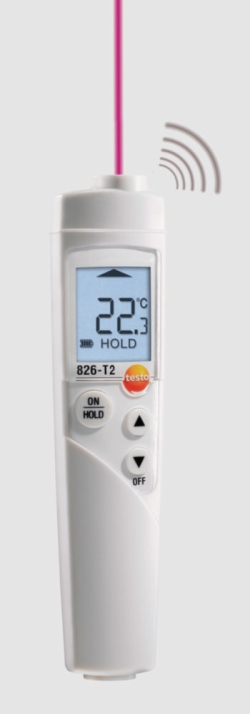

Infrared thermometers, testo 826 series

Testo SE & CO KGaA (4404)

Infrared thermometers, testo 826 series
Use the testo 826-T2 infrared thermometer to measure the temperature of your products and goods pallets in a non-destructive manner, all in a matter of seconds.

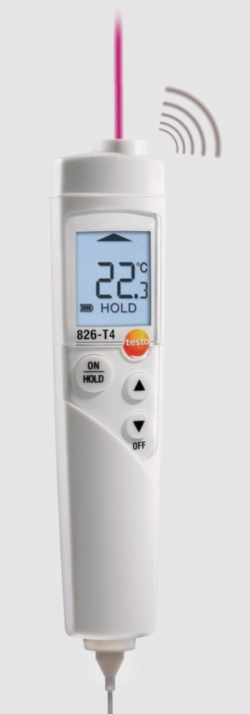

The testo 826-T4 penetration infrared thermometer allows quick temperature scans by means of infrared measurement without damaging the products. If temperature limit values are exceeded, the permanently attached penetration probe can be used to take accurate core temperature measurements.
TopSafe is included in the delivery
Specifictations
Accuracy: ±1.5 °C (-20 to +100 °C)
±2 °C or 2 % of mv (Remaining Range)
Resolution: 0.1 °C
Operating Temperature: -20 to + 50 °C
Storage Temperature: -40 to +70 °C
Weight: 80 g
Power supply: 2 AAA micro batteries

PN	Manuf. PN	Supplier		Measuring range~°C	PK	Type								General	Price	Quantity	Status	Add
6258917	05638282	Testo SE & CO KGaA		-50...300	1	826-T2									136.76 EU
7658446	05638284	Testo SE & CO KGaA		-50...230	1	826-T4									213.24 EU

Infra-red thermometers, testo 830 series

Testo SE & CO KGaA (7098)

Infra-red thermometers, testo 830 series
Testo 830-T2
Infrared thermometer, 2-point laser sighting, 12:1 optics, adjustable limit values, alarm function, connection of external probes, incl. Batteries and factory calibration certificate

Testo 830-T2 Set
Infrared thermometer with protective leather case, incl. cross-band surface probe, Batteries and factory calibration certificate

Testo 830-T4
Infrared thermometer, 2-point laser sighting, 30:1 optic, adjustable limit values, alarm function, connection of external probes, incl. Batteries and factory calibration certificate

Testo 830-T4 Set
Infrared thermometer with protective leather case, incl. cross-band surface probe, battery and factory calibration certificate
Specifications
Accuracy Testo 830-T2: ± 1.5°C or 1.5% of meas. value (+0.1 to +400°C)
± 2°C or ± 2% of meas. value (-30 to 0°C)
Accuracy Testo 830-T4: ±1,5 °C (-20 to 0 °C)
±2 °C (-30 to -20,1 °C)
±1 °C or ±1 % of meas. value (remaining range)
Resolution: 0.1 °C
Operating Temperature: -20 to + 50°C
Storage Temperature: -40 to +70°C
Weight: 200g
Power supply: 9V PP3 battery

PN	Manuf. PN	Supplier	Measuring range~°C	PK	Type	Price
6257191	05638314	Testo SE & CO KGaA	-30 ... 400	1	testo 830-T4 Set	289.71 EU
6257787	05608314	Testo SE & CO KGaA	-30 ... 400	1	testo 830-T4	182.35 EU
9718419	05608312	Testo SE & CO KGaA	-30 ... 400	1	testo 830-T2	119.12 EU
9718420	05638312	Testo SE & CO KGaA	-30 ... 400	1	testo 830-T2 Set	229.41 EU

Infrared-Thermometer Flash III

TFA Dostmann GmbH & Co.KG (4418)

Infrared-Thermometer Flash III
Non-contact temperature measurement via infrared. Response time 1 second. Measuring range -55 ... 250 °C, Accuracy ±2 °C or 2%, incl. CR2032 button cell.

PN	Manuf. PN	Supplier		PK	Type									General	Price	Quantity	Status	Add
9851914	31.1114	TFA Dostmann GmbH & Co.KG		1	Flash III										70.59 EU

Infrared-Thermometer FlashPen

TFA Dostmann GmbH & Co.KG (4630)

Infrared-Thermometer FlashPen
Non-contact temperature measurement via infrared. Response time 1 second. Measuring range -33 to +220 °C, Accuracy ±2 °C or 2%, incl. 2x 2 LR44 battery.

PN	Manuf. PN	Supplier		Dimensions~mm	PK	Type	Weight~g							General	Price	Quantity	Status	Add
6253597	31.1125	TFA Dostmann GmbH & Co.KG		19 x 87 x 15	1	FlashPen	360								50.00 EU

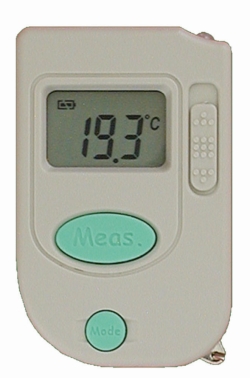

Infrared-thermometers

Amarell Electronic GmbH (5724)

Infrared-thermometers
Favourable measuring instrument for determination of surface temperatures.
Range: -22 to 110°C, Resolution: 0,1°C (-10 to 110 °C)
Accuracy: ±1 °C
Battery: CR2032 3V
Casing: 69 x 44 x 17 mm, Operation Temp.: 0...40°C

PN	Manuf. PN	Supplier		PK	Type									General	Price	Quantity	Status	Add
9235130	E910100	Amarell Electronic GmbH		1	Infrared-thermometers										77.51 EU

Protective leather case for Infra-red thermometer testo 830

Testo SE & CO KGaA (7148)

Protective leather case for Infra-red thermometer testo 830

PN	Manuf. PN	Supplier		Description	PK									General	Price	Quantity	Status	Add
9718409	05168302	Testo SE & CO KGaA		Protective case, incl. belt holder	1										22.06 EU
