Accessories for Overhead stirrer LLG-uni OH2

LLG Labware (8477)

Accessories for Overhead stirrer LLG-uniSTIRRER OH2

PN	Manuf. PN	Supplier	Description	PK	Price
6263453	6263453	LLG Labware	Spare boss head	1	79.71 EU
6263457	6263457	LLG Labware	2-blade propeller stirrer, diam. 60, shaft diam. 8, 400 mm	1	74.71 EU
6263458	6263458	LLG Labware	3-hole paddle stirrer, diam. 67, shaft diam. 8, 400 mm	1	74.71 EU
6263452	6263452	LLG Labware	Replacement power adapter	1	161.91 EU
6263454	6263454	LLG Labware	4-blade propeller stirrer, diam. 50, shaft diam. 8, 400 mm	1	94.41 EU
6263459	6263459	LLG Labware	2-blade centrifugal stirrer, diam. 80, shaft diam. 8, 400 mm	1	74.71 EU

Overhead stirrer LLG-uni OH2, digital

LLG Labware (1764)

Overhead stirrer LLG-uniSTIRRER OH2, digital
Cost-effective laboratory stirrer designed for simple stirring tasks for quantities up to 20 l (H2O). Automatic speed adjustment in the range between 50 and 2200 min-1 via microprocessor-controlled technology. Safety circuits ensure automatic cut-off in an anti-stall or overload situation. Actual and set speed are constantly monitored ensuring no undesired speed variations, even if the sample viscosity changes.

-Brushless, maintenance-free motor
-Digital speed display
-Display for speed or torque changeable
-Infinitely adjustable speed
-Overload protection
-Non-slippery mat
-Slim casing
-Quiet operation
-Error code display
-RS232 port

Stand:
Stainless steel stand incl. boss head, dimension (W x D x H): 200 x 310 x 780 mm, non-slippery mat

Stirrer:
4-blade propeller stirrer, stainless steel, shaft length 400 mm, stirrer diameter 50 mm

Scope of supply: Overhead stirrer LLG-uniSTIRRER OH2, stand, non-slippery mat and 4-blade-propeller stirrer
Specifications
Max. stirring quantity (H2O): 20 l
Speed range: 50 ... 2.200 min-1
Max. viscosity: 10,000 mPas
Motor rating input/output: 60/50 W
Speed display accuracy: ± 3 min-1
Max. torque at stirring shaft: 40 Ncm
Display: LCD
Chuck range: 0.5 ... 10 mm
Dimensions (W x D x H): 83 x 186 x 220 mm
Power supply: 110 ... 240 V, 50/60 Hz
IP code: IP 21
Warranty: 3 years

PN	Manuf. PN	Supplier		PK	Type	Plug type								General	Price	Quantity	Status	Add
6263455	6263455	LLG Labware		1	LLG-uniSTIRRER OH2	EU									1598.09 EU

Diagonal blade stirring rotors, 4-blade, stainless steel 1.4404

Buddeberg GmbH (7070)

Diagonal blade stirring rotors, 4-blade, stainless steel 1.4404

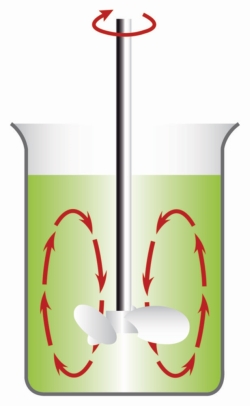

The 4-blade diagonal blade stirring rotor provides axial flow and creates increasing shear forces at higher stirring speeds. Recommended for medium to high speed operations.
Other sizes available on request.

PN	Manuf. PN	Supplier		Length~mm	Ø agitator shaft~mm	Ø agitator~mm	PK							General	Price	Quantity	Status	Add
4662011	40 26446 00796 6	Buddeberg GmbH		550	10	100	1								230.88 EU

Paddles, 4 blade propeller

Apollo Herkenrath GmbH & Co.KG (2089)

Paddles, 4 blade propeller
Stainless steel 1.4301. With screwthread shaft connection as outlined below.

PN	Manuf. PN	Supplier	Blade~mm		PK	Type	Thread~M							General	Price	Quantity	Status	Add
9156179	42-261-001	Apollo Herkenrath GmbH & Co.KG	70		1	90° offset	6								55.45 EU
