Accessories for Overhead stirrer LLG-uni OH2

LLG Labware (8477)

Accessories for Overhead stirrer LLG-uniSTIRRER OH2

PN	Manuf. PN	Supplier		Description	PK									General	Price	Quantity	Status	Add
6263452	6263452	LLG Labware		Replacement power adapter	1										111.76 EU

Overhead stirrer LLG-uni OH2, digital

LLG Labware (1764)

Overhead stirrer LLG-uniSTIRRER OH2, digital
Cost-effective laboratory stirrer designed for simple stirring tasks for quantities up to 20 l (H2O). Automatic speed adjustment in the range between 50 and 2200 min-1 via microprocessor-controlled technology. Safety circuits ensure automatic cut-off in an anti-stall or overload situation. Actual and set speed are constantly monitored ensuring no undesired speed variations, even if the sample viscosity changes.

-Brushless, maintenance-free motor
-Digital speed display
-Display for speed or torque changeable
-Infinitely adjustable speed
-Overload protection
-Non-slippery mat
-Slim casing
-Quiet operation
-Error code display
-RS232 port

Stand:
Stainless steel stand incl. boss head, dimension (W x D x H): 200 x 310 x 780 mm, non-slippery mat

Stirrer:
4-blade propeller stirrer, stainless steel, shaft length 400 mm, stirrer diameter 50 mm

Scope of supply: Overhead stirrer LLG-uniSTIRRER OH2, stand, non-slippery mat and 4-blade-propeller stirrer
Specifications
Max. stirring quantity (H2O): 20 l
Speed range: 50 ... 2.200 min-1
Max. viscosity: 10,000 mPas
Motor rating input/output: 60/50 W
Speed display accuracy: ± 3 min-1
Max. torque at stirring shaft: 40 Ncm
Display: LCD
Chuck range: 0.5 ... 10 mm
Dimensions (W x D x H): 83 x 186 x 220 mm
Power supply: 110 ... 240 V, 50/60 Hz
IP code: IP 21
Warranty: 3 years

PN	Manuf. PN	Supplier	PK	Type	LC	Price
6263453	6263453	LLG Labware	1	Spare boss head	1	58.82 EU
6263455	6263455	LLG Labware	1	LLG-uniSTIRRER OH2	EU	1285.73 EU
6263456	6263456	LLG Labware	1	LLG-uniSTIRRER OH2	UK	1198.53 EU
6263457	6263457	LLG Labware	1	2-blade propeller stirrer, diam. 60, shaft diam. 8, 400 mm	1	57.52 EU
6263454	6263454	LLG Labware	1	4-blade propeller stirrer, diam. 50, shaft diam. 8, 400 mm	1	57.52 EU
6263458	6263458	LLG Labware	1	3-hole paddle stirrer, diam. 67, shaft diam. 8, 400 mm	1	57.52 EU
6263459	6263459	LLG Labware	1	2-blade centrifugal stirrer, diam. 80, shaft diam. 8, 400 mm	1	57.52 EU

Propeller, 3 blades, PTFE

Bohlender GmbH (1228)

Propeller, 3 blades, PTFE
The stirrer shafts consist of a PTFE-jacketed, stainless steel shaft and a stirrer paddle made of solid PTFE. The stainless steel core assures stability of the stirrer shaft and allows safe attachment of the stirrer chuck. Thanks to the thick PTFE coat and the paddle made of solid PTFE, the medium will only come into contact with PTFE. High chemical resistance makes it almost universally suitable. PTFE is extremely nonstick so that residues are repelled from shaft and paddle. The stirrer shafts are similar in size to (KPG) glass stirring rods and are therefore interchangeable easily.

Operating temperature: -200°C to +250°C

Additional sizes and accessories are available on request.
Information on the mixing effects of the different stirring geometries can be found in the descriptions of the stainless steel stirring rotors.
The blades are inclined at 45 °. Recommended for medium to high speed operations.

PN	Manuf. PN	Supplier	Blades	Length~mm	Ø agitator shaft~mm	Ø agitator~mm	PK	To fit chuck diam.~mm	Price
9197138	C 378-08	Bohlender GmbH	round	450	6	50	1	4.0	202.21 EU
6227769	C 392-58	Bohlender GmbH	round	800	16	200	1	14.0	869.12 EU
6237642	C 378-06	Bohlender GmbH	round	350	6	50	1	4.0	182.21 EU
6244067	C 392-46	Bohlender GmbH	round	1000	16	14	1	14.0	529.26 EU
6253444	C 392-28	Bohlender GmbH	round	450	10	140	1	8.0	455.73 EU
6253926	C 392-70	Bohlender GmbH	round	1200	16	200	1	14.0	902.49 EU
6283142	C 392-74	Bohlender GmbH	round	1600	16	200	1	14.0	712.80 EU
6284332	C 378-17	Bohlender GmbH	angular	450	10	50	1	8.0	248.98 EU
6307564	C 378-04	Bohlender GmbH	round	250	6	50	1	4.0	247.35 EU
7638652	C 392-42	Bohlender GmbH	round	1200	10	140	1	8.0	487.21 EU
9197130	C 378-12	Bohlender GmbH	angular	350	8	75	1	6.5	268.09 EU
9197140	C 378-18	Bohlender GmbH	angular	450	10	75	1	8.0	291.47 EU
9197149	C 378-22	Bohlender GmbH	angular	800	10	75	1	8.0	286.04 EU
9197194	C 392-34	Bohlender GmbH	round	600	10	140	1	8.0	459.85 EU
9197195	C 392-40	Bohlender GmbH	round	800	10	140	1	8.0	455.15 EU

Turbine stirring rotors, 3-blade with guide ring, stainless steel 1.4305

LLG (7072)

Turbine stirring rotors, 3-blade with guide ring, stainless steel 1.4305

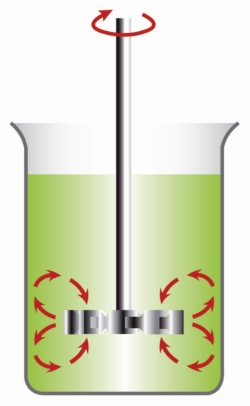

The 3-blade turbine stirring rotor produces axial flow; the guide ring surrounding the blades reduces shear forces, and offers protection when contacting the wall or bottom of the vessel. Recommended for medium to high speed operations.

PN	Manuf. PN	Length~mm	Ø agitator shaft~mm	Ø agitator~mm	PK	Price
9197030	0002332900	350	8	30	1	272.06 EU
9197031	0002333000	350	8	50	1	347.06 EU
9197032	0002333100	400	10	70	1	423.53 EU

Paddles, 3 blade propeller.

LLG (2107)

Paddles, 3 blade propeller.
Stainless steel 1.4301. With screwthread fitting as outlined below.

PN	Manuf. PN	Blade~mm		PK	Thread~M									General	Price	Quantity	Status	Add
9156170	42-101-001	50		1	6										58.53 EU

Propeller stirring rotors, 3-blade, stainless steel 1.4305

LLG (7071)

Propeller stirring rotors, 3-blade, stainless steel 1.4305

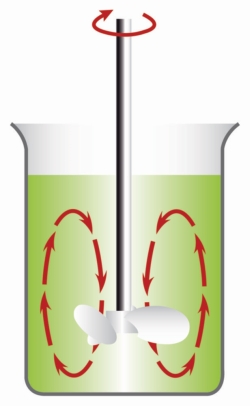

The 3-blade propellers produce axial flow, and reduce shear forces to a minimum, even at high stirring speeds, thanks to their optimised blade design. Recommended for medium to high speed operations.
Other sizes available on request.

PN	Manuf. PN	Length~mm	Ø agitator shaft~mm	Ø agitator~mm	PK	Type	Price
9197021	0001296000	350	8	45	1	R 1381	402.94 EU
9197022	0001295900	350	8	55	1	R 1382	420.59 EU
9197023	0000477700	550	10	140	1	R 1385	402.94 EU
9197024	0000477800	800	10	140	1	R 1388	482.35 EU
